Rupture 2460215
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 762.5 | 8 | 119 | 13 | 10,462.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 3.4 | 5.2 | 1 | 12.3 | -15.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 200 | 5 | 715.5 | 6.5847066E-9 |
Text representation:
[622:3455,3454][40:364,363,362,361][39:360,359,358,357,356,355,354,353,352,351,350,349,348,347][46:415,414][150:949,950,951,952,953,954,955,956,957,958,959,960][19:150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165][18:149,148,147,146,145,144,143,142,141,140,139,138,137,136,135,134,133,132,131,130,129,128,127,126,125,124,123,122,121,120,119][17:118,117,116,115,114,113,112,111,110,109,108,107,106,105,104,103,102,101,100,99][16:96,97,98][14:92,91,90,89][13:88,87,86,85][21:169,168][22:170,171,172,173,174]

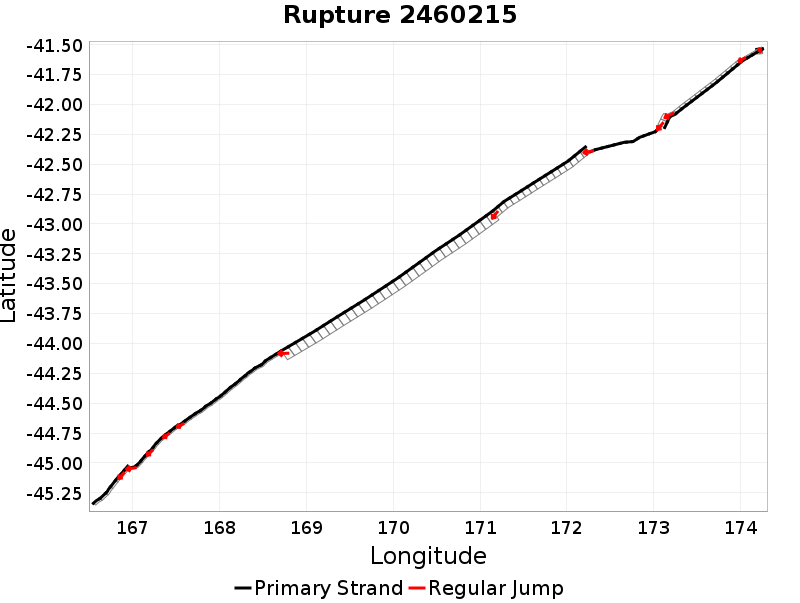

Fault section list. First section listed is North East relative to the last section.
- Vernon 3
- 3455, 3454 (jump to 364, 0km)
- Awatere: Northeast 2
- 364, 363, 362, 361 (jump to 360, 0km)
- Awatere: Northeast 1
- 360, 359, 358, 357, 356, 355, 354, 353, 352, 351, 350, 349, 348, 347 (jump to 415, 0km)
- Barefell
- 415, 414 (jump to 949, 1.2km)
- Fowlers
- 949, 950, 951, 952, 953, 954, 955, 956, 957, 958, 959, 960 (jump to 150, 0.7km)
- Alpine: Kaniere to Springs Junction
- 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 163, 164, 165 (jump to 149, 0km)
- Alpine: Jacksons to Kaniere
- 149, 148, 147, 146, 145, 144, 143, 142, 141, 140, 139, 138, 137, 136, 135, 134, 133, 132, 131, 130, 129, 128, 127, 126, 125, 124, 123, 122, 121, 120, 119 (jump to 118, 0km)
- Alpine: George to Jacksons
- 118, 117, 116, 115, 114, 113, 112, 111, 110, 109, 108, 107, 106, 105, 104, 103, 102, 101, 100, 99 (jump to 96, 0km)
- Alpine: George seaward
- 96, 97, 98 (jump to 92, 0km)
- Alpine: Caswell - South George
- 92, 91, 90, 89 (jump to 88, 0km)
- Alpine: Caswell
- 88, 87, 86, 85 (jump to 169, 3.4km)
- Alpine: Resolution - Charles
- 169, 168 (jump to 170, 0km)
- Alpine: Resolution - Dagg
- 170, 171, 172, 173, 174
