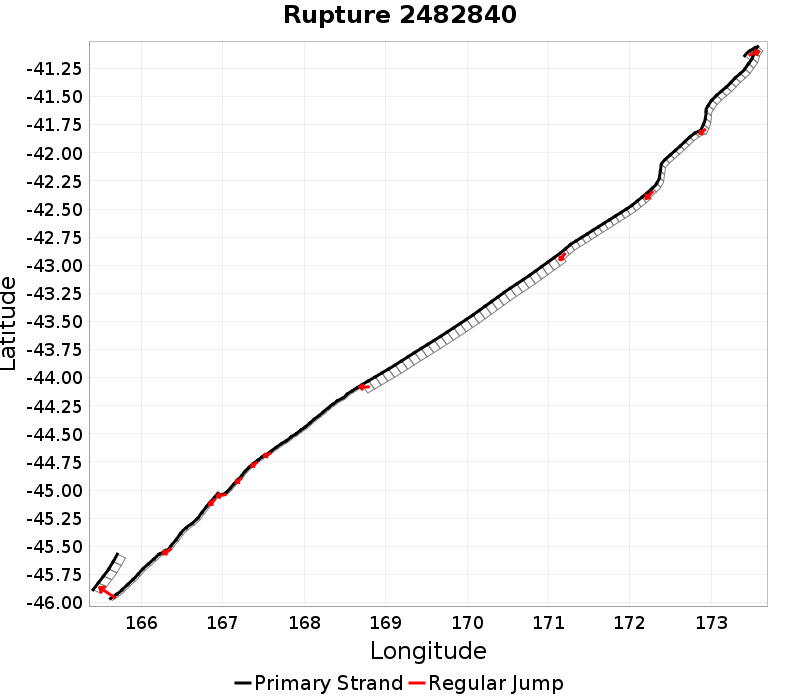

Rupture 2482840
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 911.9 | 8.1 | 135 | 13 | 13,062.8 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 12.4 | 18.1 | 1.1 | 64.5 | -19.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 230 | 3 | 1,101.7 | 3.8508026E-7 |
Text representation:
[641:3547,3546][690:3811,3812,3813,3814,3815,3816,3817,3818,3819,3820,3821,3822,3823,3824,3825,3826][24:202,201,200,199,198,197,196,195,194,193,192,191,190][19:150,151,152,153,154,155,156,157,158,159,160,161,162,163,164,165][18:149,148,147,146,145,144,143,142,141,140,139,138,137,136,135,134,133,132,131,130,129,128,127,126,125,124,123,122,121,120,119][17:118,117,116,115,114,113,112,111,110,109,108,107,106,105,104,103,102,101,100,99][16:96,97,98][14:92,91,90,89][13:88,87,86,85][21:169,168][22:170,171,172,173,174,175,176,177,178][23:189,188,187,186,185,184,183,182,181,180][78:593,594,595,596,597]
Fault section list. First section listed is North East relative to the last section.
- Waimea Offshore
- 3547, 3546 (jump to 3811, 1.4km)
- Whangamoa
- 3811, 3812, 3813, 3814, 3815, 3816, 3817, 3818, 3819, 3820, 3821, 3822, 3823, 3824, 3825, 3826 (jump to 202, 0km)
- Alpine: Springs Junction to Tophouse
- 202, 201, 200, 199, 198, 197, 196, 195, 194, 193, 192, 191, 190 (jump to 150, 0km)
- Alpine: Kaniere to Springs Junction
- 150, 151, 152, 153, 154, 155, 156, 157, 158, 159, 160, 161, 162, 163, 164, 165 (jump to 149, 0km)
- Alpine: Jacksons to Kaniere
- 149, 148, 147, 146, 145, 144, 143, 142, 141, 140, 139, 138, 137, 136, 135, 134, 133, 132, 131, 130, 129, 128, 127, 126, 125, 124, 123, 122, 121, 120, 119 (jump to 118, 0km)
- Alpine: George to Jacksons
- 118, 117, 116, 115, 114, 113, 112, 111, 110, 109, 108, 107, 106, 105, 104, 103, 102, 101, 100, 99 (jump to 96, 0km)
- Alpine: George seaward
- 96, 97, 98 (jump to 92, 0km)
- Alpine: Caswell - South George
- 92, 91, 90, 89 (jump to 88, 0km)
- Alpine: Caswell
- 88, 87, 86, 85 (jump to 169, 3.4km)
- Alpine: Resolution - Charles
- 169, 168 (jump to 170, 0km)
- Alpine: Resolution - Dagg
- 170, 171, 172, 173, 174, 175, 176, 177, 178 (jump to 189, 0.9km)
- Alpine: Resolution - Five Fingers
- 189, 188, 187, 186, 185, 184, 183, 182, 181, 180 (jump to 593, 12.4km)
- Caswell High 1
- 593, 594, 595, 596, 597
