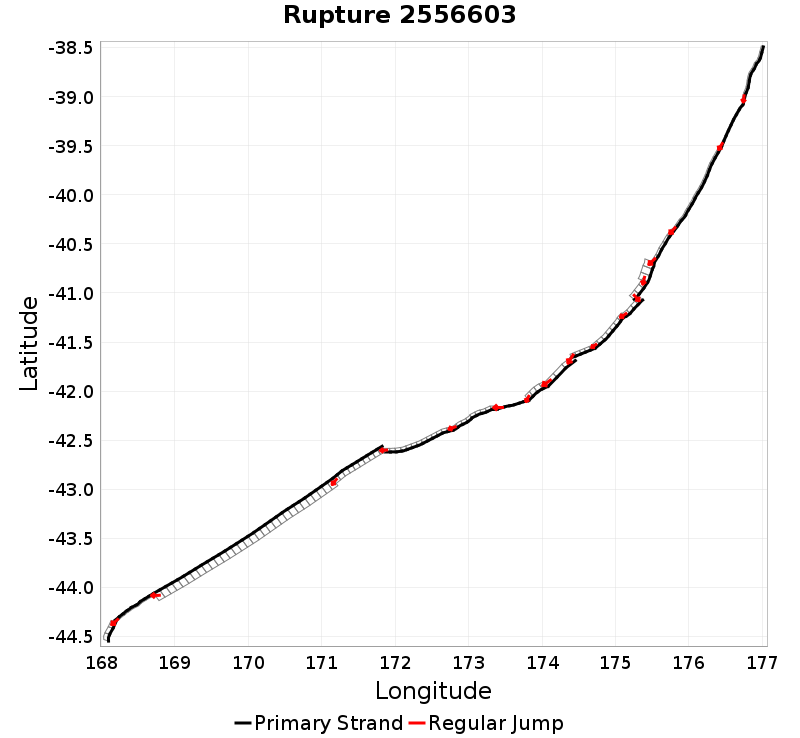

Rupture 2556603
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 1,052.1 | 8.2 | 148 | 18 | 16,800.5 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.3 | 15.8 | 1 | 49.6 | -15 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 350 | 10 | 1,006.9 | 4.642996E-16 |
Text representation:
[688:3806,3805,3804,3803,3802,3801,3800,3799,3798][337:1943,1942,1941,1940,1939,1938,1937,1936,1935][338:1958,1957,1956,1955,1954,1953,1952,1951,1950,1949,1948,1947,1946,1945,1944][678:3743,3744,3745,3746,3747][681:3753,3754,3755][680:3750,3751,3752][651:3619,3618,3617,3616][650:3615,3614,3613,3612,3611,3610,3609][653:3626,3627,3628,3629,3630][367:2094,2095,2096][249:1428,1429,1430,1431][143:902,903,904,905,906,907][94:681,680,679,678,677,676,675,674,673][96:691,692,693,694,695,696,697,698,699,700,701,702,703][19:156,157,158,159,160,161,162,163,164,165][18:149,148,147,146,145,144,143,142,141,140,139,138,137,136,135,134,133,132,131,130,129,128,127,126,125,124,123,122,121,120,119][17:118,117,116,115,114,113,112,111,110][547:3096,3095,3094]
Fault section list. First section listed is North East relative to the last section.
- Whakatane: South
- 3806, 3805, 3804, 3803, 3802, 3801, 3800, 3799, 3798 (jump to 1943, 0km)
- Mohaka: North
- 1943, 1942, 1941, 1940, 1939, 1938, 1937, 1936, 1935 (jump to 1958, 0km)
- Mohaka: South
- 1958, 1957, 1956, 1955, 1954, 1953, 1952, 1951, 1950, 1949, 1948, 1947, 1946, 1945, 1944 (jump to 3743, 0km)
- Wellington: Pahiatua
- 3743, 3744, 3745, 3746, 3747 (jump to 3753, 0km)
- Wellington: Tararua 3
- 3753, 3754, 3755 (jump to 3750, 0km)
- Wellington: Tararua 2
- 3750, 3751, 3752 (jump to 3619, 6.3km)
- Wairarapa: 2
- 3619, 3618, 3617, 3616 (jump to 3615, 0km)
- Wairarapa: 1
- 3615, 3614, 3613, 3612, 3611, 3610, 3609 (jump to 3626, 0km)
- Wairarapa: Needles
- 3626, 3627, 3628, 3629, 3630 (jump to 2094, 4.6km)
- Needles
- 2094, 2095, 2096 (jump to 1428, 0km)
- Kekerengu 1
- 1428, 1429, 1430, 1431 (jump to 902, 0km)
- Fidget
- 902, 903, 904, 905, 906, 907 (jump to 681, 3.2km)
- Clarence: Central
- 681, 680, 679, 678, 677, 676, 675, 674, 673 (jump to 691, 0km)
- Clarence: Southwest
- 691, 692, 693, 694, 695, 696, 697, 698, 699, 700, 701, 702, 703 (jump to 156, 0.5km)
- Alpine: Kaniere to Springs Junction
- 156, 157, 158, 159, 160, 161, 162, 163, 164, 165 (jump to 149, 0km)
- Alpine: Jacksons to Kaniere
- 149, 148, 147, 146, 145, 144, 143, 142, 141, 140, 139, 138, 137, 136, 135, 134, 133, 132, 131, 130, 129, 128, 127, 126, 125, 124, 123, 122, 121, 120, 119 (jump to 118, 0km)
- Alpine: George to Jacksons
- 118, 117, 116, 115, 114, 113, 112, 111, 110 (jump to 3096, 1.1km)
- Skippers
- 3096, 3095, 3094
