Rupture 2590287
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 239.4 | 7.6 | 30 | 8 | 4,589.2 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 6.1 | 20.2 | 1.1 | 26.2 | -30.3 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 360 | 5 | 443.3 | 7.746985E-9 |
Text representation:
[703:3893,3892,3891][678:3743,3744,3745,3746,3747][681:3753,3754,3755][680:3750,3751,3752][677:3741,3742][693:3840,3839,3838,3837,3836][653:3626,3627,3628,3629][61:495,494,493,492,491]

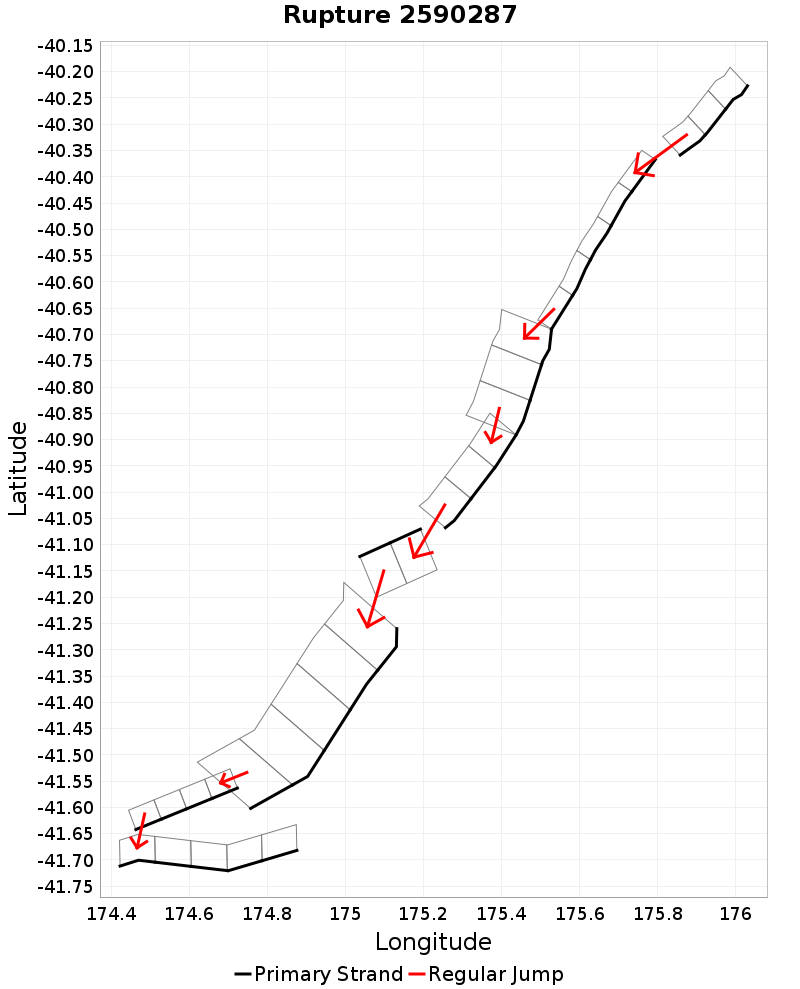

Fault section list. First section listed is North East relative to the last section.
- Woodville
- 3893, 3892, 3891 (jump to 3743, 5.1km)
- Wellington: Pahiatua
- 3743, 3744, 3745, 3746, 3747 (jump to 3753, 0km)
- Wellington: Tararua 3
- 3753, 3754, 3755 (jump to 3750, 0km)
- Wellington: Tararua 2
- 3750, 3751, 3752 (jump to 3741, 4.6km)
- Wellington Hutt Valley: 5
- 3741, 3742 (jump to 3840, 4km)
- Wharekauhau
- 3840, 3839, 3838, 3837, 3836 (jump to 3626, 0.4km)
- Wairarapa: Needles
- 3626, 3627, 3628, 3629 (jump to 495, 6.1km)
- BooBoo
- 495, 494, 493, 492, 491
