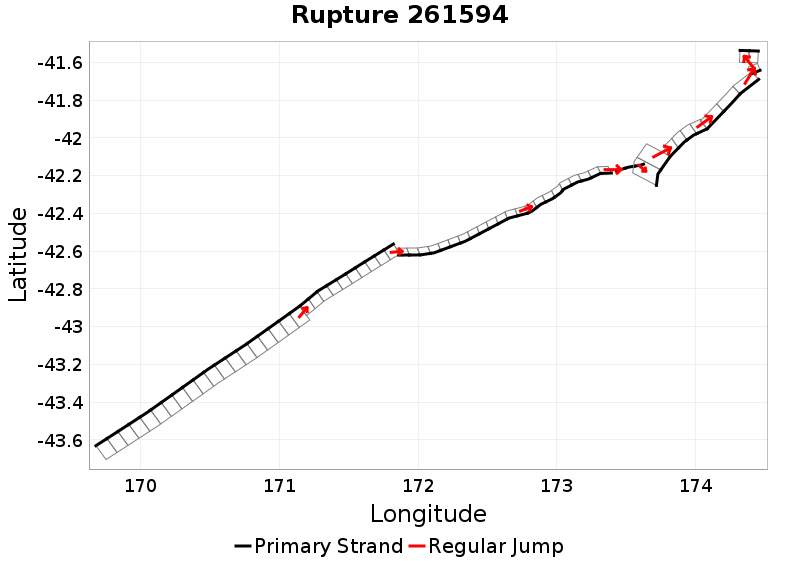

Rupture 261594
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 471.2 | 7.8 | 66 | 10 | 7,644.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.6 | 8.9 | 1 | 16.5 | -20 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 280 | 4 | 692.7 | 2.1452246E-7 |
Text representation:
[18:131,132,133,134,135,136,137,138,139,140,141,142,143,144,145,146,147,148,149][19:165,164,163,162,161,160,159,158,157,156][96:703,702,701,700,699,698,697,696,695,694,693,692,691][94:673,674,675,676,677,678,679,680,681][143:907,906,905][227:1335,1336][249:1431,1430,1429,1428][367:2096,2095,2094][653:3630][623:3457,3456]
Fault section list. First section listed is South West relative to the last section.
- Alpine: Jacksons to Kaniere
- 131, 132, 133, 134, 135, 136, 137, 138, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149 (jump to 165, 0km)
- Alpine: Kaniere to Springs Junction
- 165, 164, 163, 162, 161, 160, 159, 158, 157, 156 (jump to 703, 0.5km)
- Clarence: Southwest
- 703, 702, 701, 700, 699, 698, 697, 696, 695, 694, 693, 692, 691 (jump to 673, 0km)
- Clarence: Central
- 673, 674, 675, 676, 677, 678, 679, 680, 681 (jump to 907, 3.2km)
- Fidget
- 907, 906, 905 (jump to 1335, 0.2km)
- Jordan
- 1335, 1336 (jump to 1431, 0km)
- Kekerengu 1
- 1431, 1430, 1429, 1428 (jump to 2096, 0km)
- Needles
- 2096, 2095, 2094 (jump to 3630, 4.6km)
- Wairarapa: Needles
- 3630 (jump to 3457, 0.4km)
- Vernon 4
- 3457, 3456
