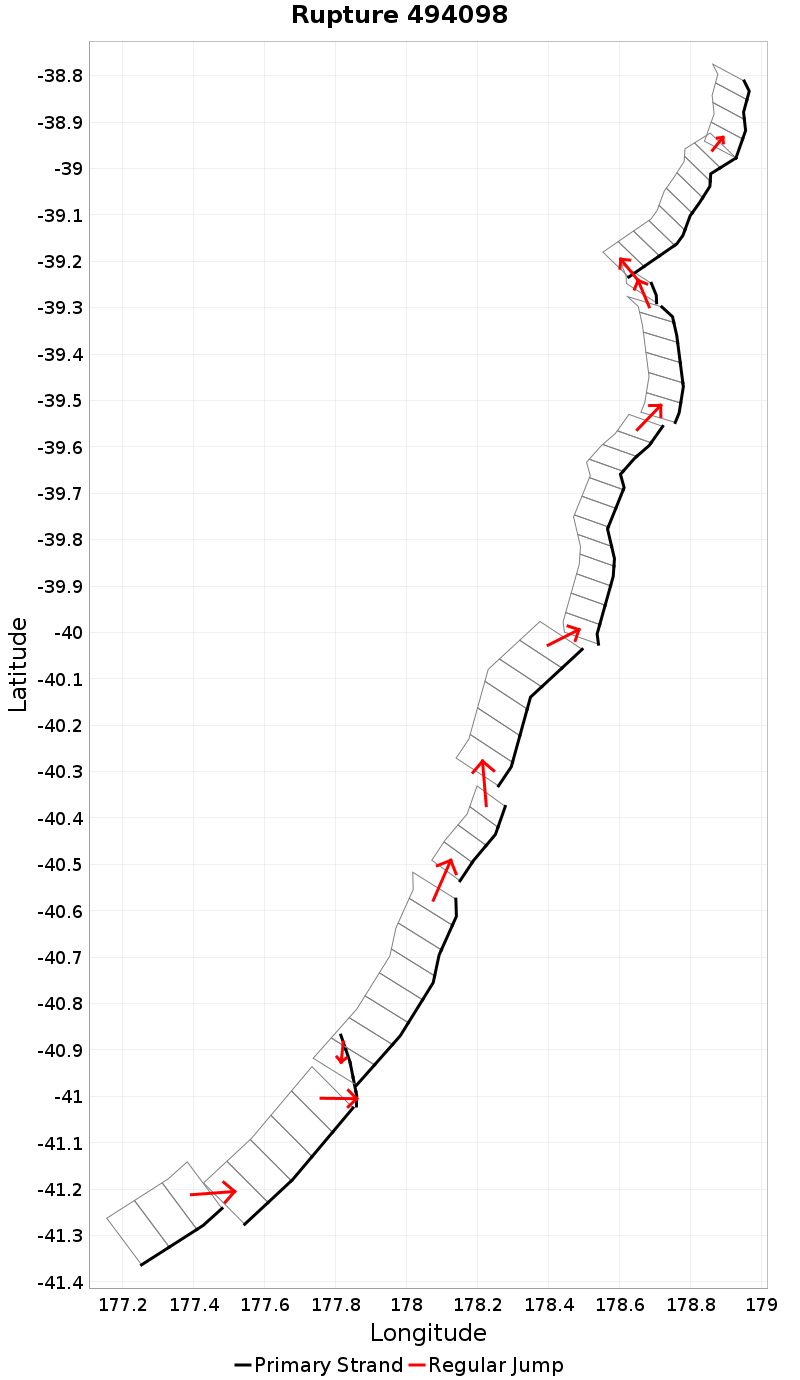

Rupture 494098
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 342.8 | 7.5 | 63 | 11 | 4,127.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 4.3 | 20 | 1.1 | 24.5 | -91.8 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 180 | 2 | 1,235.7 | 5.268045E-8 |
Text representation:
[26:219,218,217][137:866,865,864,863,862][43:402,403,404,405,406][135:858,857,856,855,854,853,852,851][134:850,849,848,847][5:22,21,20,19,18,17][529:2962,2961,2960,2959,2958,2957,2956,2955,2954,2953,2952,2951][451:2505,2506,2507,2508,2509,2510][685:3785][525:2925,2924,2923,2922,2921,2920,2919,2918,2917][485:2728,2729,2730,2731]
Fault section list. First section listed is South West relative to the last section.
- Aorangi Ridge
- 219, 218, 217 (jump to 866, 3.2km)
- F16 - South
- 866, 865, 864, 863, 862 (jump to 402, 0.9km)
- BKSmt-West
- 402, 403, 404, 405, 406 (jump to 858, 0.3km)
- F16 - Central
- 858, 857, 856, 855, 854, 853, 852, 851 (jump to 850, 4.3km)
- F14 - North
- 850, 849, 848, 847 (jump to 22, 4.1km)
- Akitio Ridge
- 22, 21, 20, 19, 18, 17 (jump to 2962, 1.8km)
- Rock Garden - Ritchie East 1
- 2962, 2961, 2960, 2959, 2958, 2957, 2956, 2955, 2954, 2953, 2952, 2951 (jump to 2505, 2km)
- Pakupaku Ridge
- 2505, 2506, 2507, 2508, 2509, 2510 (jump to 3785, 1km)
- Whaiti Ridge
- 3785 (jump to 2925, 2.3km)
- Riwha
- 2925, 2924, 2923, 2922, 2921, 2920, 2919, 2918, 2917 (jump to 2728, 0km)
- Puke Ridge
- 2728, 2729, 2730, 2731
