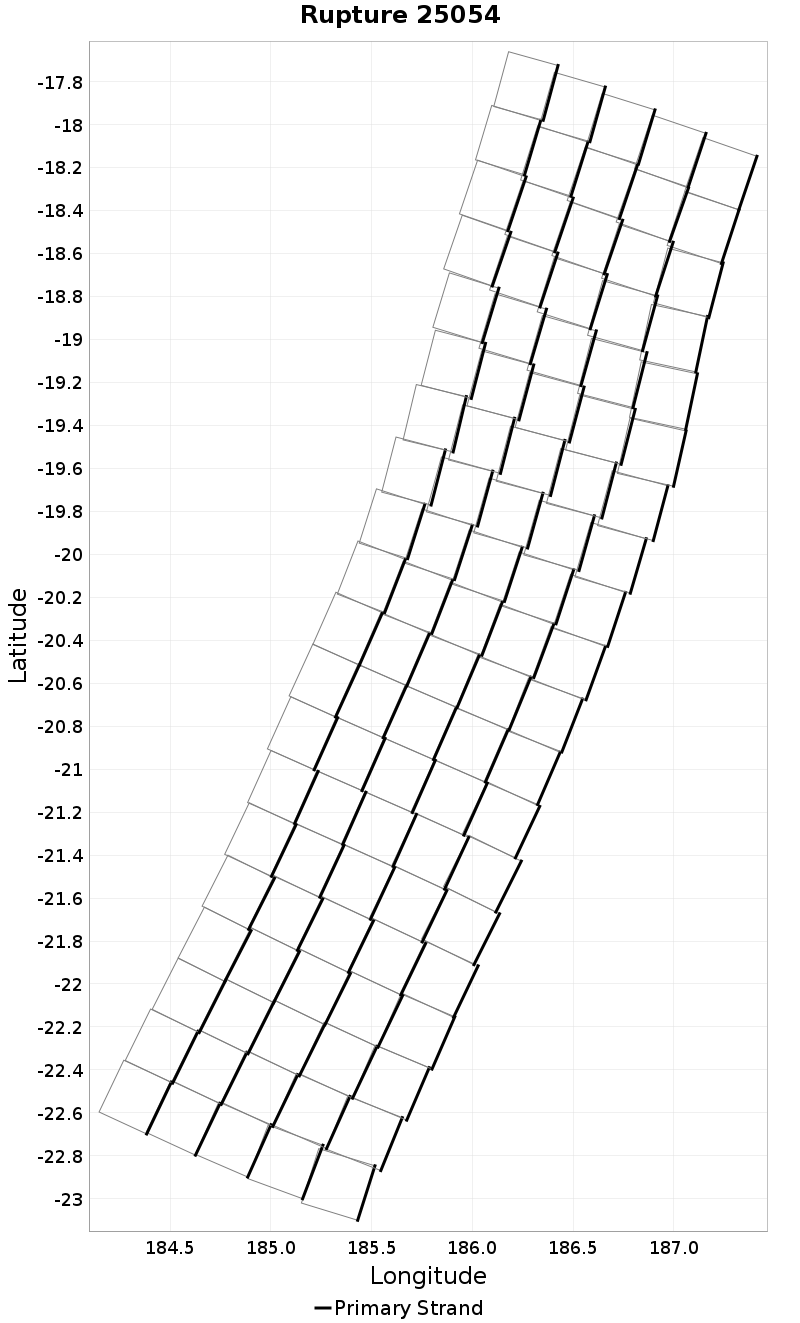

Rupture 25054
| Length (km) | Magnitude | # Subsections | # Clusters | Area (km^2) |
|---|---|---|---|---|
| 587.7 | 8.7 | 100 | 1 | 88,311.1 |
| Maximum Jump Distance (km) | Cumulative Jump Distance (km) | Ideal Length Ratio | Ideal Length Difference | Rake (degrees) |
| 0.0 | 0.0 | 0.9687664 | -18.9 | 0.0 |
| Cumulative Rake Change (degrees) | # Mechanism Changes | Cumulative Azimuth Change (degrees) | BS '16-'17 Prob | |
| 0.0 | 0.0 | 1,595.1 | 1 |
Text representation:
[10000:439,444,449,454,459,464,469,474,479,484,489,494,499,504,509,514,519,524,529,534,440,445,450,455,460,465,470,475,480,485,490,495,500,505,510,515,520,525,530,535,441,446,451,456,461,466,471,476,481,486,491,496,501,506,511,516,521,526,531,536,442,447,452,457,462,467,472,477,482,487,492,497,502,507,512,517,522,527,532,537,443,448,453,458,463,468,473,478,483,488,493,498,503,508,513,518,523,528,533,538]
Fault section list. First section listed is South West relative to the last section.
- Hikurangi,Kermadec 30km
- 439, 444, 449, 454, 459, 464, 469, 474, 479, 484, 489, 494, 499, 504, 509, 514, 519, 524, 529, 534, 440, 445, 450, 455, 460, 465, 470, 475, 480, 485, 490, 495, 500, 505, 510, 515, 520, 525, 530, 535, 441, 446, 451, 456, 461, 466, 471, 476, 481, 486, 491, 496, 501, 506, 511, 516, 521, 526, 531, 536, 442, 447, 452, 457, 462, 467, 472, 477, 482, 487, 492, 497, 502, 507, 512, 517, 522, 527, 532, 537, 443, 448, 453, 458, 463, 468, 473, 478, 483, 488, 493, 498, 503, 508, 513, 518, 523, 528, 533, 538
