Alpine: George to Jacksons Details
| Property | Value |
|---|---|
| Rupture Count | 138,360 |
| Ruptures Above Sect Min Mag | 138,351 |
| Ruptures w/ Nonzero Rates | 264 |
| Magnitude Range | [6.90, 8.64] |
| Length Range | [19, 1,156] km |
| Total Rate | 0.0029705125 /yr |
| Multi-Fault Rate | 0.0028559938 /yr (96.14%) |
| Directly-Connected Faults | 9 |
| All Co-Rupturing Faults | 89 |
Table Of Contents

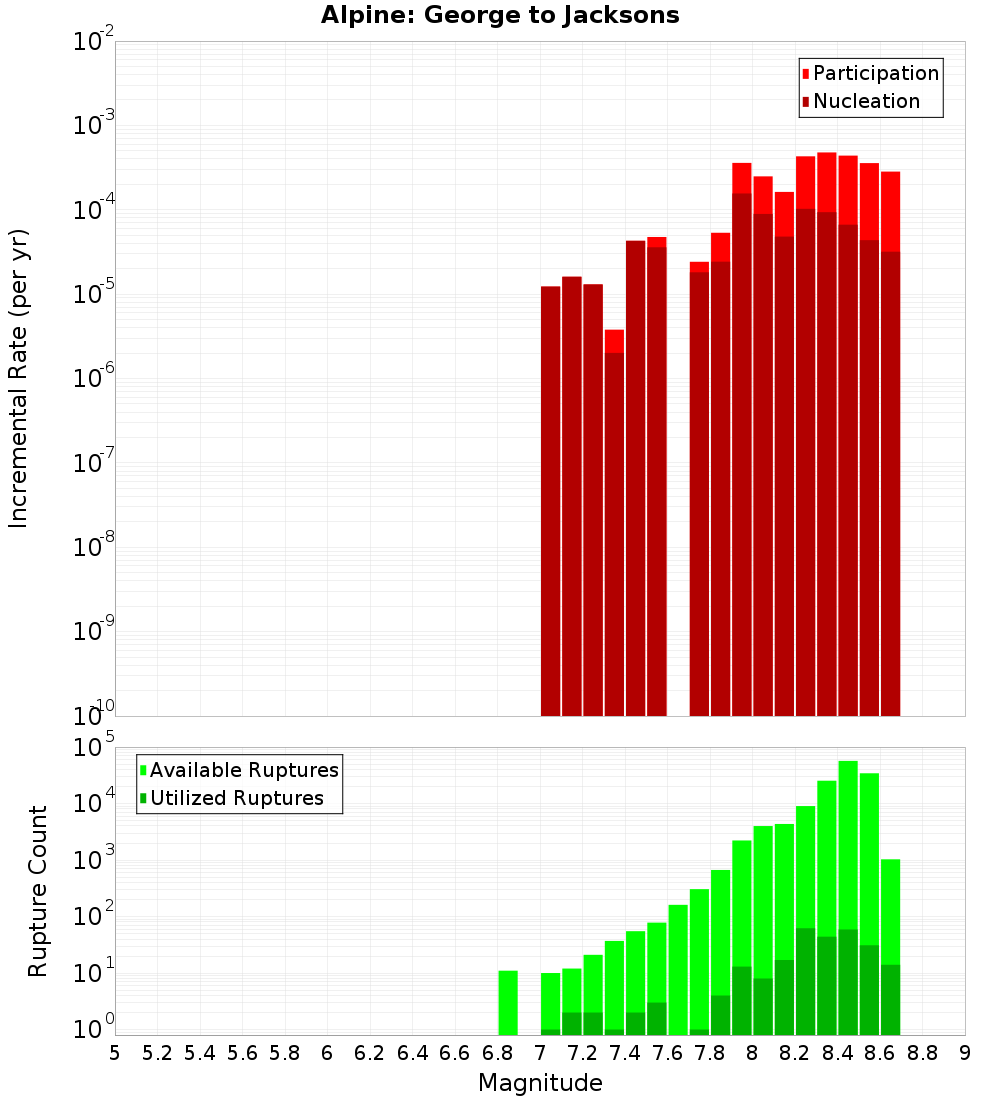

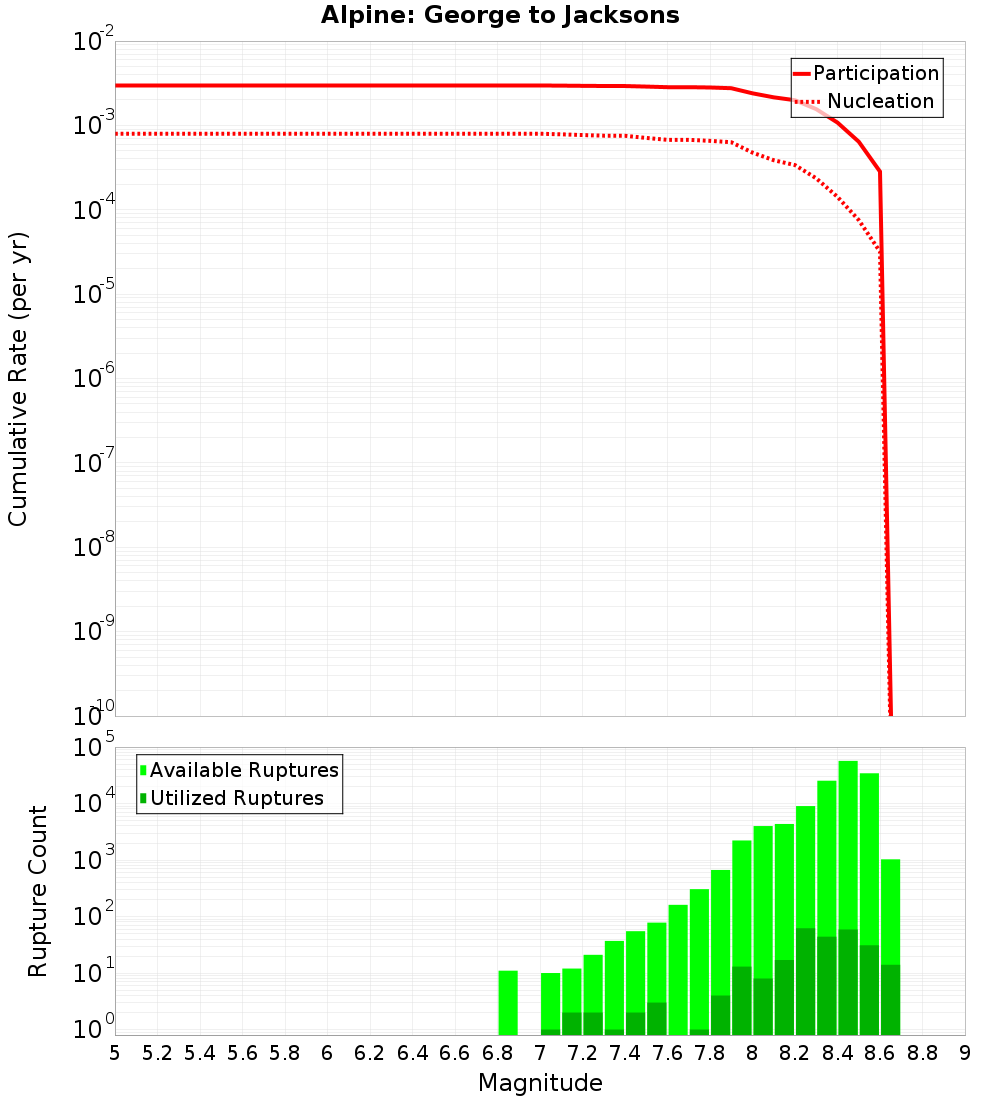

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

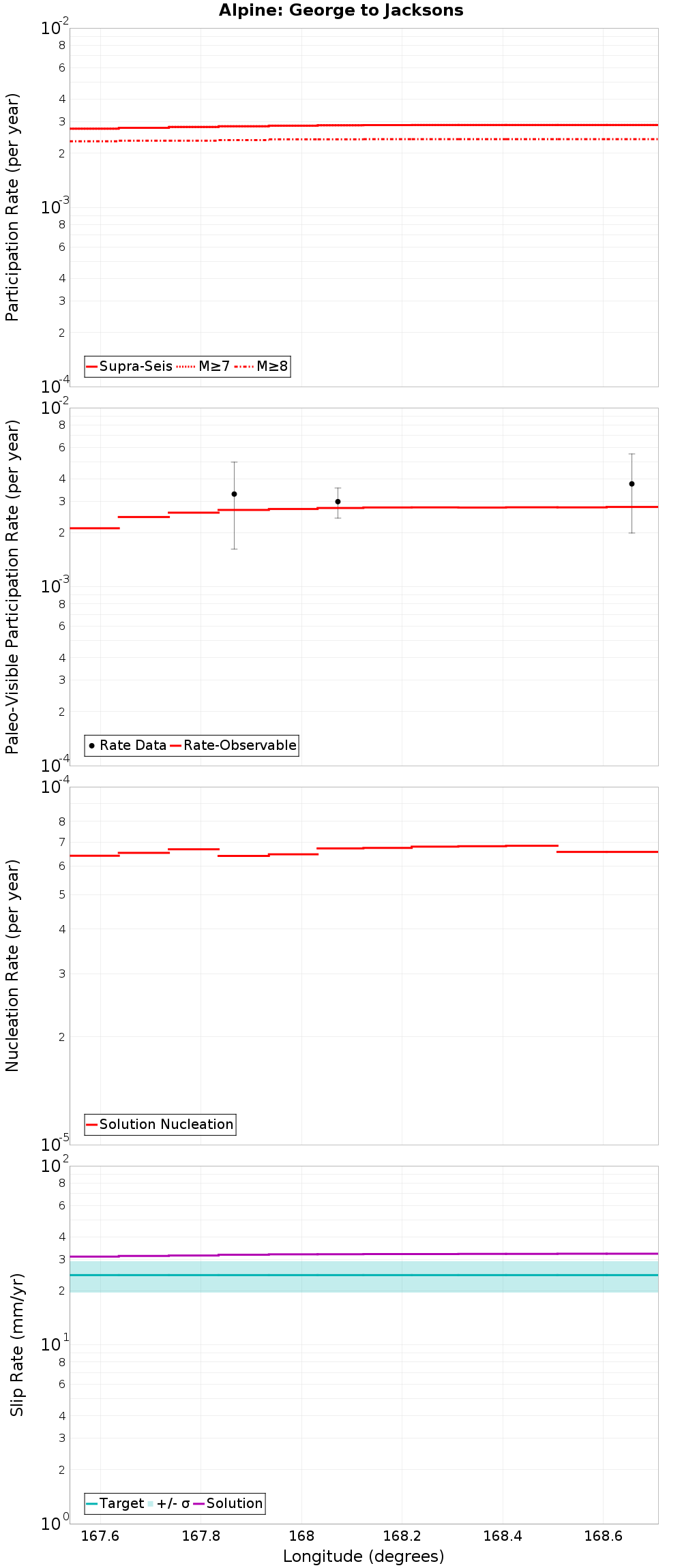

Along-Strike Values
Moment-Rates and b-Values

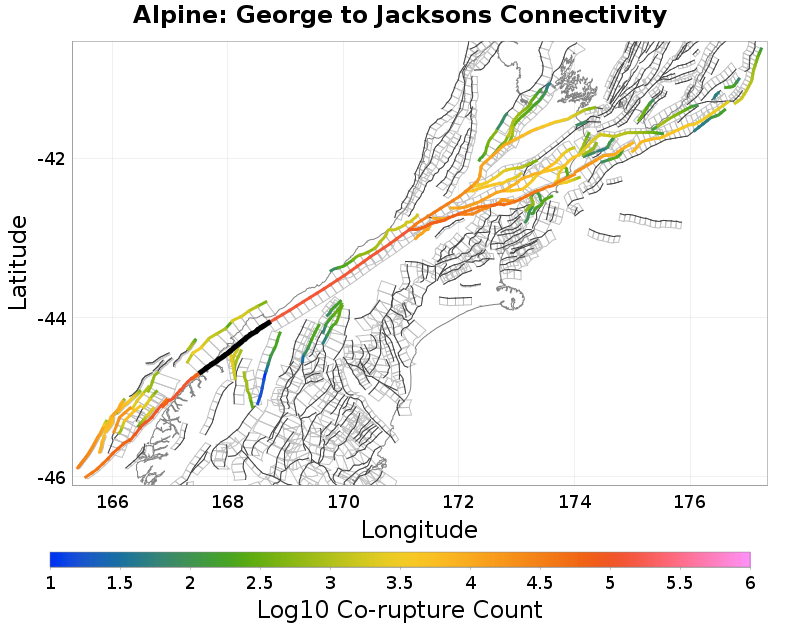

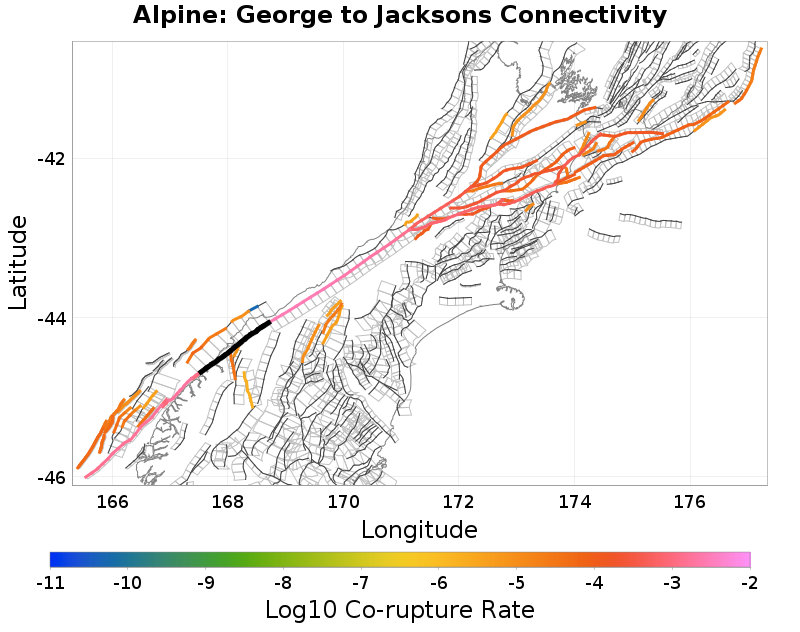

Connectivity
 |  |
|---|
Nearby Sections
Alpine: George seaward, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 65,293 |
| Co-rupture Rate | 0.0012545971 |
Alpine: Jacksons to Kaniere, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 130,768 |
| Co-rupture Rate | 0.0028559938 |
Alpine: George landward, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 54,046 |
| Co-rupture Rate | 6.2402984E-4 |
Darran, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.14 km |
| Min Rate-Weighted Dist | 0.14 km |
| Co-rupture Count | 2,442 |
| Co-rupture Rate | 3.8829363E-5 |
Skippers, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Min Rate-Weighted Dist | 0.32 km |
| Co-rupture Count | 1,750 |
| Co-rupture Rate | 7.130079E-6 |
Hollyford, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.73 km |
| Co-rupture Count | 817 |
| Co-rupture Rate | 0.0 |
Madagascar, 0.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.81 km |
| Min Rate-Weighted Dist | 2.84 km |
| Co-rupture Count | 3,136 |
| Co-rupture Rate | 6.82249E-5 |
Barn, 3.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.58 km |
| Co-rupture Count | 1,935 |
| Co-rupture Rate | 1.003025E-5 |
Moonlight North, 8.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.52 km |
| Co-rupture Count | 206 |
| Co-rupture Rate | 0.0 |
Alpine: Caswell - South George, 15.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 116,370 |
| Co-rupture Rate | 0.0018642728 |
Livingstone, 18.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
