Caswell High 1 Details

Property	Value
Rupture Count	40,491
Ruptures Above Sect Min Mag	39,439
Ruptures w/ Nonzero Rates	39
Magnitude Range	[5.78, 8.61]
Length Range	[5, 1,009] km
Total Rate	1.20695324E-4 /yr
Multi-Fault Rate	1.20695324E-4 /yr (100.00%)
Directly-Connected Faults	5
All Co-Rupturing Faults	53

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

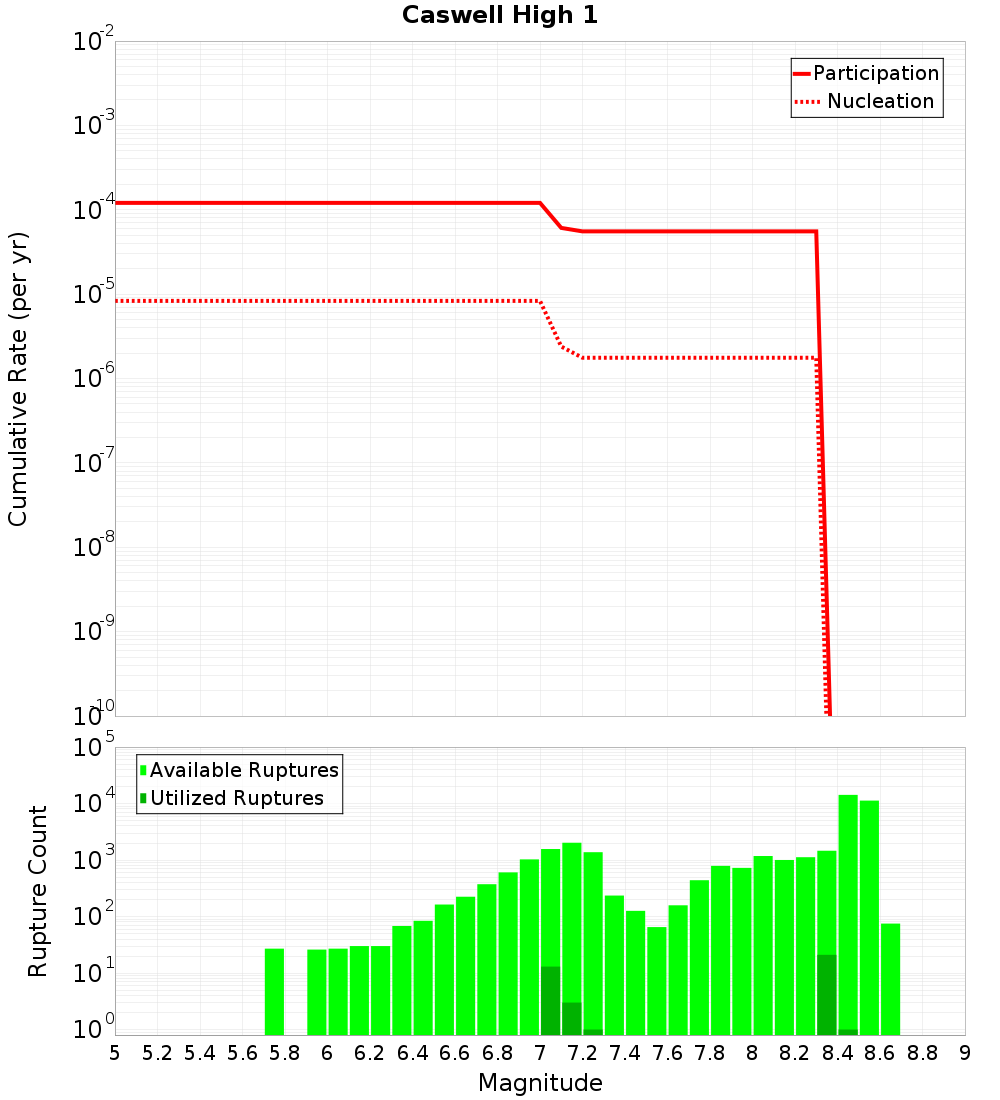

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Caswell High 4, 2.06 km away
Caswell High 3, 4.38 km away
Caswell 211, 4.89 km away
South Wedge 5, 13.27 km away
Alpine: Resolution - Five Fingers, 14.93 km away
Caswell High 5, 17.85 km away
South Wedge 3-6-10, 18.06 km away

Caswell High 4, 2.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	2.06 km
Min Rate-Weighted Dist	3.16 km
Co-rupture Count	13,488
Co-rupture Rate	9.103118E-5

Caswell High 3, 4.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.38 km
Min Rate-Weighted Dist	5.64 km
Co-rupture Count	684
Co-rupture Rate	2.6829116E-6

Caswell 211, 4.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.89 km
Min Rate-Weighted Dist	4.89 km
Co-rupture Count	764
Co-rupture Rate	5.5342302E-6

South Wedge 5, 13.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	13.27 km
Co-rupture Count	647
Co-rupture Rate	0.0

Alpine: Resolution - Five Fingers, 14.93 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	14.93 km
Min Rate-Weighted Dist	14.93 km
Co-rupture Count	32,178
Co-rupture Rate	5.5405708E-5

Caswell High 5, 17.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	false
Co-rupture Count	6,124
Co-rupture Rate	6.528962E-5

South Wedge 3-6-10, 18.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	false
Co-rupture Count	175
Co-rupture Rate	0.0
