Conway Trough East Details

Property	Value
Rupture Count	129
Ruptures Above Sect Min Mag	129
Ruptures w/ Nonzero Rates	6
Magnitude Range	[7.00, 8.18]
Length Range	[22, 443] km
Total Rate	9.4971736E-5 /yr
Multi-Fault Rate	9.4971736E-5 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	17

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

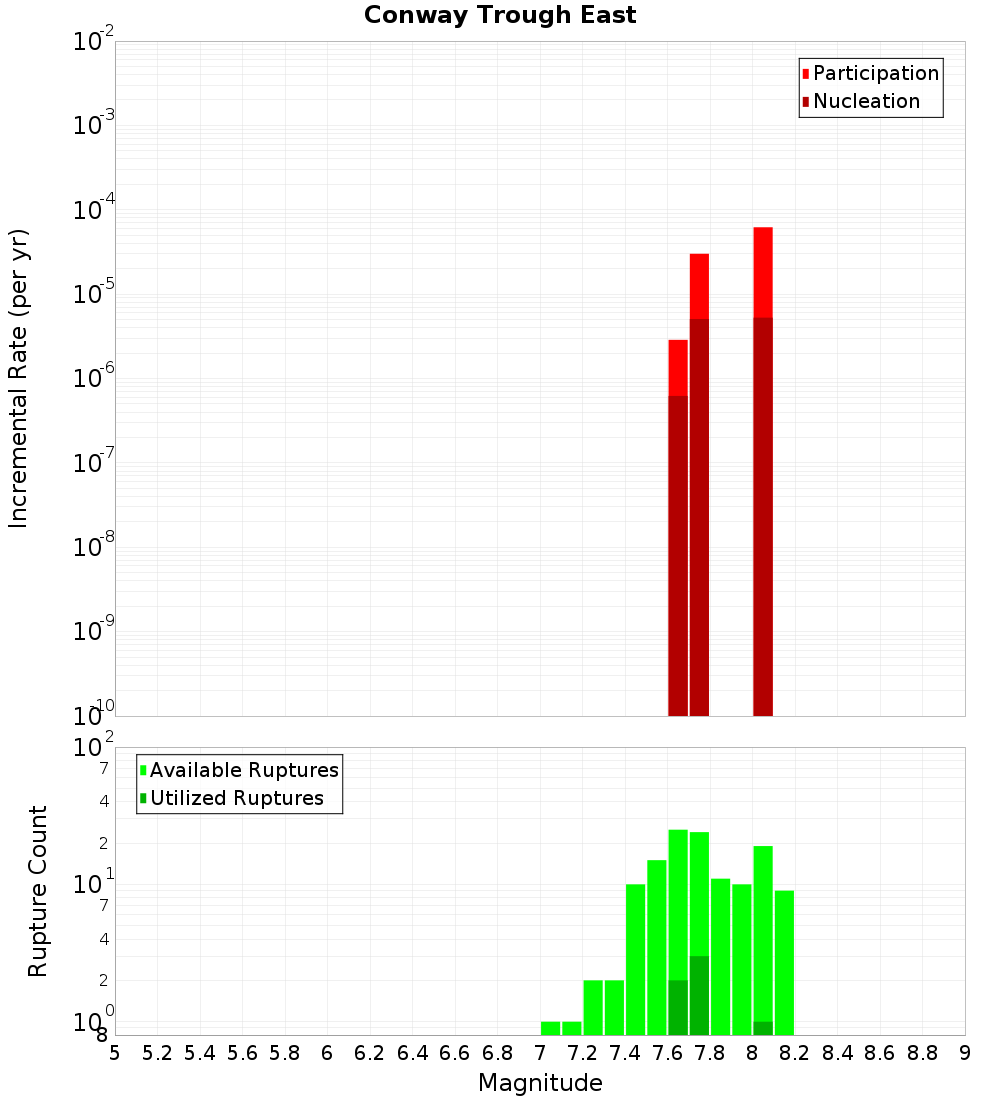

Magnitude-Frequency Distribution

Incremental	Cumulative

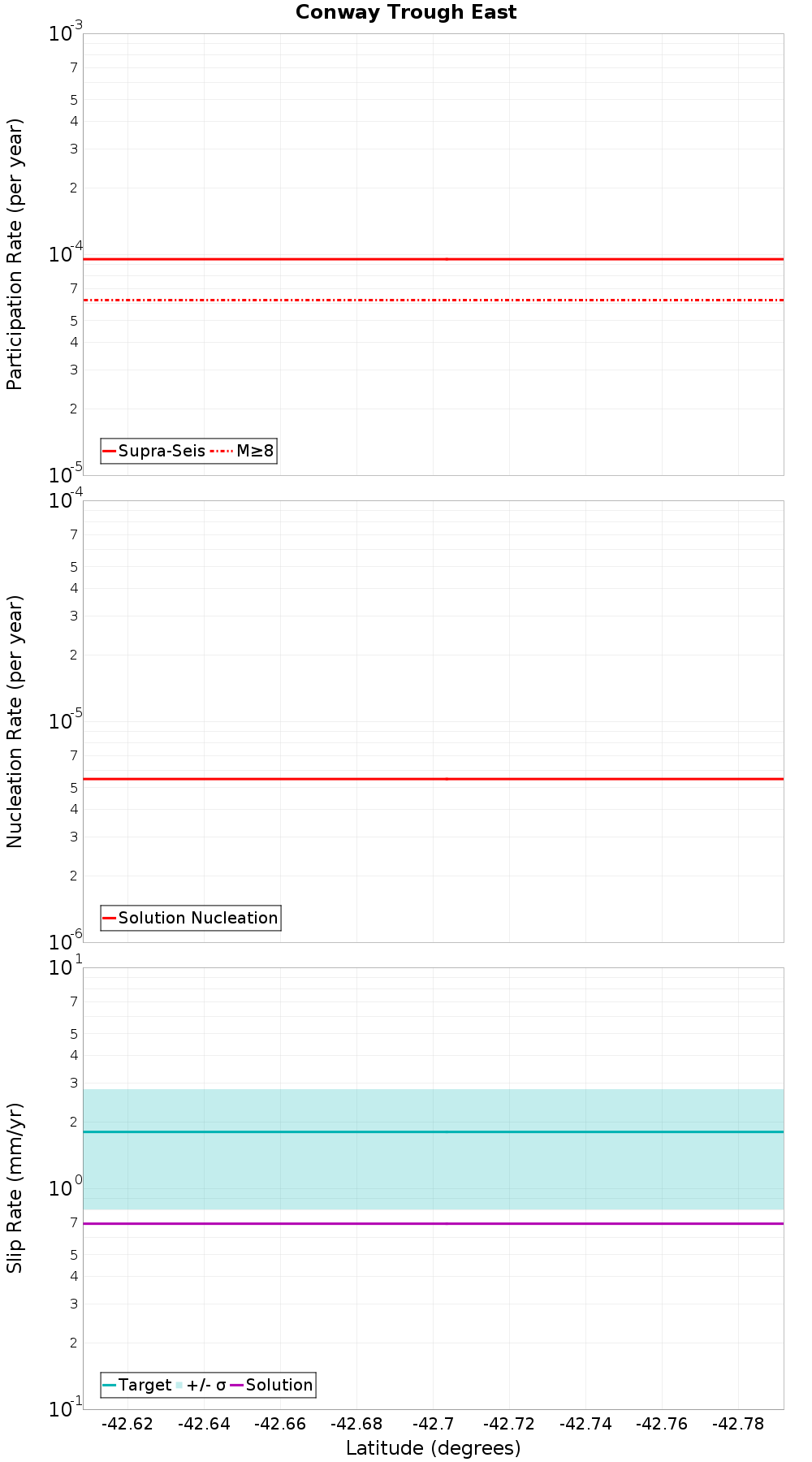

Along-Strike Values

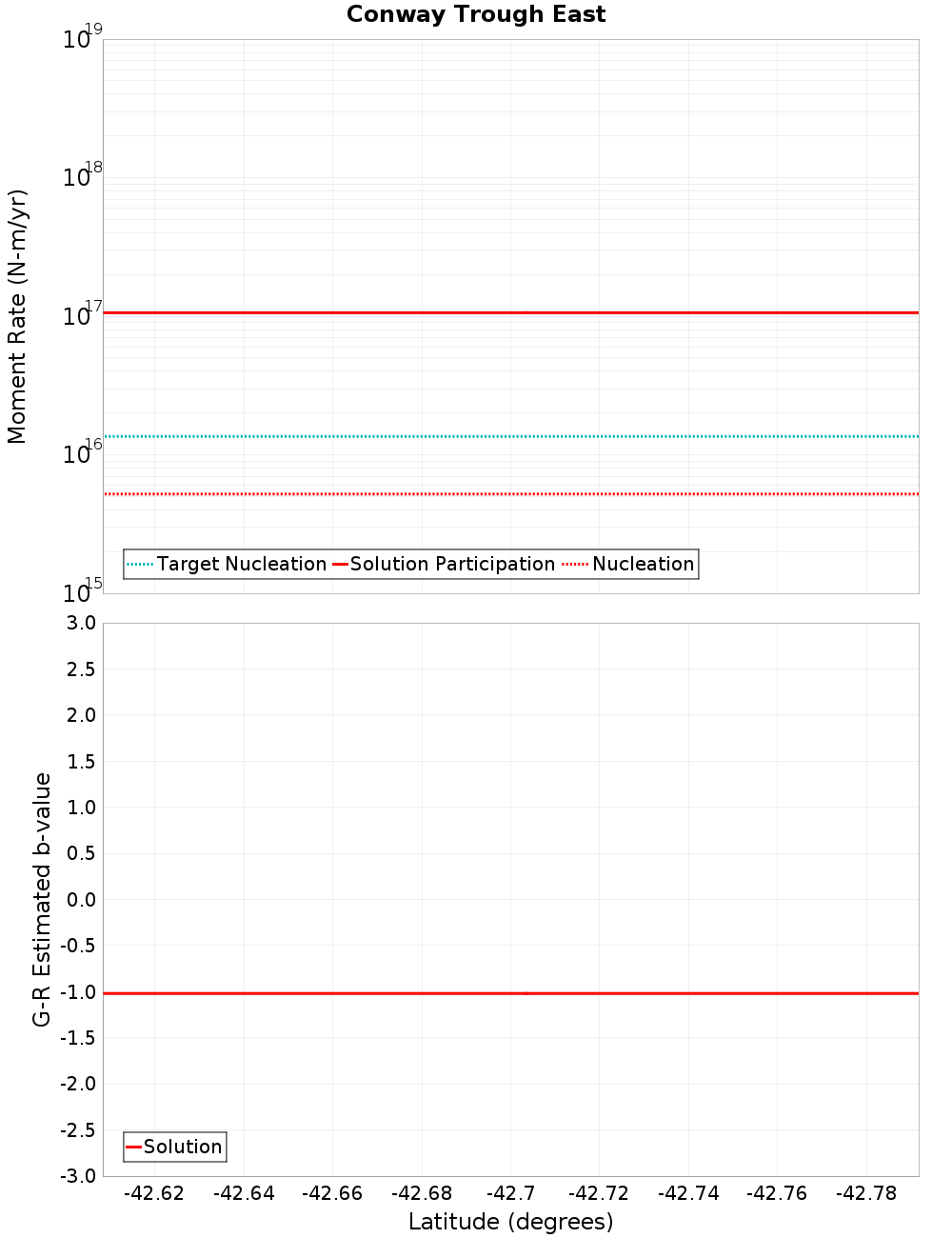

Moment-Rates and b-Values

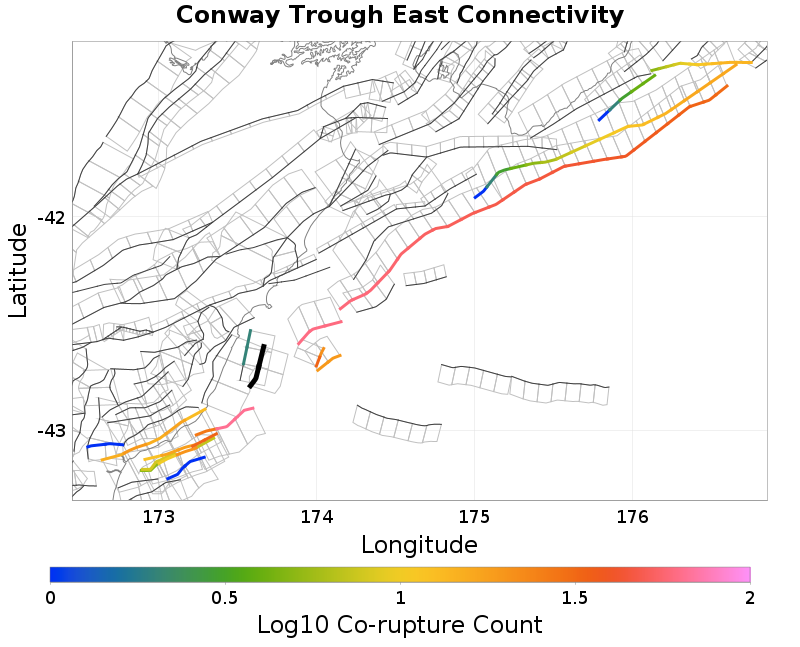

Connectivity

Nearby Sections

Fault Section
Marlborough Slope 11, 3.55 km away
Conway Trough West, 5.06 km away
Marlborough Slope 9, 9.04 km away
Hawkswood, 9.51 km away
Point Gibson, 11.43 km away
Marlborough Slope 2, 13.46 km away
Hundalee, 15.71 km away
StoneJug, 19.67 km away

Marlborough Slope 11, 3.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	3.55 km
Min Rate-Weighted Dist	3.55 km
Co-rupture Count	33
Co-rupture Rate	1.7299402E-5

Conway Trough West, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.57 km
Co-rupture Count	2
Co-rupture Rate	0.0

Marlborough Slope 9, 9.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	false
Co-rupture Count	19
Co-rupture Rate	1.7299402E-5

Hawkswood, 9.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Point Gibson, 11.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	11.43 km
Min Rate-Weighted Dist	11.43 km
Co-rupture Count	65
Co-rupture Rate	3.2971362E-5

Marlborough Slope 2, 13.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	13.46 km
Min Rate-Weighted Dist	13.46 km
Co-rupture Count	61
Co-rupture Rate	6.200037E-5

Hundalee, 15.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

StoneJug, 19.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
