Hope: Hurunui Details

PropertyValue
Rupture Count128,507
Ruptures Above Sect Min Mag128,506
Ruptures w/ Nonzero Rates77
Magnitude Range[6.69, 8.64]
Length Range[14, 1,156] km
Total Rate0.0013305527 /yr
Multi-Fault Rate0.0013305527 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults104

Table Of Contents

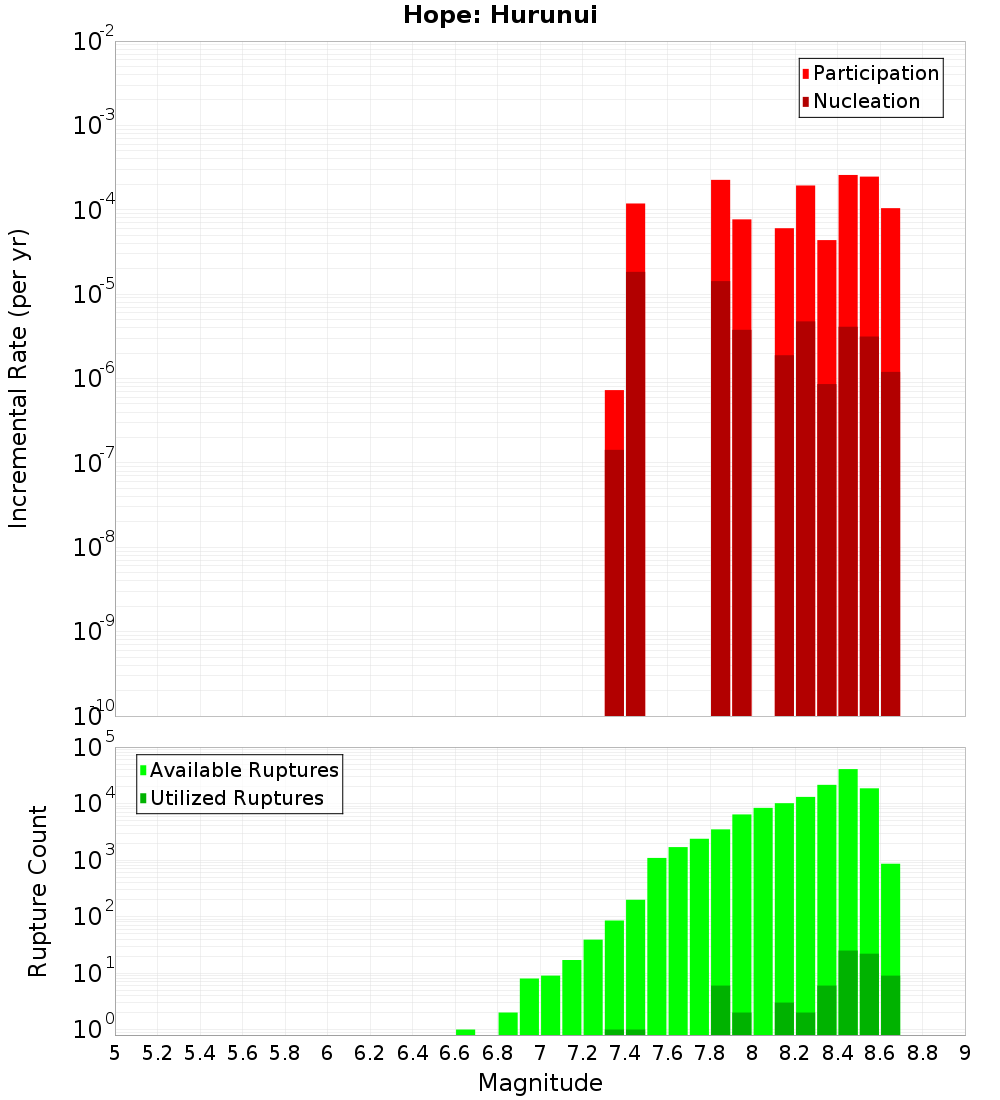

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

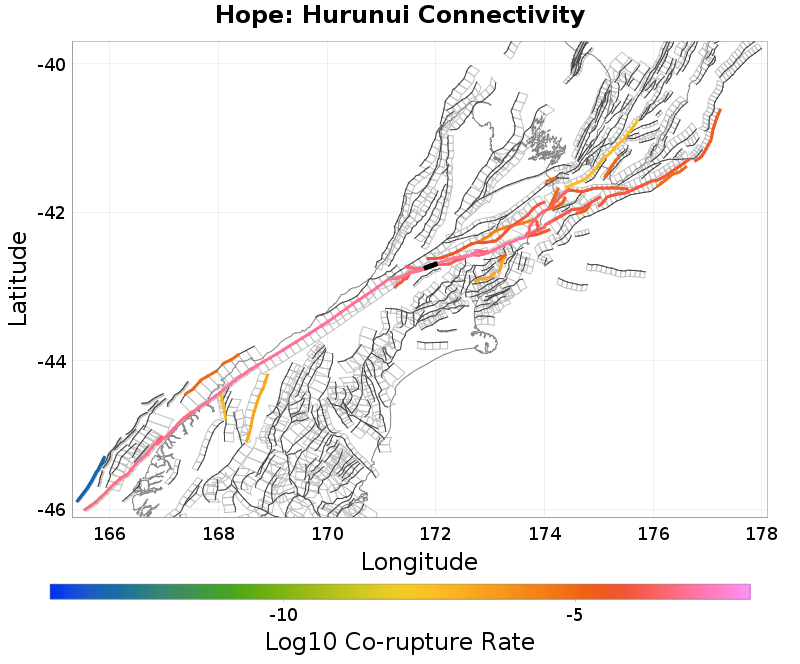

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kelly, 0 km away
Kakapo, 0 km away
Hope: Taramakau, 0 km away
Hope: Hope River, 0 km away
Alpine: Kaniere to Springs Junction, 1.98 km away
Poulter, 7.27 km away
Clarence: Southwest, 8.29 km away

Kelly, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count110,567
Co-rupture Rate7.6913415E-4

Kakapo, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count50,395
Co-rupture Rate1.6869907E-4

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count31,149
Co-rupture Rate4.658463E-4

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count85,093
Co-rupture Rate0.0011618537

Alpine: Kaniere to Springs Junction, 1.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count1,746
Co-rupture Rate0.0

Poulter, 7.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count342
Co-rupture Rate0.0

Clarence: Southwest, 8.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count9,617
Co-rupture Rate3.771746E-5
