Kaweka Details

PropertyValue
Rupture Count251
Ruptures Above Sect Min Mag248
Ruptures w/ Nonzero Rates1
Magnitude Range[7.13, 8.19]
Length Range[24, 340] km
Total Rate8.545139E-6 /yr
Multi-Fault Rate8.545139E-6 /yr (100.00%)
Directly-Connected Faults1
All Co-Rupturing Faults36

Table Of Contents

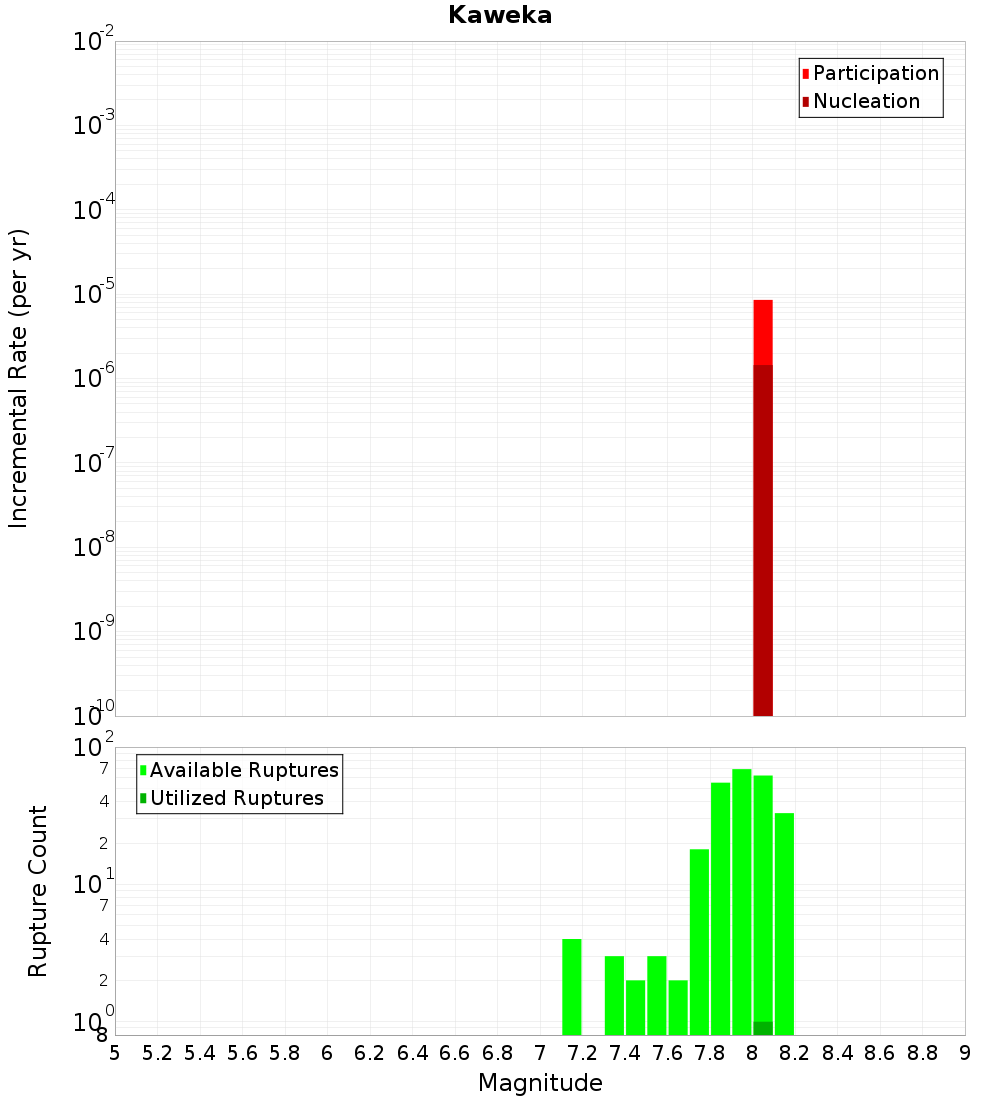

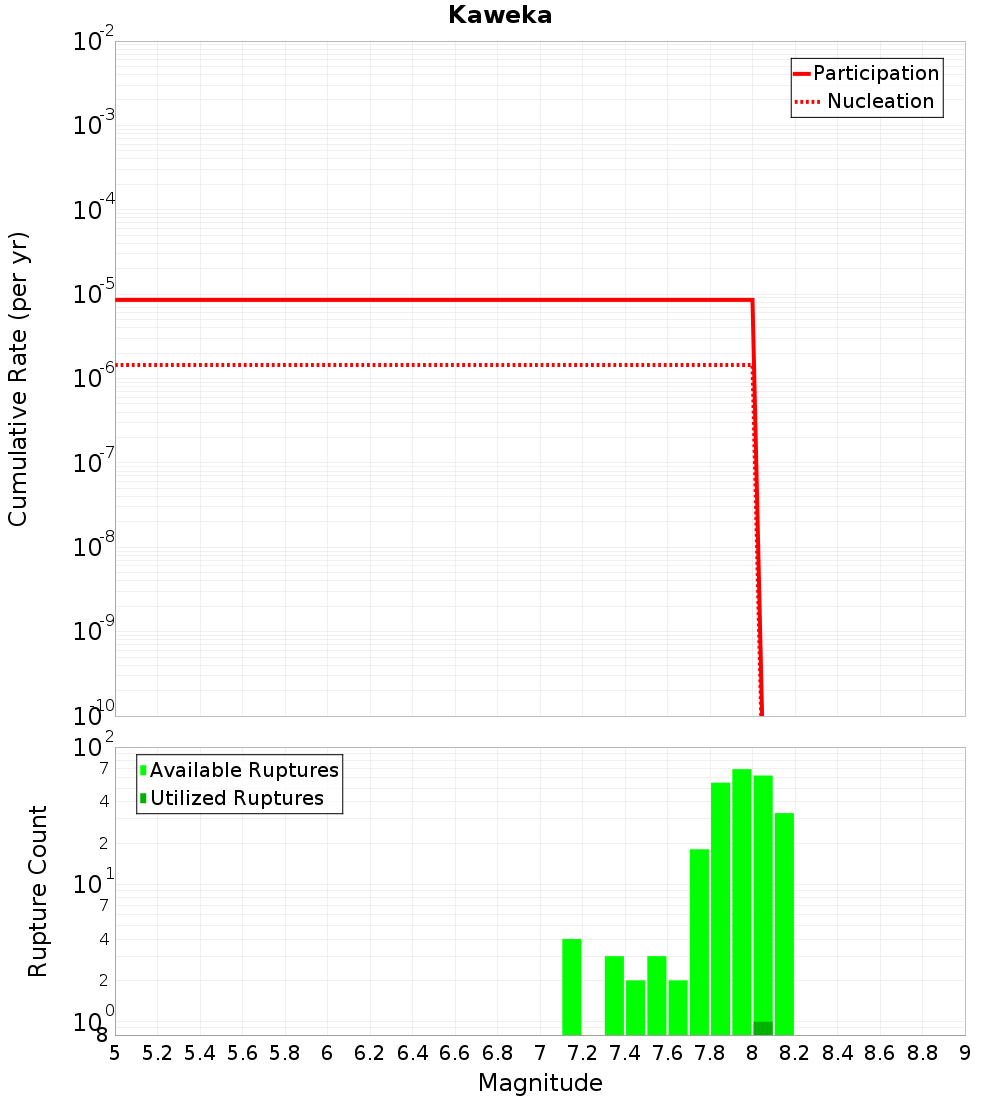

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

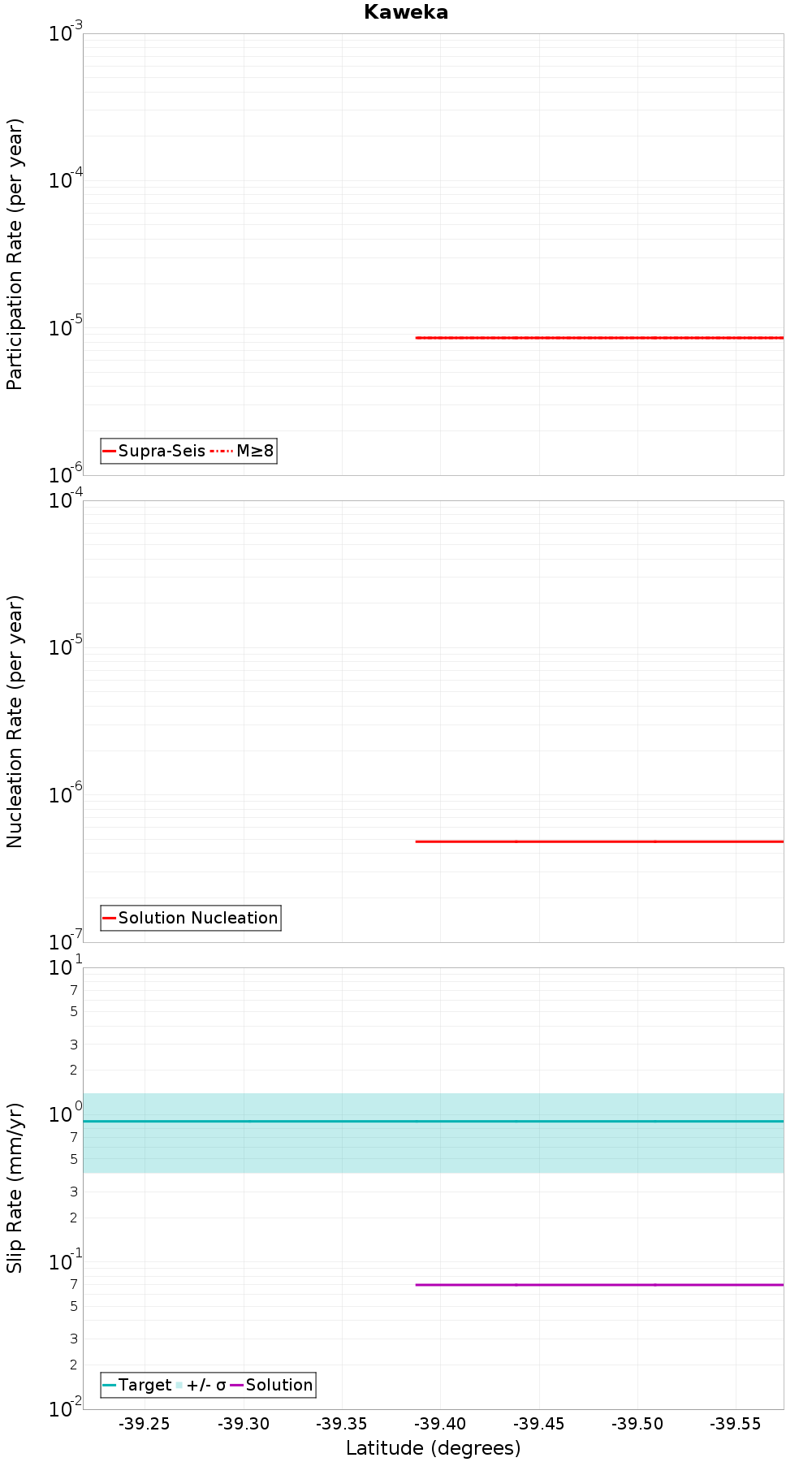

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Ruahine: North, 1.83 km away
Mohaka: North, 10.6 km away
Patoka - Rangiora, 15.89 km away
Ruahine: Central, 16.09 km away
Mohaka: South, 17.19 km away
Wheao: South, 18.96 km away

Ruahine: North, 1.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.83 km
Min Rate-Weighted Dist10.05 km
Co-rupture Count241
Co-rupture Rate8.545139E-6

Mohaka: North, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Patoka - Rangiora, 15.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruahine: Central, 16.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count86
Co-rupture Rate8.545139E-6

Mohaka: South, 17.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wheao: South, 18.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate0.0
