Lachlan 1 & 2 Details
| Property | Value |
|---|---|
| Rupture Count | 136 |
| Ruptures Above Sect Min Mag | 131 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.67, 7.74] |
| Length Range | [15, 200] km |
| Total Rate | 4.1021613E-5 /yr |
| Multi-Fault Rate | 4.1021613E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

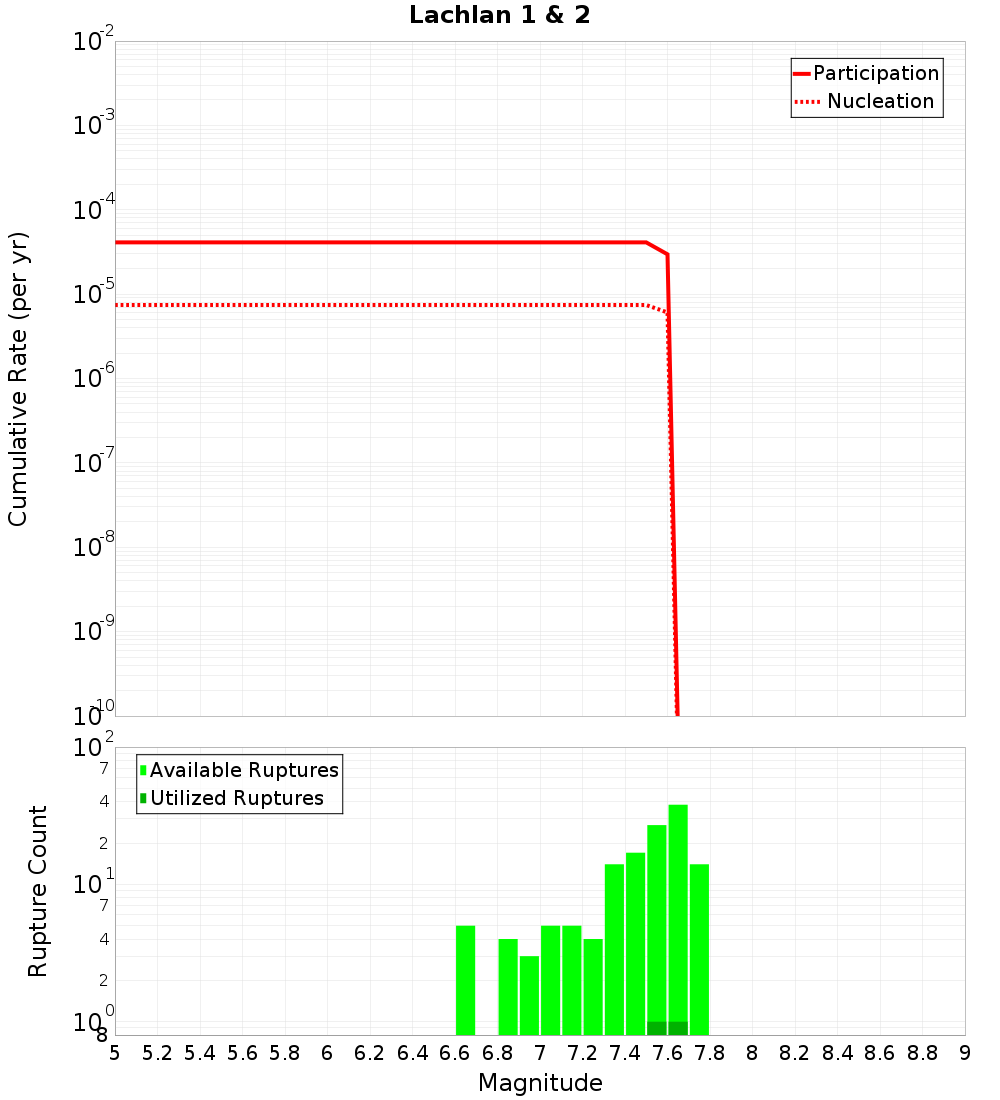

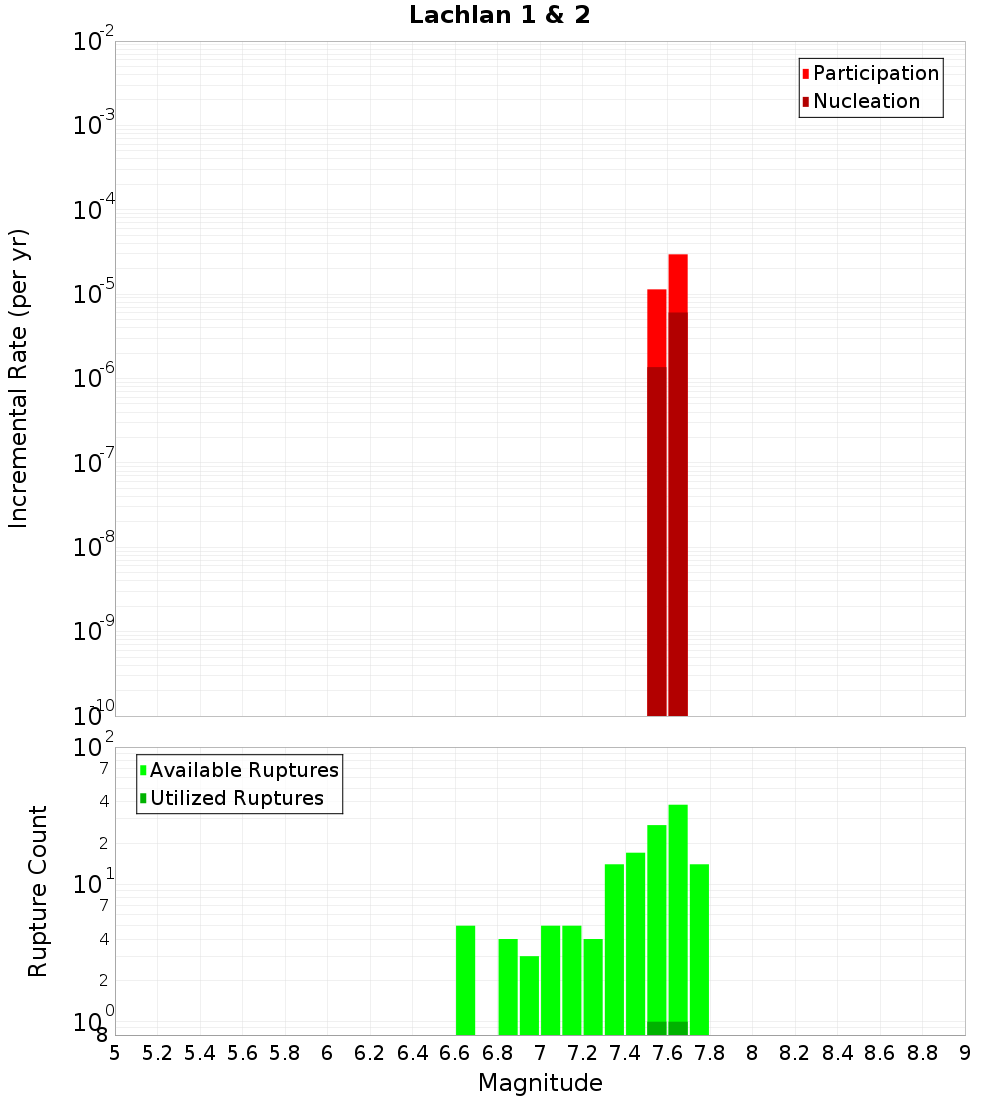

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

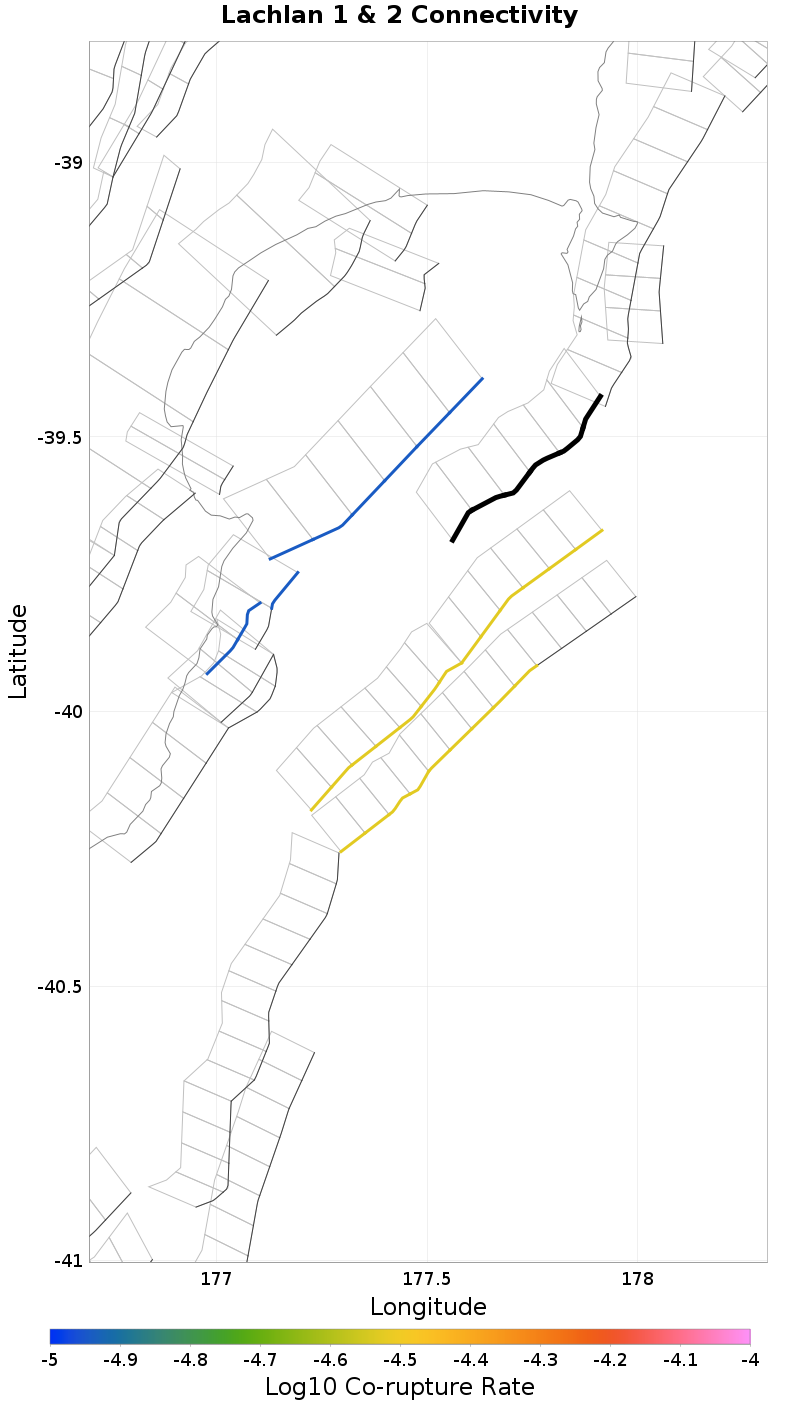

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Lachlan 3, 0.51 km away |
| Mahia 2, 8.38 km away |
| Motu o Kura North, 10.61 km away |
| Kidnappers Ridge, 10.87 km away |
| Motu o Kura Ridge, 19.8 km away |
Lachlan 3, 0.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mahia 2, 8.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Motu o Kura North, 10.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.61 km |
| Min Rate-Weighted Dist | 10.61 km |
| Co-rupture Count | 105 |
| Co-rupture Rate | 2.9627867E-5 |
Kidnappers Ridge, 10.87 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.87 km |
| Min Rate-Weighted Dist | 10.87 km |
| Co-rupture Count | 16 |
| Co-rupture Rate | 1.1393747E-5 |
Motu o Kura Ridge, 19.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 98 |
| Co-rupture Rate | 2.9627867E-5 |
