Madden Banks Details

Property	Value
Rupture Count	13,427
Ruptures Above Sect Min Mag	13,404
Ruptures w/ Nonzero Rates	14
Magnitude Range	[6.53, 8.53]
Length Range	[13, 953] km
Total Rate	2.0823989E-4 /yr
Multi-Fault Rate	2.0823989E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	42

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

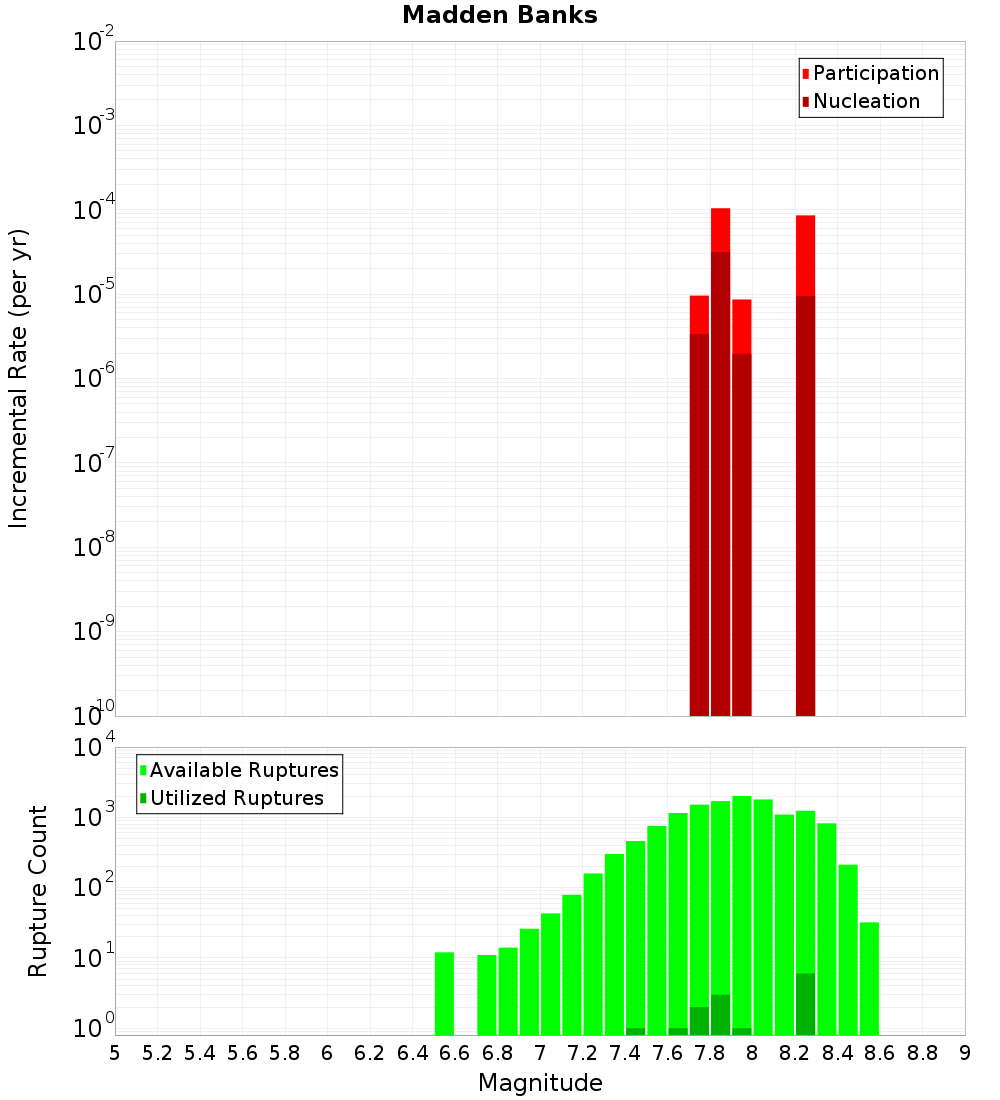

Magnitude-Frequency Distribution

Incremental	Cumulative

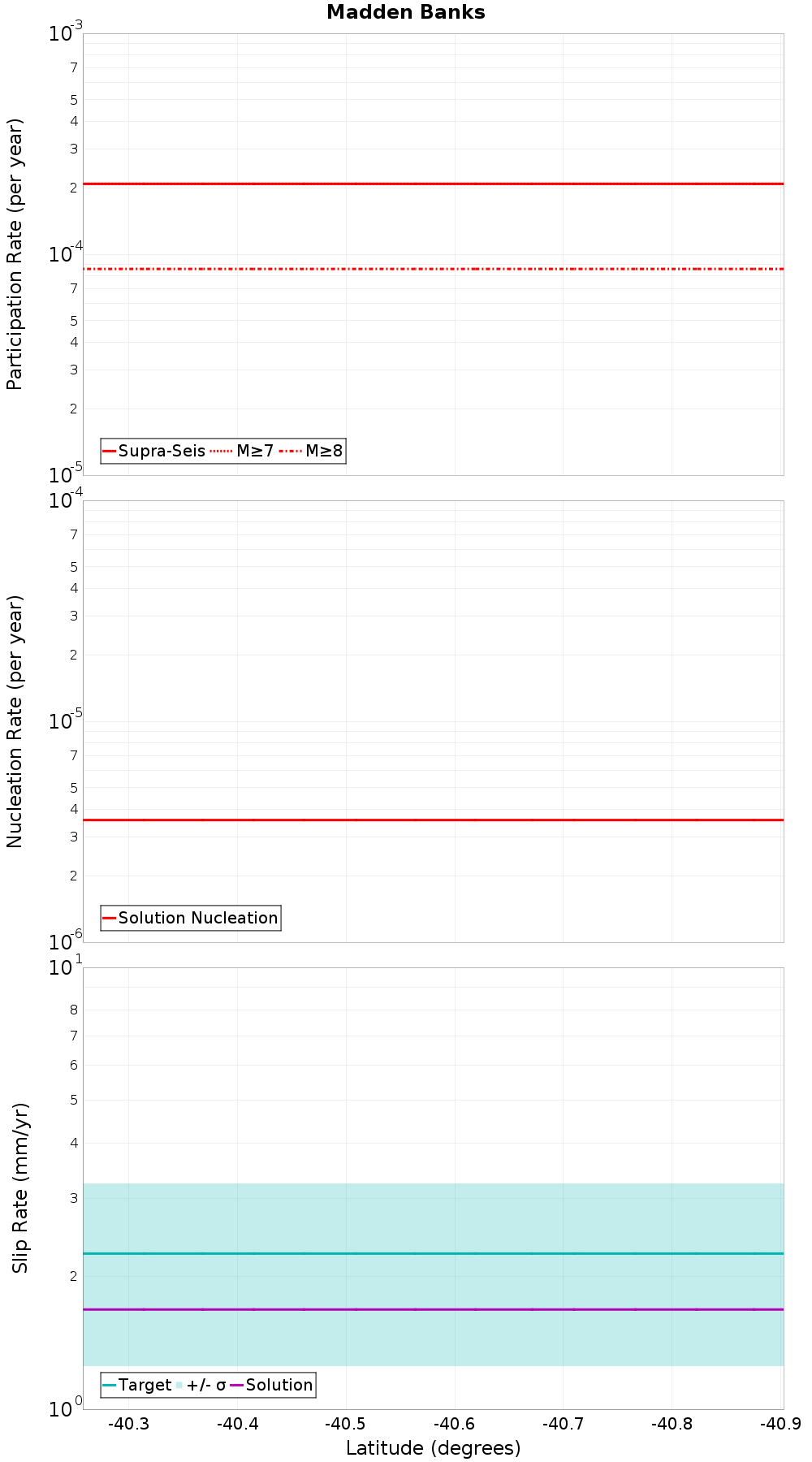

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Motu o Kura East, 0.5 km away
Uruti East - PorWest 1, 4.32 km away
Uruti North, 6.83 km away
Motu o Kura Ridge, 7.97 km away
Whareama Bank, 8.19 km away

Motu o Kura East, 0.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.5 km
Min Rate-Weighted Dist	0.5 km
Co-rupture Count	7,899
Co-rupture Rate	2.0823989E-4

Uruti East - PorWest 1, 4.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	4.32 km
Min Rate-Weighted Dist	4.32 km
Co-rupture Count	9,633
Co-rupture Rate	8.5800995E-5

Uruti North, 6.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	6.83 km
Min Rate-Weighted Dist	6.83 km
Co-rupture Count	2,862
Co-rupture Rate	3.229049E-5

Motu o Kura Ridge, 7.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	false
Co-rupture Count	2,244
Co-rupture Rate	8.619431E-5

Whareama Bank, 8.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	8.19 km
Min Rate-Weighted Dist	8.19 km
Co-rupture Count	533
Co-rupture Rate	9.01484E-5
