Murphys Creek Details

PropertyValue
Rupture Count154
Ruptures Above Sect Min Mag153
Ruptures w/ Nonzero Rates5
Magnitude Range[7.09, 8.12]
Length Range[22, 213] km
Total Rate7.782372E-6 /yr
Multi-Fault Rate7.782372E-6 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults18

Table Of Contents

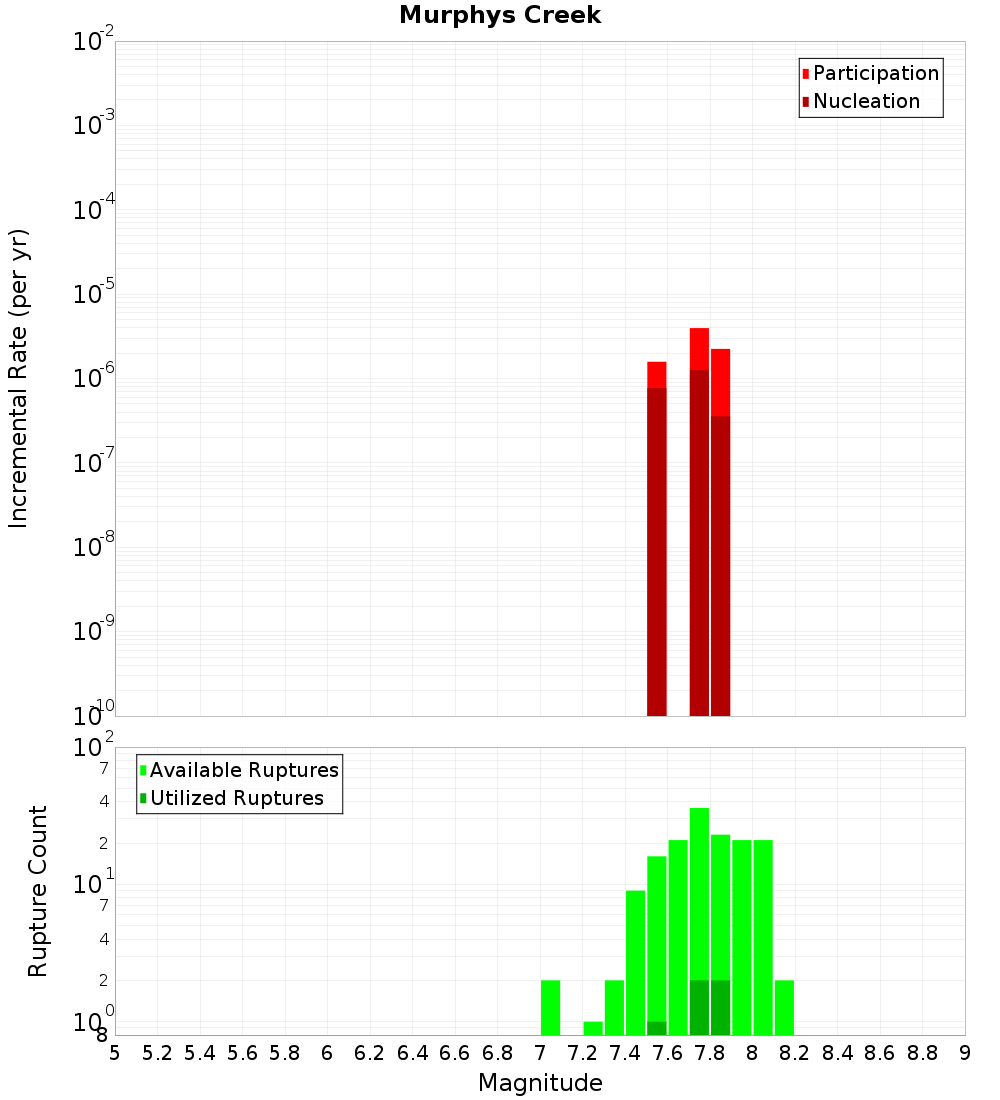

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

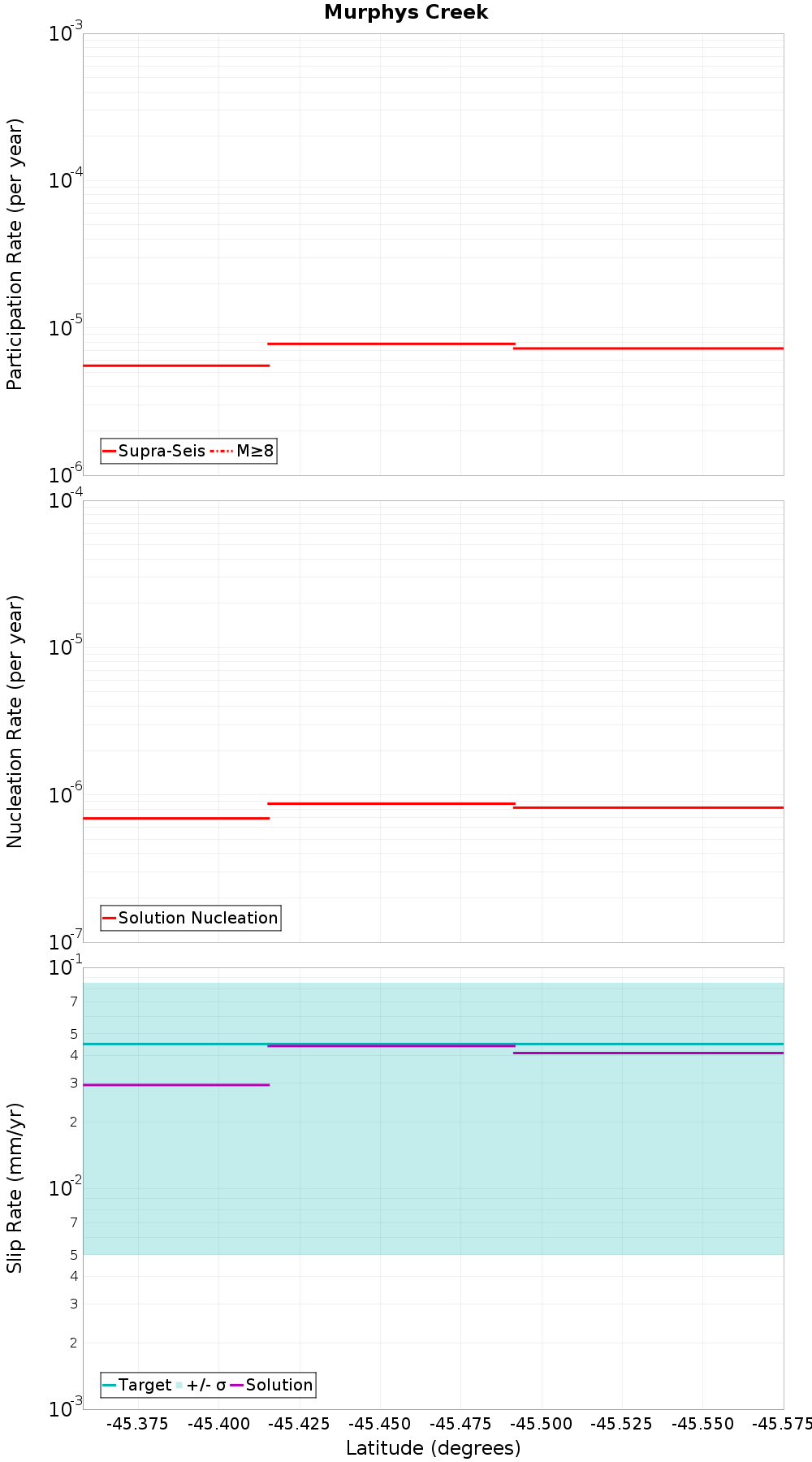

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

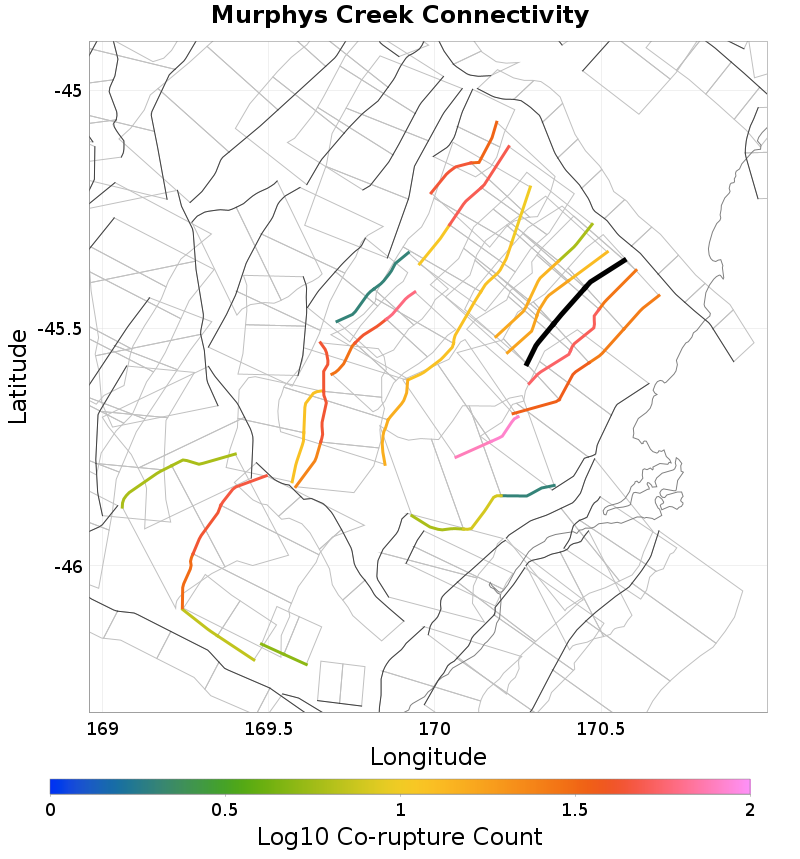

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waipiata, 0.26 km away
Ranfurly, 1.24 km away
Billys Ridge, 2.04 km away
Dunback Hill, 2.53 km away
Waihemo, 3.7 km away
Logan Burn, 4.91 km away
Horse Flat, 5.2 km away
Pylap, 6.11 km away
Flat Stream - Glenpark, 7.15 km away
Nichols Rock, 7.37 km away
Hyde North, 12.39 km away
Long Valley, 16.03 km away
Sliver Stream - Merton, 16.29 km away
Cross Eden, 16.73 km away
Maungatua - North Taieri, 19.42 km away

Waipiata, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.29 km
Co-rupture Count50
Co-rupture Rate0.0

Ranfurly, 1.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist3.4 km
Min Rate-Weighted Dist3.4 km
Co-rupture Count44
Co-rupture Rate4.879088E-6

Billys Ridge, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate4.879088E-6

Dunback Hill, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist2.53 km
Min Rate-Weighted Dist3.16 km
Co-rupture Count54
Co-rupture Rate1.3231246E-6

Waihemo, 3.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 4.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.91 km
Min Rate-Weighted Dist4.91 km
Co-rupture Count61
Co-rupture Rate4.879088E-6

Horse Flat, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.2 km
Min Rate-Weighted Dist5.2 km
Co-rupture Count16
Co-rupture Rate2.373581E-6

Pylap, 6.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Flat Stream - Glenpark, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.15 km
Min Rate-Weighted Dist8 km
Co-rupture Count37
Co-rupture Rate5.2970324E-7

Nichols Rock, 7.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate2.7740161E-6

Hyde North, 12.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Long Valley, 16.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sliver Stream - Merton, 16.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cross Eden, 16.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 19.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate2.244313E-6
