NW Cardrona South Details

PropertyValue
Rupture Count117
Ruptures Above Sect Min Mag116
Ruptures w/ Nonzero Rates6
Magnitude Range[6.99, 8.16]
Length Range[19, 251] km
Total Rate7.024808E-5 /yr
Multi-Fault Rate3.9640872E-5 /yr (56.43%)
Directly-Connected Faults2
All Co-Rupturing Faults20

Table Of Contents

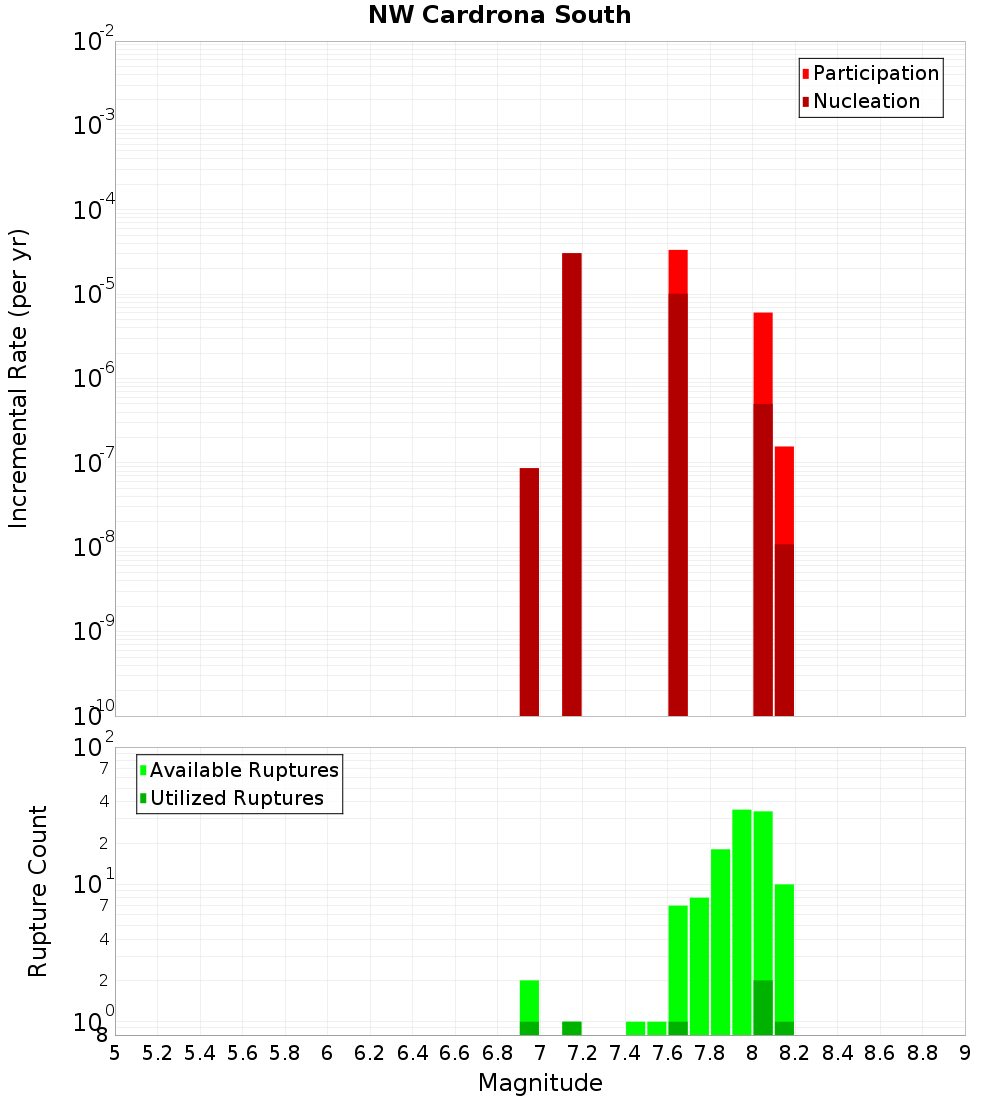

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Nevis, 0.51 km away
Paddys Ridge, 1.01 km away
NW Cardrona North, 1.15 km away
Roaring Meg, 2.75 km away
Pisa, 5.79 km away
Roaring Lion, 10.86 km away
Motatapu, 11.74 km away
West Wakatipu, 14.06 km away
Dunstan, 16.52 km away
Moonlight South, 17.44 km away
Garvie, 18.48 km away
Old Man, 18.78 km away

Nevis, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.51 km
Min Rate-Weighted Dist0.51 km
Co-rupture Count60
Co-rupture Rate3.9640872E-5

Paddys Ridge, 1.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

NW Cardrona North, 1.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Roaring Meg, 2.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pisa, 5.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist5.79 km
Min Rate-Weighted Dist5.79 km
Co-rupture Count108
Co-rupture Rate6.2042536E-6

Roaring Lion, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Motatapu, 11.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

West Wakatipu, 14.06 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Dunstan, 16.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Moonlight South, 17.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Garvie, 18.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Old Man, 18.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0
