Pisa Details
| Property | Value |
|---|---|
| Rupture Count | 2,069 |
| Ruptures Above Sect Min Mag | 2,068 |
| Ruptures w/ Nonzero Rates | 17 |
| Magnitude Range | [7.32, 8.39] |
| Length Range | [32, 379] km |
| Total Rate | 1.7470978E-5 /yr |
| Multi-Fault Rate | 1.7470978E-5 /yr (100.00%) |
| Directly-Connected Faults | 9 |
| All Co-Rupturing Faults | 40 |
Table Of Contents

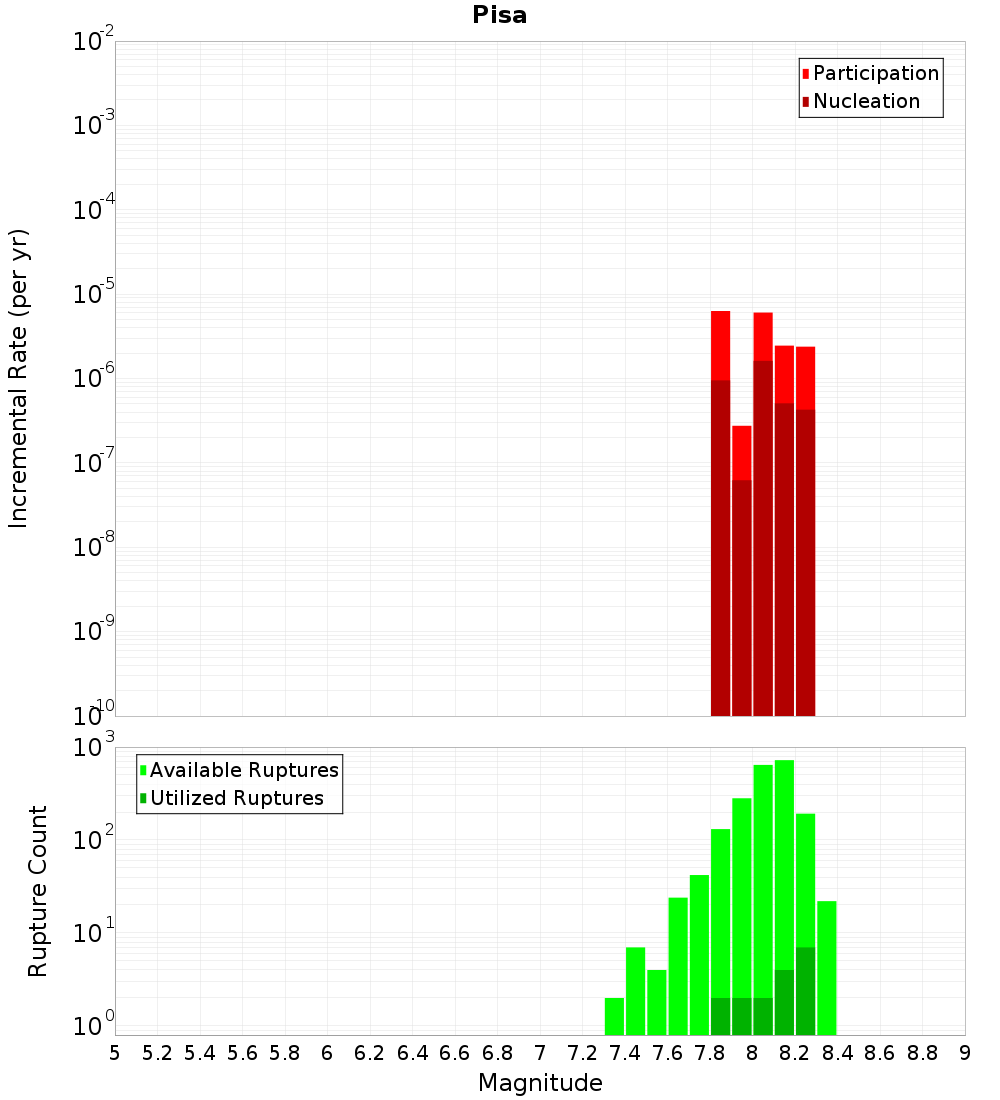

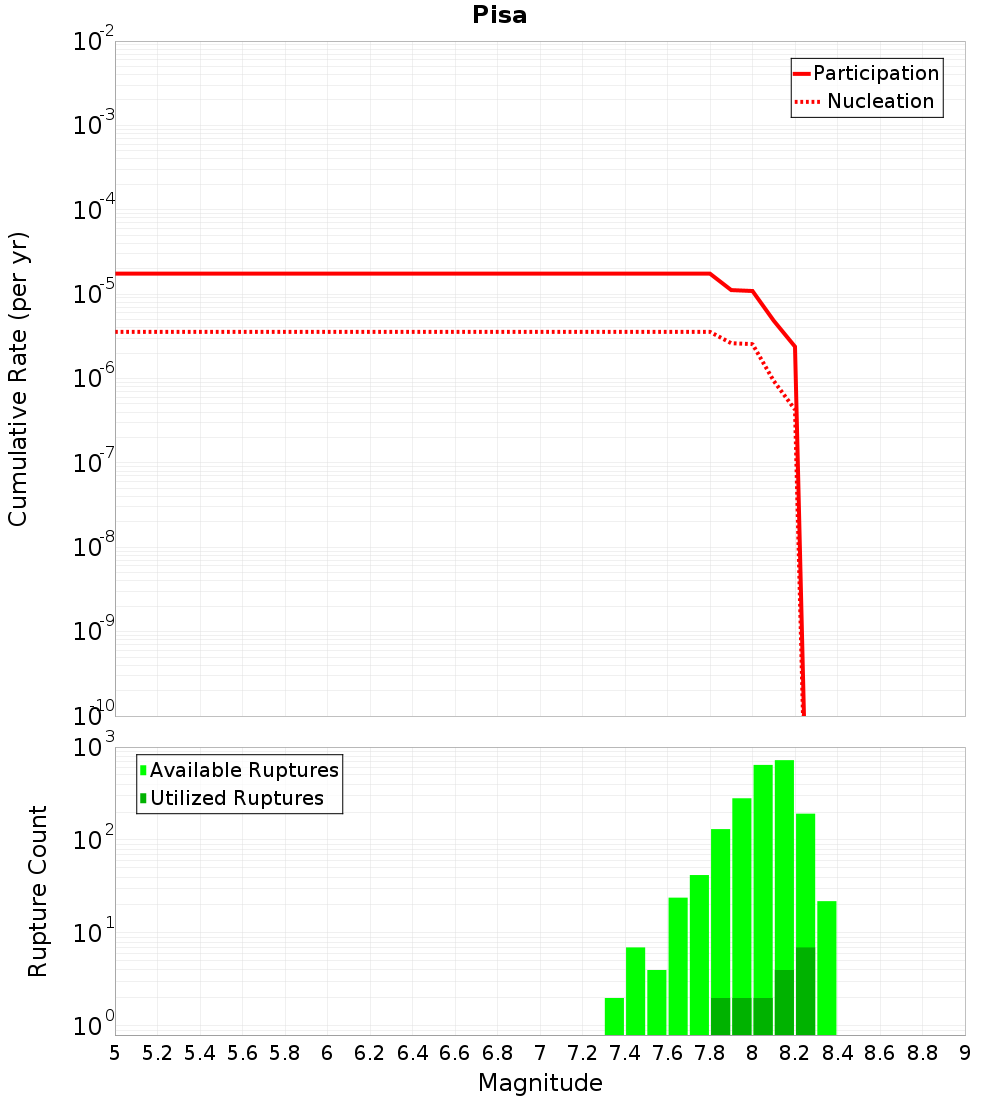

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

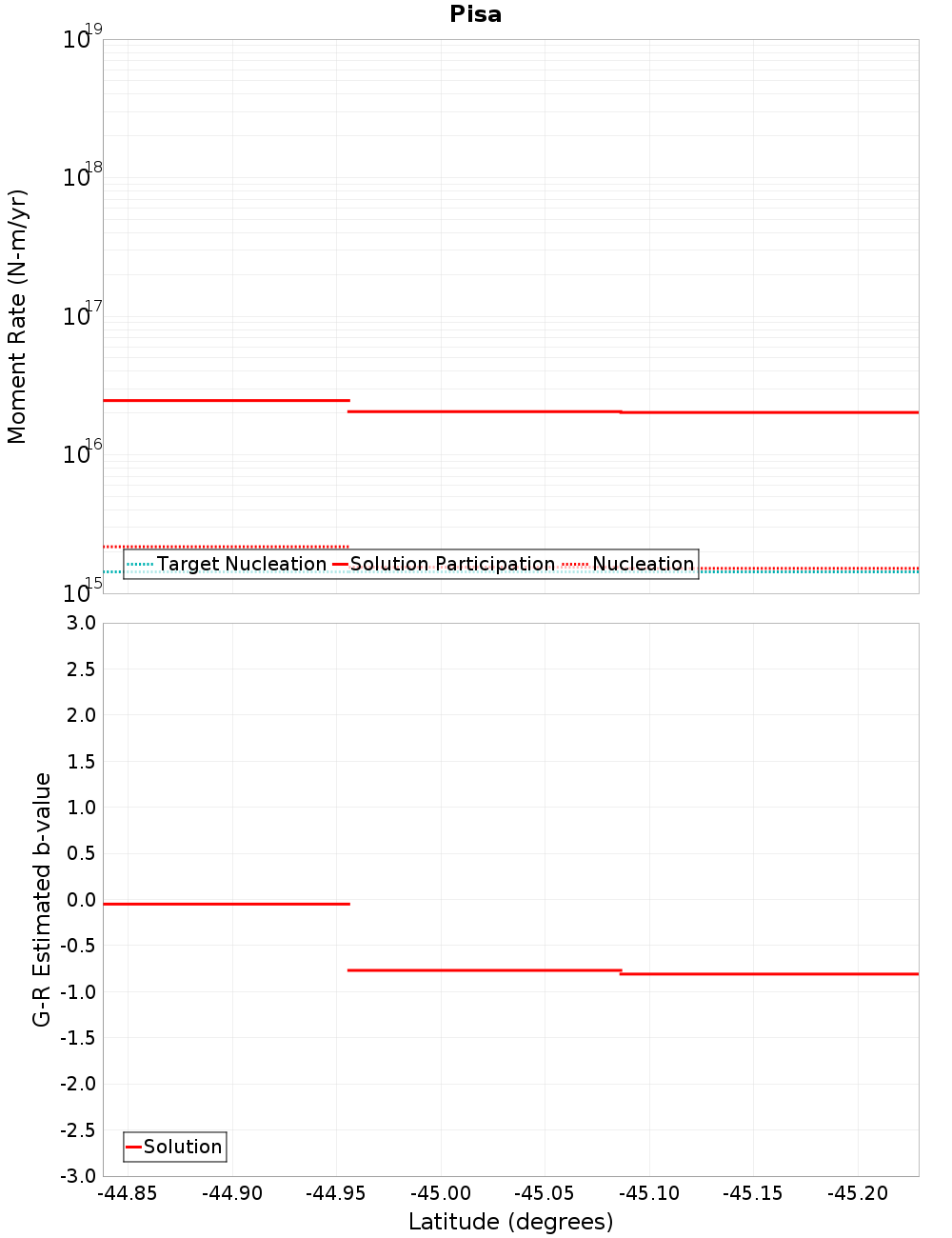

Along-Strike Values
Moment-Rates and b-Values

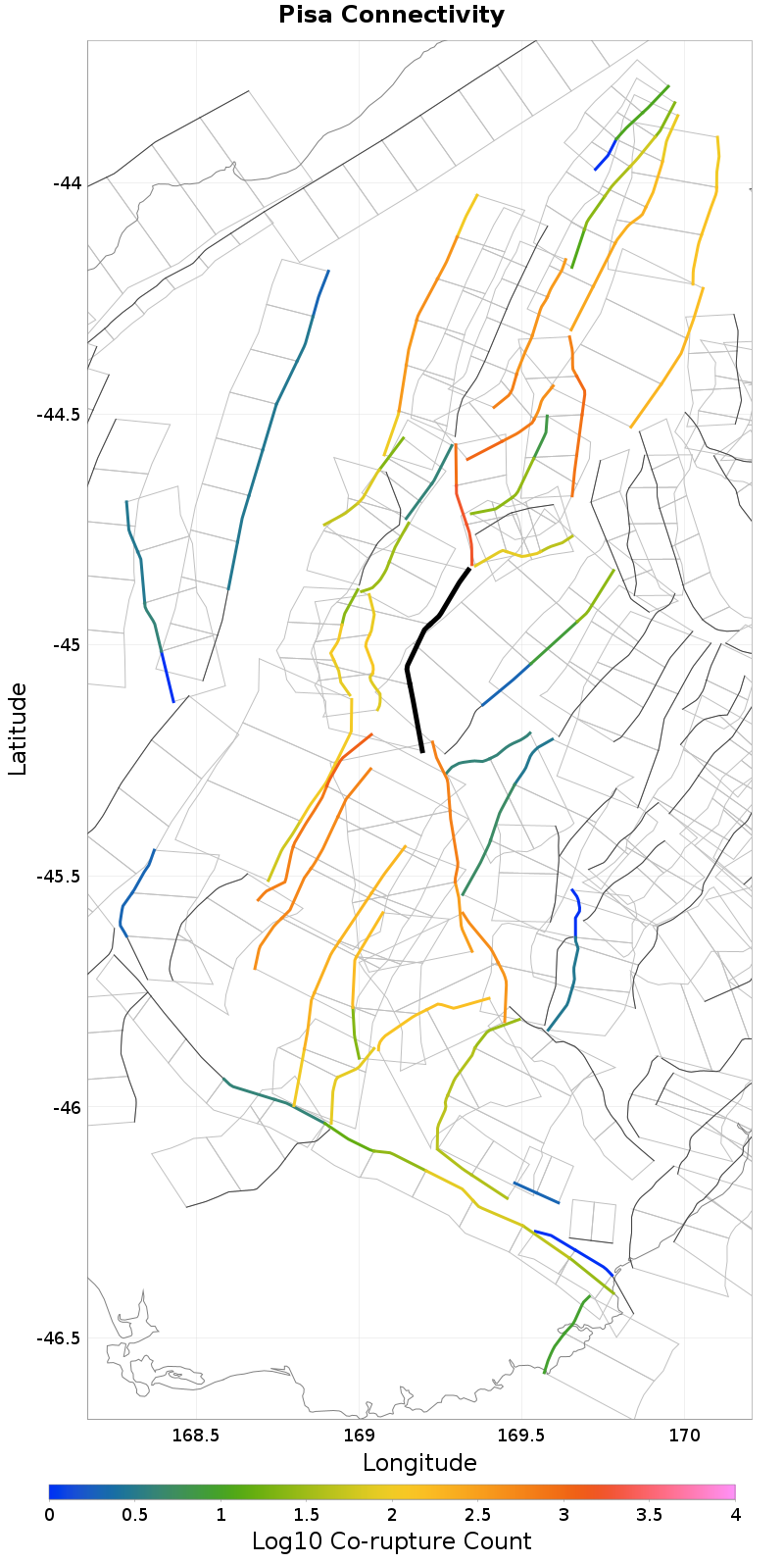

Connectivity
 |  |
|---|
Nearby Sections
Roaring Meg, 0.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.18 km |
| Min Rate-Weighted Dist | 4.61 km |
| Co-rupture Count | 122 |
| Co-rupture Rate | 6.3099524E-6 |
Paddys Ridge, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.27 km |
| Co-rupture Count | 31 |
| Co-rupture Rate | 0.0 |
Motatapu, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.3 km |
| Min Rate-Weighted Dist | 1.16 km |
| Co-rupture Count | 72 |
| Co-rupture Rate | 6.3099114E-6 |
Roaring Lion, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.79 km |
| Min Rate-Weighted Dist | 0.79 km |
| Co-rupture Count | 1,237 |
| Co-rupture Rate | 3.7539198E-6 |
Grandview, 1.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.55 km |
| Min Rate-Weighted Dist | 1.55 km |
| Co-rupture Count | 1,689 |
| Co-rupture Rate | 1.0368446E-5 |
Old Man, 1.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.75 km |
| Min Rate-Weighted Dist | 1.75 km |
| Co-rupture Count | 640 |
| Co-rupture Rate | 9.2763946E-7 |
Cluden, 1.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.98 km |
| Min Rate-Weighted Dist | 1.98 km |
| Co-rupture Count | 82 |
| Co-rupture Rate | 7.926216E-7 |
Dunstan, 4.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 25 |
| Co-rupture Rate | 2.7521378E-7 |
NW Cardrona South, 5.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.79 km |
| Min Rate-Weighted Dist | 5.79 km |
| Co-rupture Count | 108 |
| Co-rupture Rate | 6.2042536E-6 |
Goodger, 7.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Galloway, 7.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Garvie, 8.36 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 742 |
| Co-rupture Rate | 6.930439E-7 |
NW Cardrona North, 9.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Nevis, 9.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.64 km |
| Min Rate-Weighted Dist | 9.64 km |
| Co-rupture Count | 107 |
| Co-rupture Rate | 1.2789379E-5 |
Lindis River, 12.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 27 |
| Co-rupture Rate | 2.7521378E-7 |
Cardrona - Hawea, 13.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
