Poroutawhao Details

PropertyValue
Rupture Count107
Ruptures Above Sect Min Mag107
Ruptures w/ Nonzero Rates1
Magnitude Range[7.28, 8.29]
Length Range[27, 421] km
Total Rate1.07605565E-5 /yr
Multi-Fault Rate1.07605565E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults35

Table Of Contents

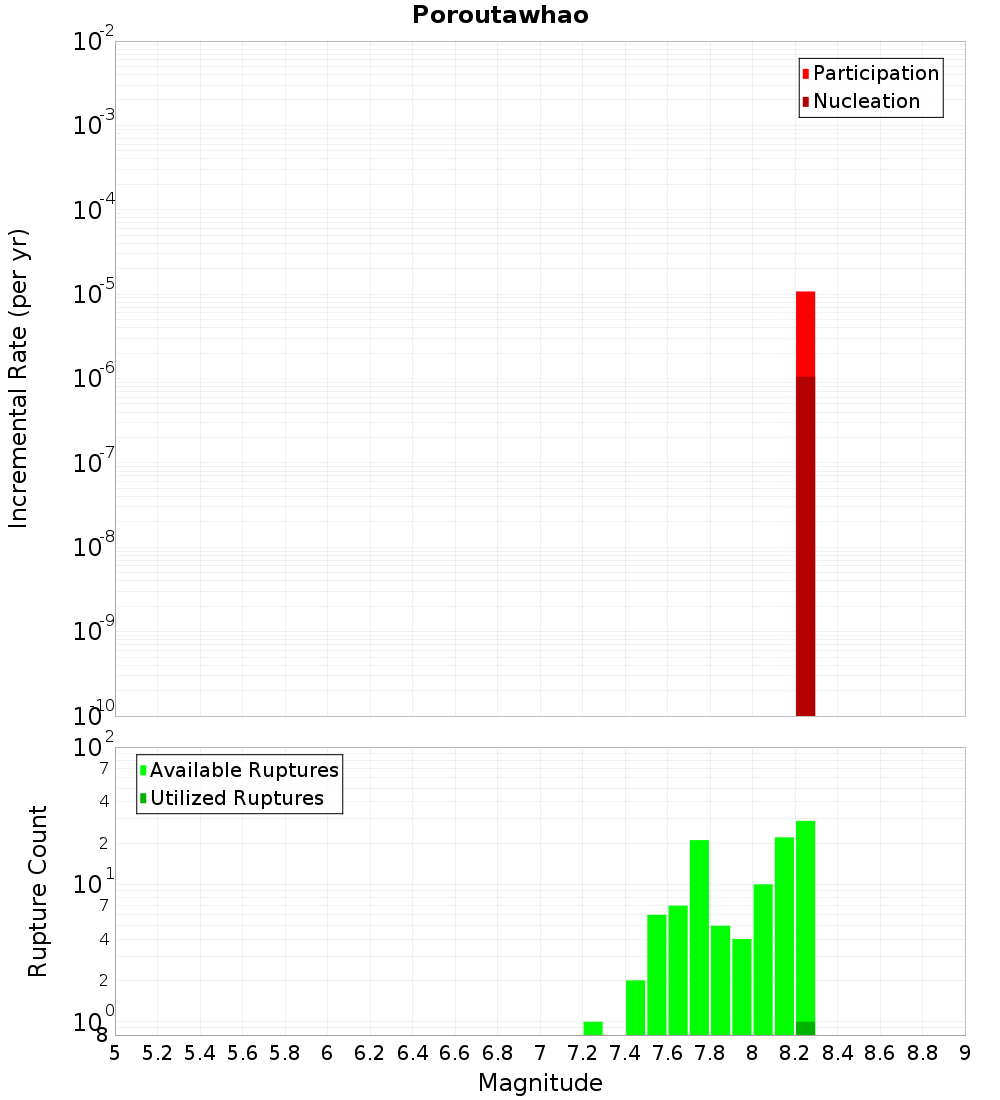

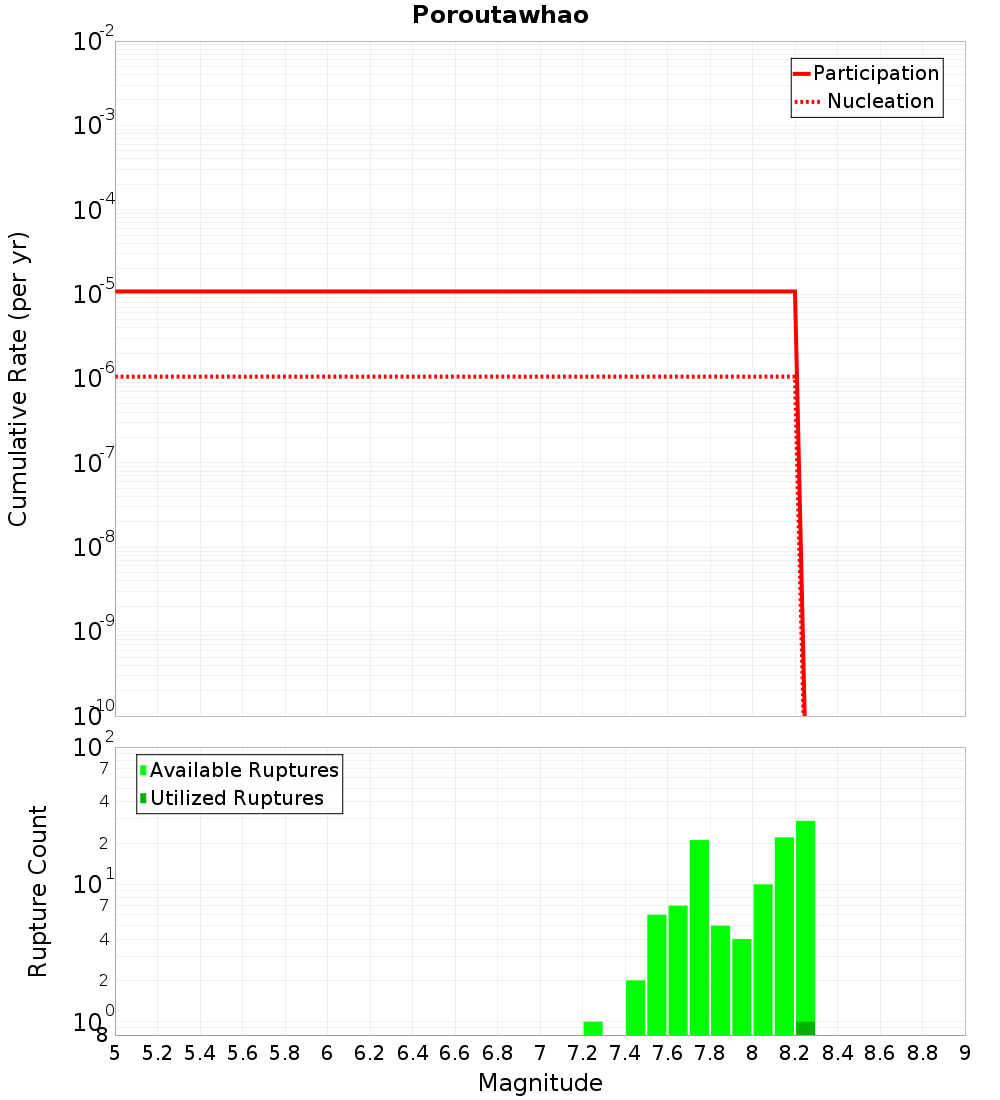

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

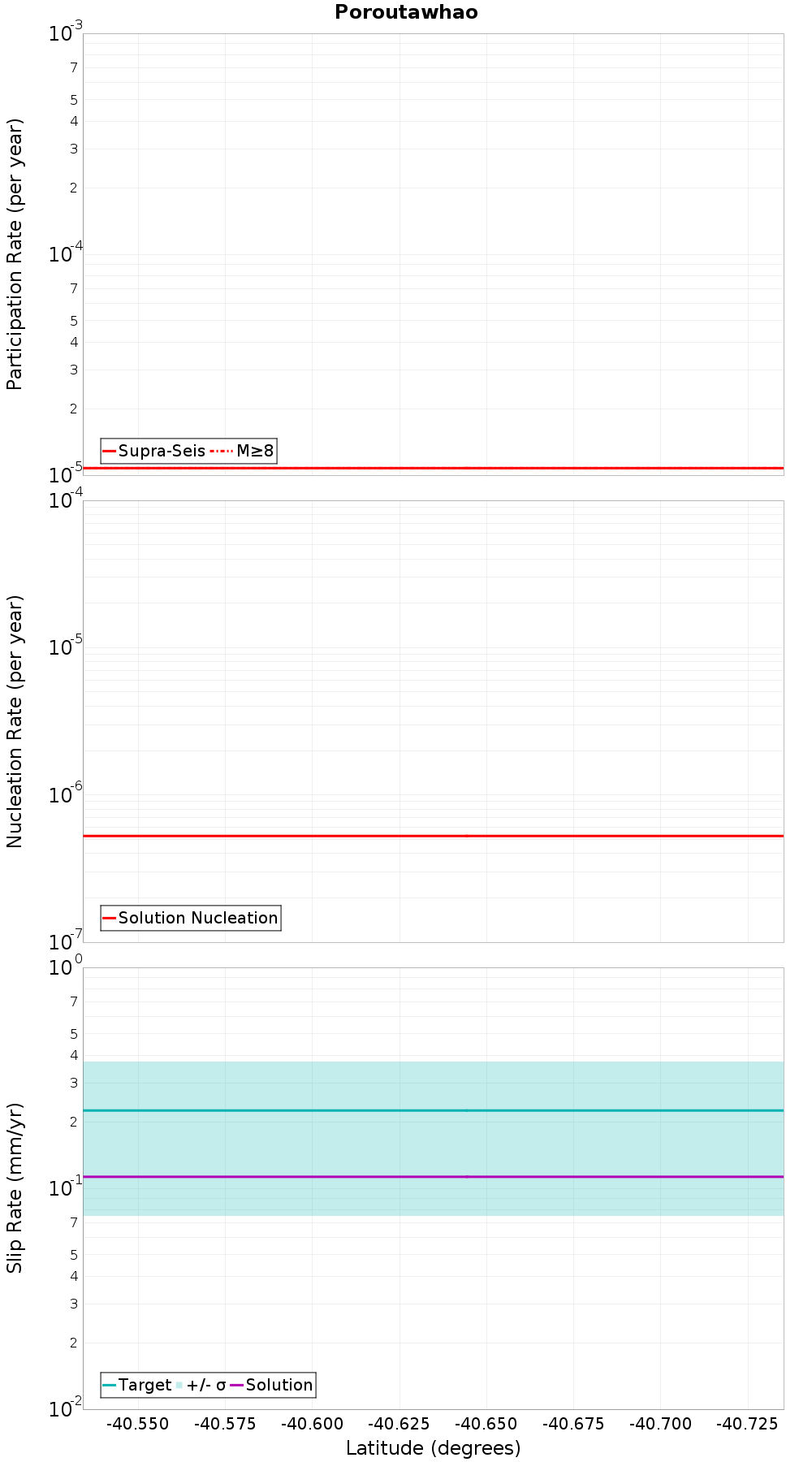

Along-Strike Values

(top)

Along-strike plot

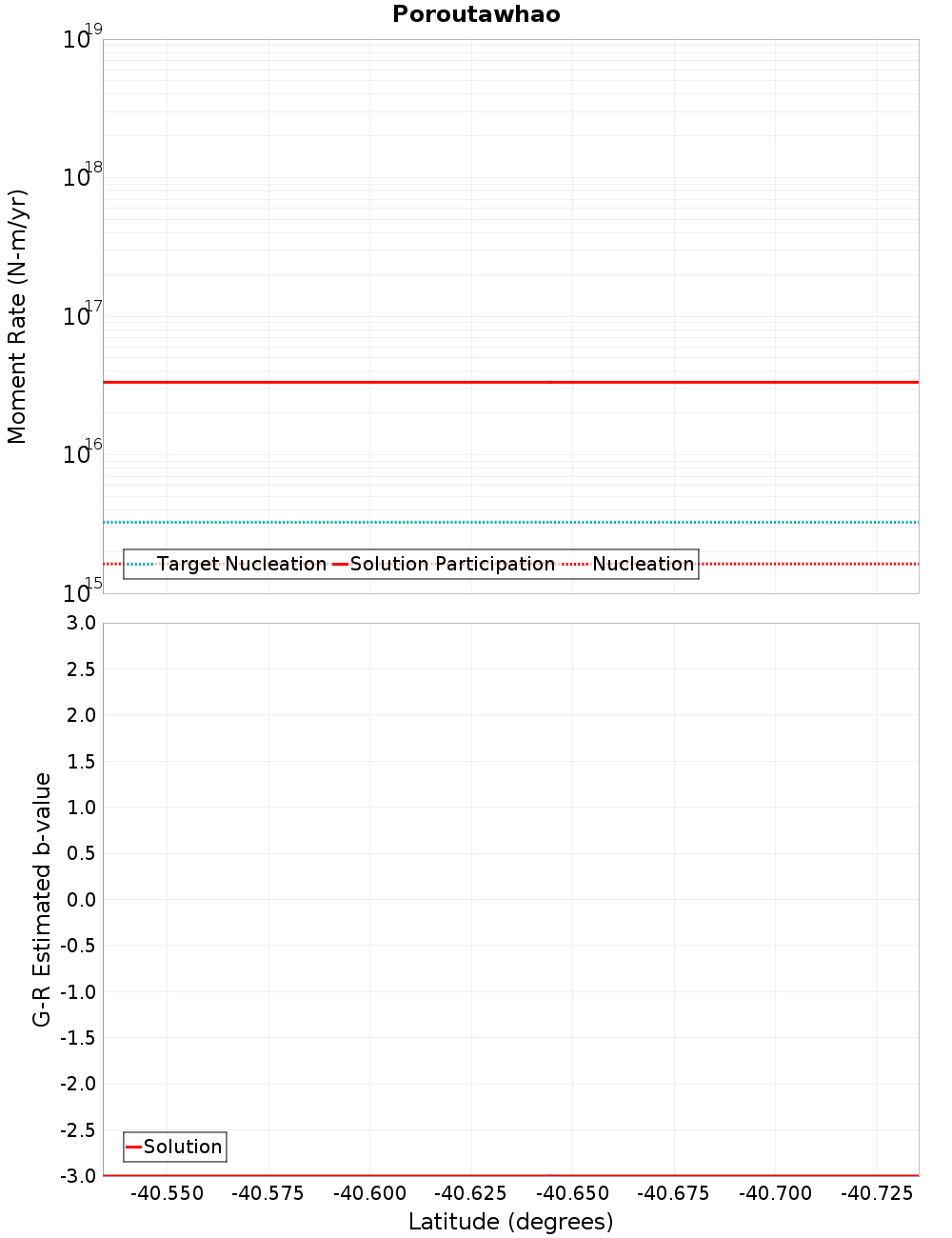

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mascarin, 0.19 km away
Rangitikei Offshore 1, 0.2 km away
Himatangi, 1.52 km away
Levin Anticline, 2.6 km away
Otaheke North, 3.85 km away
Onepoto, 5.23 km away
Fisherman 3, 5.7 km away
Northern Ohariu, 6.82 km away
Otaheke South, 10.01 km away
Ohariu, 11.17 km away
Fisherman 2, 11.68 km away
Tokomaru, 13.21 km away
Mt Stewart, 17.27 km away
Otaki Forks: 2, 17.47 km away
Otaki Forks: 1, 18.43 km away

Mascarin, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.47 km
Co-rupture Count9
Co-rupture Rate0.0

Rangitikei Offshore 1, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.2 km
Co-rupture Count1
Co-rupture Rate0.0

Himatangi, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 2.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke North, 3.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 5.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 3, 5.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 6.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.82 km
Min Rate-Weighted Dist7.26 km
Co-rupture Count104
Co-rupture Rate1.07605565E-5

Otaheke South, 10.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohariu, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count26
Co-rupture Rate0.0

Fisherman 2, 11.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tokomaru, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Stewart, 17.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 2, 17.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Otaki Forks: 1, 18.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
