Redcliffe Details

Property	Value
Rupture Count	21
Ruptures Above Sect Min Mag	21
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.88, 7.83]
Length Range	[18, 148] km
Total Rate	3.8000046E-5 /yr
Multi-Fault Rate	3.8000046E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	5

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

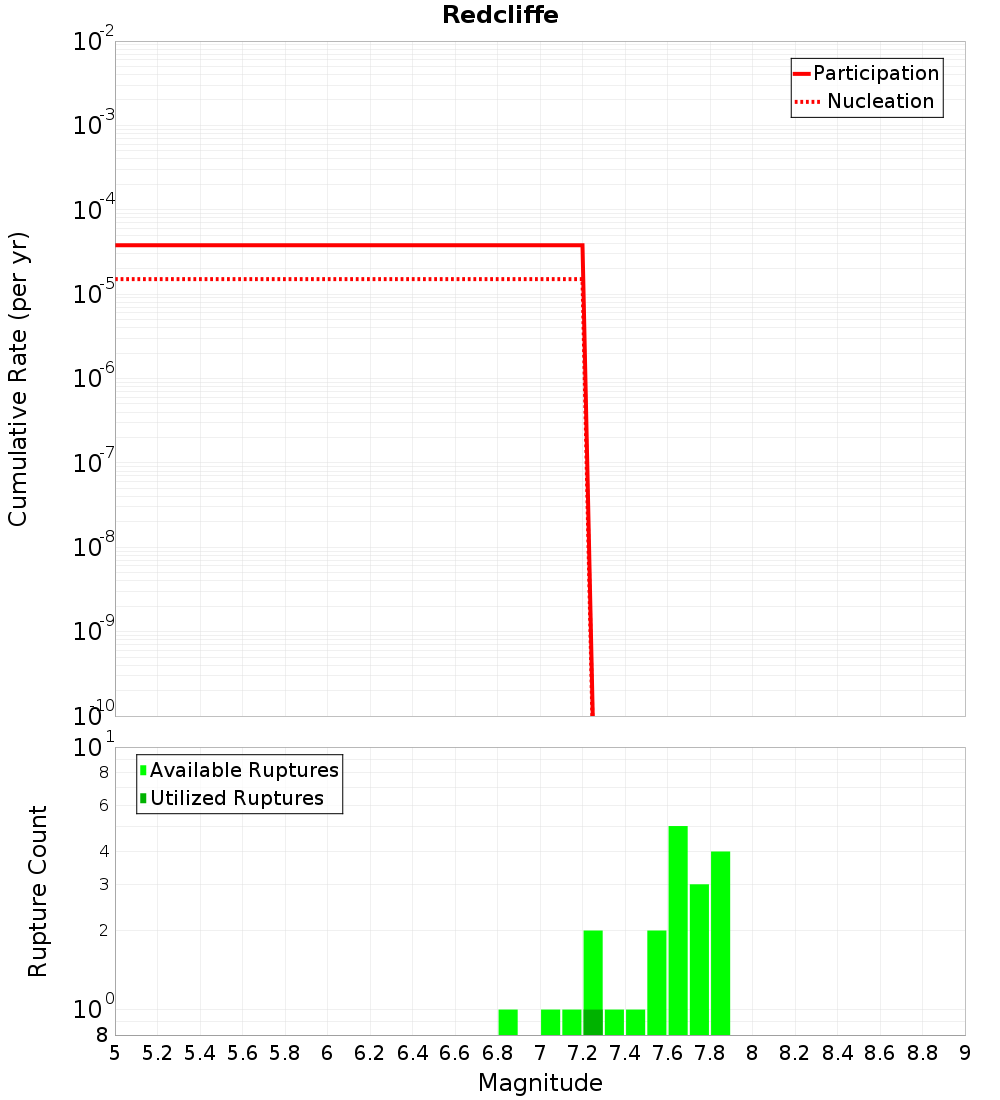

Magnitude-Frequency Distribution

Incremental	Cumulative

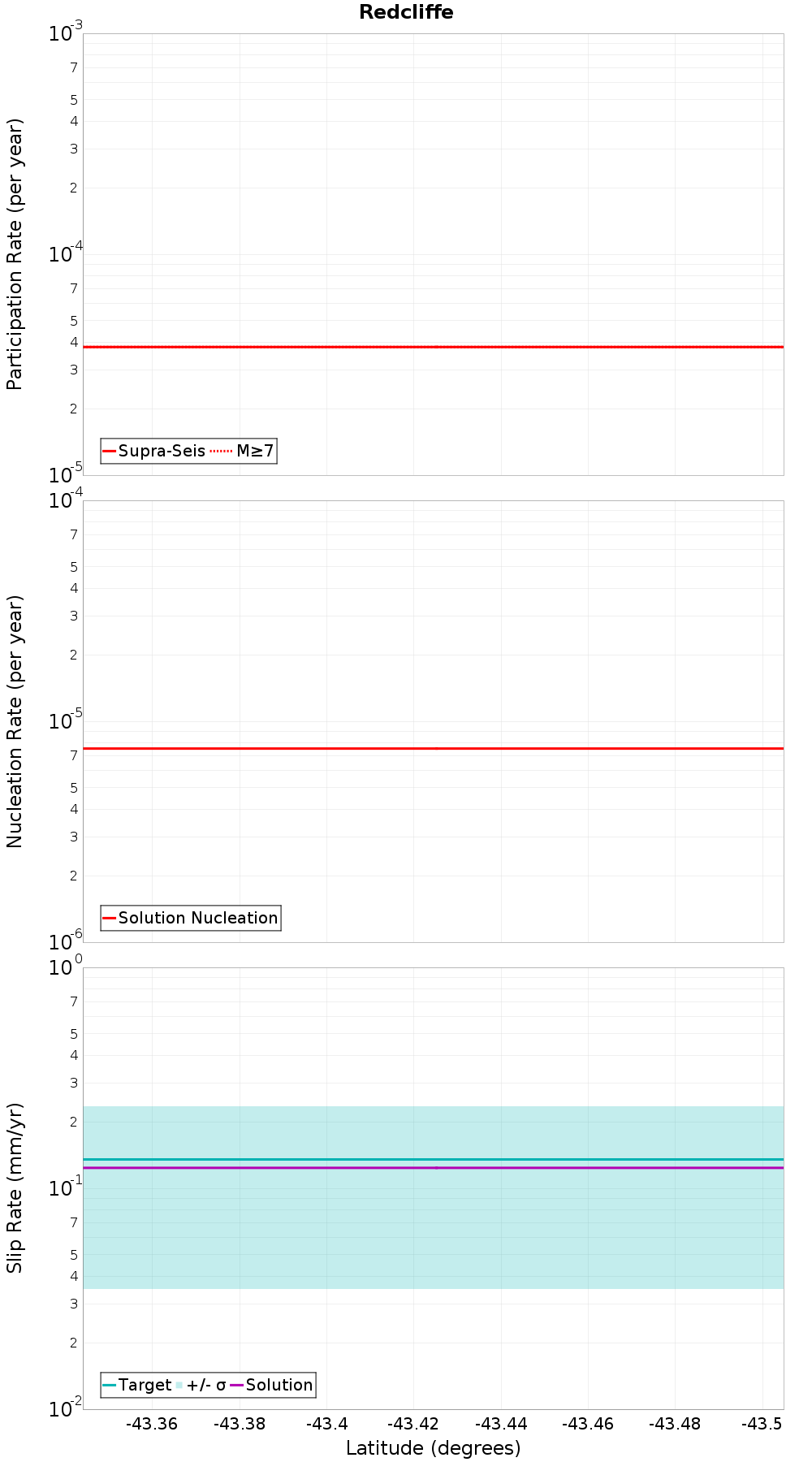

Along-Strike Values

Moment-Rates and b-Values

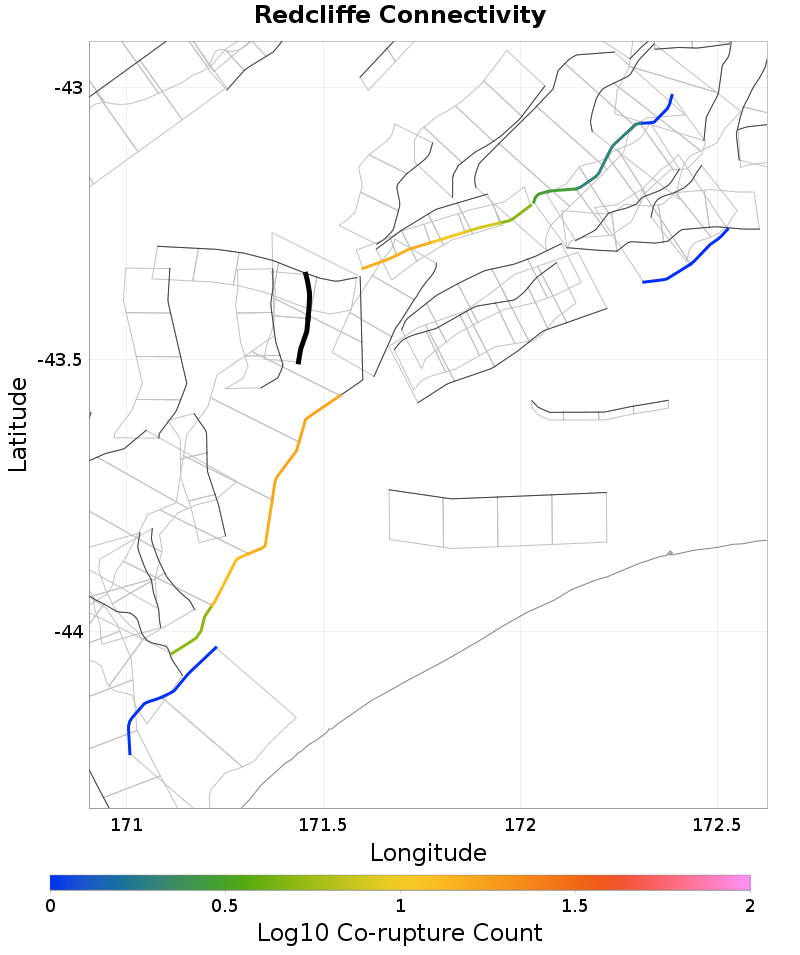

Connectivity

Nearby Sections

Fault Section
Double Hill, 0.1 km away
Hutt Peel, 0.17 km away
North Branch, 3.06 km away
Big Ben, 11.62 km away
Porters Pass, 11.68 km away
Cheeseman, 14.95 km away
Torlesse, 15.35 km away
High Peak - Sheffield, 18.32 km away
Kowai - View Hill, 19.33 km away

Double Hill, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hutt Peel, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.4 km
Co-rupture Count	16
Co-rupture Rate	0.0

North Branch, 3.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Big Ben, 11.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Porters Pass, 11.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	11.68 km
Min Rate-Weighted Dist	11.68 km
Co-rupture Count	15
Co-rupture Rate	3.8000046E-5

Cheeseman, 14.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Torlesse, 15.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

High Peak - Sheffield, 18.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kowai - View Hill, 19.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
