Te Whaiti North Details

PropertyValue
Rupture Count1,351
Ruptures Above Sect Min Mag1,350
Ruptures w/ Nonzero Rates6
Magnitude Range[6.45, 8.46]
Length Range[8, 646] km
Total Rate3.4394052E-5 /yr
Multi-Fault Rate3.4394052E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults84

Table Of Contents

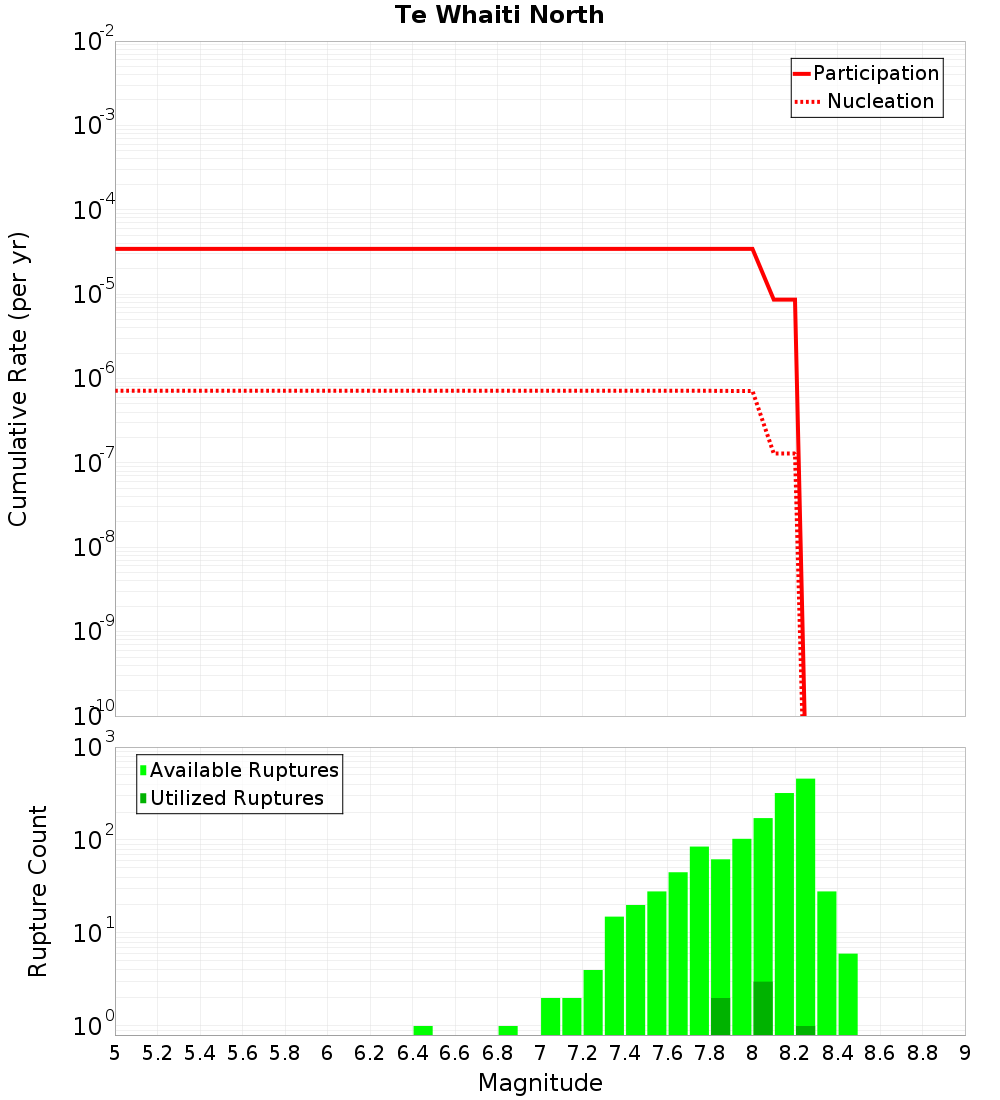

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

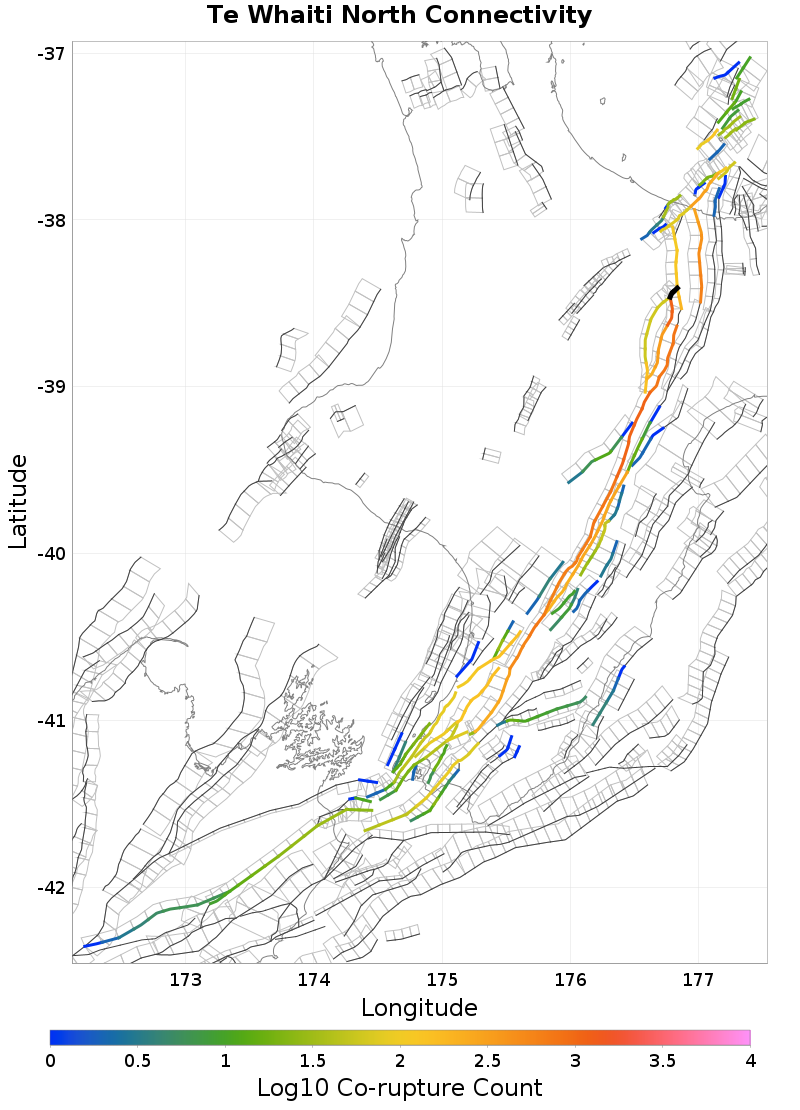

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Te Whaiti South, 0 km away
Wheao: North, 0 km away
Waiohau: North, 0.22 km away
Waiohau: South, 10.36 km away
Wheao: South, 11.11 km away
Whakatane: North, 13.54 km away
Whakatane: South, 18 km away

Te Whaiti South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0 km
Min Rate-Weighted Dist0 km
Co-rupture Count1,142
Co-rupture Rate3.4373665E-5

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count59
Co-rupture Rate0.0

Waiohau: North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.22 km
Min Rate-Weighted Dist0.22 km
Co-rupture Count193
Co-rupture Rate2.0388784E-8

Waiohau: South, 10.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count779
Co-rupture Rate1.4191735E-5

Wheao: South, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate0.0

Whakatane: North, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.54 km
Co-rupture Count630
Co-rupture Rate0.0

Whakatane: South, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
