Waipukurau - Poukawa Details
| Property | Value |
|---|---|
| Rupture Count | 395 |
| Ruptures Above Sect Min Mag | 391 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.85, 8.37] |
| Length Range | [19, 500] km |
| Total Rate | 3.167085E-4 /yr |
| Multi-Fault Rate | 2.7773576E-4 /yr (87.69%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 36 |
Table Of Contents

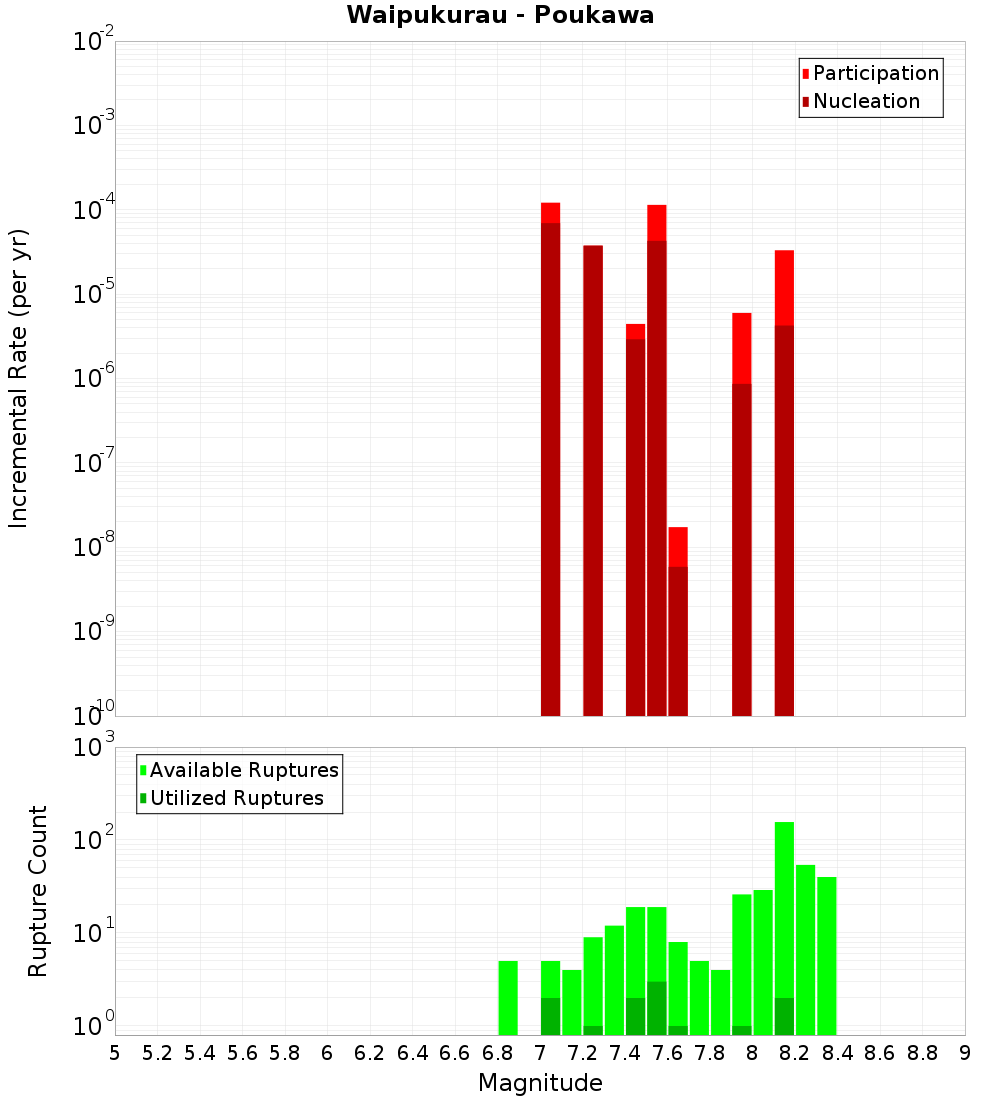

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

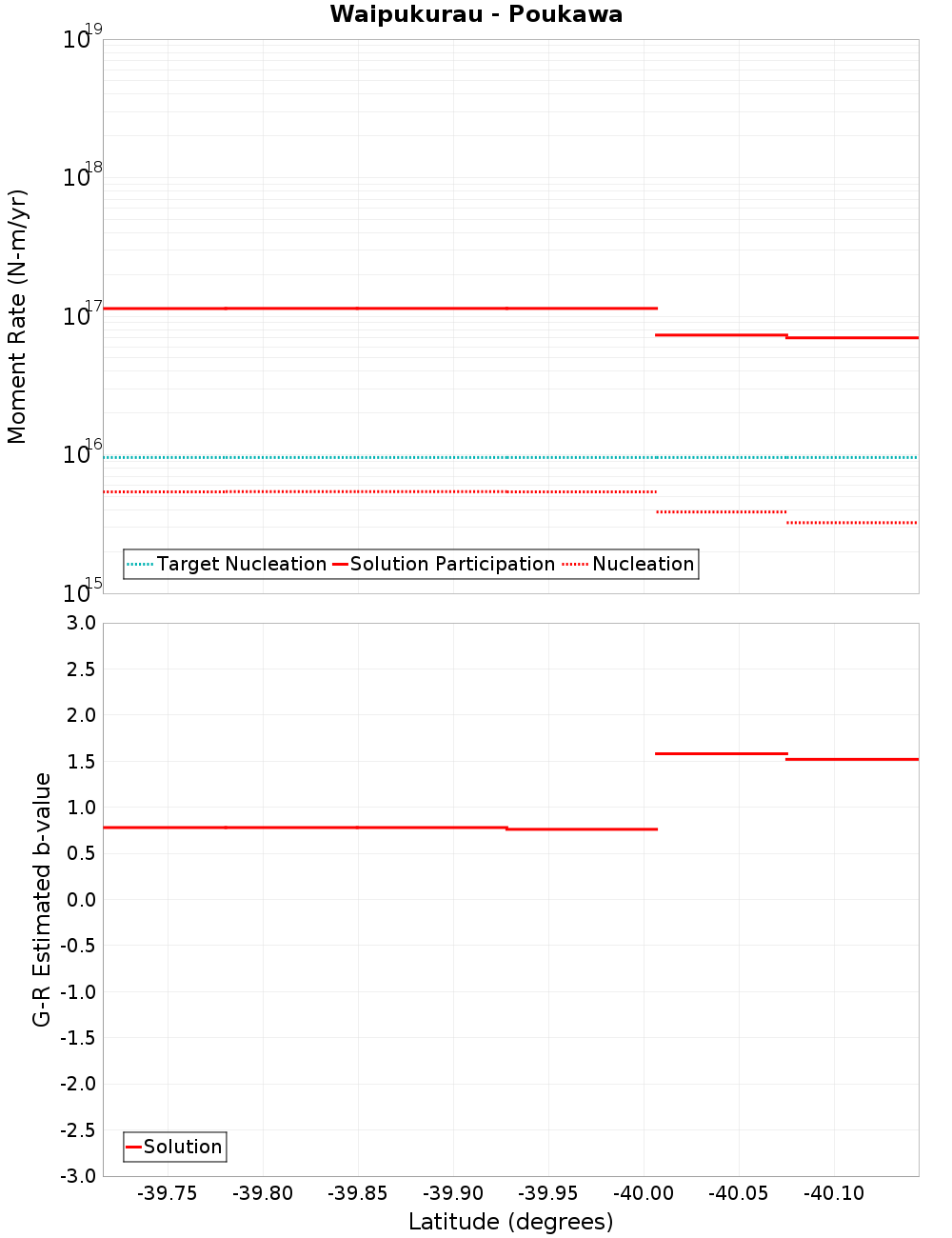

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Awanui, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 307 |
| Co-rupture Rate | 3.9089624E-5 |
Clear Hills - Waikopiro, 0.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Oruawharo - Mangatoro, 3.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.54 km |
| Min Rate-Weighted Dist | 5.19 km |
| Co-rupture Count | 20 |
| Co-rupture Rate | 1.480759E-4 |
Tukituki Thrust, 3.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.54 km |
| Min Rate-Weighted Dist | 3.58 km |
| Co-rupture Count | 70 |
| Co-rupture Rate | 1.2300721E-4 |
Te Heka, 5.63 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.63 km |
| Min Rate-Weighted Dist | 5.63 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 6.6526623E-6 |
Ruataniwha, 13.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maunga, 16.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimarama 1 & 2, 18.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
