Wairoa North Details
| Property | Value |
|---|---|
| Rupture Count | 13 |
| Ruptures Above Sect Min Mag | 12 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.88, 7.38] |
| Length Range | [18, 60] km |
| Total Rate | 3.0973402E-5 /yr |
| Multi-Fault Rate | 1.3650138E-6 /yr (4.41%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 4 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

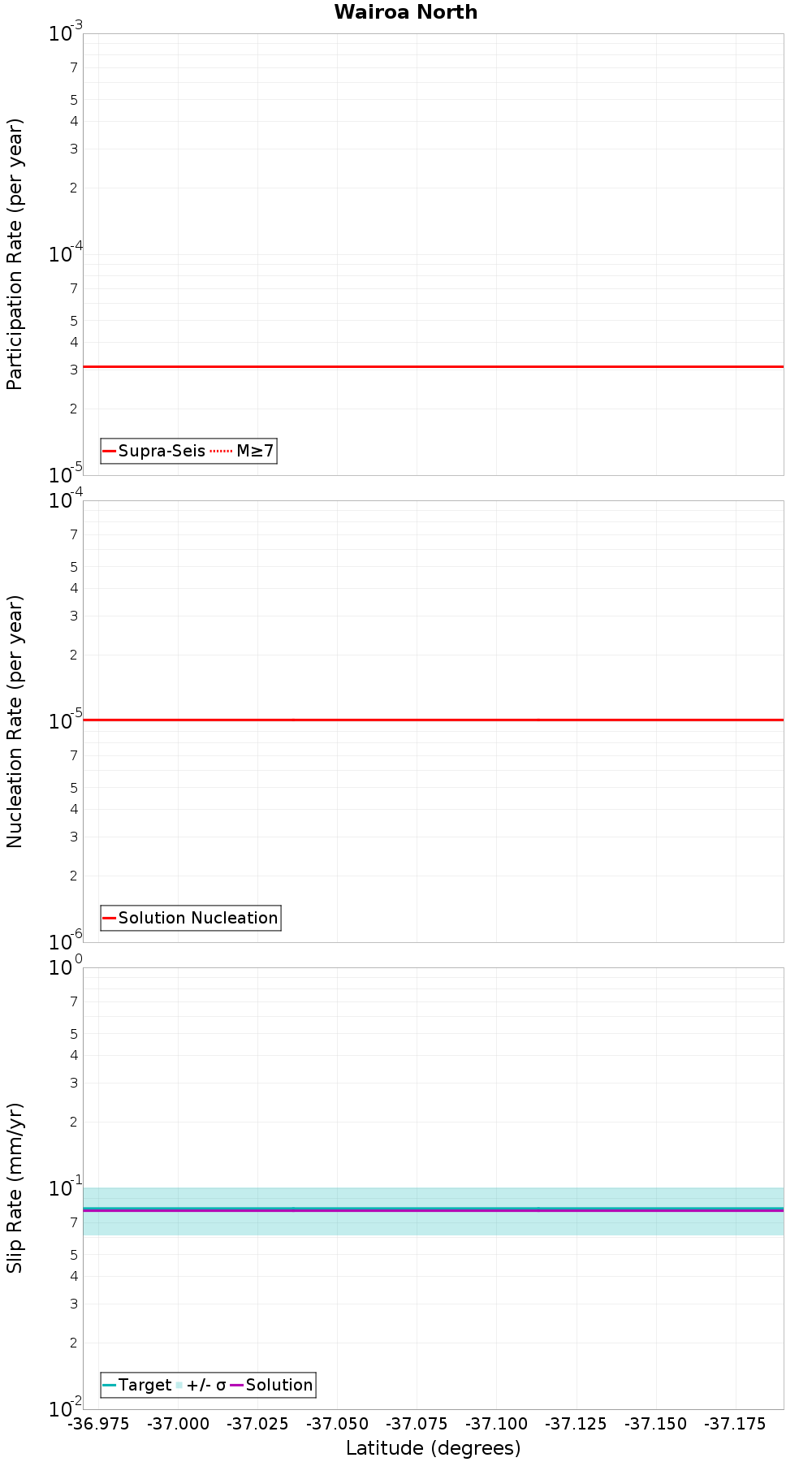

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Pokeno, 1.07 km away |
| Mangatangi, 2.07 km away |
| St Stephens, 3.24 km away |
| Drury, 5.35 km away |
| Aka Aka, 11.85 km away |
| Pukekohe, 13.86 km away |
| Glenbrook, 15 km away |
Pokeno, 1.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Mangatangi, 2.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.49 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
St Stephens, 3.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.24 km |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Drury, 5.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.35 km |
| Min Rate-Weighted Dist | 7.6 km |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.3650138E-6 |
Aka Aka, 11.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pukekohe, 13.86 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Glenbrook, 15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM4 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.3650138E-6 |
