Beacon Hill Details
| Property | Value |
|---|---|
| Rupture Count | 207 |
| Ruptures Above Sect Min Mag | 207 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.96, 8.29] |
| Length Range | [20, 379] km |
| Total Rate | 7.666878E-6 /yr |
| Multi-Fault Rate | 7.666878E-6 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 36 |
Table Of Contents

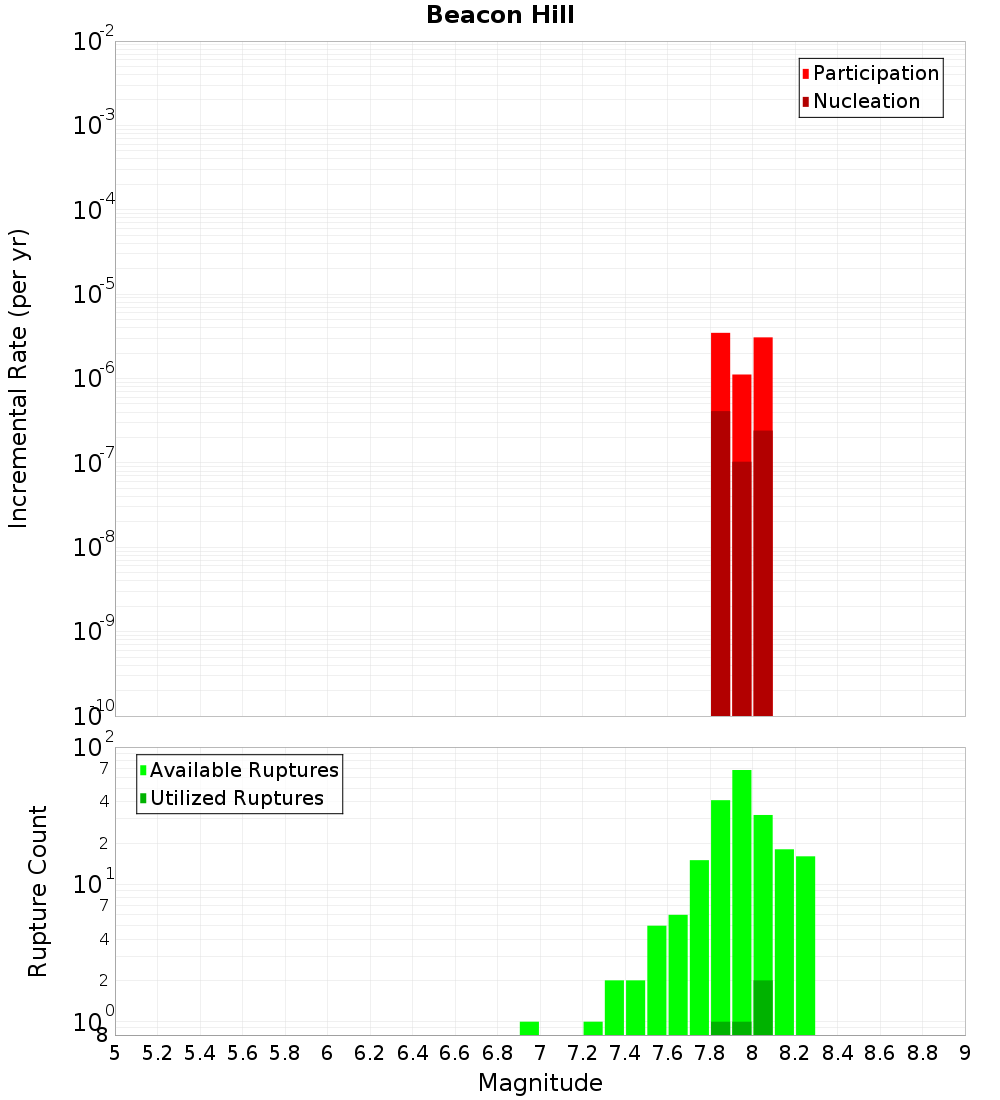

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

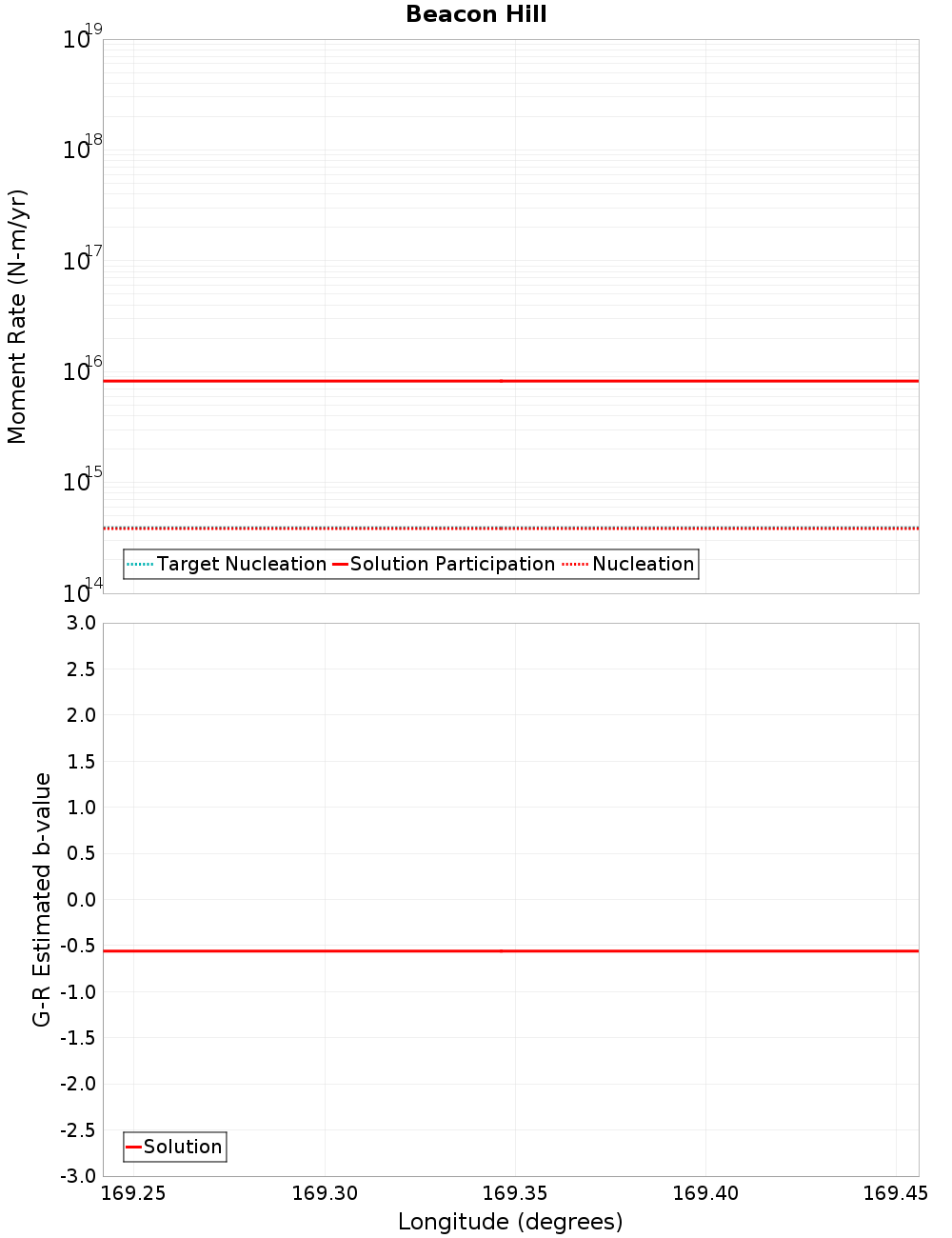

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Blue Mountain, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.09 km |
| Min Rate-Weighted Dist | 0.09 km |
| Co-rupture Count | 197 |
| Co-rupture Rate | 8.782429E-6 |
Spylaw, 0.38 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.38 km |
| Min Rate-Weighted Dist | 0.38 km |
| Co-rupture Count | 128 |
| Co-rupture Rate | 7.666878E-6 |
Clifton, 3.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.1155511E-6 |
Hillfoot, 4.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Little Hillfoot, 10.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.39 km |
| Co-rupture Count | 22 |
| Co-rupture Rate | 0.0 |
Otanomomo, 13.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wendon Valley, 14.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuapeka, 15.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Teviot, 16.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
