Cape Egmont: South Details
| Property | Value |
|---|---|
| Rupture Count | 351 |
| Ruptures Above Sect Min Mag | 349 |
| Ruptures w/ Nonzero Rates | 12 |
| Magnitude Range | [6.92, 7.91] |
| Length Range | [21, 208] km |
| Total Rate | 1.1603816E-4 /yr |
| Multi-Fault Rate | 9.069346E-5 /yr (78.16%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 14 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

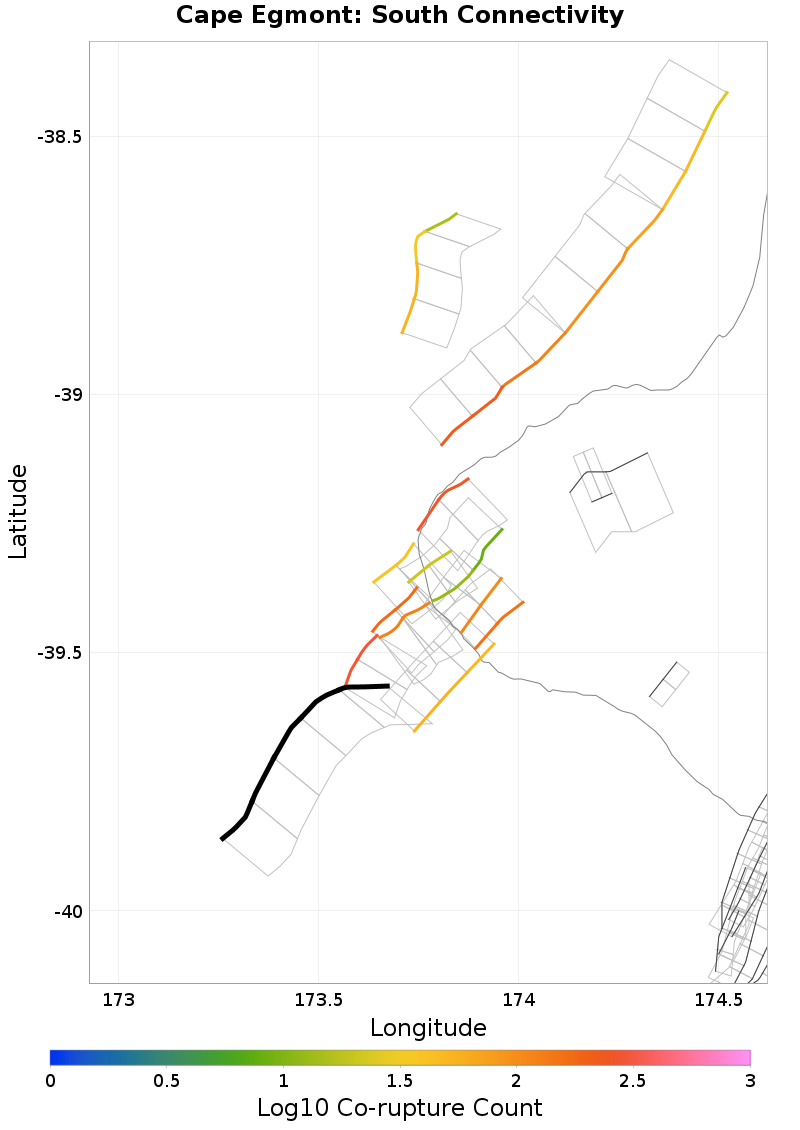

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Pihama, 0.32 km away |
| Cape Egmont: Central, 0.35 km away |
| Manahi 1, 7.96 km away |
| Cape Egmont: North, 10.13 km away |
| Kiri, 18.8 km away |
| Ihaia, 18.91 km away |
| Manahi 2, 19.92 km away |
Pihama, 0.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.32 km |
| Min Rate-Weighted Dist | 0.32 km |
| Co-rupture Count | 53 |
| Co-rupture Rate | 5.482608E-5 |
Cape Egmont: Central, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.35 km |
| Min Rate-Weighted Dist | 0.35 km |
| Co-rupture Count | 288 |
| Co-rupture Rate | 3.586738E-5 |
Manahi 1, 7.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 128 |
| Co-rupture Rate | 5.270299E-6 |
Cape Egmont: North, 10.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 172 |
| Co-rupture Rate | 3.059708E-5 |
Kiri, 18.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 157 |
| Co-rupture Rate | 5.482608E-5 |
Ihaia, 18.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 116 |
| Co-rupture Rate | 1.7371995E-5 |
Manahi 2, 19.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
