Cape Foulwind 4 Details

PropertyValue
Rupture Count113
Ruptures Above Sect Min Mag110
Ruptures w/ Nonzero Rates4
Magnitude Range[6.95, 7.93]
Length Range[24, 230] km
Total Rate2.1814261E-5 /yr
Multi-Fault Rate2.1814261E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults6

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

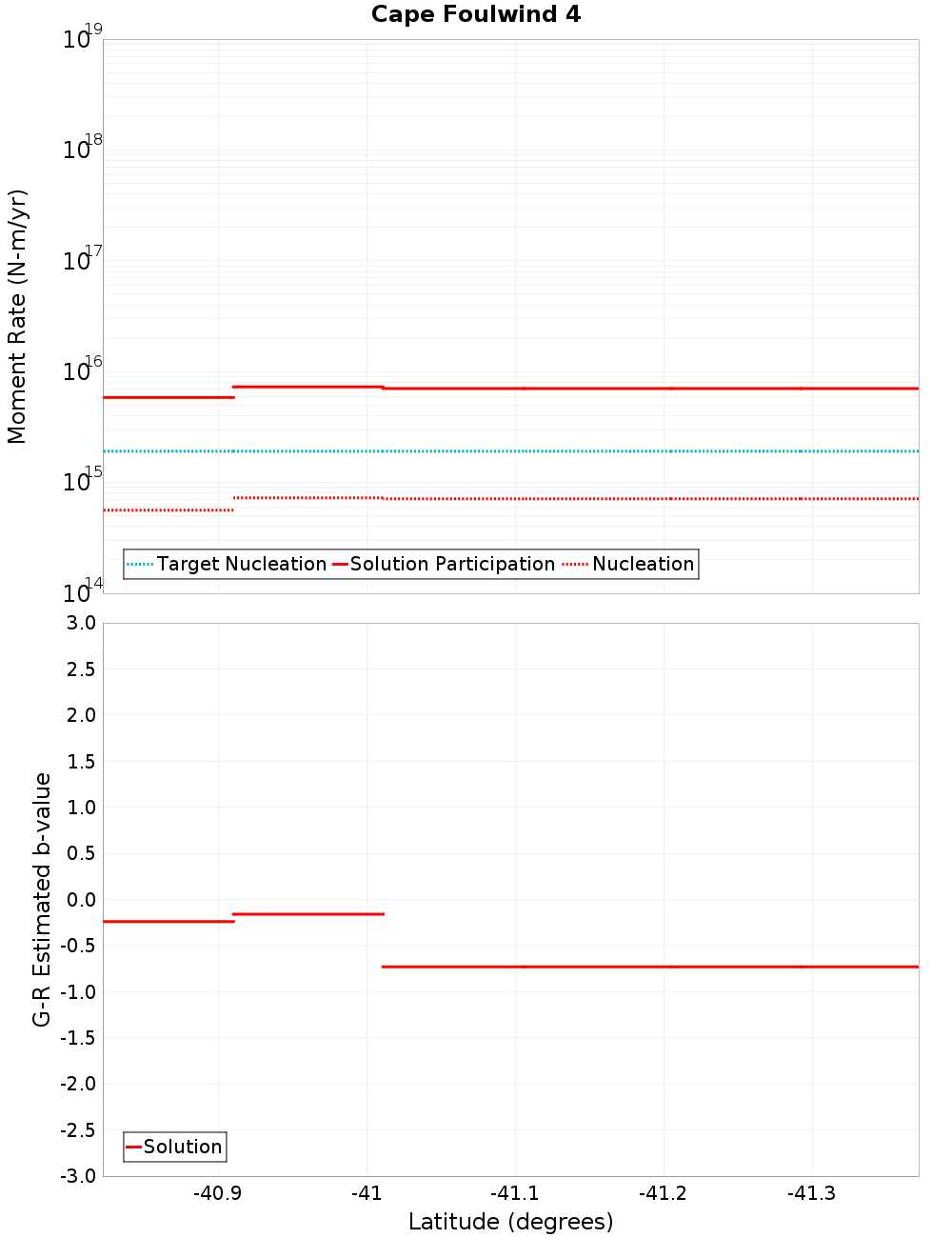

Moment-Rates and b-Values

(top)

Along-strike plot

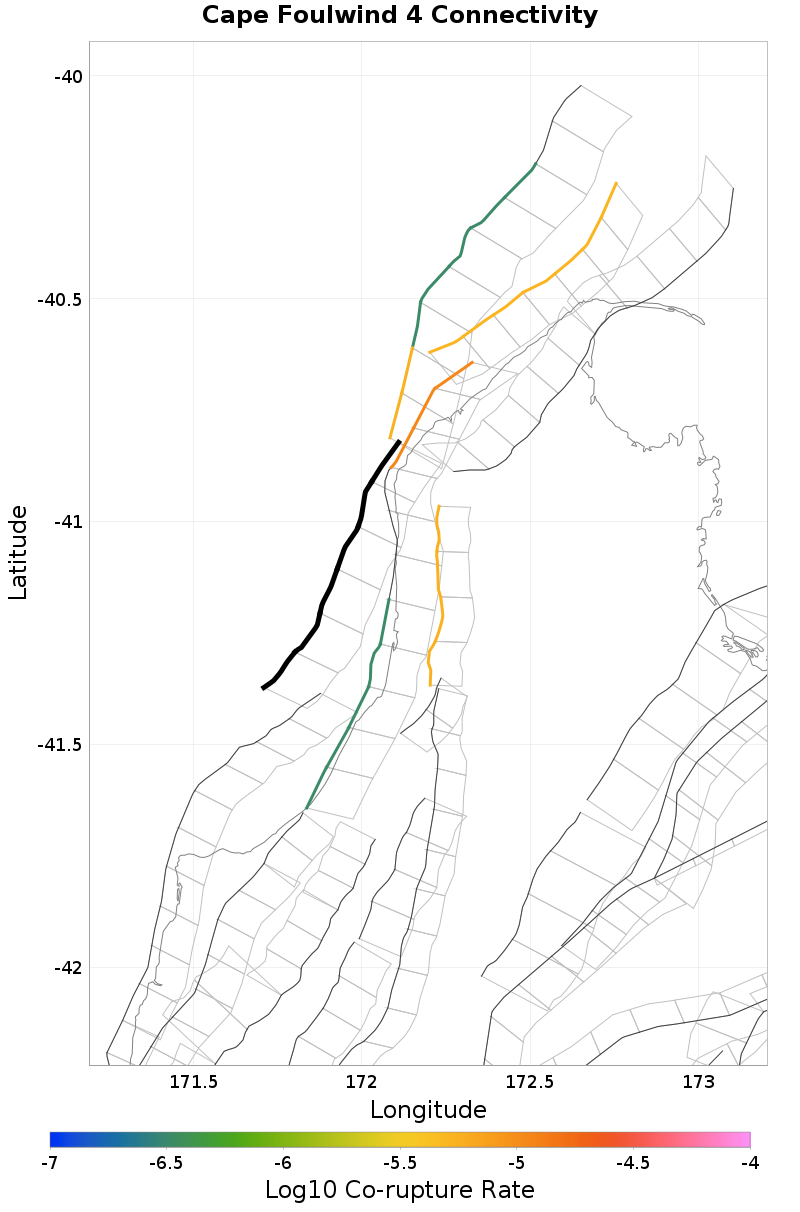

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Kahurangi, 0.34 km away
Kongahau, 1.22 km away
Wakamarama, 1.47 km away
Cape Foulwind 2, 8.22 km away
Kohaihai, 11.52 km away
Farewell, 19.6 km away

Kahurangi, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.34 km
Min Rate-Weighted Dist0.34 km
Co-rupture Count81
Co-rupture Rate5.497049E-6

Kongahau, 1.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.22 km
Min Rate-Weighted Dist1.22 km
Co-rupture Count21
Co-rupture Rate1.1398324E-5

Wakamarama, 1.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Cape Foulwind 2, 8.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kohaihai, 11.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist11.52 km
Min Rate-Weighted Dist12.69 km
Co-rupture Count23
Co-rupture Rate5.5735195E-6

Farewell, 19.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate5.169734E-6
