Farewell Details
| Property | Value |
|---|---|
| Rupture Count | 67 |
| Ruptures Above Sect Min Mag | 61 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.79, 7.84] |
| Length Range | [19, 190] km |
| Total Rate | 1.5902897E-5 /yr |
| Multi-Fault Rate | 1.5902897E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

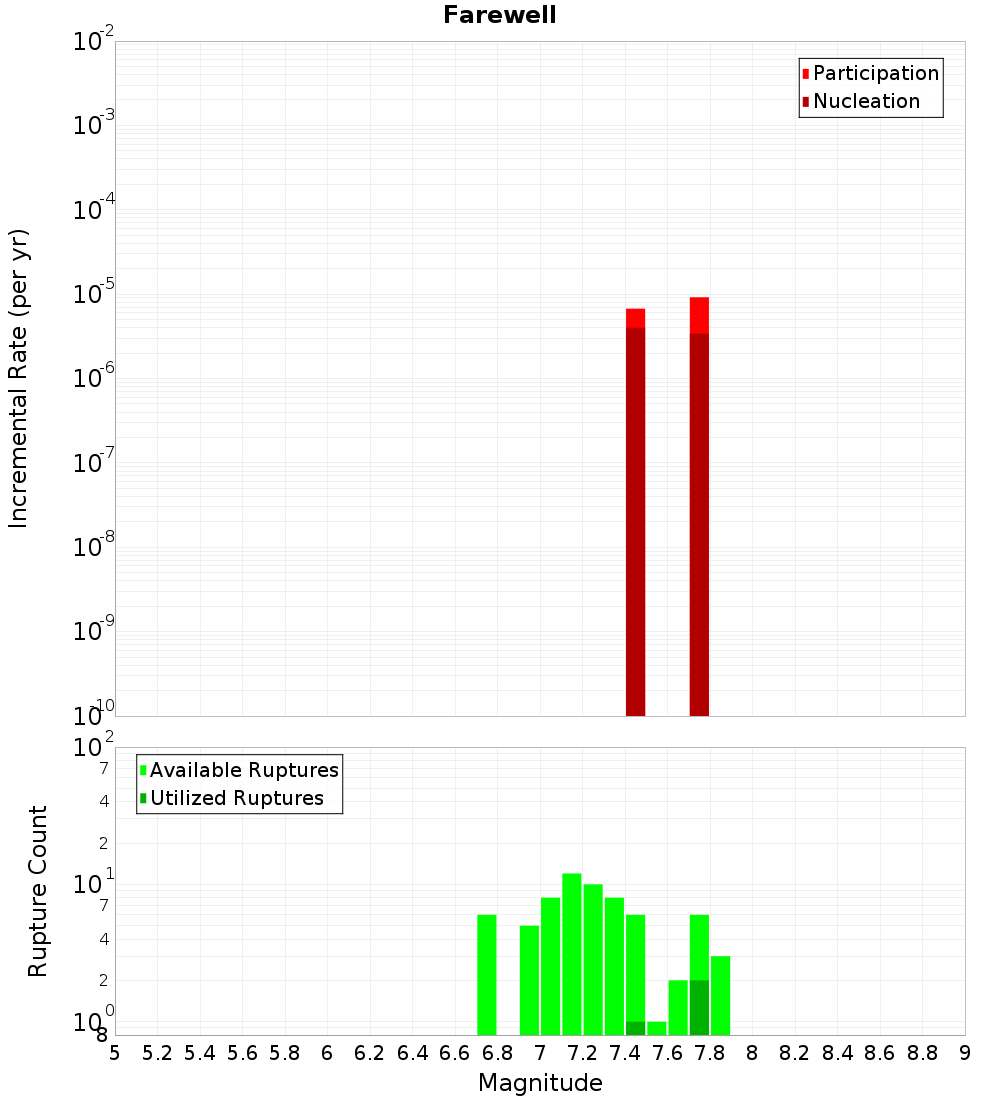

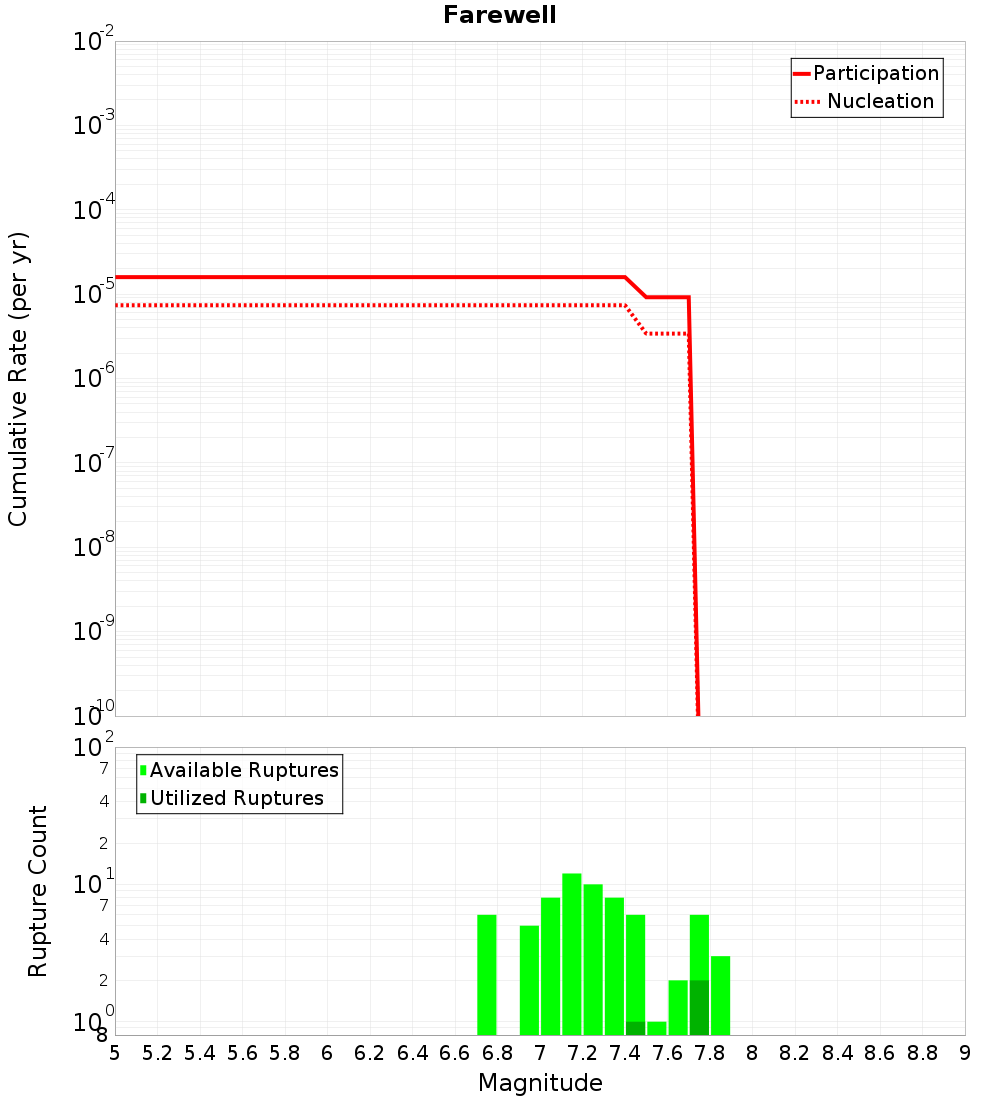

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

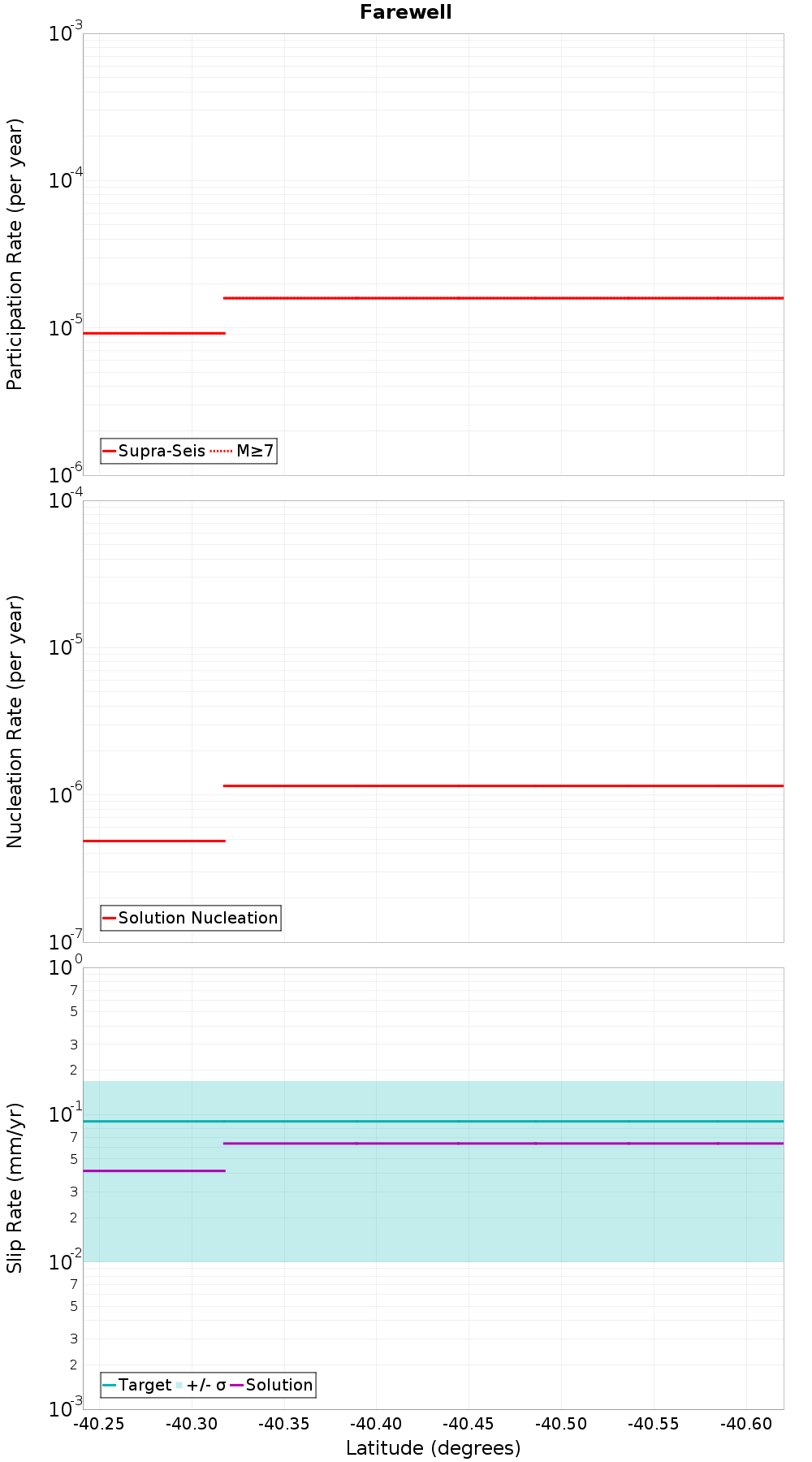

Along-Strike Values
Moment-Rates and b-Values

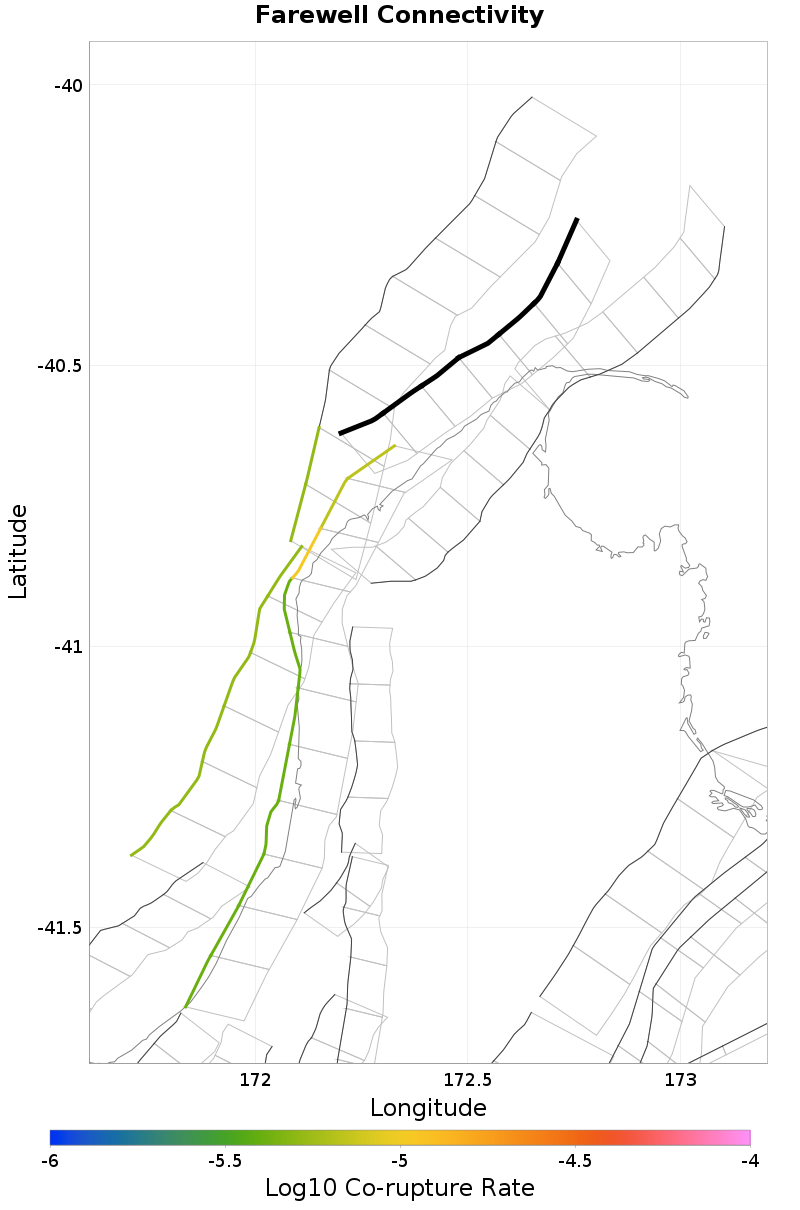

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kahurangi, 0.22 km away |
| Wakamarama, 0.29 km away |
| Wakamarama Offshore, 0.4 km away |
| Kongahau, 3.68 km away |
| Cape Foulwind 4, 19.6 km away |
Kahurangi, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.22 km |
| Min Rate-Weighted Dist | 0.22 km |
| Co-rupture Count | 13 |
| Co-rupture Rate | 5.169734E-6 |
Wakamarama, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.29 km |
| Co-rupture Count | 12 |
| Co-rupture Rate | 0.0 |
Wakamarama Offshore, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.4 km |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Kongahau, 3.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.68 km |
| Min Rate-Weighted Dist | 7.28 km |
| Co-rupture Count | 16 |
| Co-rupture Rate | 1.0733163E-5 |
Cape Foulwind 4, 19.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 5.169734E-6 |
