Fern Gully Details
| Property | Value |
|---|---|
| Rupture Count | 17 |
| Ruptures Above Sect Min Mag | 14 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.76, 7.39] |
| Length Range | [18, 64] km |
| Total Rate | 1.7953562E-4 /yr |
| Multi-Fault Rate | 2.5720048E-5 /yr (14.33%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 4 |
Table Of Contents

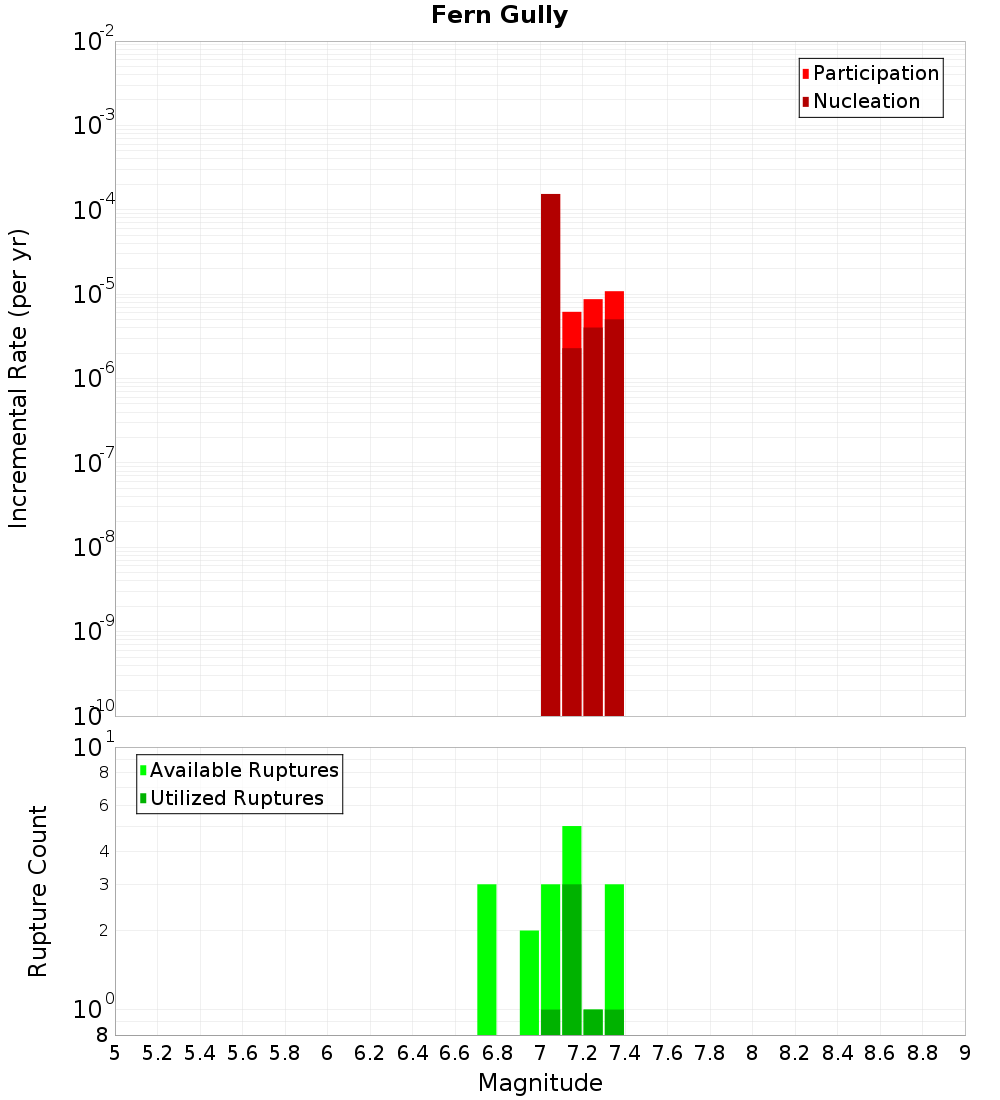

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

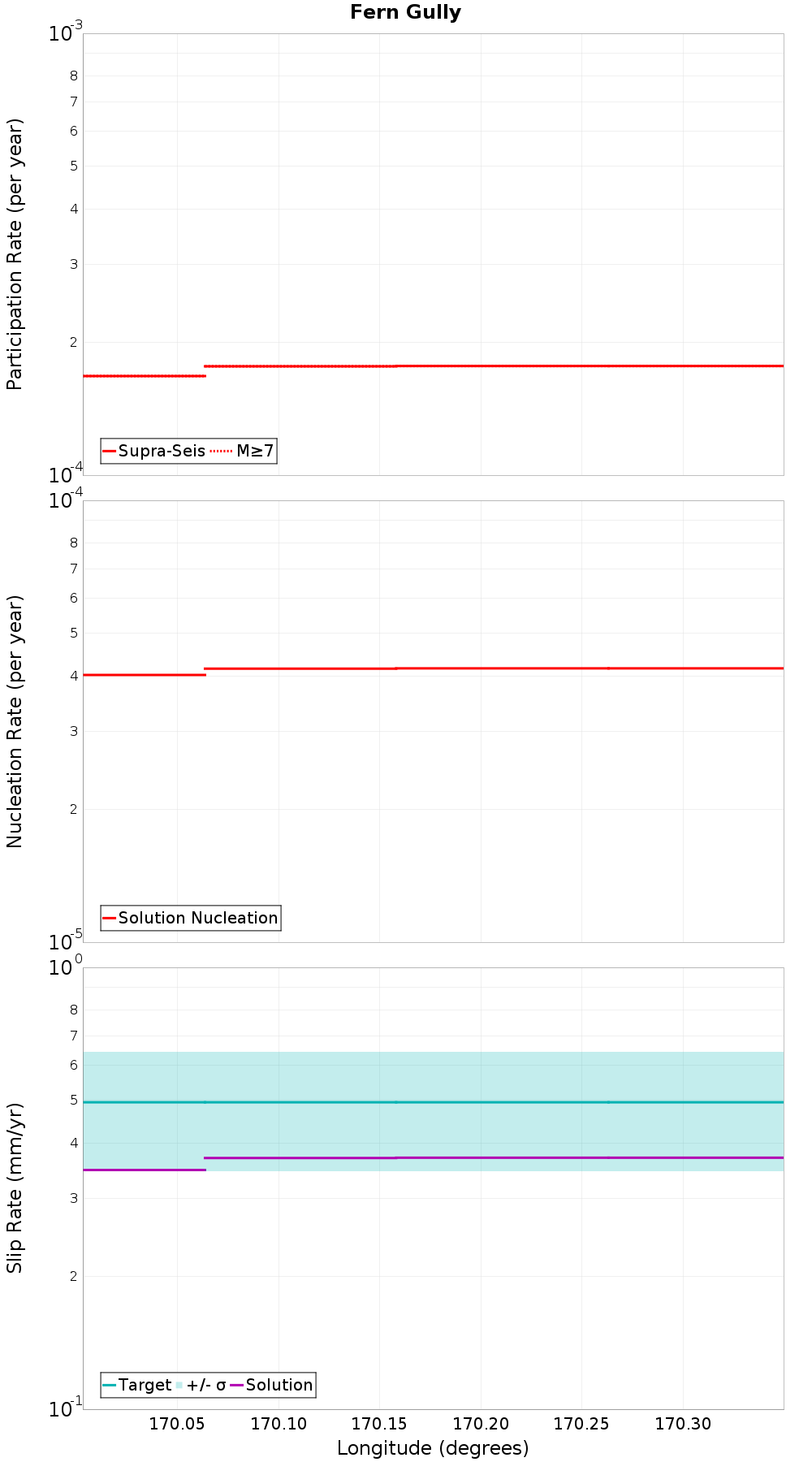

Along-Strike Values

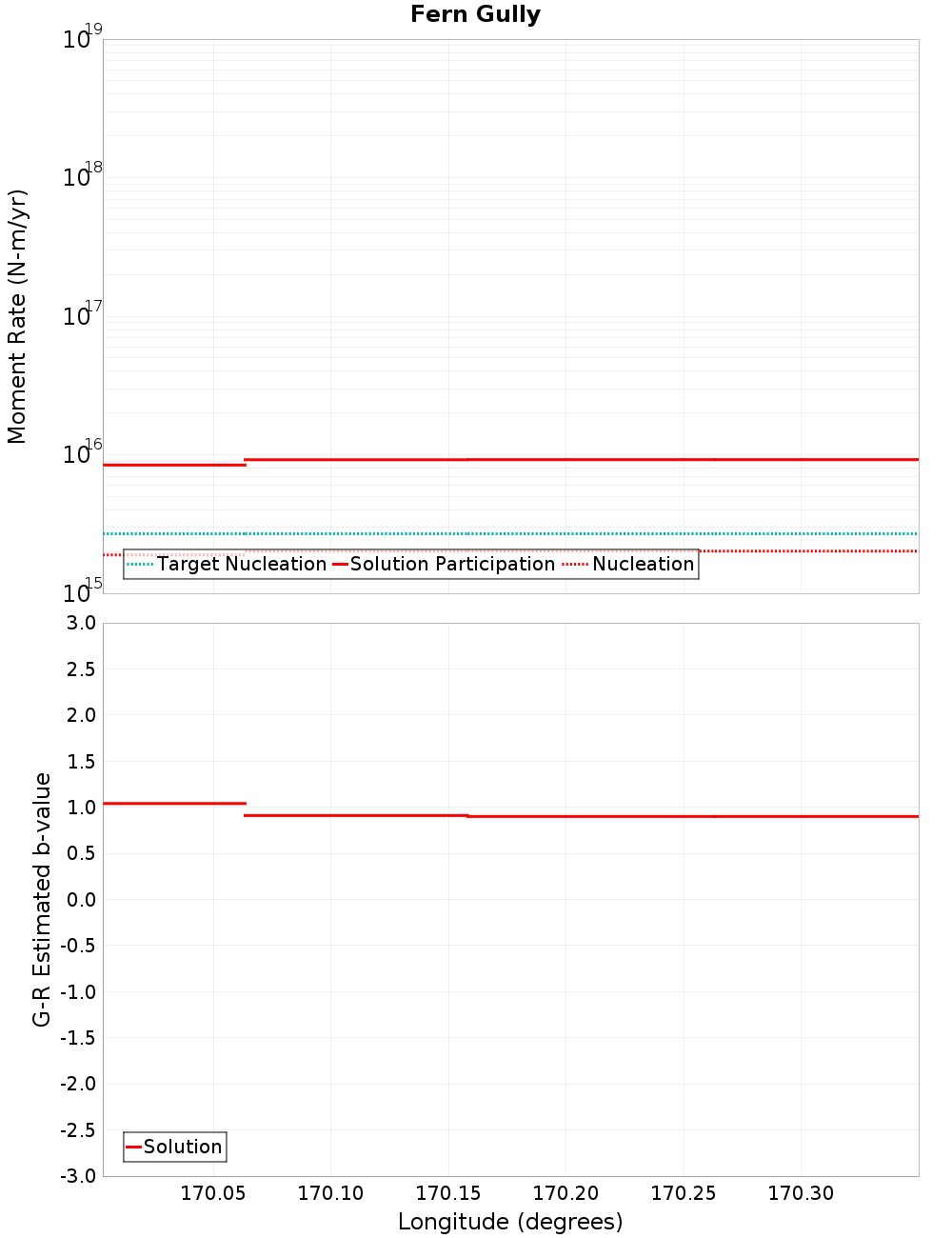

Moment-Rates and b-Values

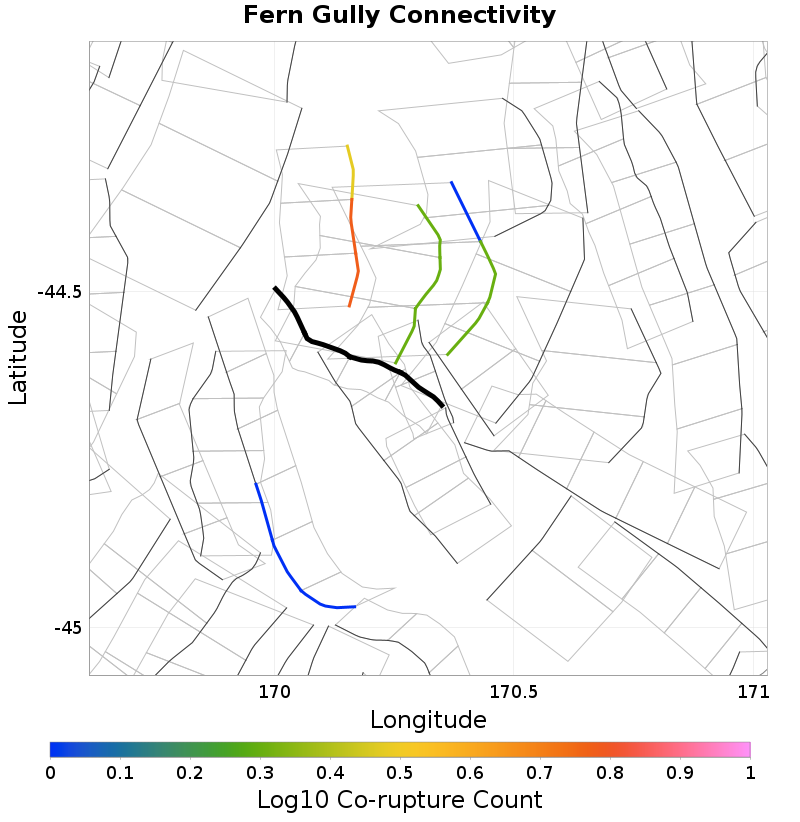

Connectivity
 |  |
|---|
Nearby Sections
Middle Range, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitangi, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Gibson, 0.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.31 km |
| Min Rate-Weighted Dist | 0.31 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 1.0831349E-5 |
Omarama Saddle, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Awahokomo, 0.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hawkdun, 1 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 14.77 km |
| Min Rate-Weighted Dist | 14.77 km |
| Co-rupture Count | 1 |
| Co-rupture Rate | 1.8075729E-6 |
Falstone, 3.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.04 km |
| Min Rate-Weighted Dist | 6.48 km |
| Co-rupture Count | 6 |
| Co-rupture Rate | 9.847271E-6 |
Mt Sutton, 3.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.67 km |
| Min Rate-Weighted Dist | 3.67 km |
| Co-rupture Count | 2 |
| Co-rupture Rate | 3.2338555E-6 |
Kirkliston, 3.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Dryburgh, 4.21 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Stonewall, 6.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ostler South, 8.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 11.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Blue Lake, 11.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
