Hawke Bay 1 Details
| Property | Value |
|---|---|
| Rupture Count | 103 |
| Ruptures Above Sect Min Mag | 103 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [7.24, 8.10] |
| Length Range | [31, 341] km |
| Total Rate | 5.6672884E-6 /yr |
| Multi-Fault Rate | 5.6672884E-6 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 27 |
Table Of Contents

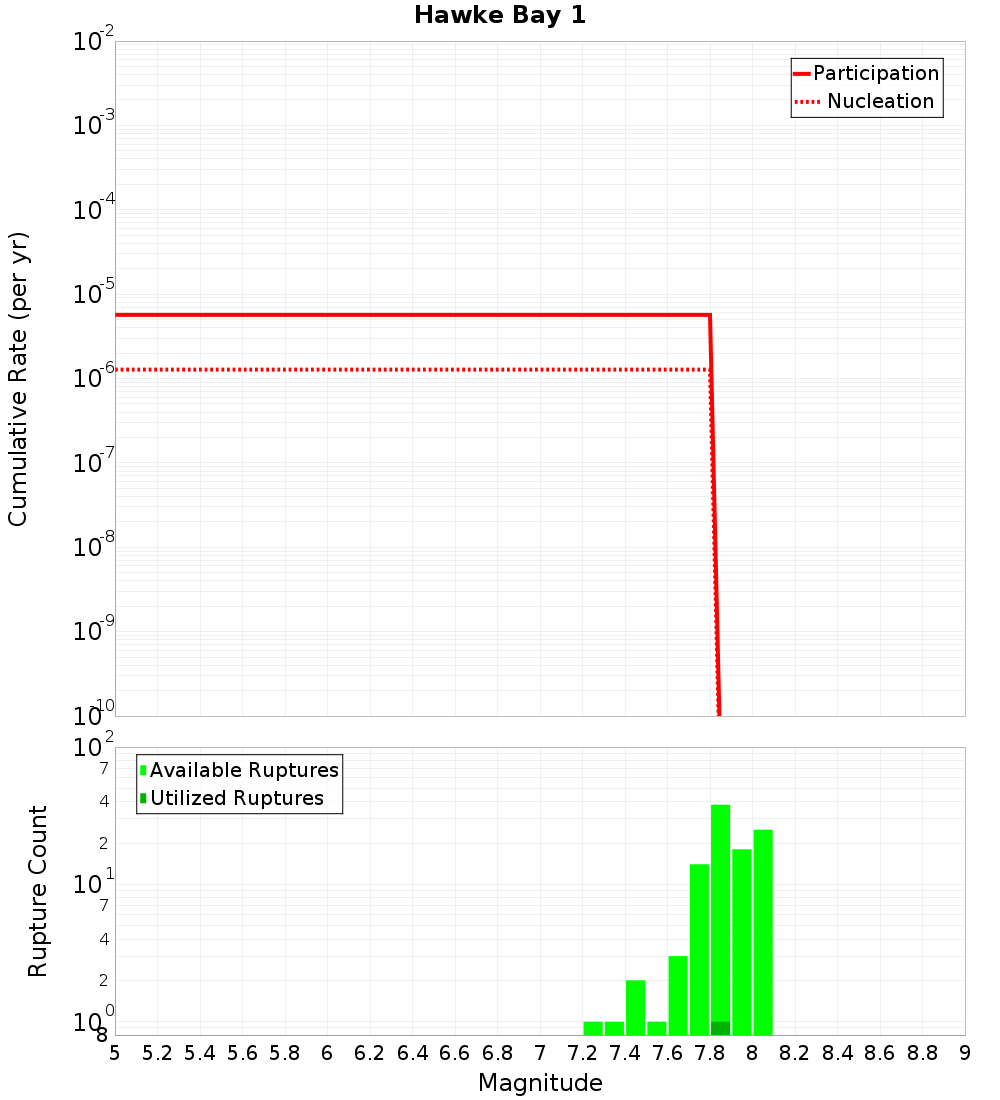

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

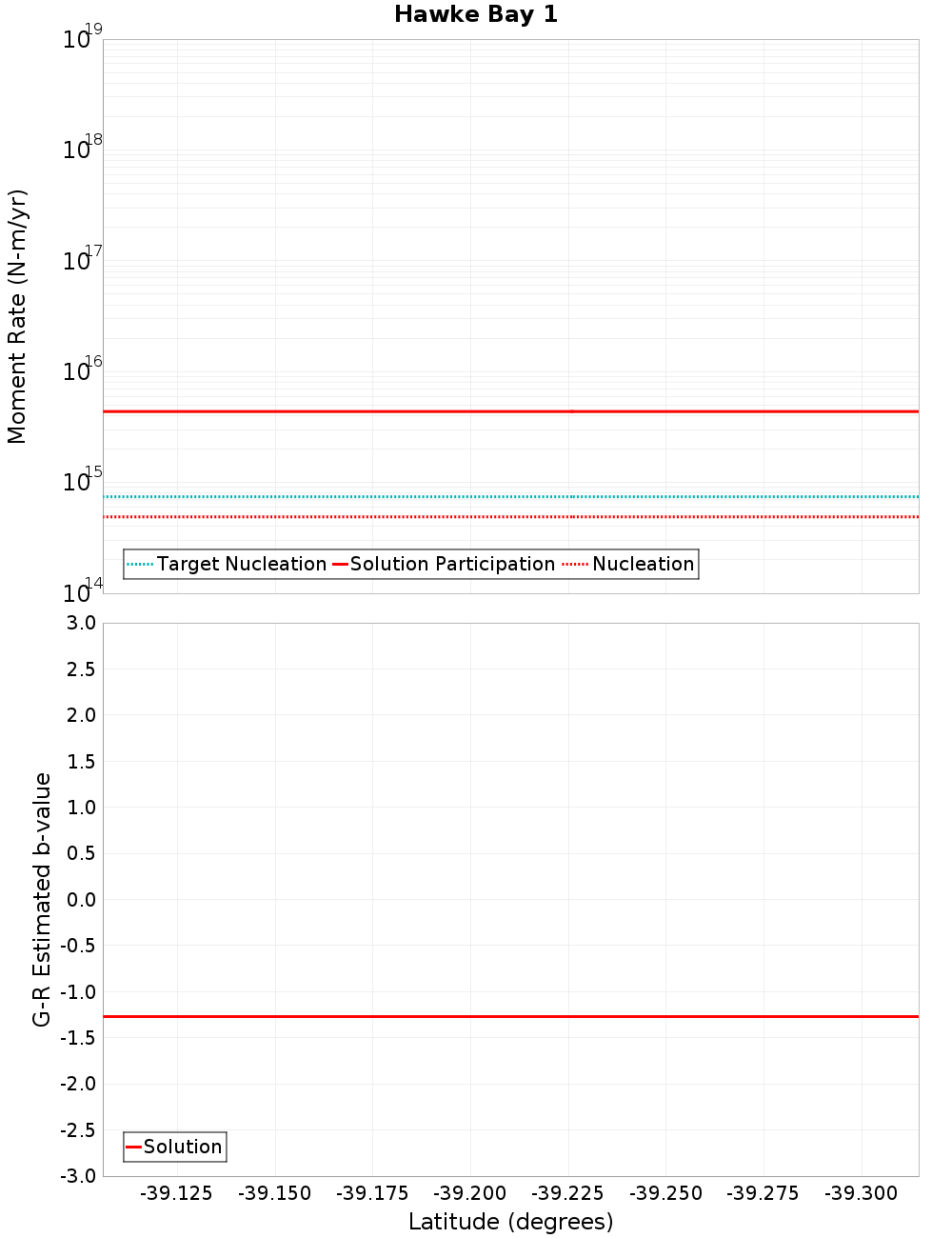

Moment-Rates and b-Values

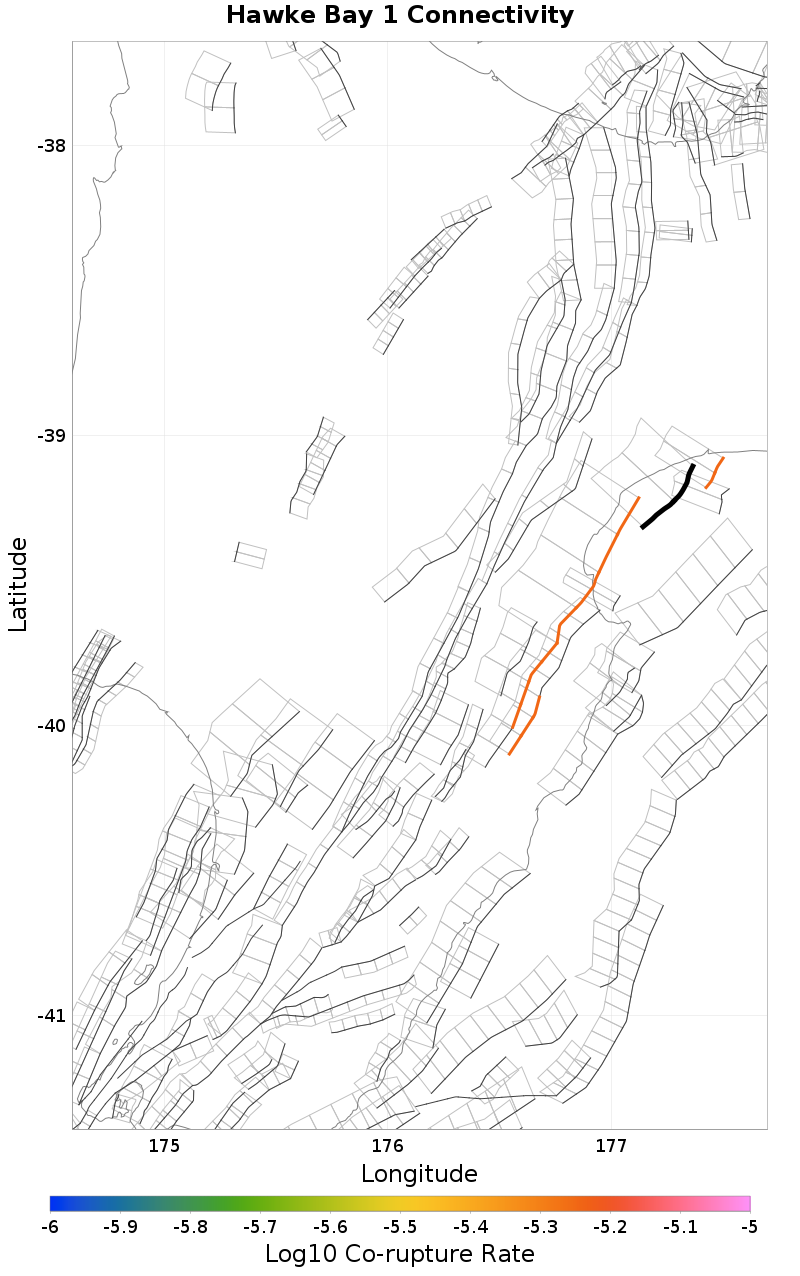

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Hawke Bay 4, 4.44 km away |
| Awanui, 4.64 km away |
| Patoka - Rangiora, 8.15 km away |
| Hawke Bay 5 & 11, 8.84 km away |
| Mohaka: North, 18.61 km away |
Hawke Bay 4, 4.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.44 km |
| Min Rate-Weighted Dist | 4.44 km |
| Co-rupture Count | 32 |
| Co-rupture Rate | 5.6672884E-6 |
Awanui, 4.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.64 km |
| Min Rate-Weighted Dist | 4.64 km |
| Co-rupture Count | 52 |
| Co-rupture Rate | 5.6672884E-6 |
Patoka - Rangiora, 8.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.15 km |
| Co-rupture Count | 48 |
| Co-rupture Rate | 0.0 |
Hawke Bay 5 & 11, 8.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 14 |
| Co-rupture Rate | 0.0 |
Mohaka: North, 18.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 9 |
| Co-rupture Rate | 0.0 |
