Ihaia Details
| Property | Value |
|---|---|
| Rupture Count | 226 |
| Ruptures Above Sect Min Mag | 225 |
| Ruptures w/ Nonzero Rates | 11 |
| Magnitude Range | [6.73, 7.91] |
| Length Range | [14, 208] km |
| Total Rate | 8.674656E-5 /yr |
| Multi-Fault Rate | 8.674656E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 12 |
Table Of Contents

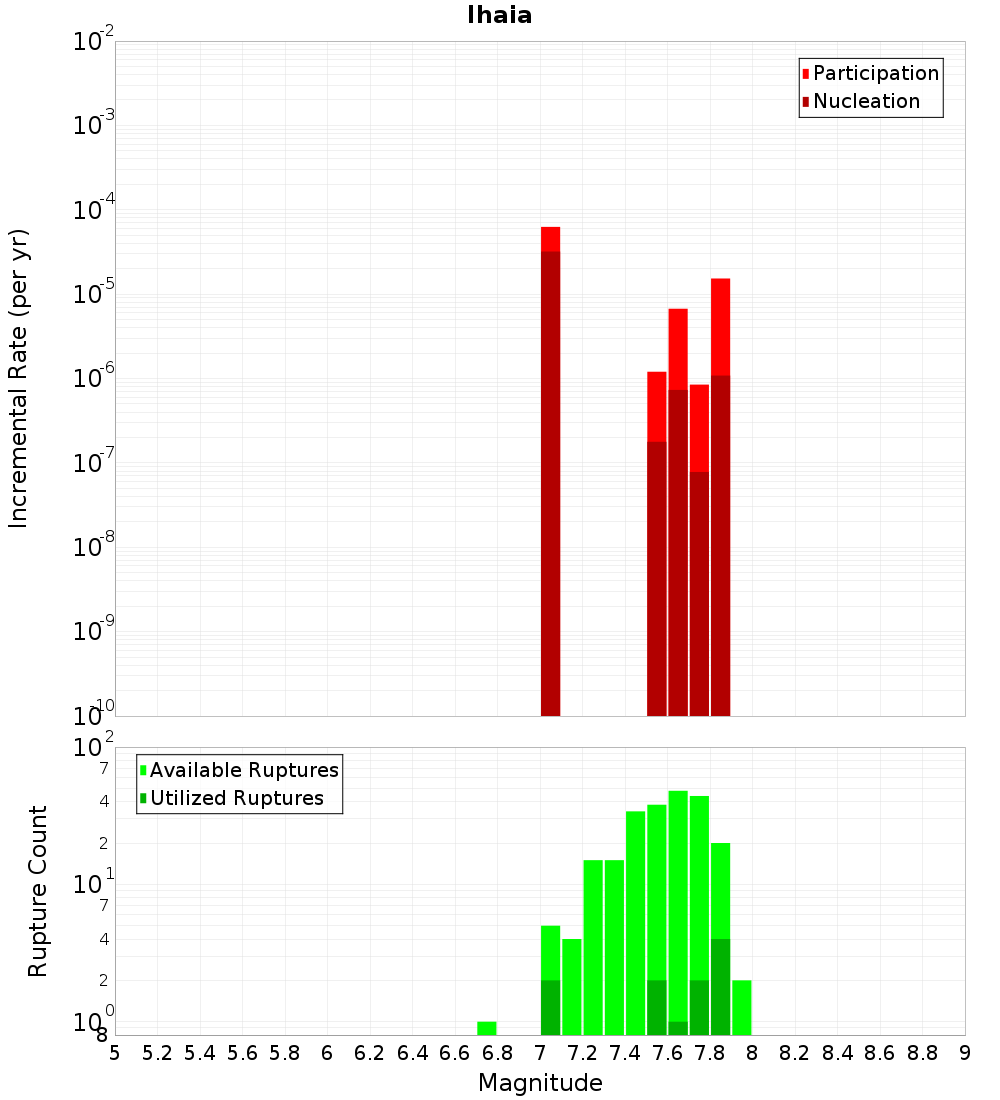

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

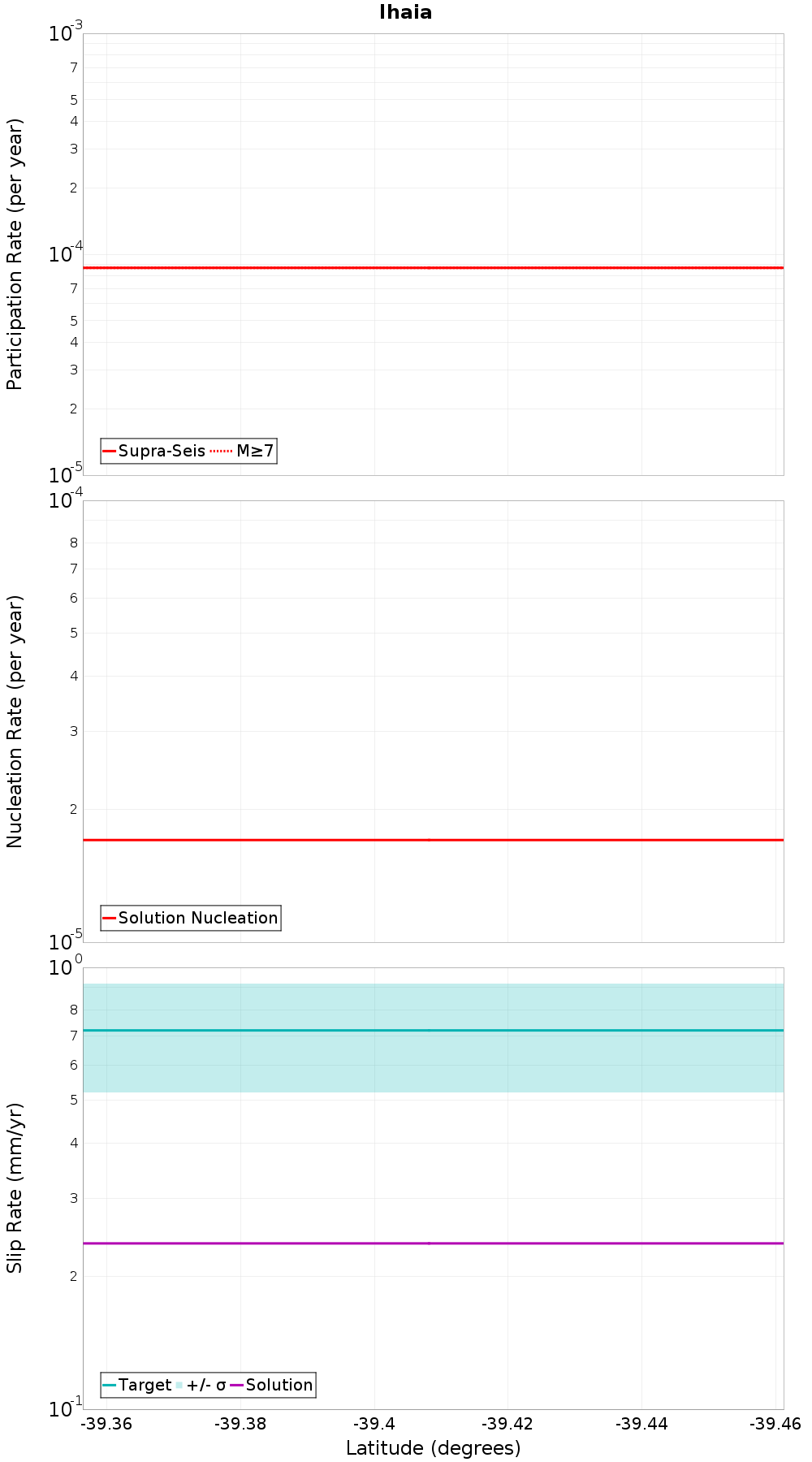

Along-Strike Values

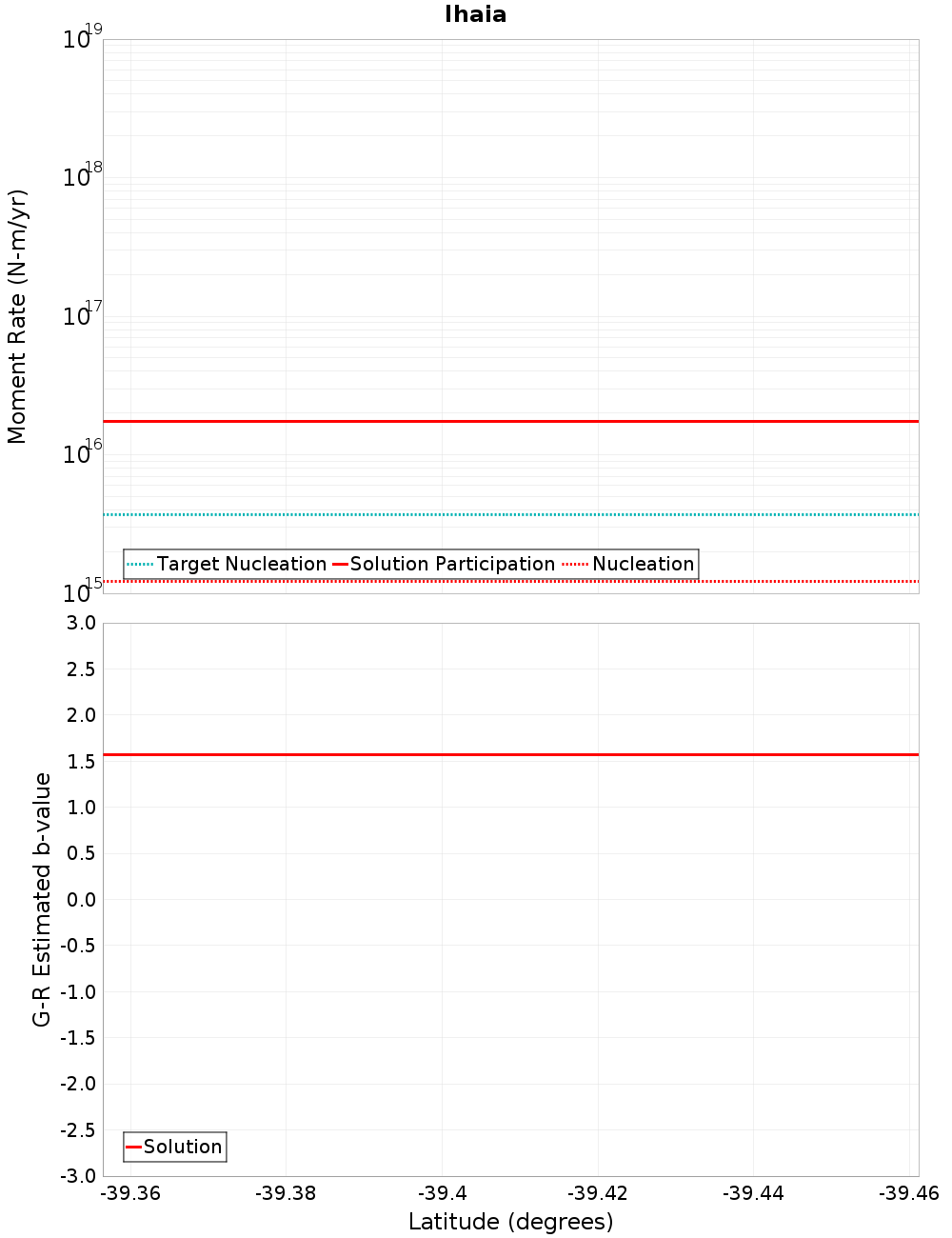

Moment-Rates and b-Values

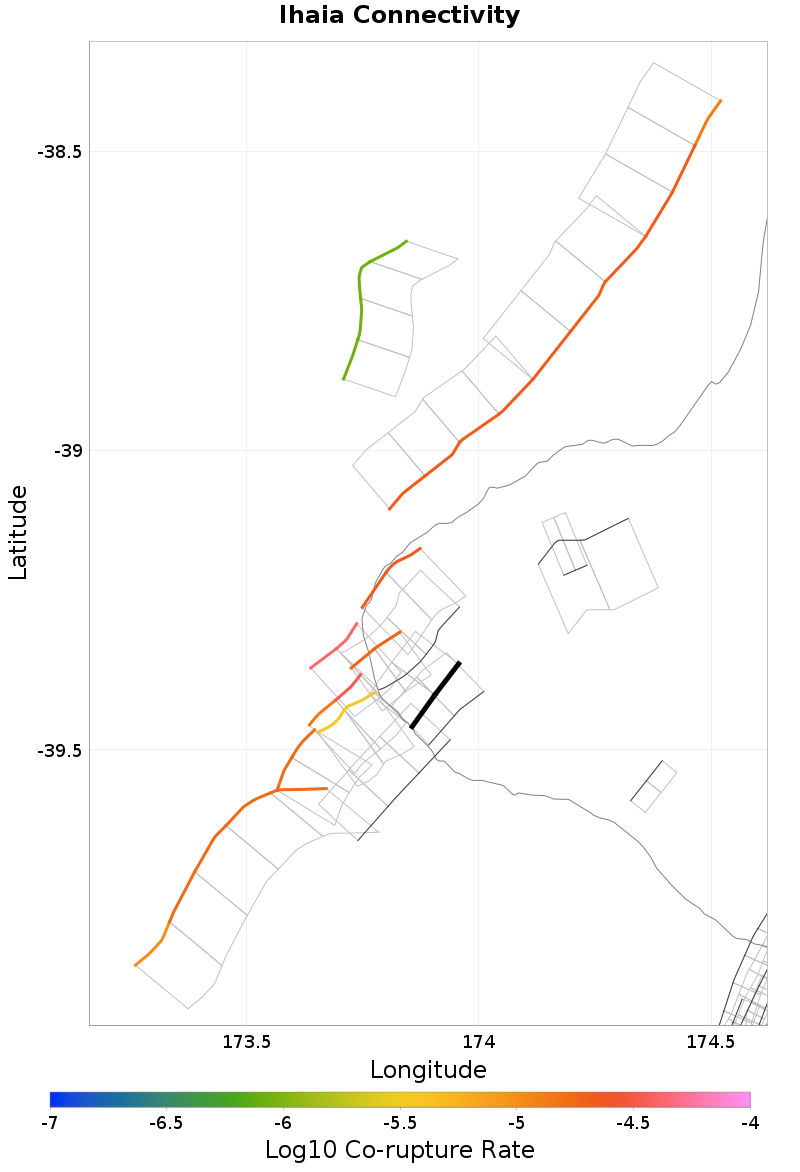

Connectivity
 |  |
|---|
Nearby Sections
Rahotu, 0.22 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 1.9701403E-5 |
Manahi 2, 0.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.26 km |
| Min Rate-Weighted Dist | 0.26 km |
| Co-rupture Count | 14 |
| Co-rupture Rate | 4.2959353E-5 |
Cape Egmont: North, 0.48 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.48 km |
| Min Rate-Weighted Dist | 0.48 km |
| Co-rupture Count | 114 |
| Co-rupture Rate | 3.3502747E-5 |
Warea, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.49 km |
| Min Rate-Weighted Dist | 0.49 km |
| Co-rupture Count | 198 |
| Co-rupture Rate | 2.2882748E-5 |
Manahi 1, 0.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.78 km |
| Min Rate-Weighted Dist | 0.78 km |
| Co-rupture Count | 102 |
| Co-rupture Rate | 3.5706494E-6 |
Kiri, 4.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 33 |
| Co-rupture Rate | 0.0 |
Oaonui, 5.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Pihama, 6.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Cape Egmont: Central, 10.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 146 |
| Co-rupture Rate | 1.7371995E-5 |
Cape Egmont: South, 18.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 116 |
| Co-rupture Rate | 1.7371995E-5 |
