Kerepehi Awaiti Details
| Property | Value |
|---|---|
| Rupture Count | 127 |
| Ruptures Above Sect Min Mag | 124 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.69, 7.66] |
| Length Range | [16, 143] km |
| Total Rate | 3.613102E-5 /yr |
| Multi-Fault Rate | 3.613102E-5 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 9 |
Table Of Contents

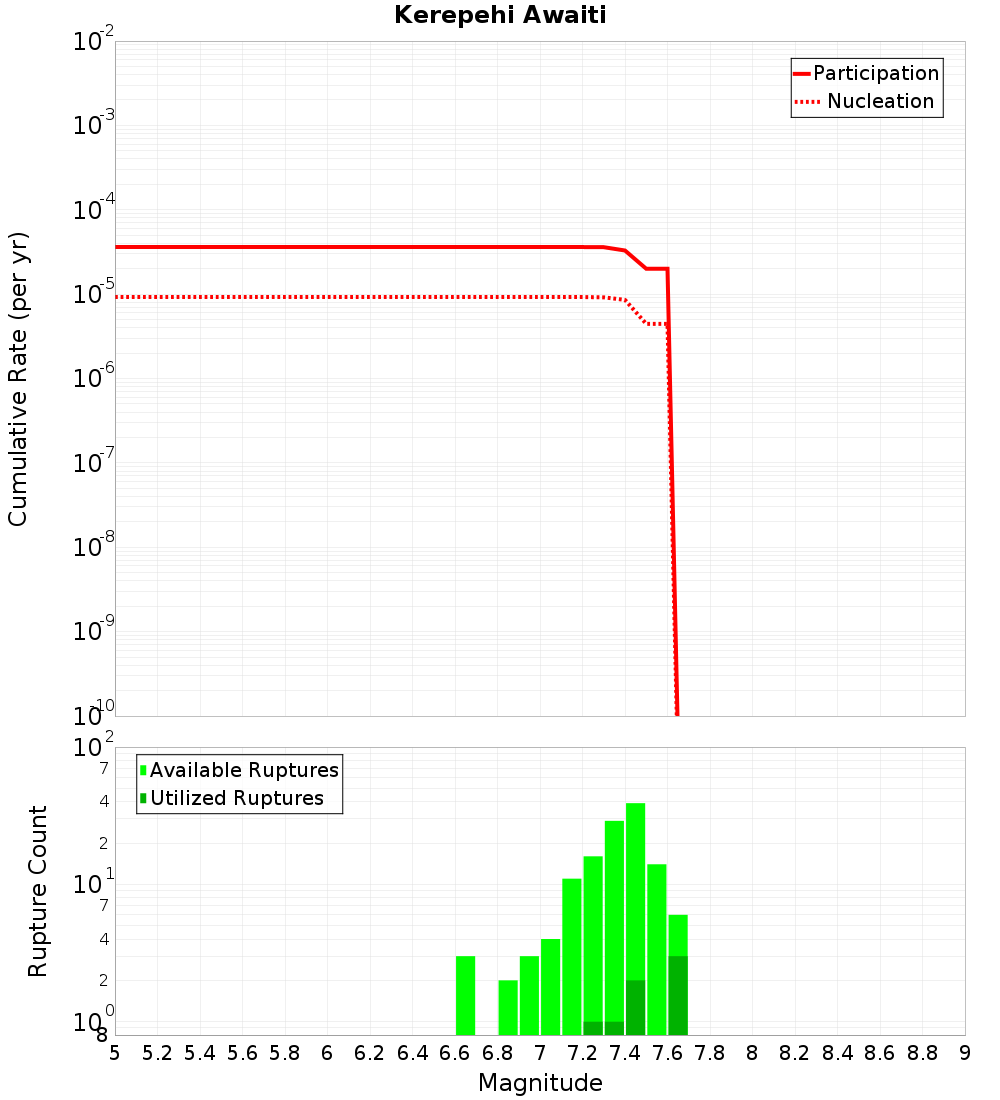

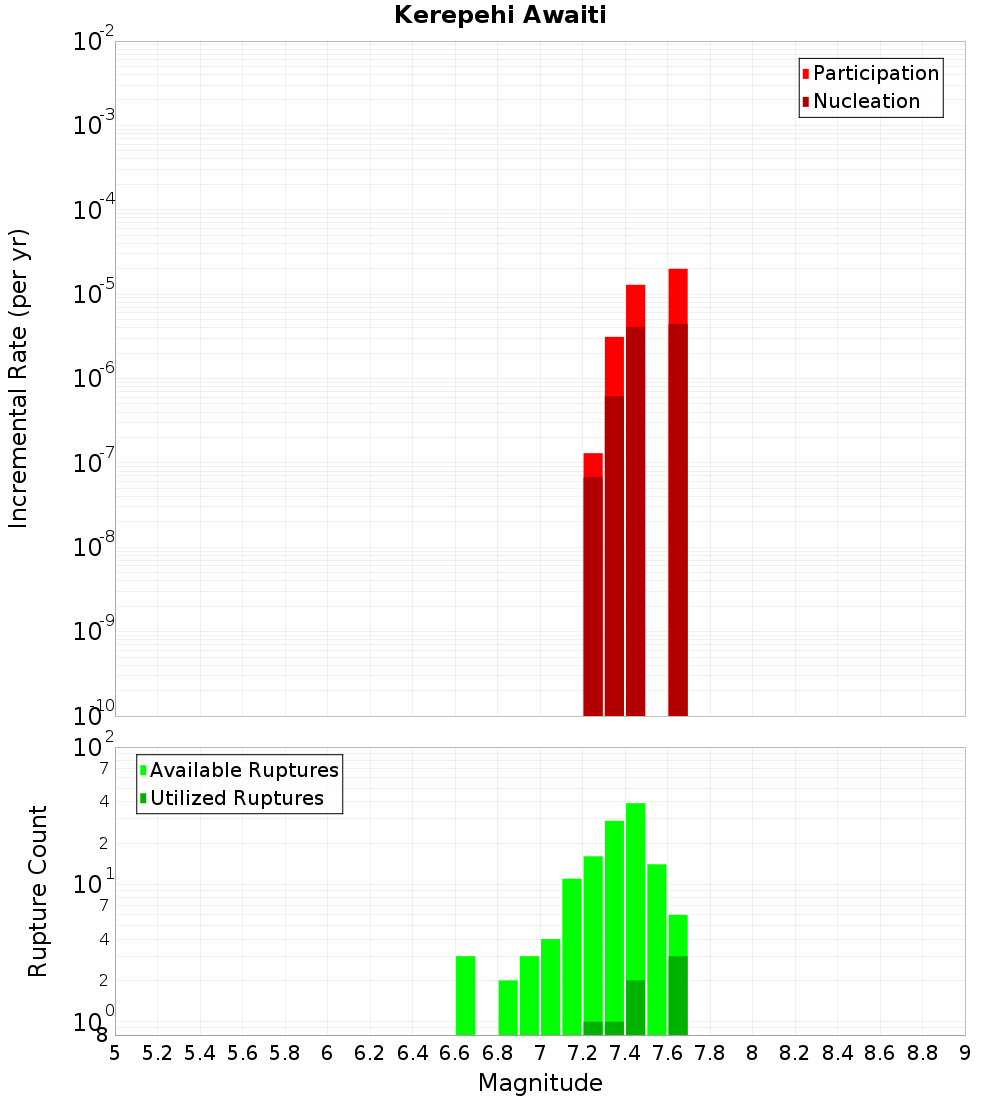

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Kerepehi Offshore, 1.89 km away |
| Kerepehi Elstow, 3.52 km away |
| Kerepehi Waitoa, 5.52 km away |
| Te Puninga, 9.34 km away |
| Mangatangi, 9.74 km away |
| Pokeno, 18.17 km away |
Kerepehi Offshore, 1.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.89 km |
| Min Rate-Weighted Dist | 1.89 km |
| Co-rupture Count | 45 |
| Co-rupture Rate | 1.9978415E-5 |
Kerepehi Elstow, 3.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.52 km |
| Min Rate-Weighted Dist | 3.52 km |
| Co-rupture Count | 47 |
| Co-rupture Rate | 1.2904304E-5 |
Kerepehi Waitoa, 5.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.52 km |
| Min Rate-Weighted Dist | 5.52 km |
| Co-rupture Count | 99 |
| Co-rupture Rate | 3.6000645E-5 |
Te Puninga, 9.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.34 km |
| Min Rate-Weighted Dist | 9.34 km |
| Co-rupture Count | 34 |
| Co-rupture Rate | 3.2483003E-6 |
Mangatangi, 9.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 18 |
| Co-rupture Rate | 1.9978415E-5 |
Pokeno, 18.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 1.9978415E-5 |
