Leithfield - NCVI - NCVII Details
| Property | Value |
|---|---|
| Rupture Count | 212 |
| Ruptures Above Sect Min Mag | 210 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.89, 7.94] |
| Length Range | [21, 255] km |
| Total Rate | 1.14886745E-4 /yr |
| Multi-Fault Rate | 4.318085E-5 /yr (37.59%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 21 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

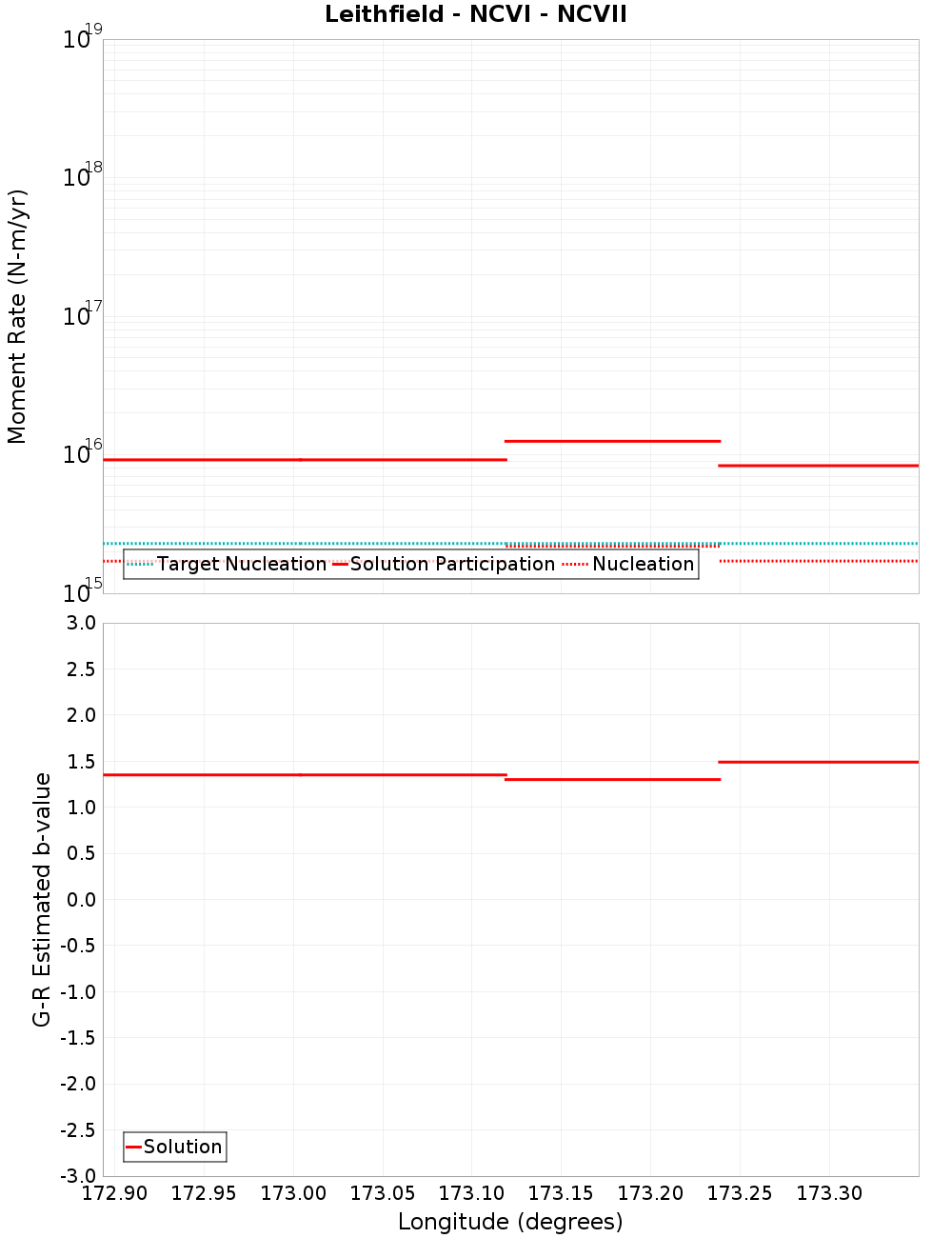

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
North Canterbury Shelf 2, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.39 km |
| Min Rate-Weighted Dist | 1.09 km |
| Co-rupture Count | 44 |
| Co-rupture Rate | 2.3151826E-5 |
North Canterbury Shelf 11, 1.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.27 km |
| Min Rate-Weighted Dist | 1.27 km |
| Co-rupture Count | 33 |
| Co-rupture Rate | 6.5366526E-6 |
Motunau, 1.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.77 km |
| Min Rate-Weighted Dist | 1.77 km |
| Co-rupture Count | 25 |
| Co-rupture Rate | 1.2518007E-5 |
Point Gibson, 3.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.67 km |
| Co-rupture Count | 75 |
| Co-rupture Rate | 6.5366526E-6 |
Waikuku, 4.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 4 |
| Co-rupture Rate | 6.5366526E-6 |
North Canterbury Shelf 4, 4.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.47 km |
| Min Rate-Weighted Dist | 4.47 km |
| Co-rupture Count | 36 |
| Co-rupture Rate | 1.0644533E-5 |
AmberBlyth, 4.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.61 km |
| Co-rupture Count | 81 |
| Co-rupture Rate | 6.5366526E-6 |
Pegasus Bay, 7.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 7.75 km |
| Min Rate-Weighted Dist | 7.75 km |
| Co-rupture Count | 61 |
| Co-rupture Rate | 2.316254E-5 |
OmihiLwrHuru, 10.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.66 km |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Boby Stream, 15.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hawkswood, 17.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 71 |
| Co-rupture Rate | 0.0 |
Kaiwara South, 17.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
CenPeg1n2, 19.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
