Mataikona Details
| Property | Value |
|---|---|
| Rupture Count | 1,425 |
| Ruptures Above Sect Min Mag | 1,418 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.71, 8.24] |
| Length Range | [18, 527] km |
| Total Rate | 3.229421E-4 /yr |
| Multi-Fault Rate | 3.229421E-4 /yr (100.00%) |
| Directly-Connected Faults | 8 |
| All Co-Rupturing Faults | 66 |
Table Of Contents

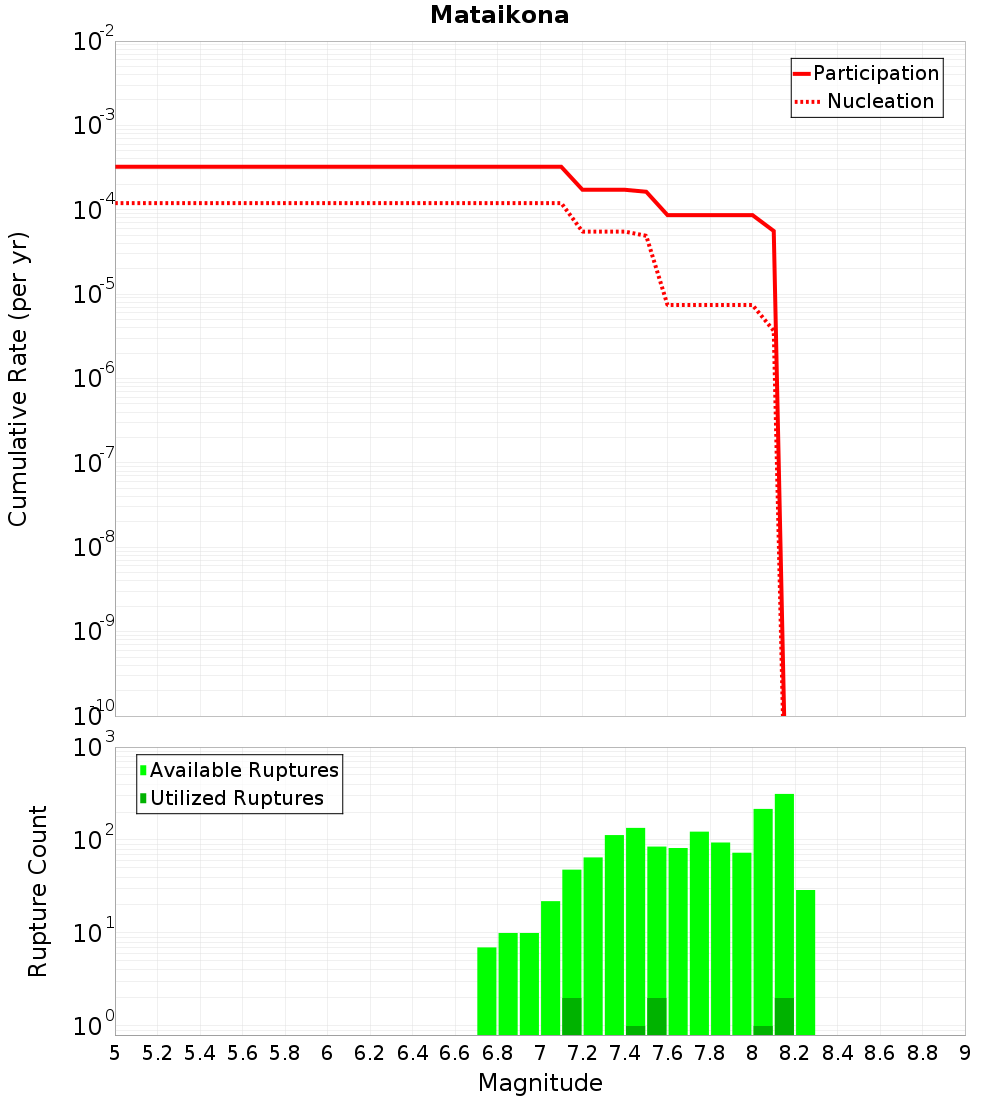

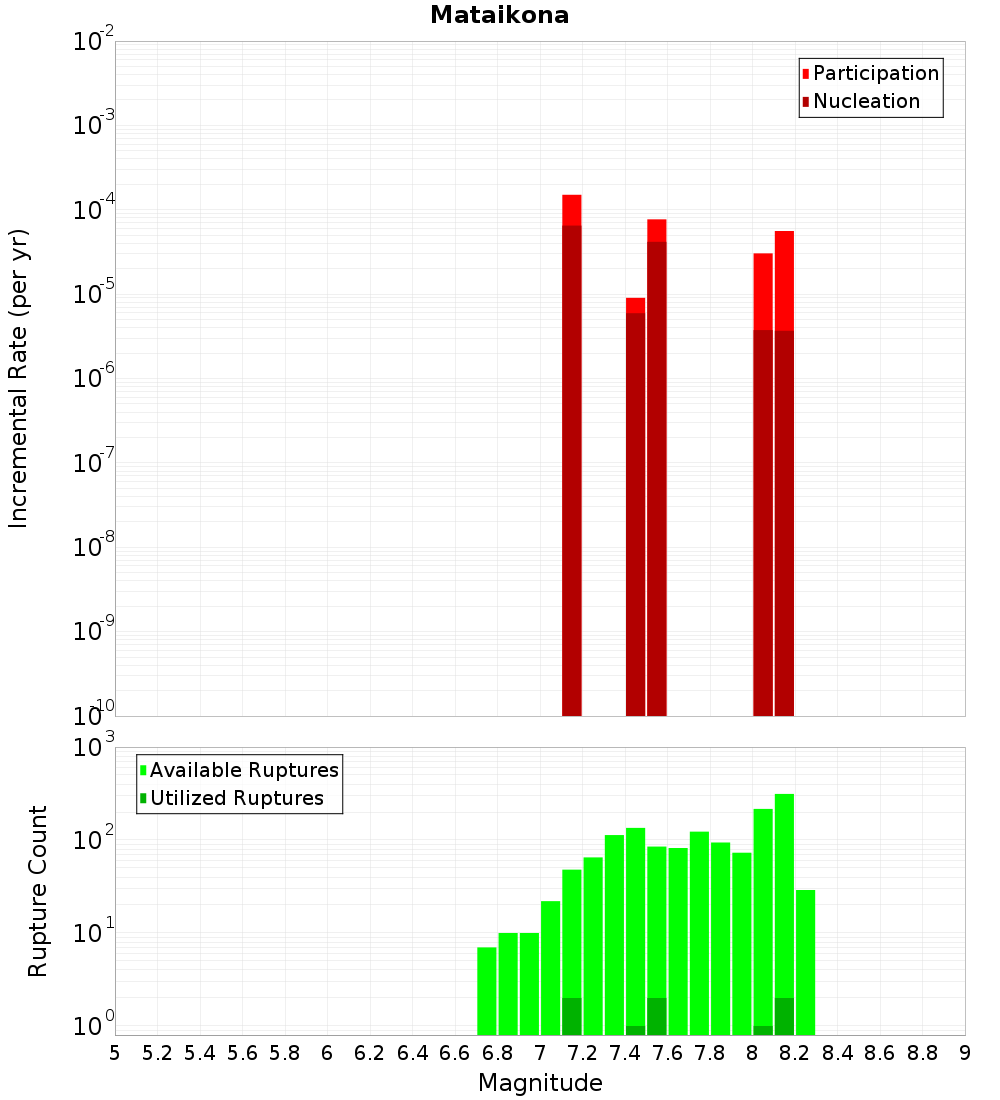

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

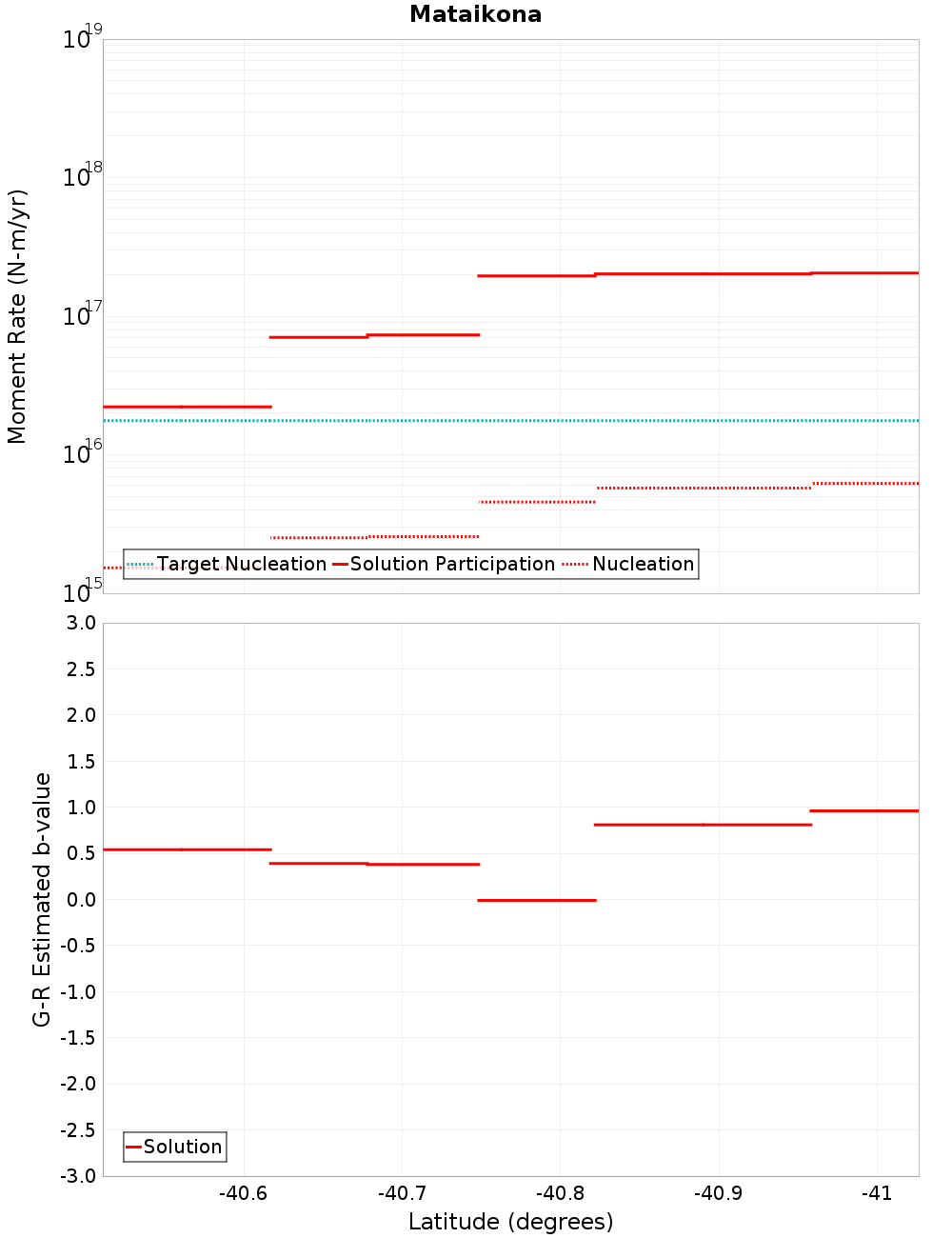

Moment-Rates and b-Values

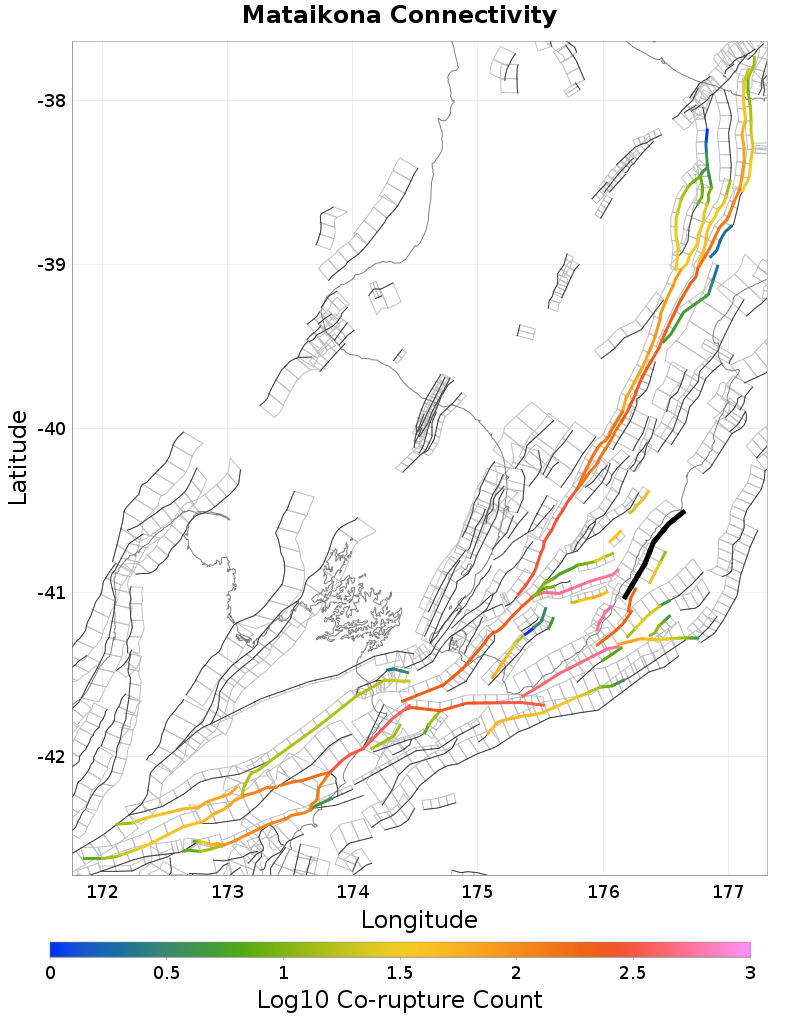

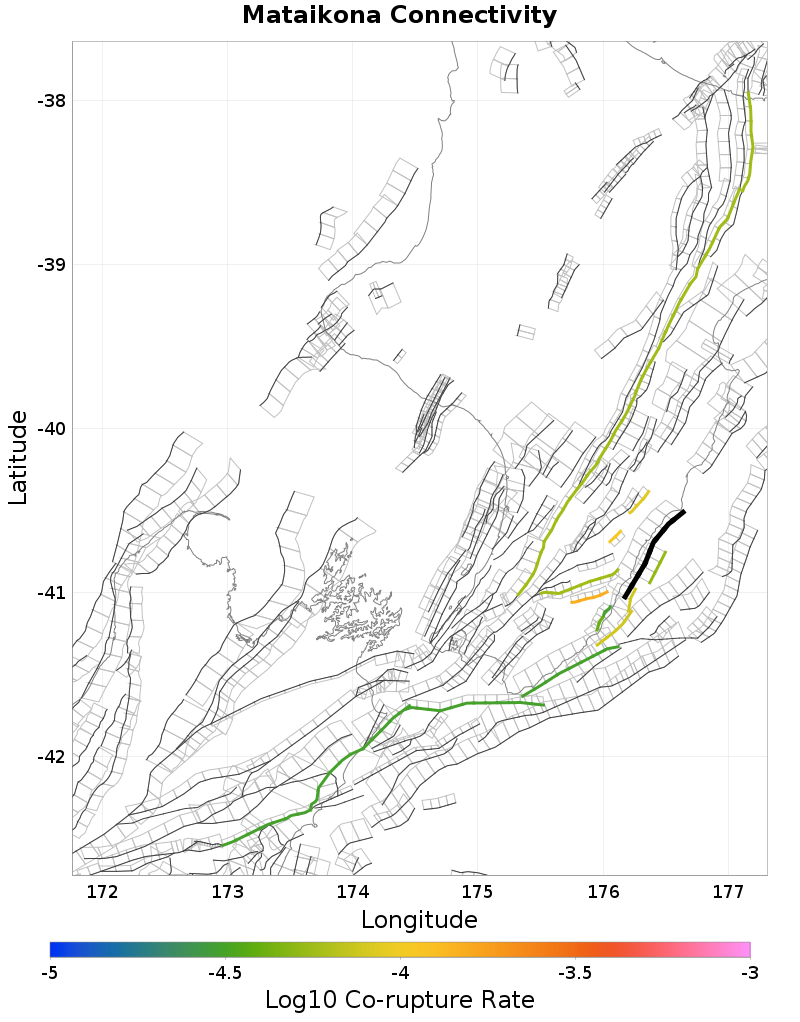

Connectivity
 |  |
|---|
Nearby Sections
Carterton, 0.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.19 km |
| Min Rate-Weighted Dist | 0.19 km |
| Co-rupture Count | 571 |
| Co-rupture Rate | 5.599485E-5 |
Kaumingi, 1.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.72 km |
| Min Rate-Weighted Dist | 1.72 km |
| Co-rupture Count | 63 |
| Co-rupture Rate | 1.5051072E-4 |
Riversdale North, 2.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.2 km |
| Min Rate-Weighted Dist | 2.2 km |
| Co-rupture Count | 197 |
| Co-rupture Rate | 7.698425E-5 |
Mokonui Northeast, 4.82 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.82 km |
| Co-rupture Count | 25 |
| Co-rupture Rate | 0.0 |
Waitawhiti, 5.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.55 km |
| Min Rate-Weighted Dist | 8.53 km |
| Co-rupture Count | 39 |
| Co-rupture Rate | 1.0719599E-4 |
Mataikona East, 5.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.62 km |
| Min Rate-Weighted Dist | 8.55 km |
| Co-rupture Count | 47 |
| Co-rupture Rate | 5.2354902E-5 |
Riversdale, 6.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 202 |
| Co-rupture Rate | 7.698425E-5 |
Uruti Point, 11.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 11.34 km |
| Min Rate-Weighted Dist | 11.34 km |
| Co-rupture Count | 554 |
| Co-rupture Rate | 3.992033E-5 |
Whareama Bank, 12.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 36 |
| Co-rupture Rate | 0.0 |
Pongaroa - Weber, 13.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 13.47 km |
| Min Rate-Weighted Dist | 13.47 km |
| Co-rupture Count | 46 |
| Co-rupture Rate | 8.6024425E-5 |
Waipukaka, 16.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Saunders Road, 18.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
