Matata Details
| Property | Value |
|---|---|
| Rupture Count | 10,041 |
| Ruptures Above Sect Min Mag | 9,920 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [5.67, 8.22] |
| Length Range | [5, 491] km |
| Total Rate | 5.50915E-4 /yr |
| Multi-Fault Rate | 5.50915E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 74 |
Table Of Contents

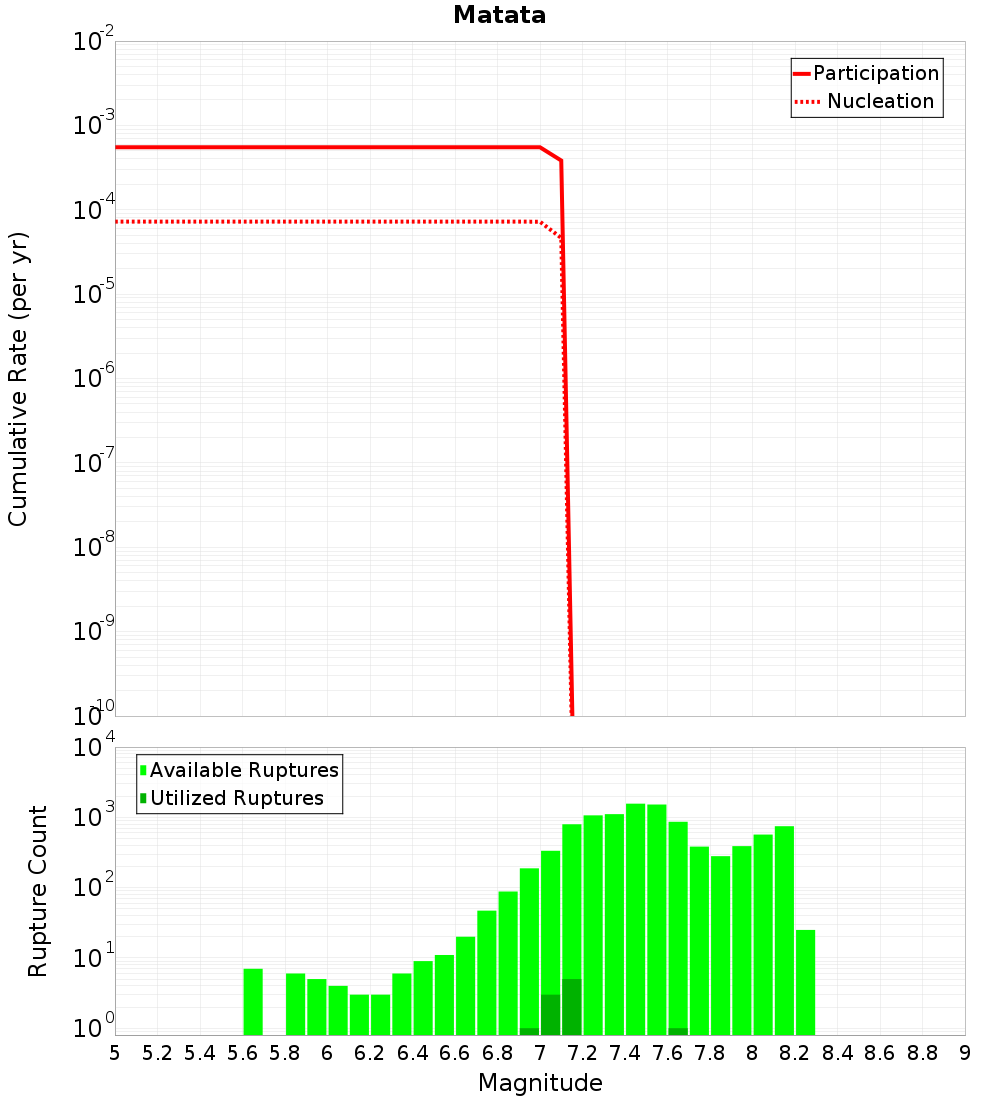

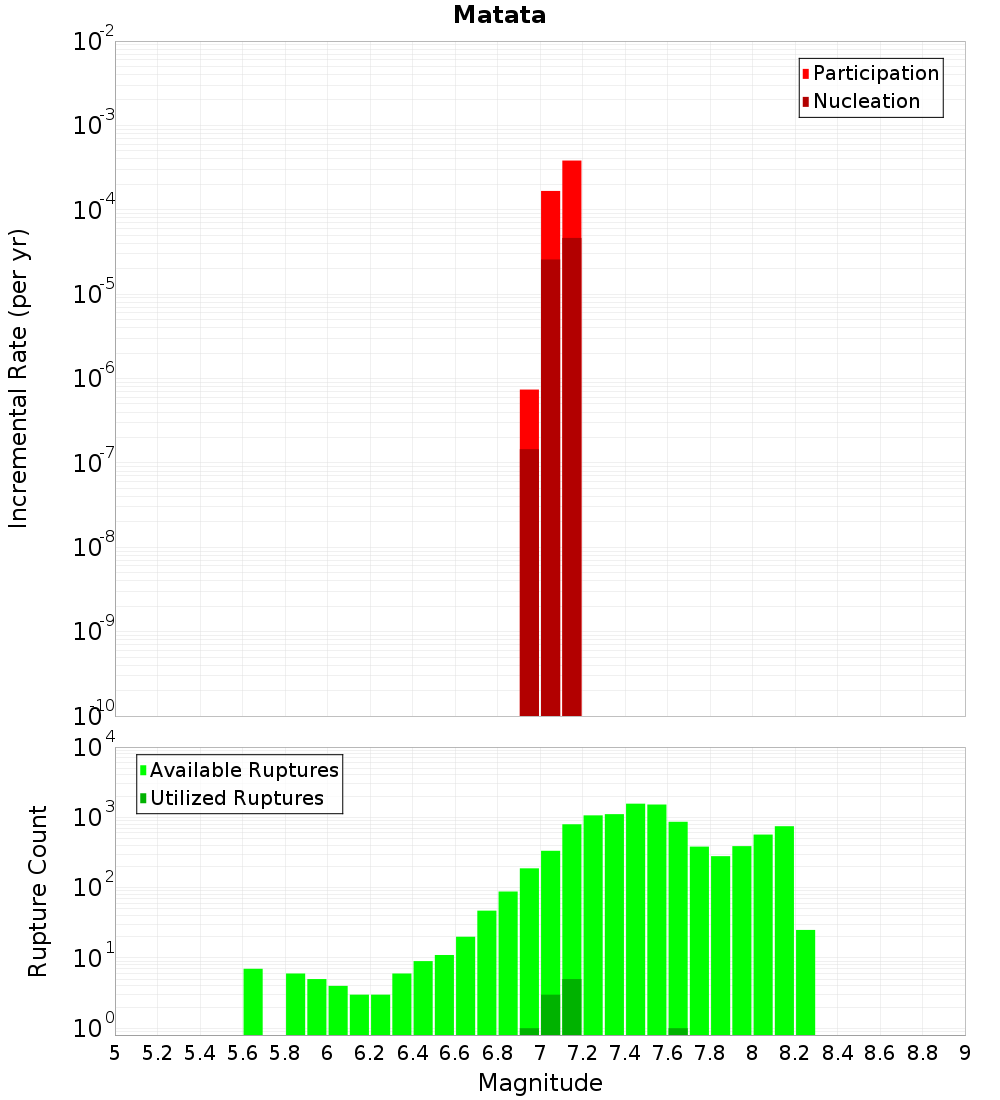

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

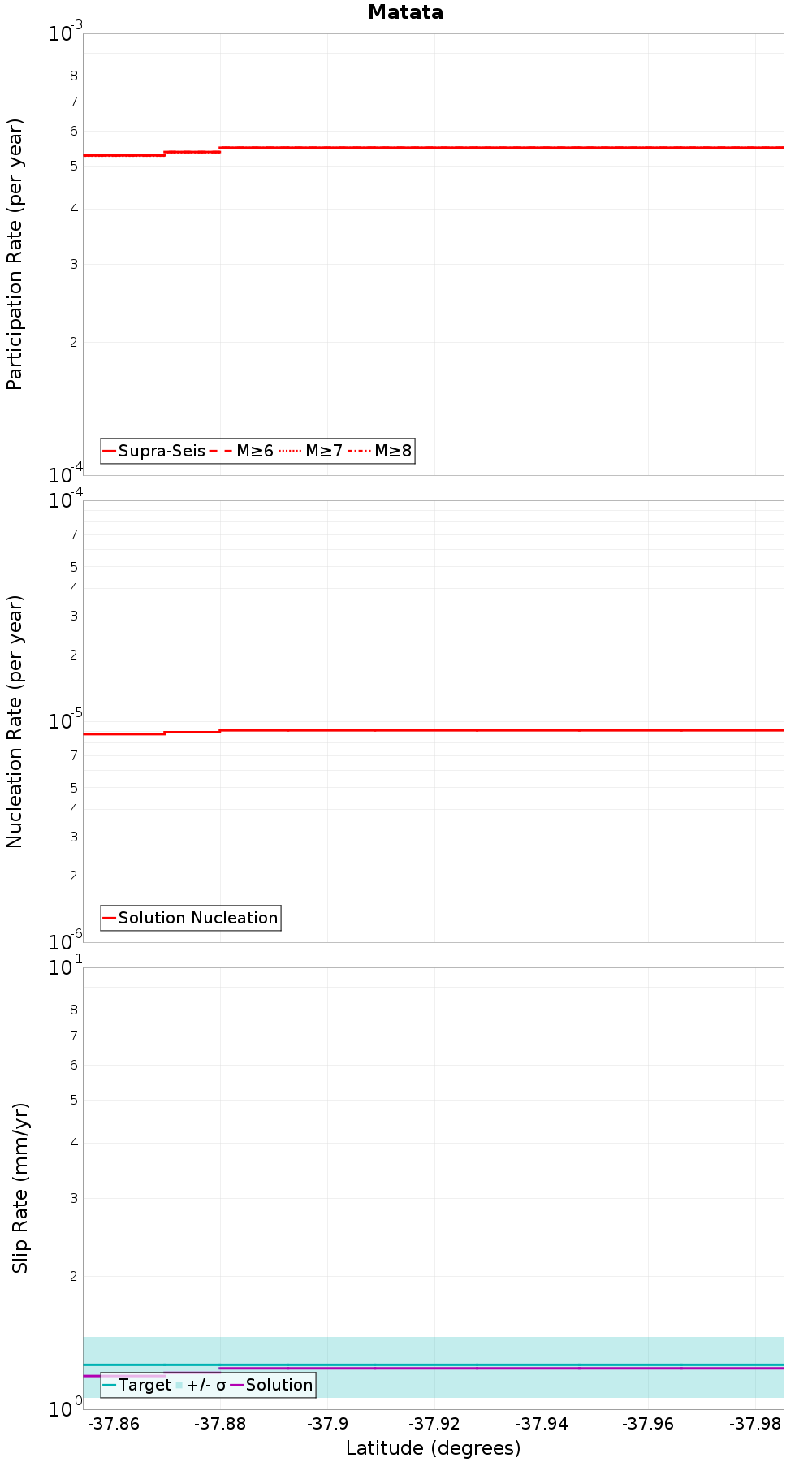

Along-Strike Values
Moment-Rates and b-Values

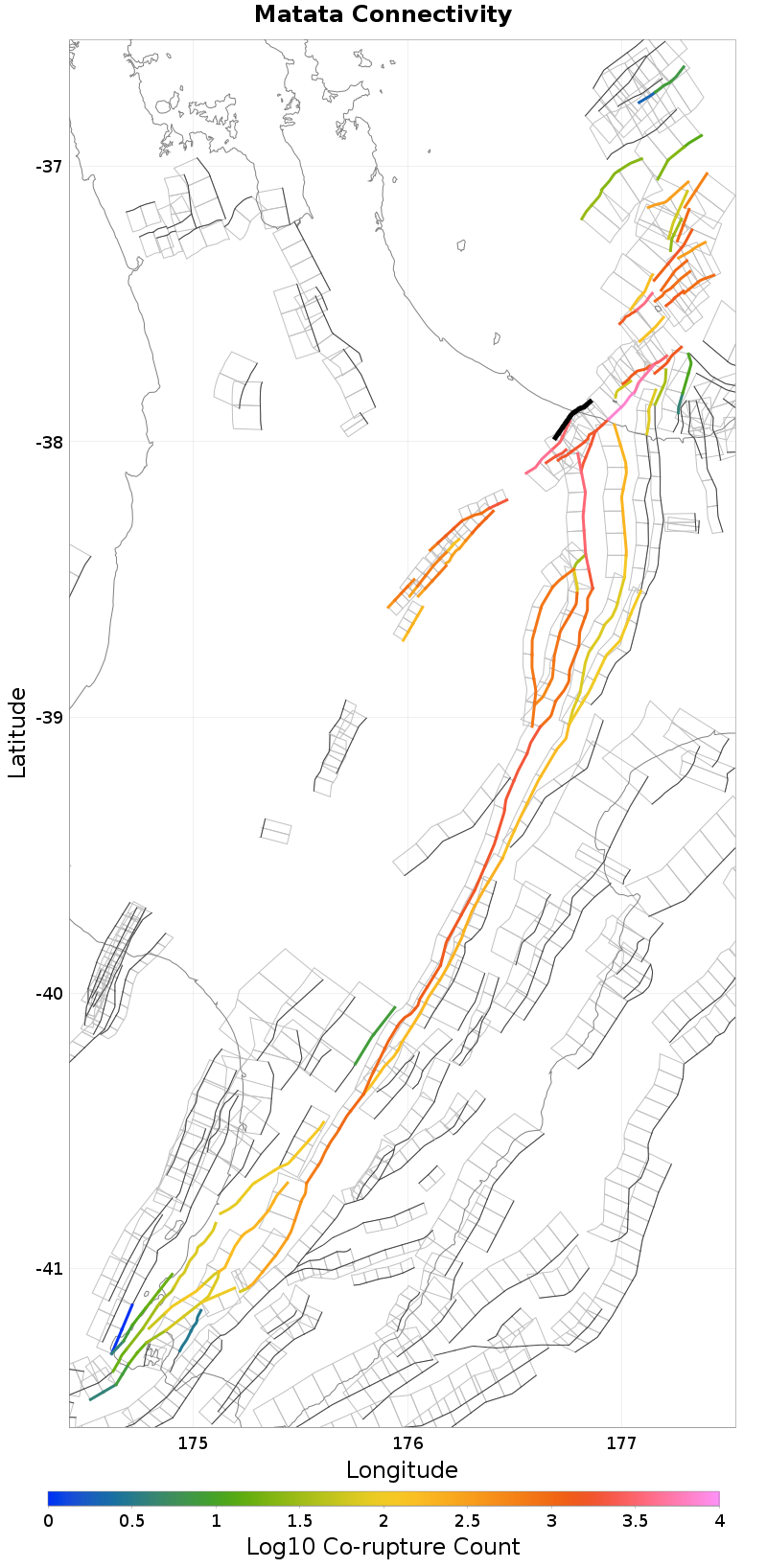

Connectivity
 |  |
|---|
Nearby Sections
Braemar, 1.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.02 km |
| Min Rate-Weighted Dist | 1.95 km |
| Co-rupture Count | 6,482 |
| Co-rupture Rate | 5.3152634E-4 |
Edgecumbe 1987, 1.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.15 km |
| Co-rupture Count | 1,738 |
| Co-rupture Rate | 5.2706552E-17 |
Edgecumbe Coastal, 2.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.61 km |
| Co-rupture Count | 1,750 |
| Co-rupture Rate | 5.2706552E-17 |
White Island 1, 2.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.62 km |
| Min Rate-Weighted Dist | 2.62 km |
| Co-rupture Count | 7,311 |
| Co-rupture Rate | 1.9388692E-5 |
Awakeri, 5.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.43 km |
| Co-rupture Count | 1,957 |
| Co-rupture Rate | 0.0 |
Rotoitipakau, 5.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.64 km |
| Min Rate-Weighted Dist | 5.64 km |
| Co-rupture Count | 2,171 |
| Co-rupture Rate | 4.933866E-4 |
Waiohau: North, 6.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3,475 |
| Co-rupture Rate | 0.0 |
Whakatane: North, 8.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 198 |
| Co-rupture Rate | 0.0 |
Rangitaiki 1, 9.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 61 |
| Co-rupture Rate | 0.0 |
Rangitaiki 2, 15.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,347 |
| Co-rupture Rate | 0.0 |
