Pegasus Bay Details

PropertyValue
Rupture Count109
Ruptures Above Sect Min Mag107
Ruptures w/ Nonzero Rates4
Magnitude Range[6.82, 7.86]
Length Range[18, 181] km
Total Rate2.9197923E-5 /yr
Multi-Fault Rate2.9197923E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults10

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

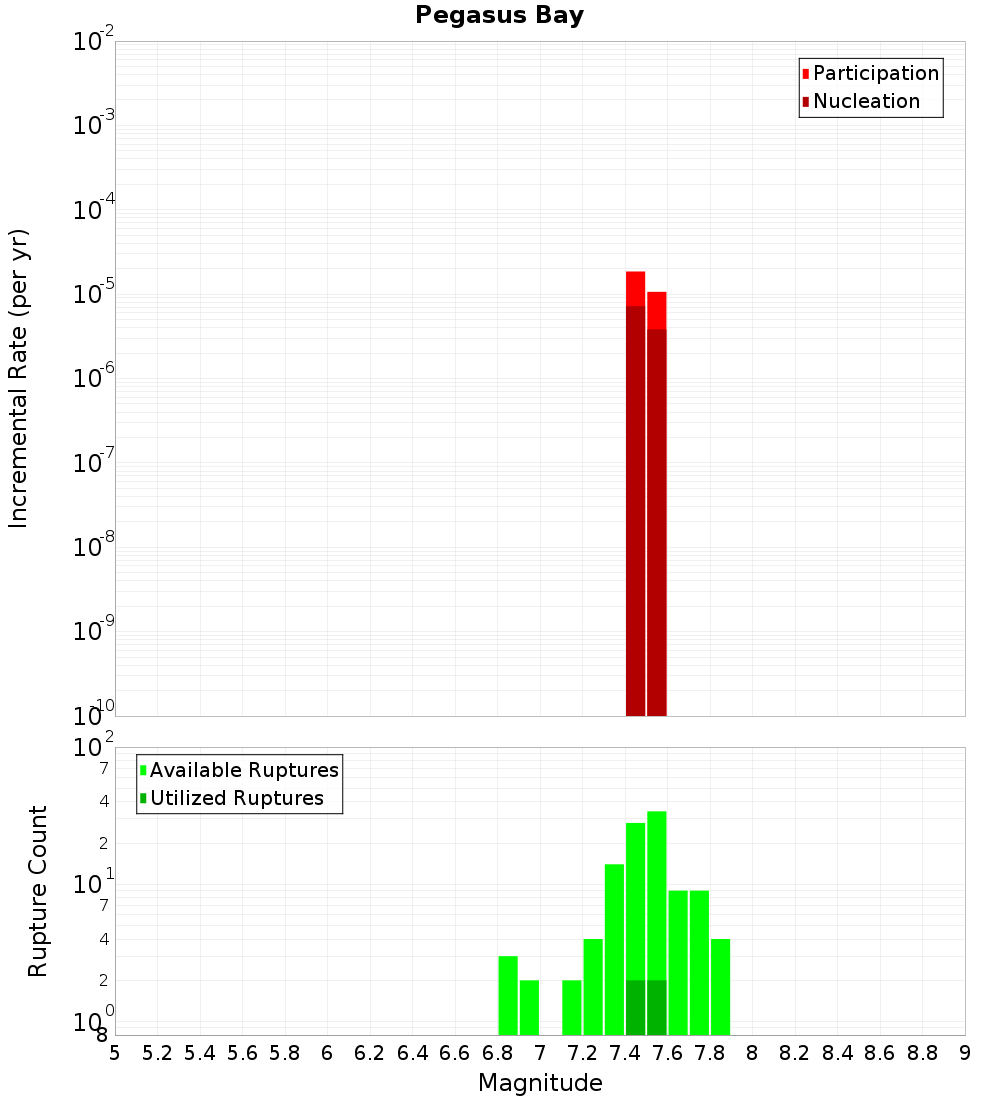

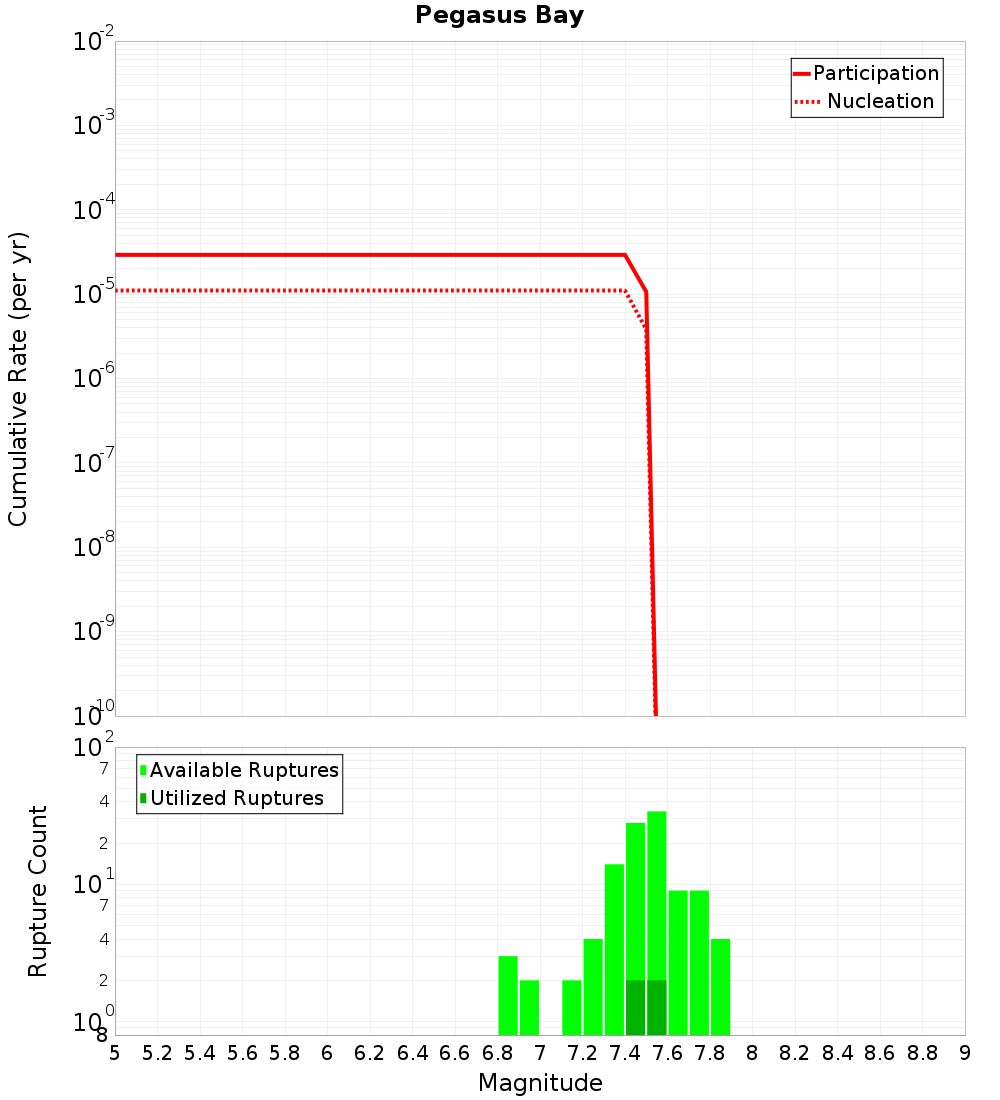

Incremental PlotCumulative Plot

Along-Strike Values

(top)

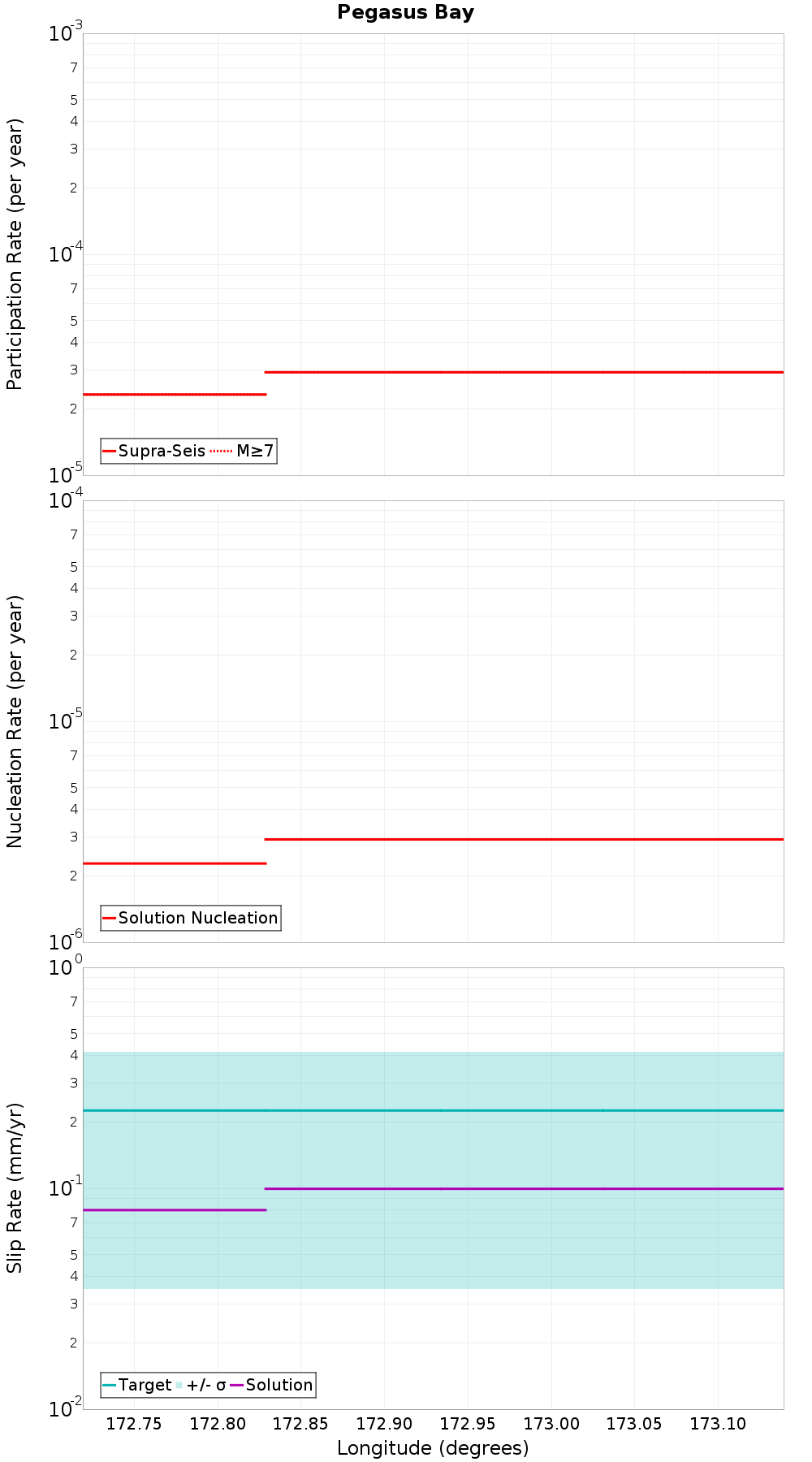

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

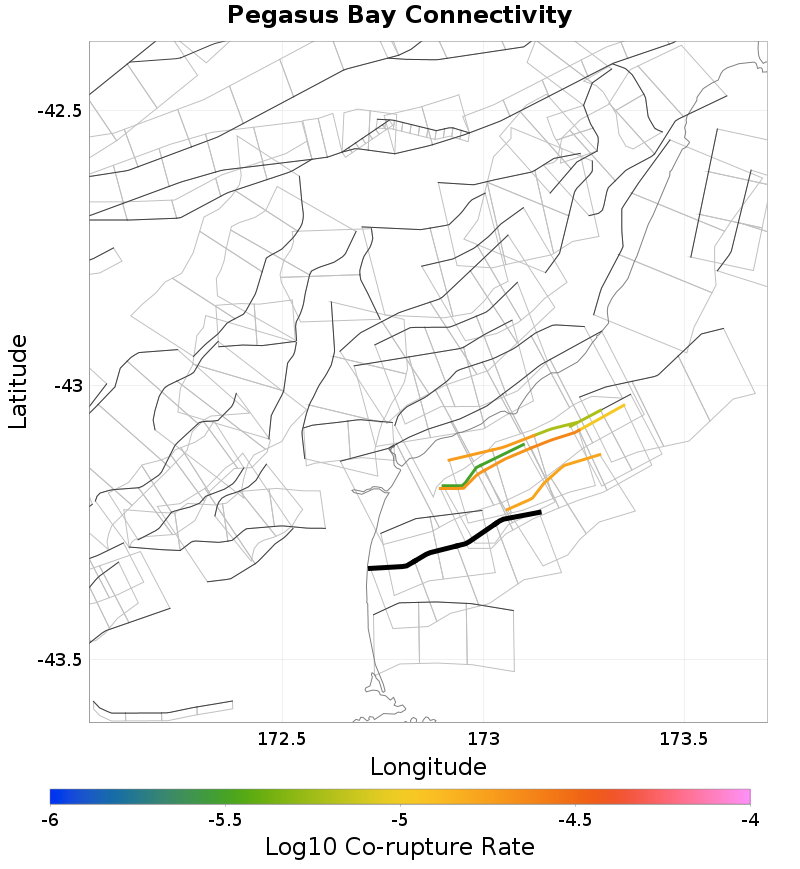

MapMap

Nearby Sections

(top)

Fault Section
North Canterbury Shelf 4, 1.54 km away
Waikuku, 3.18 km away
CenPeg1n2, 6.08 km away
Leithfield - NCVI - NCVII, 7.75 km away
North Canterbury Shelf 2, 8.13 km away
Motunau, 11.58 km away
Starvation - Ashley, 12.18 km away
AmberBlyth, 13.58 km away
North Canterbury Shelf 11, 17.11 km away
Springbank, 17.58 km away

North Canterbury Shelf 4, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.54 km
Min Rate-Weighted Dist1.54 km
Co-rupture Count40
Co-rupture Rate1.6679916E-5

Waikuku, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

CenPeg1n2, 6.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leithfield - NCVI - NCVII, 7.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist7.75 km
Min Rate-Weighted Dist7.75 km
Co-rupture Count61
Co-rupture Rate2.316254E-5

North Canterbury Shelf 2, 8.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate3.1335148E-6

Motunau, 11.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate1.855339E-5

Starvation - Ashley, 12.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

AmberBlyth, 13.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist13.58 km
Co-rupture Count41
Co-rupture Rate0.0

North Canterbury Shelf 11, 17.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate6.0353836E-6

Springbank, 17.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
