Teviot Details
| Property | Value |
|---|---|
| Rupture Count | 578 |
| Ruptures Above Sect Min Mag | 578 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [7.26, 8.29] |
| Length Range | [29, 379] km |
| Total Rate | 2.8447985E-6 /yr |
| Multi-Fault Rate | 2.8447985E-6 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 46 |
Table Of Contents

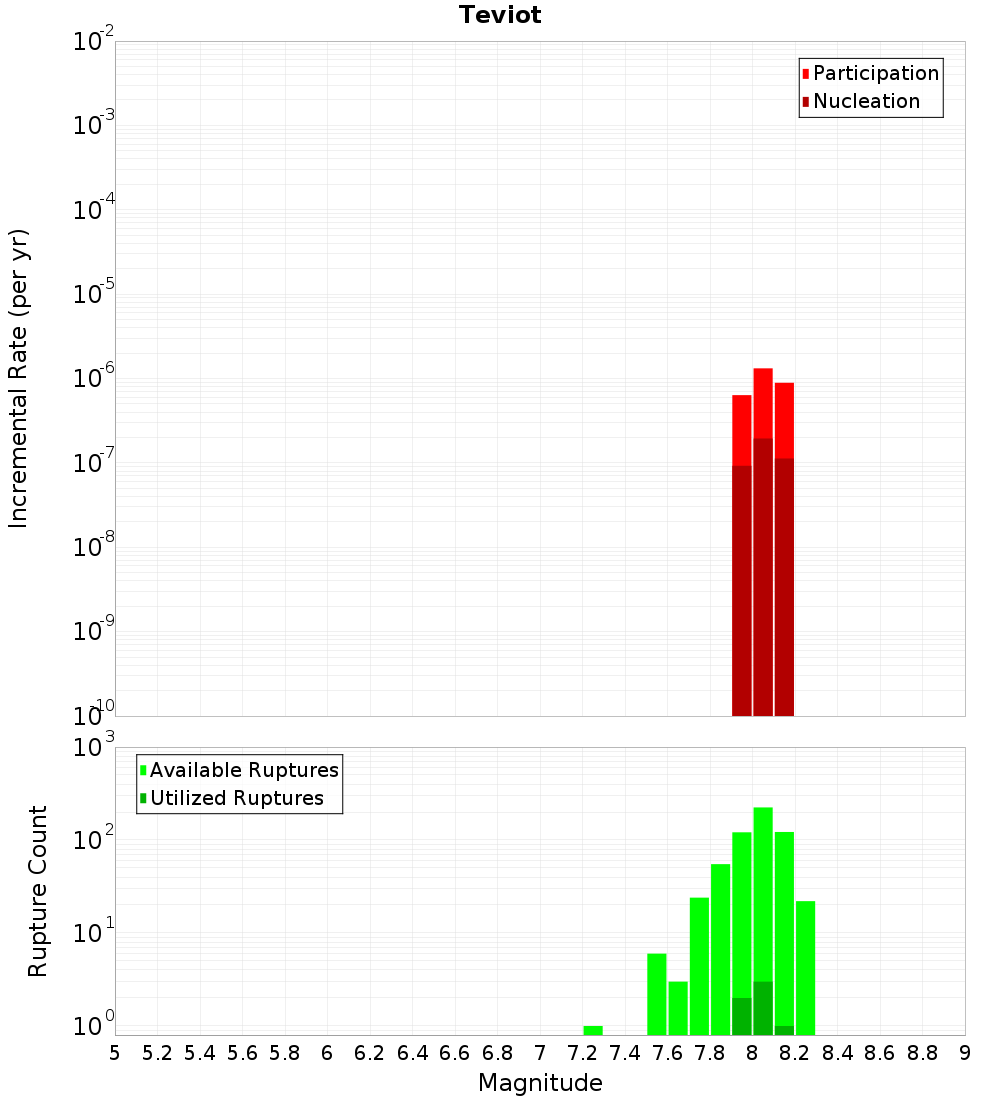

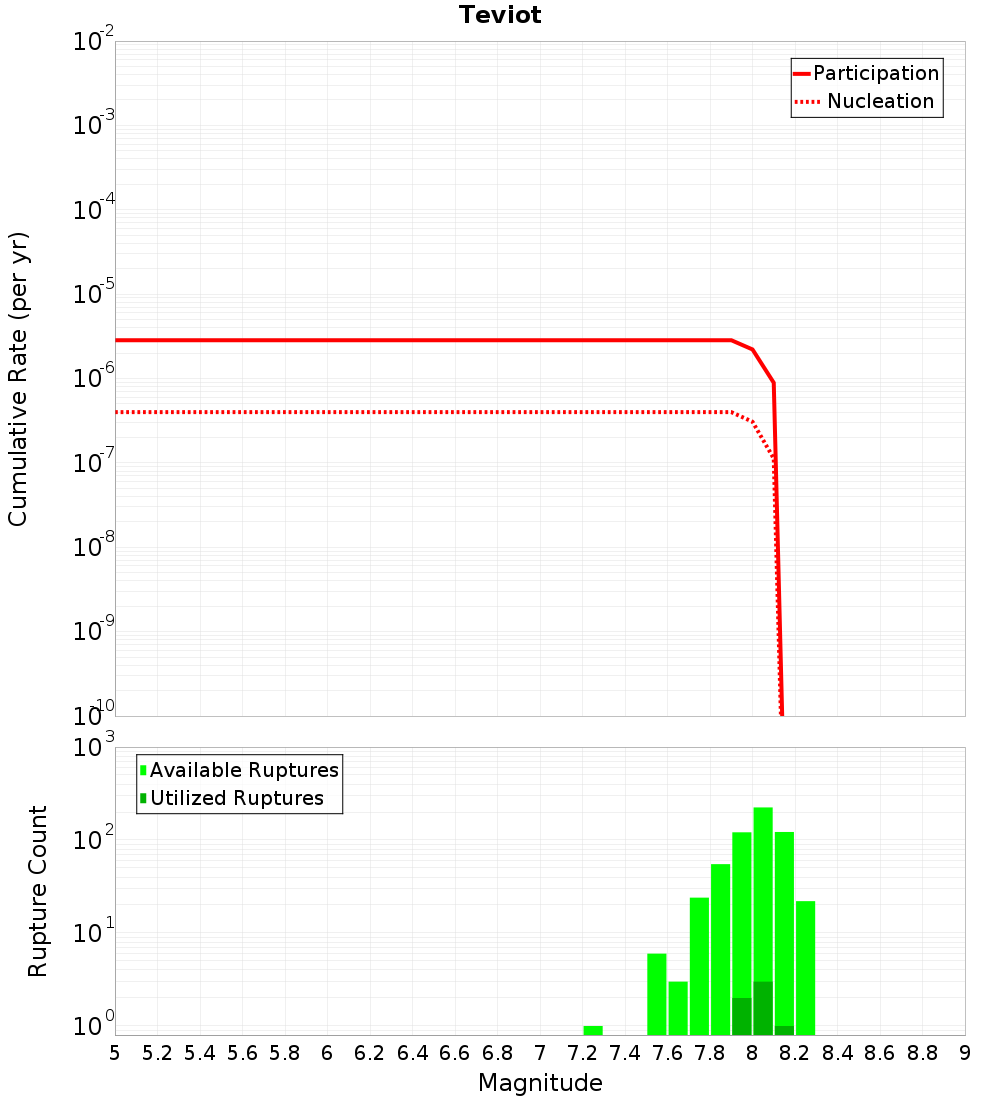

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

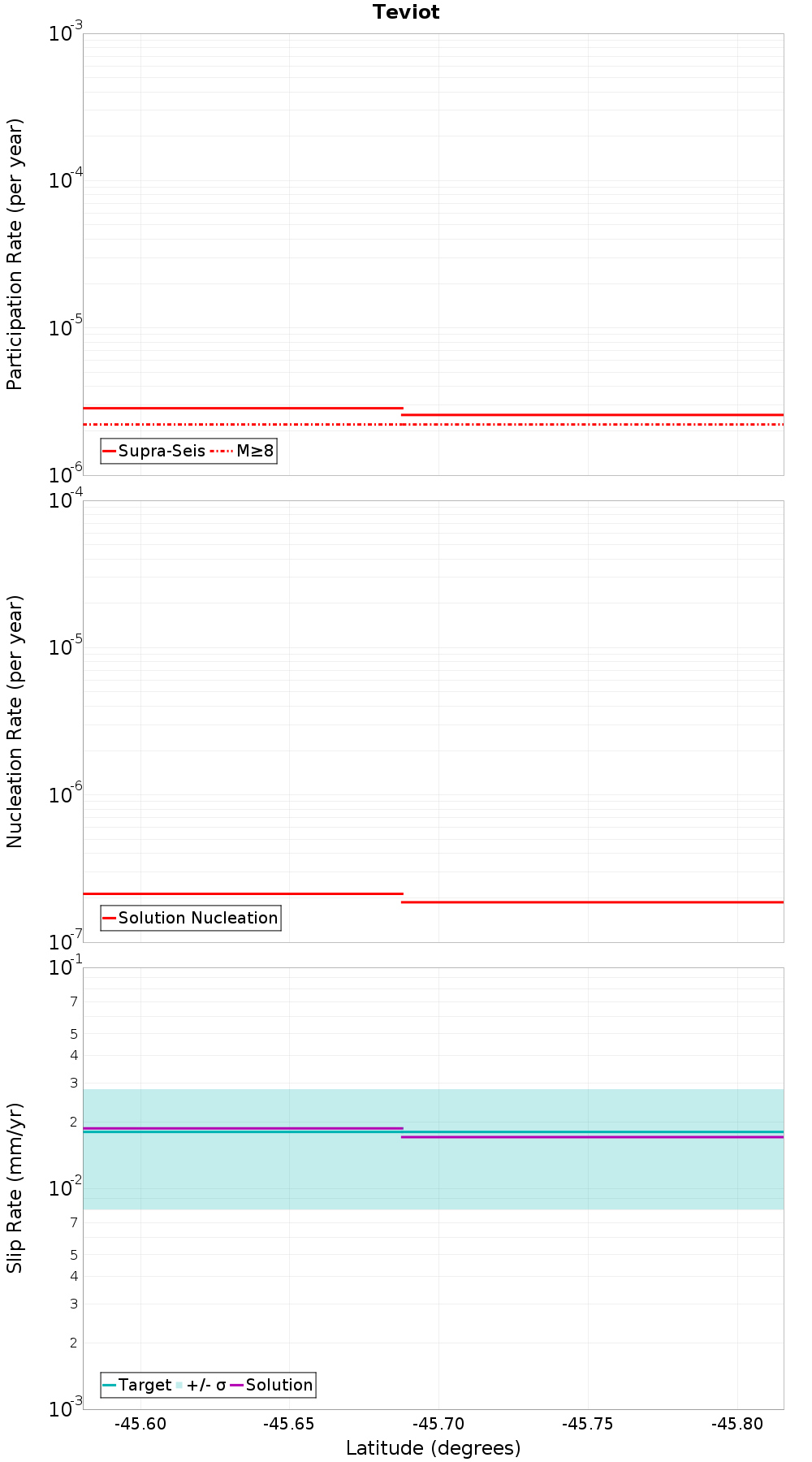

Along-Strike Values

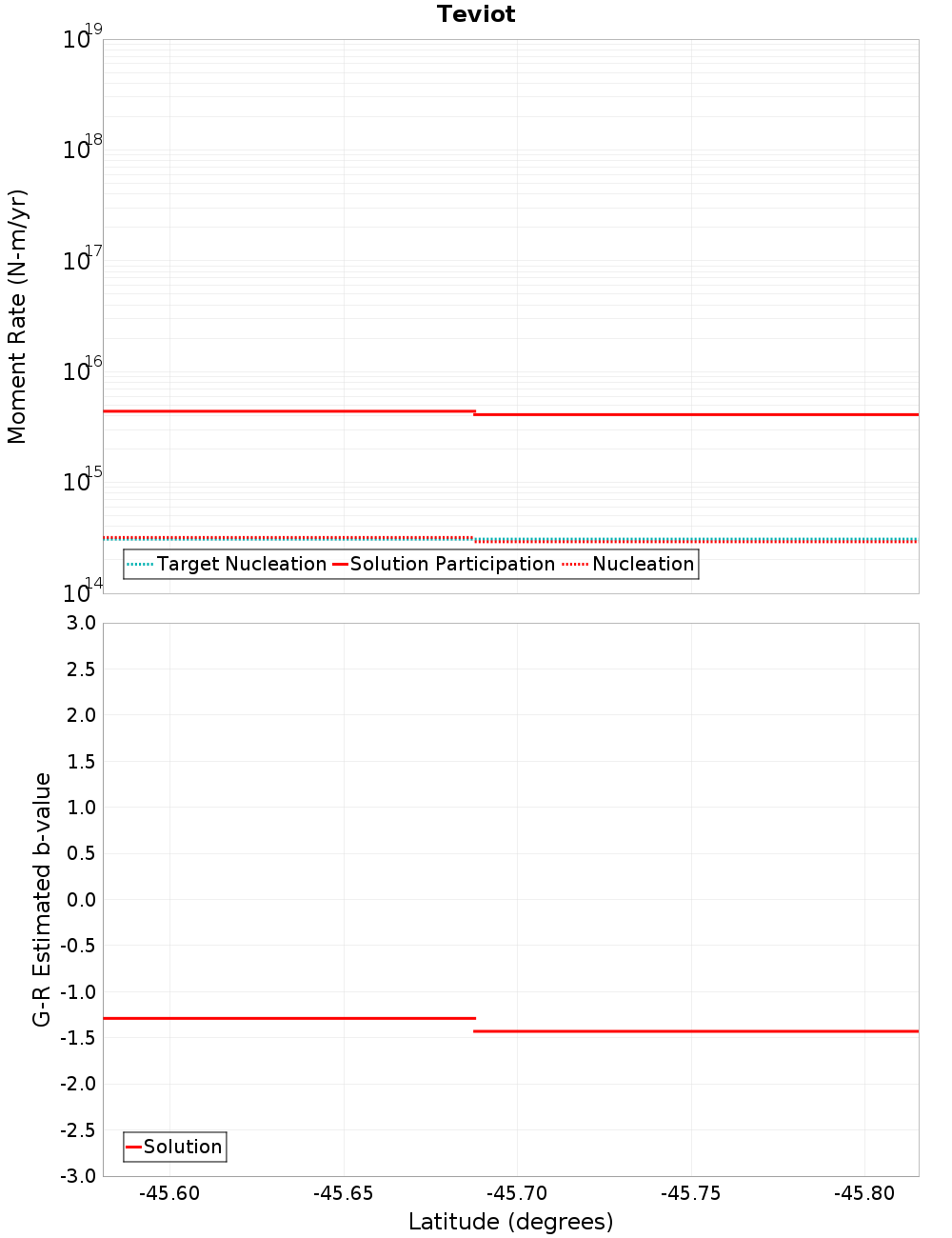

Moment-Rates and b-Values

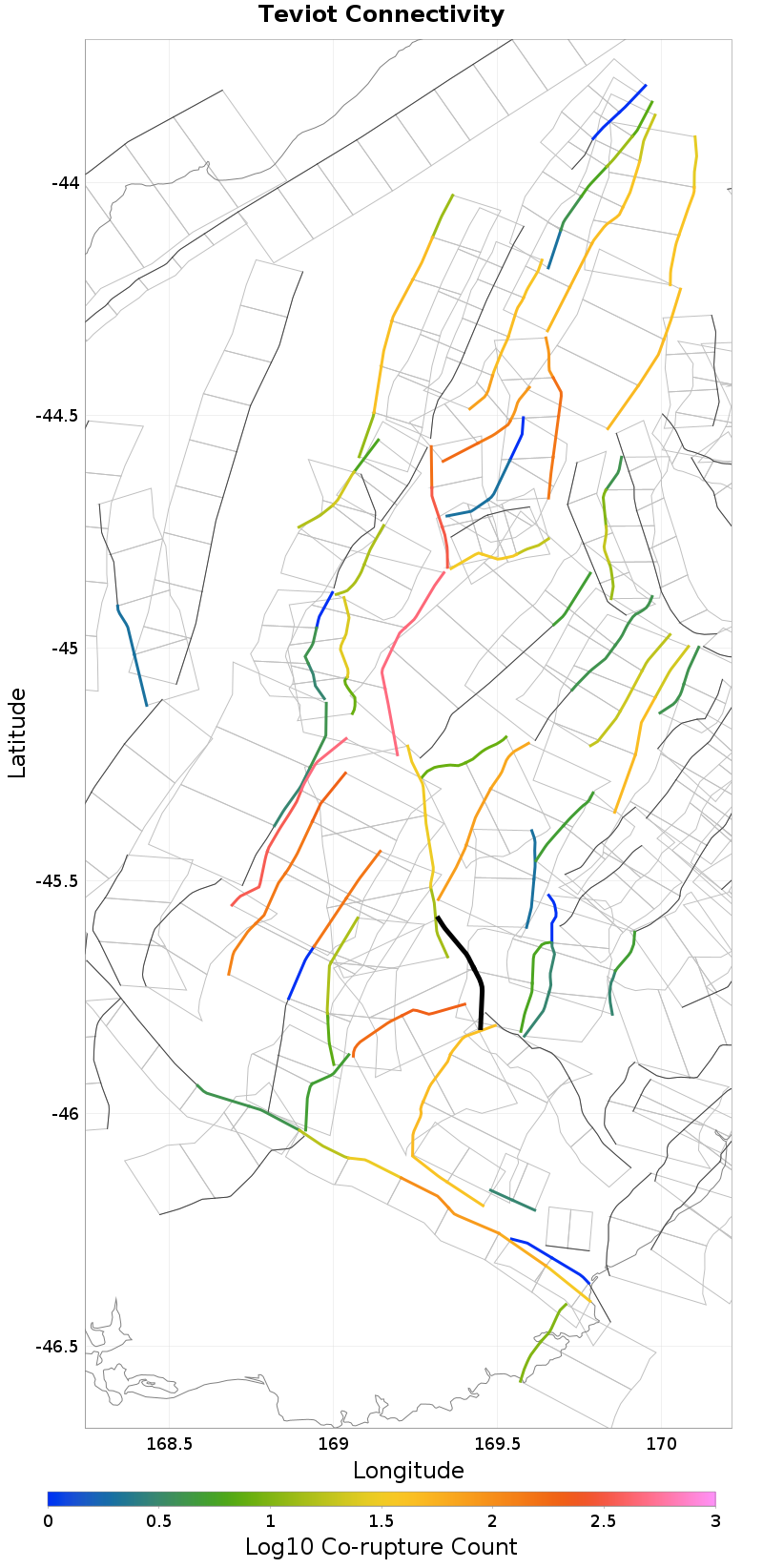

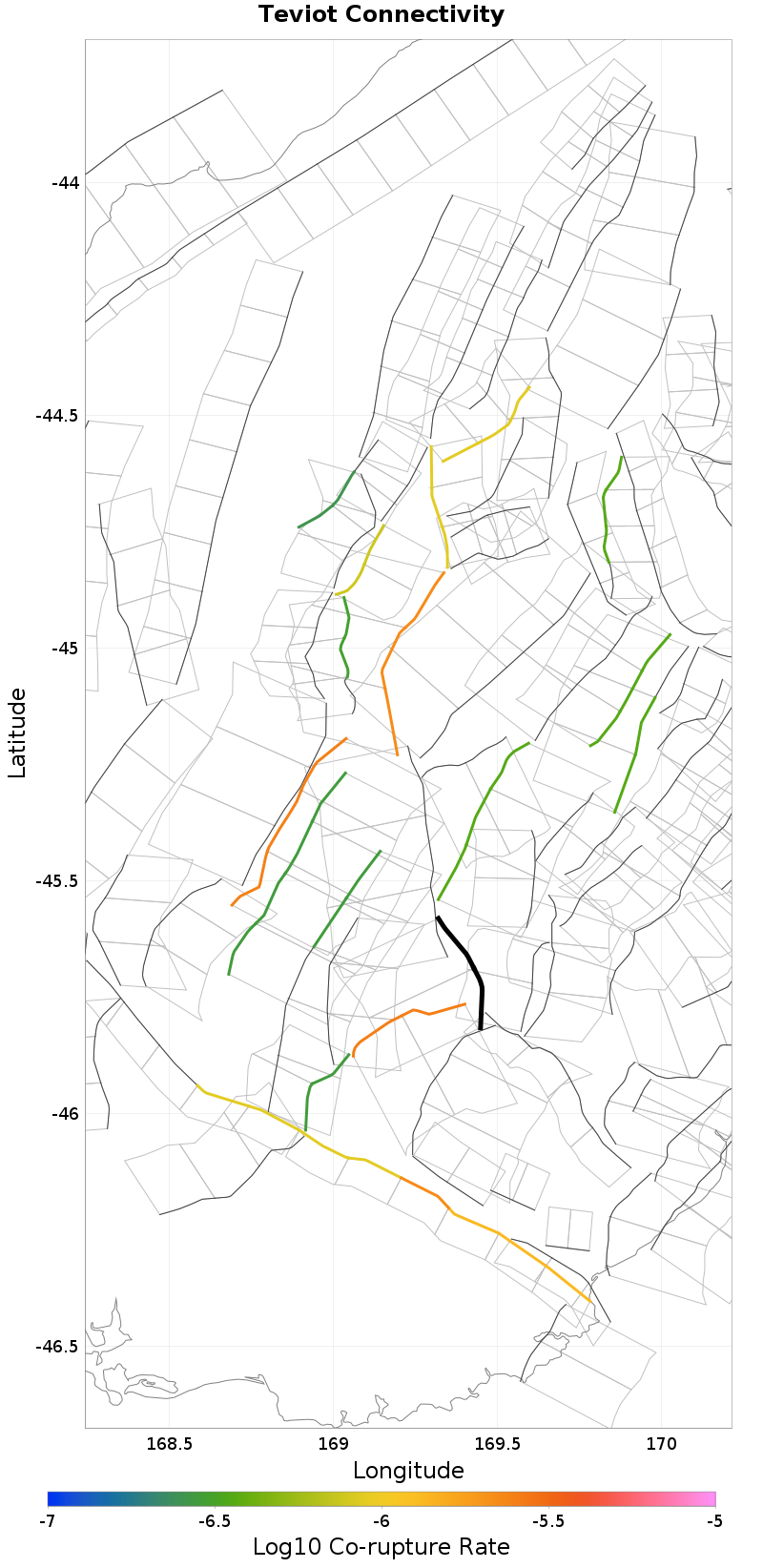

Connectivity
 |  |
|---|
Nearby Sections
Spylaw, 0.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.12 km |
| Min Rate-Weighted Dist | 0.12 km |
| Co-rupture Count | 205 |
| Co-rupture Rate | 2.5651336E-6 |
Wendon Valley, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 15 |
| Co-rupture Rate | 0.0 |
Waikaia, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.2 km |
| Min Rate-Weighted Dist | 0.29 km |
| Co-rupture Count | 148 |
| Co-rupture Rate | 2.7966485E-7 |
Garvie, 0.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.39 km |
| Co-rupture Count | 214 |
| Co-rupture Rate | 2.7966485E-7 |
Old Man, 0.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.66 km |
| Co-rupture Count | 33 |
| Co-rupture Rate | 0.0 |
Blue Mountain, 0.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 61 |
| Co-rupture Rate | 0.0 |
Tuapeka, 1.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Roaring Lion, 3.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.6 km |
| Min Rate-Weighted Dist | 3.6 km |
| Co-rupture Count | 465 |
| Co-rupture Rate | 2.4893131E-6 |
Little Valley, 4.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.31 km |
| Min Rate-Weighted Dist | 4.31 km |
| Co-rupture Count | 77 |
| Co-rupture Rate | 3.554853E-7 |
Backbone, 8.31 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Beaumont River, 10.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Lake Onslow, 13.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Waikaka, 15.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 2.7966485E-7 |
Beacon Hill, 16.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 40 |
| Co-rupture Rate | 0.0 |
Mid Dome, 18.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
