Torlesse Details

PropertyValue
Rupture Count219
Ruptures Above Sect Min Mag214
Ruptures w/ Nonzero Rates5
Magnitude Range[6.53, 7.98]
Length Range[13, 234] km
Total Rate4.2532326E-4 /yr
Multi-Fault Rate4.2532326E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults13

Table Of Contents

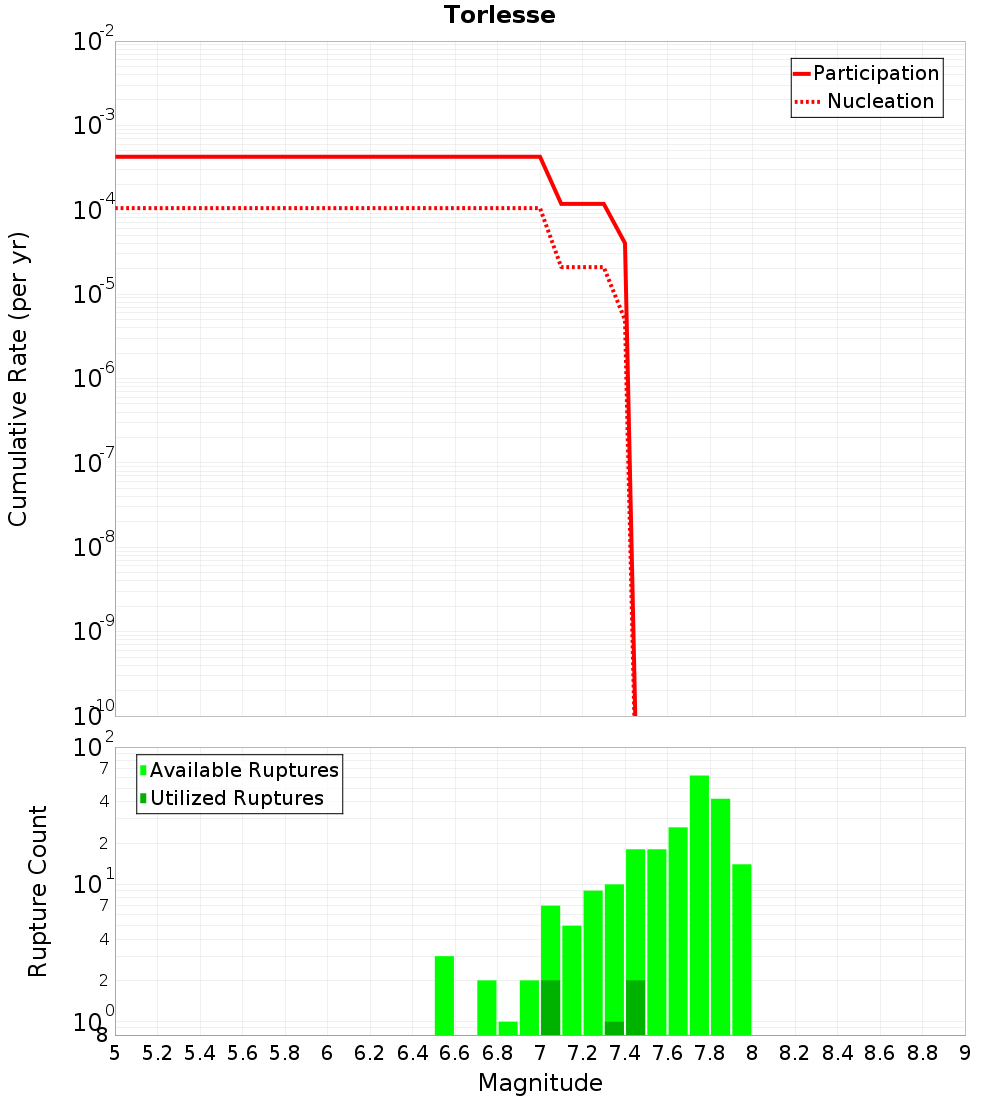

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

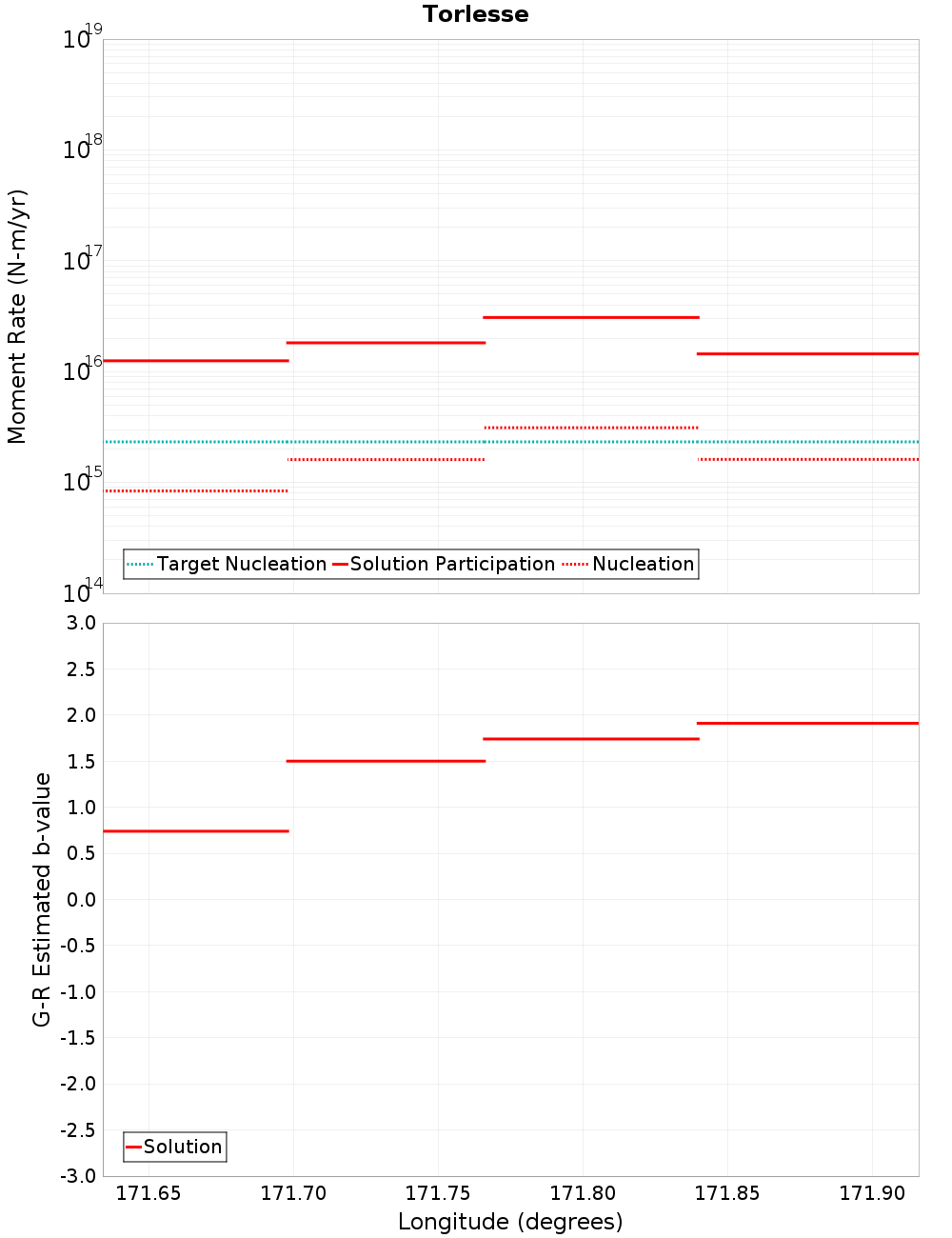

Moment-Rates and b-Values

(top)

Along-strike plot

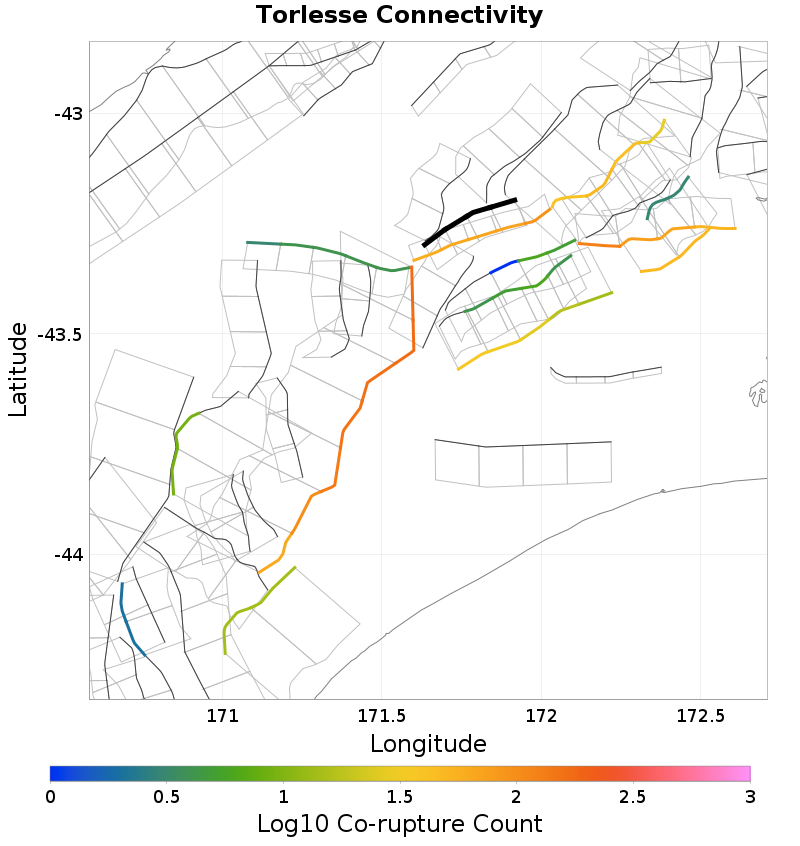

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Porters Pass, 0.35 km away
Big Ben, 0.47 km away
Esk South, 0.55 km away
Cheeseman, 0.65 km away
Sailor, 1.39 km away
Hutt Peel, 6.37 km away
Double Hill, 6.89 km away
Lees Valley, 9.42 km away
Hororata, 10.38 km away
Knowles Top, 11.11 km away
Starvation - Ashley, 12.46 km away
Kowai - View Hill, 13.54 km away
Redcliffe, 15.35 km away
High Peak - Sheffield, 17.33 km away

Porters Pass, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.35 km
Min Rate-Weighted Dist0.4 km
Co-rupture Count91
Co-rupture Rate4.15336E-4

Big Ben, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 0.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 6.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.37 km
Co-rupture Count166
Co-rupture Rate0.0

Double Hill, 6.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate7.7340475E-5

Lees Valley, 9.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate0.0

Hororata, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist10.38 km
Min Rate-Weighted Dist11.17 km
Co-rupture Count35
Co-rupture Rate9.987277E-6

Knowles Top, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist12.46 km
Min Rate-Weighted Dist12.46 km
Co-rupture Count133
Co-rupture Rate4.0172363E-5

Kowai - View Hill, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Redcliffe, 15.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

High Peak - Sheffield, 17.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate9.987277E-6
