Tuakana 7 Details

PropertyValue
Rupture Count427
Ruptures Above Sect Min Mag427
Ruptures w/ Nonzero Rates3
Magnitude Range[6.91, 7.94]
Length Range[21, 271] km
Total Rate4.803006E-5 /yr
Multi-Fault Rate4.803006E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults23

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

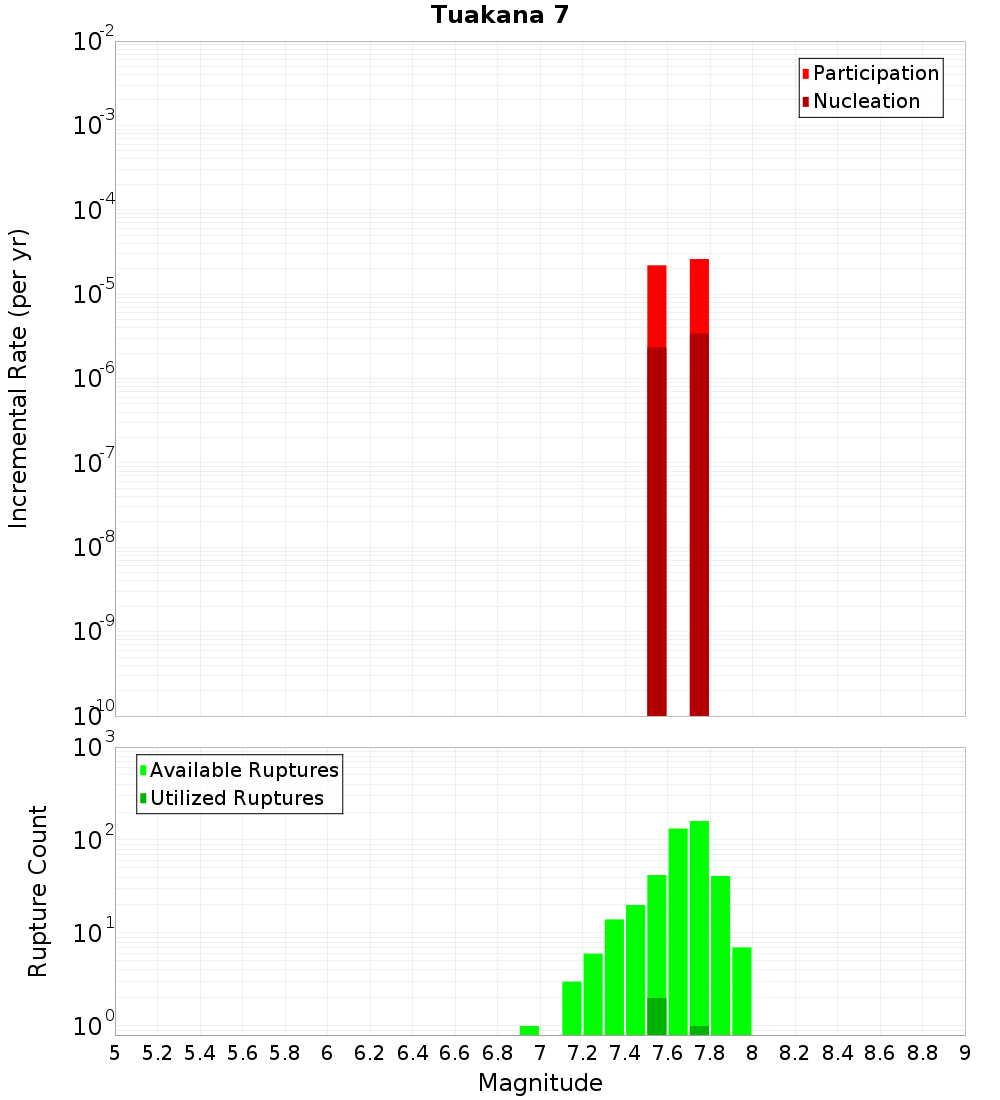

Incremental PlotCumulative Plot

Along-Strike Values

(top)

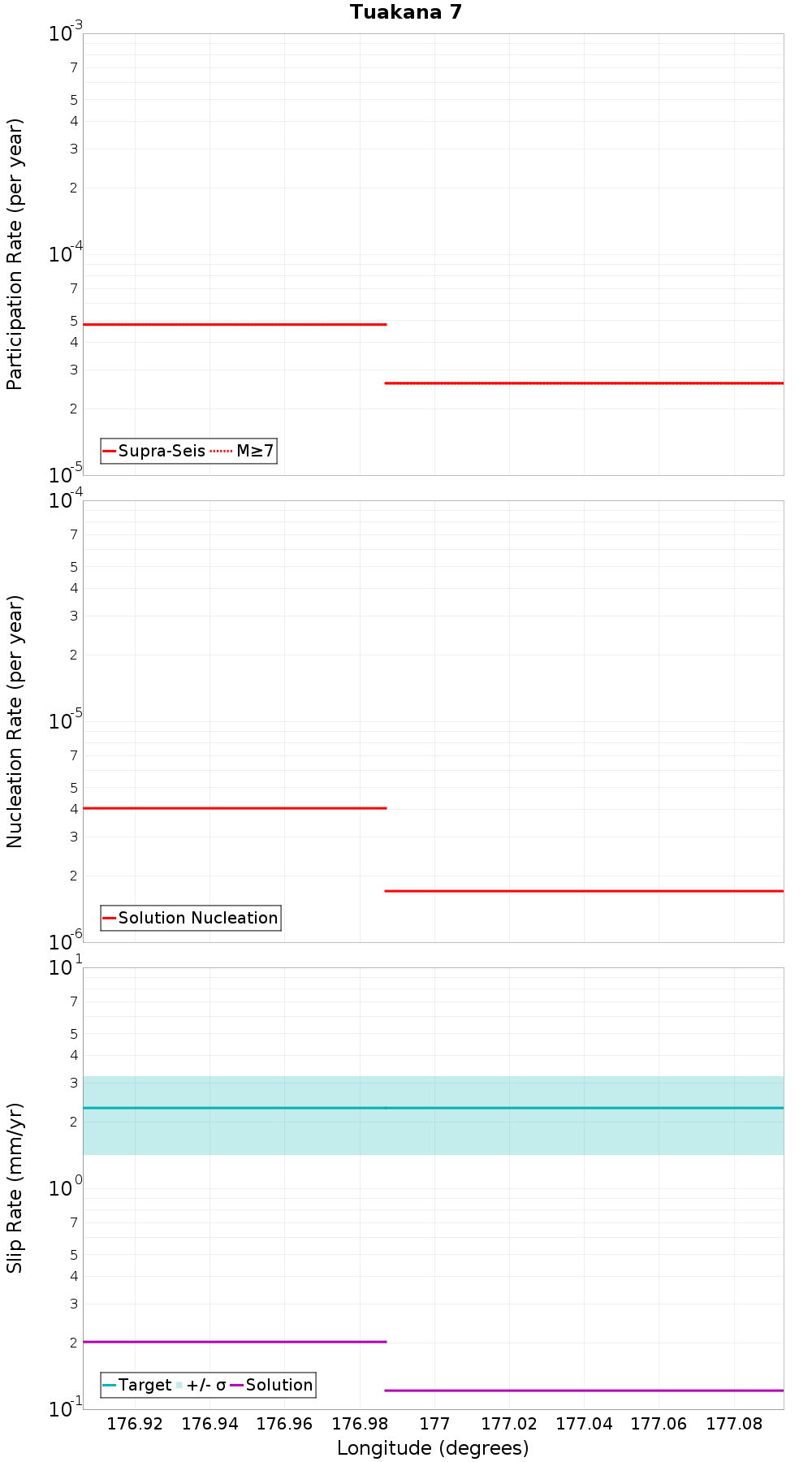

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Tuakana 6, 0.36 km away
Otara West 2, 0.39 km away
Tauranga Trough East 2, 0.61 km away
Otara West 1, 2.18 km away
Volkner 4, 5.62 km away
Tauranga Trough West 2, 6.47 km away
Volkner 3, 13.04 km away
Otara West 3, 14.61 km away
Ngatoro South 2, 19.01 km away
Ohena 2, 19.33 km away

Tuakana 6, 0.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.36 km
Min Rate-Weighted Dist0.36 km
Co-rupture Count414
Co-rupture Rate4.803006E-5

Otara West 2, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tauranga Trough East 2, 0.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.61 km
Min Rate-Weighted Dist0.61 km
Co-rupture Count330
Co-rupture Rate2.6059392E-5

Otara West 1, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 4, 5.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count372
Co-rupture Rate2.6059392E-5

Tauranga Trough West 2, 6.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?true
Min Co-Rupture Dist6.47 km
Min Rate-Weighted Dist6.47 km
Co-rupture Count26
Co-rupture Rate2.1970667E-5

Volkner 3, 13.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count393
Co-rupture Rate4.803006E-5

Otara West 3, 14.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ngatoro South 2, 19.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count120
Co-rupture Rate3.614536E-5

Ohena 2, 19.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?true
Directly Connected?false
Co-rupture Count24
Co-rupture Rate1.1884697E-5
