Wanaka Details

Property	Value
Rupture Count	617
Ruptures Above Sect Min Mag	614
Ruptures w/ Nonzero Rates	9
Magnitude Range	[6.94, 8.19]
Length Range	[22, 324] km
Total Rate	1.3727721E-5 /yr
Multi-Fault Rate	6.7039505E-6 /yr (48.84%)
Directly-Connected Faults	2
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

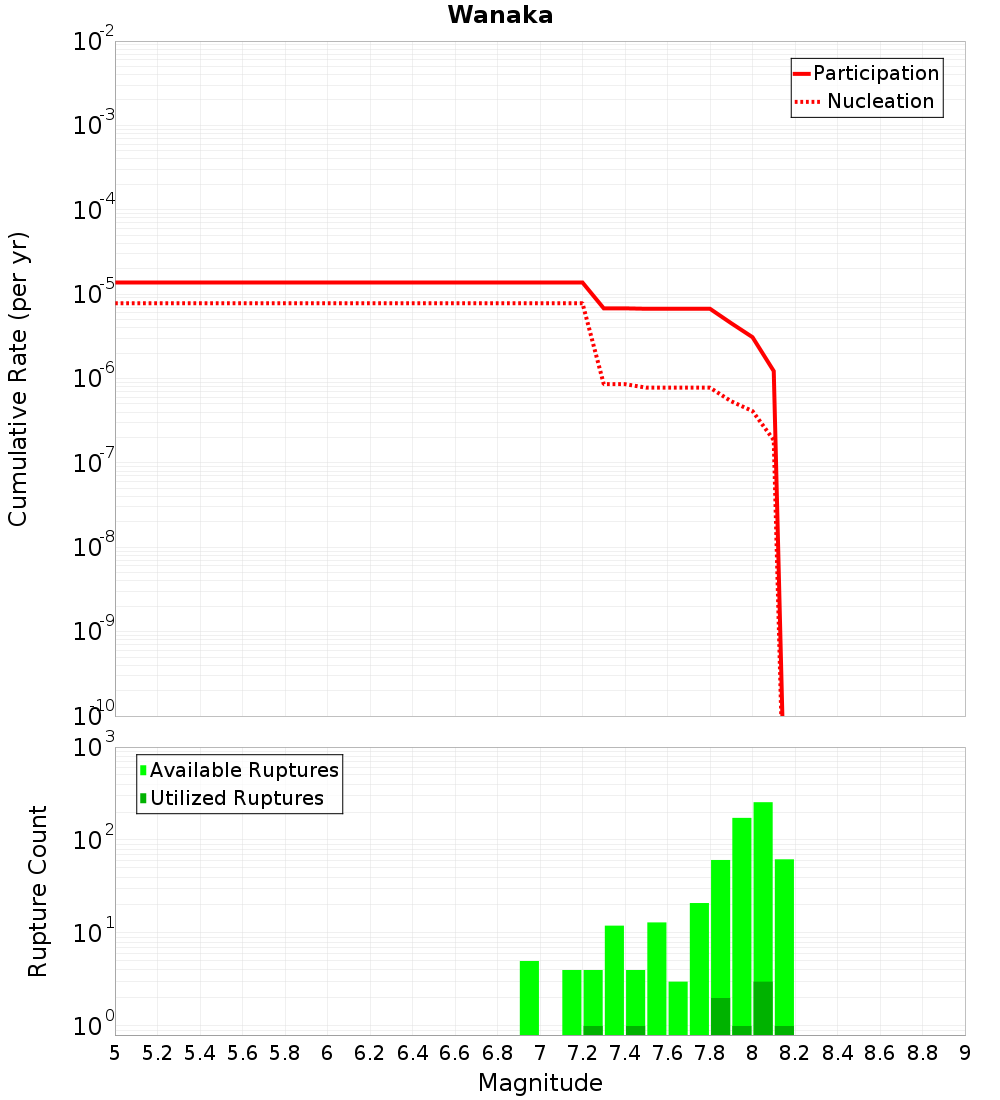

Magnitude-Frequency Distribution

Incremental	Cumulative

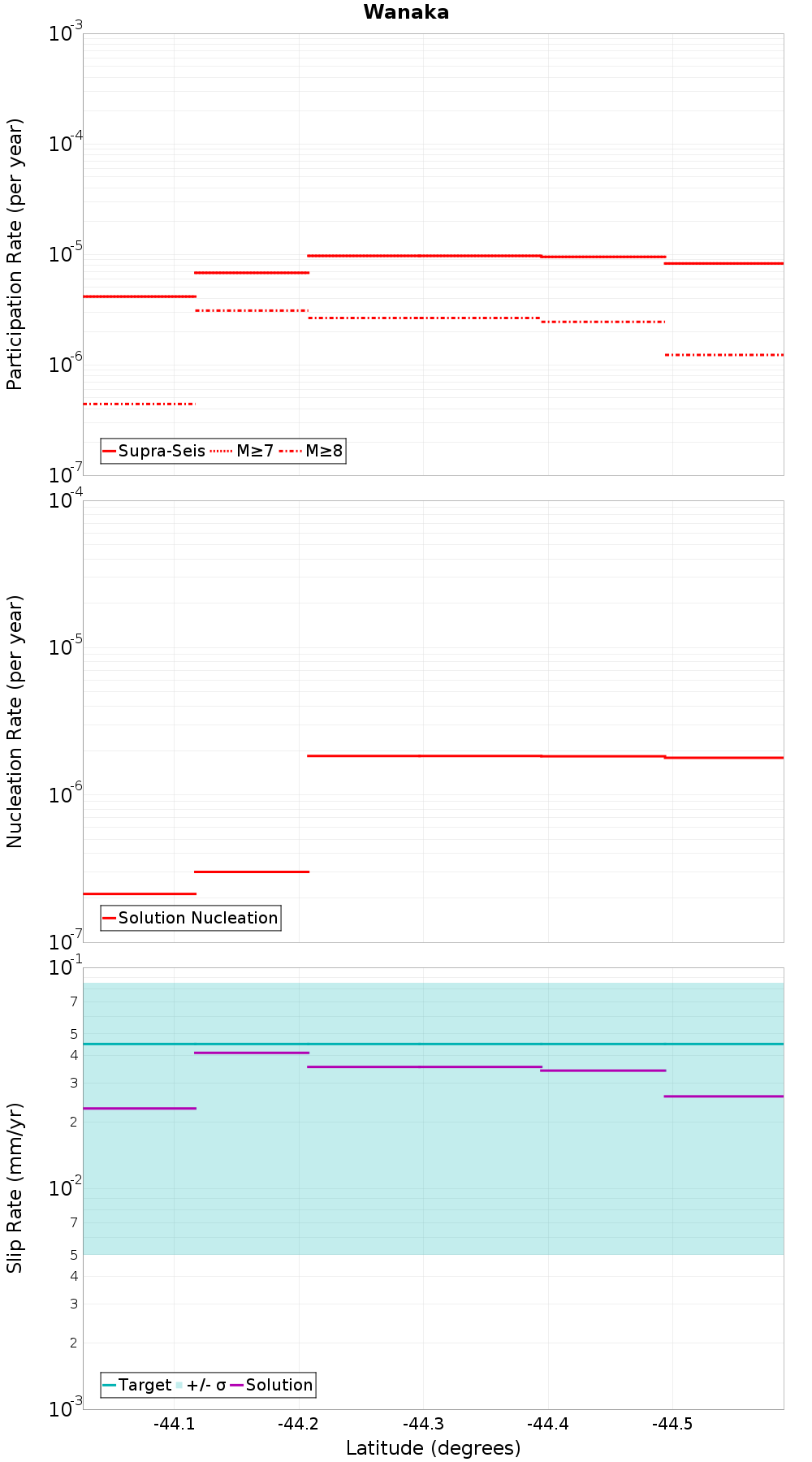

Along-Strike Values

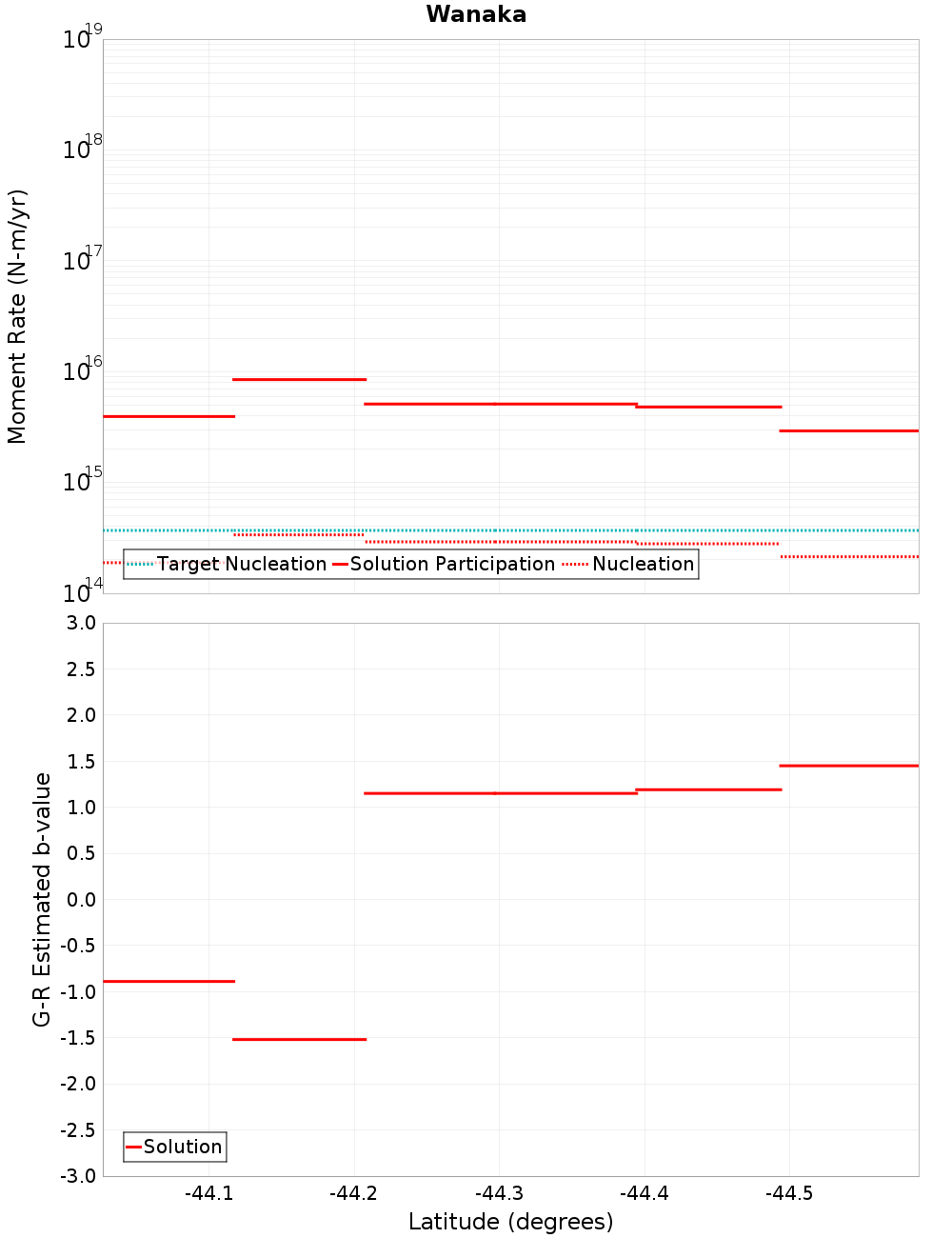

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hunter Valley, 0.22 km away
Cardrona - Hawea, 0.22 km away
Timaru Creek, 0.32 km away
Dingle, 0.43 km away
Motatapu, 1.16 km away
NW Cardrona North, 3.89 km away
Hopkins, 4.94 km away
Barrier Range, 10.76 km away
Dromedary, 12.35 km away
Grandview, 12.59 km away
Cluden, 13.1 km away
Alpine: Jacksons to Kaniere, 15.24 km away
Paddys Ridge, 16.65 km away
Huxley, 19.3 km away

Hunter Valley, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Cardrona - Hawea, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Timaru Creek, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	true
Directly Connected?	false
Co-rupture Count	484
Co-rupture Rate	6.7039505E-6

Dingle, 0.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.43 km
Min Rate-Weighted Dist	1.13 km
Co-rupture Count	571
Co-rupture Rate	7.923405E-6

Motatapu, 1.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

NW Cardrona North, 3.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hopkins, 4.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Barrier Range, 10.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dromedary, 12.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	12.35 km
Co-rupture Count	310
Co-rupture Rate	1.2240067E-6

Grandview, 12.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	true
Directly Connected?	false
Co-rupture Count	582
Co-rupture Rate	6.7039505E-6

Cluden, 13.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Jacksons to Kaniere, 15.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Paddys Ridge, 16.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	2.1843264E-6

Huxley, 19.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
