Warea Details
| Property | Value |
|---|---|
| Rupture Count | 498 |
| Ruptures Above Sect Min Mag | 497 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.78, 7.91] |
| Length Range | [16, 208] km |
| Total Rate | 2.2882748E-5 /yr |
| Multi-Fault Rate | 2.2882748E-5 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

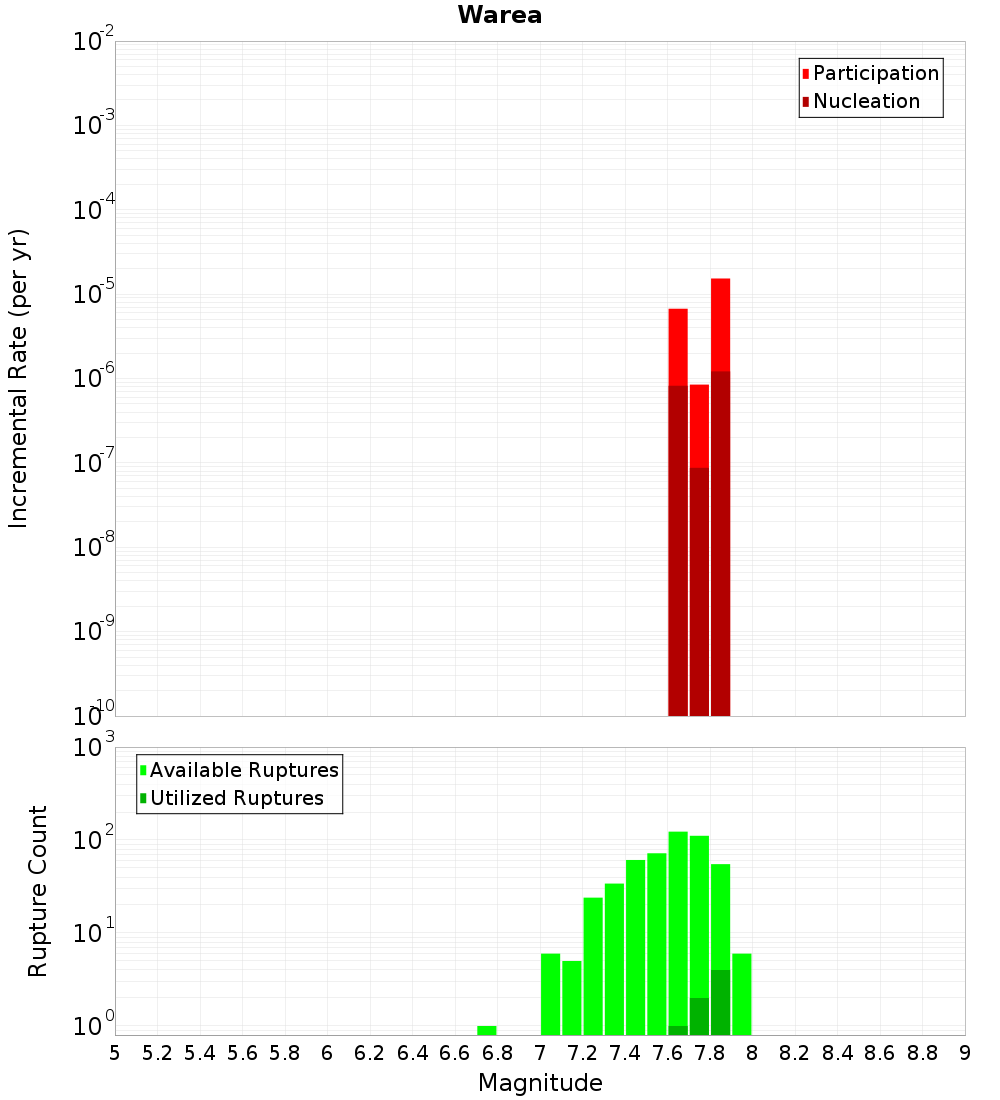

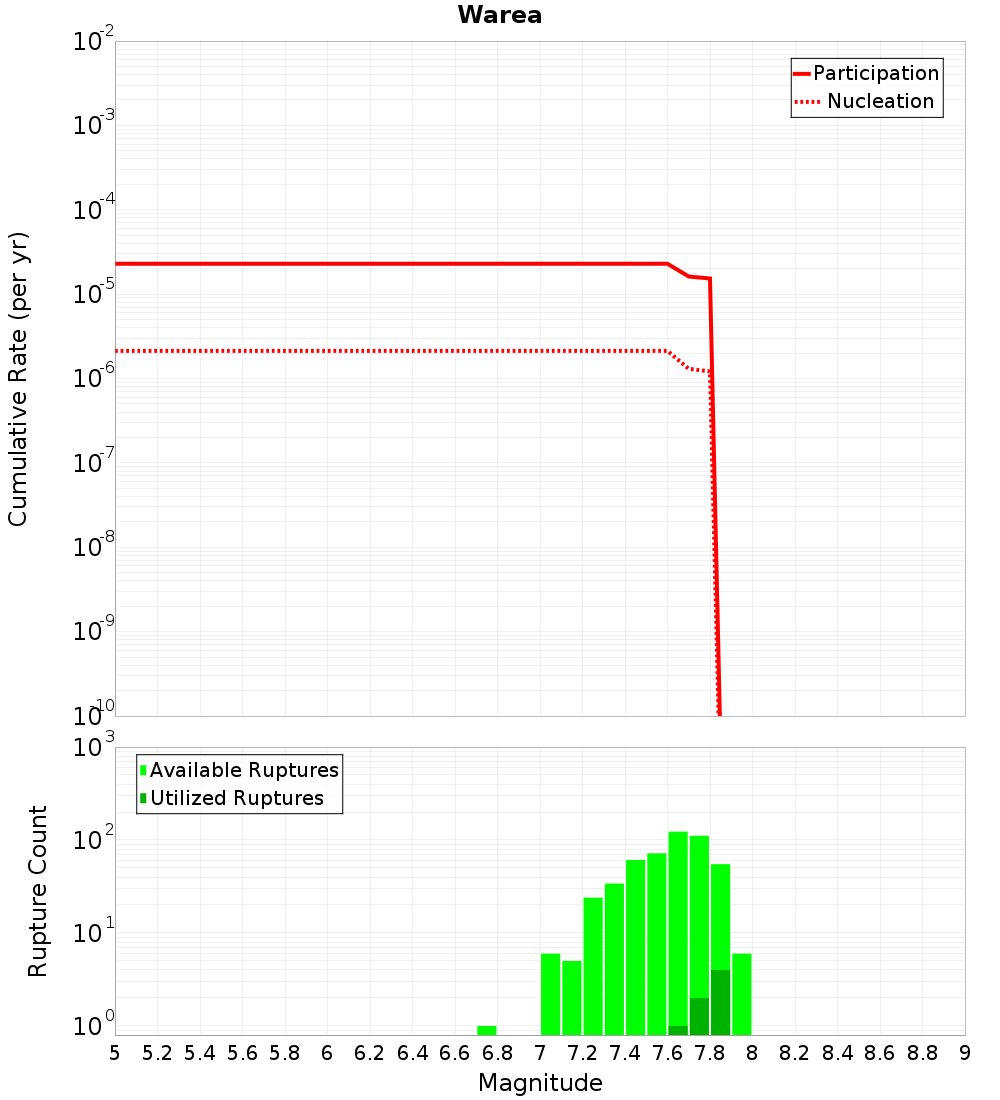

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

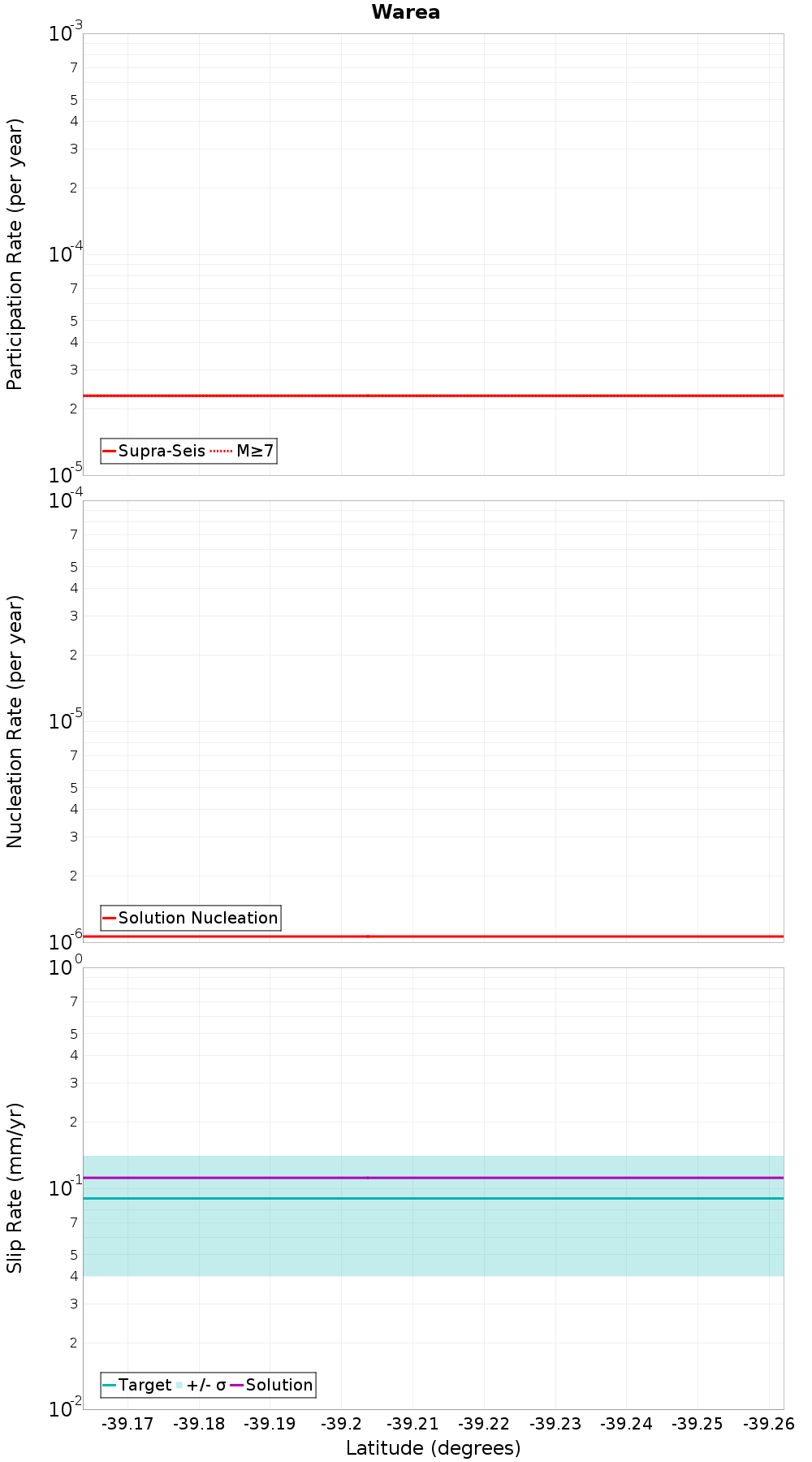

Along-Strike Values
Moment-Rates and b-Values

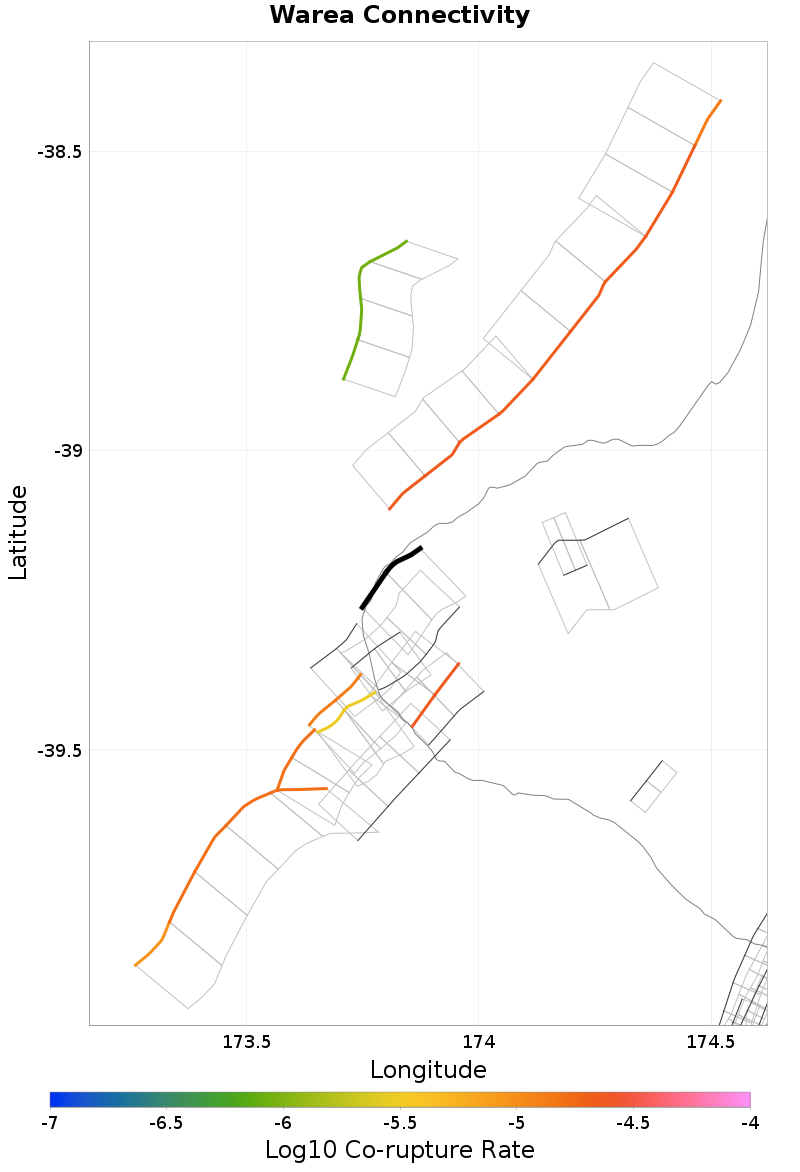

Connectivity
 |  |
|---|
Nearby Sections
Oaonui, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ihaia, 0.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.49 km |
| Min Rate-Weighted Dist | 0.49 km |
| Co-rupture Count | 198 |
| Co-rupture Rate | 2.2882748E-5 |
Manahi 2, 3.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.12 km |
| Co-rupture Count | 77 |
| Co-rupture Rate | 0.0 |
Kiri, 3.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.99 km |
| Co-rupture Count | 228 |
| Co-rupture Rate | 0.0 |
Rahotu, 5.02 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.02 km |
| Co-rupture Count | 57 |
| Co-rupture Rate | 0.0 |
Pihama, 9.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 56 |
| Co-rupture Rate | 0.0 |
Turi: South, 9.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 9.28 km |
| Min Rate-Weighted Dist | 9.28 km |
| Co-rupture Count | 420 |
| Co-rupture Rate | 2.2882748E-5 |
Cape Egmont: North, 11.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 224 |
| Co-rupture Rate | 1.3145686E-5 |
Manahi 1, 14.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 158 |
| Co-rupture Rate | 3.023252E-6 |
Inglewood, 18.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Norfolk, 19.53 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDM5 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
