Alpine: George landward Details
| Property | Value |
|---|---|
| Rupture Count | 54,245 |
| Ruptures Above Sect Min Mag | 54,244 |
| Ruptures w/ Nonzero Rates | 46 |
| Magnitude Range | [6.59, 8.44] |
| Length Range | [16, 1,156] km |
| Total Rate | 7.632199E-4 /yr |
| Multi-Fault Rate | 7.632199E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 88 |
Table Of Contents

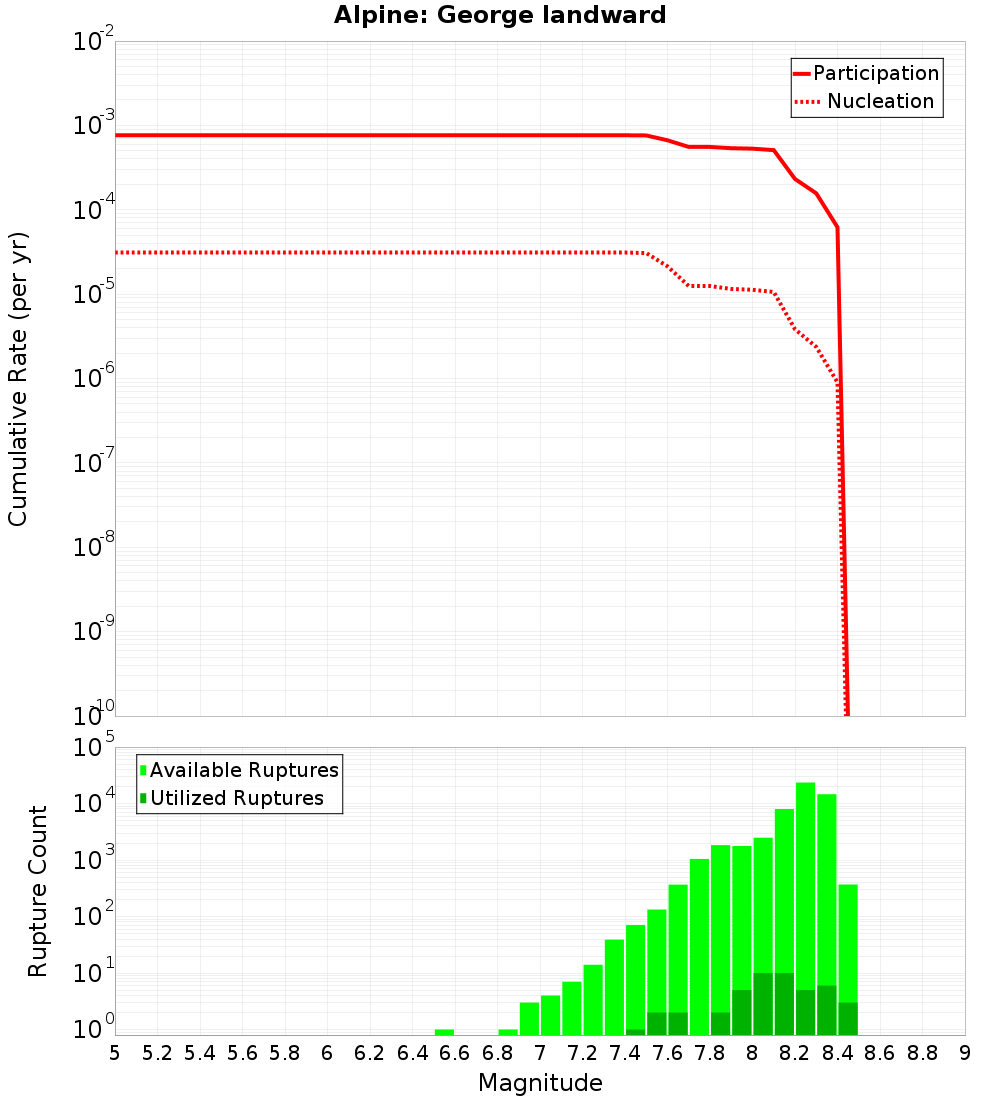

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

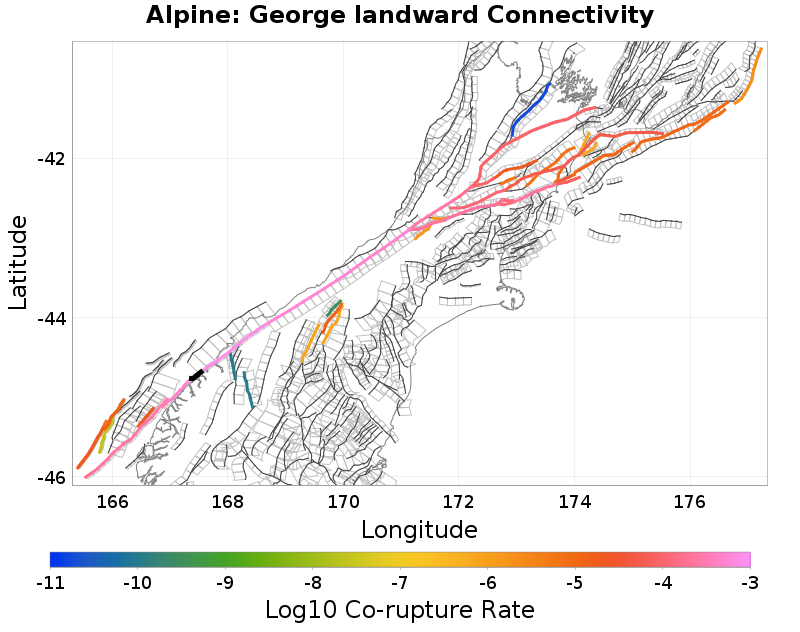

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: George seaward, 0 km away |
| Alpine: George to Jacksons, 0 km away |
| Alpine: Caswell - South George, 0.03 km away |
| Madagascar, 0.16 km away |
| Central Wedge 1 & 2 & 3, 17.18 km away |
Alpine: George seaward, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 774 |
| Co-rupture Rate | 2.86188E-4 |
Alpine: George to Jacksons, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 54,046 |
| Co-rupture Rate | 7.632199E-4 |
Alpine: Caswell - South George, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.03 km |
| Min Rate-Weighted Dist | 0.03 km |
| Co-rupture Count | 53,142 |
| Co-rupture Rate | 7.632199E-4 |
Madagascar, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 168 |
| Co-rupture Rate | 0.0 |
Central Wedge 1 & 2 & 3, 17.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 277 |
| Co-rupture Rate | 0.0 |
