Carterton Details

PropertyValue
Rupture Count2,926
Ruptures Above Sect Min Mag2,899
Ruptures w/ Nonzero Rates4
Magnitude Range[6.39, 8.14]
Length Range[14, 527] km
Total Rate3.6304217E-4 /yr
Multi-Fault Rate3.6304217E-4 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults84

Table Of Contents

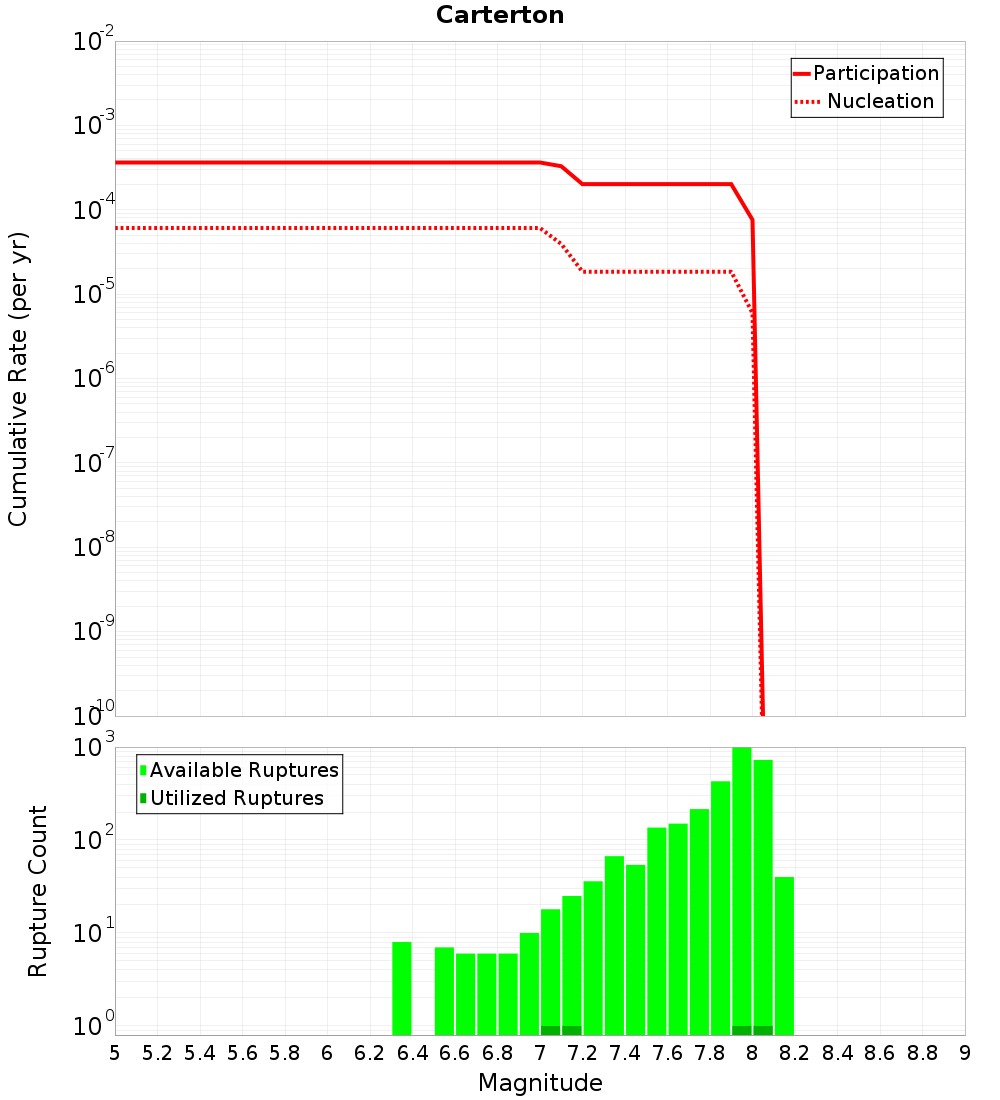

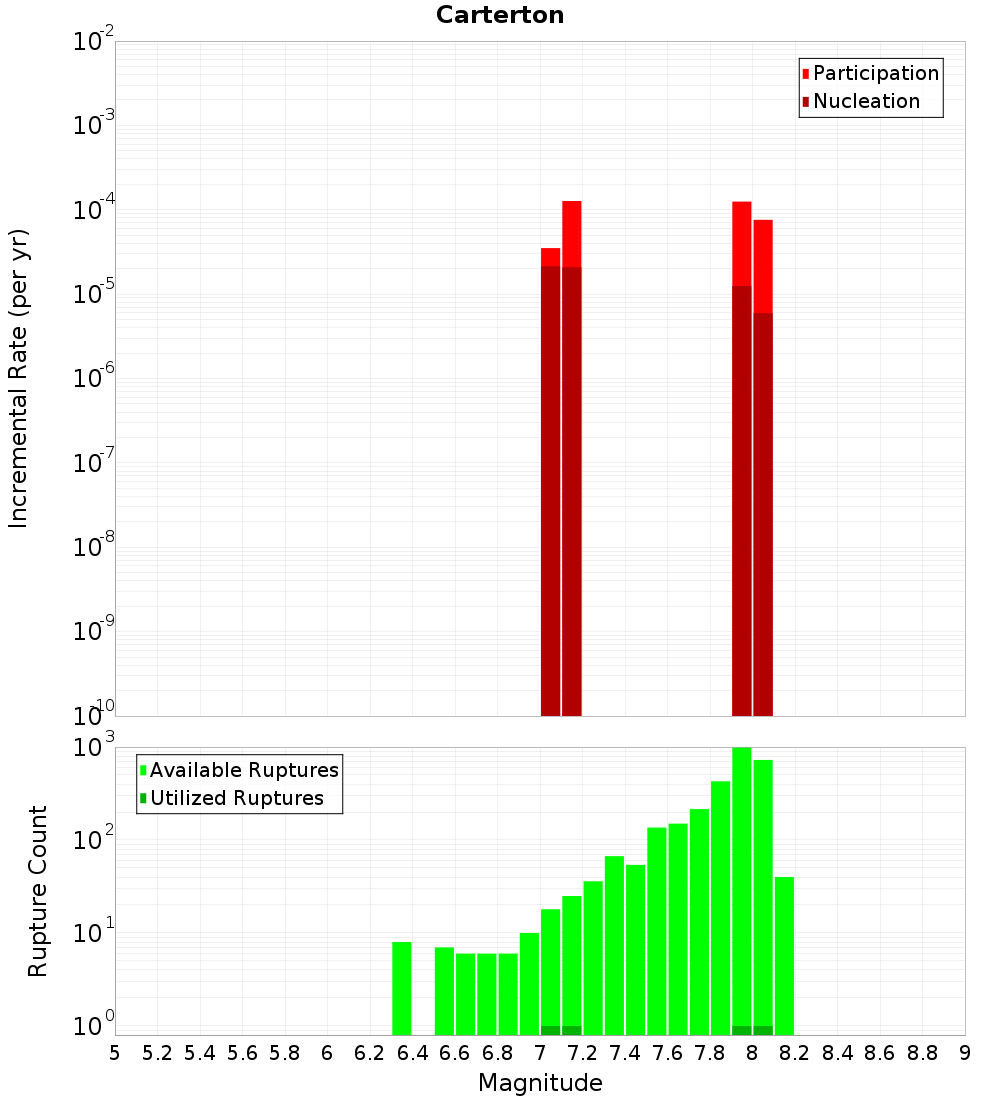

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

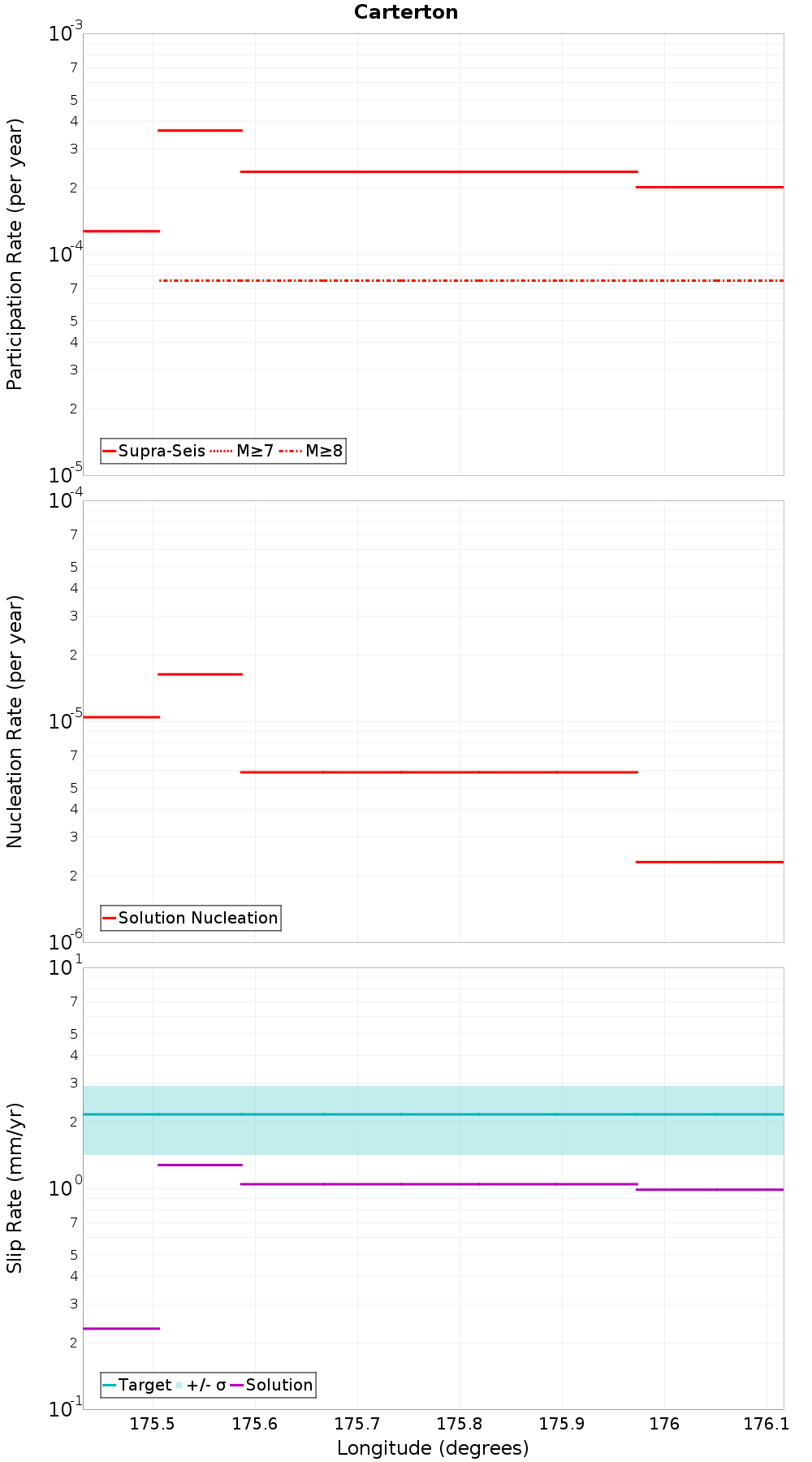

Along-Strike Values

(top)

Along-strike plot

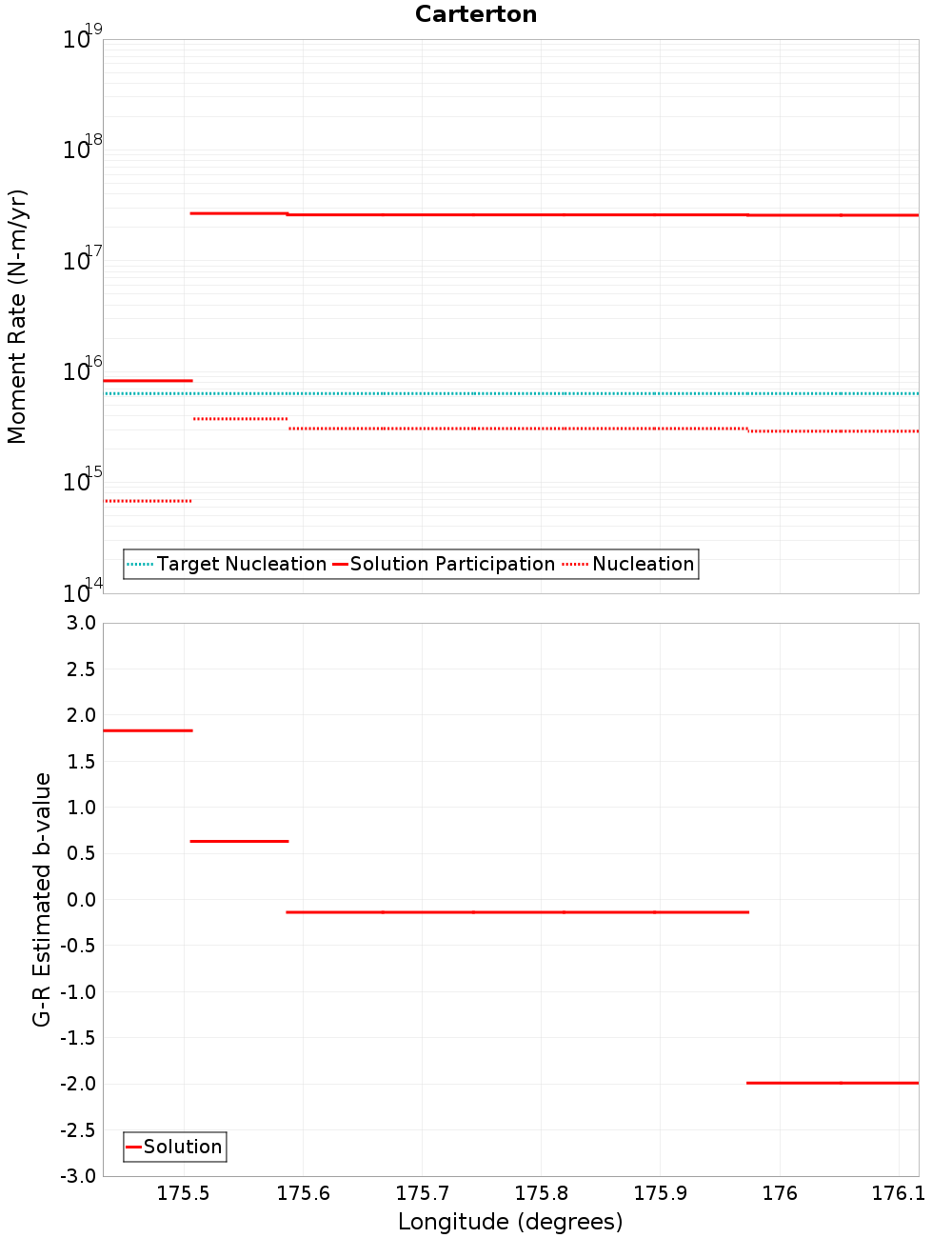

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Wairarapa: 3, 0.02 km awayMokonui Northeast, 10.01 km away
Wairarapa: 2, 0.05 km awayDry River - Huangarua: 3, 10.46 km away
Mataikona, 0.19 km awayRiversdale, 12.56 km away
Masterton, 0.31 km awayUruti Point, 13.16 km away
Martinborough, 1.44 km awayDry River - Huangarua: 2, 13.6 km away
Kaumingi, 1.49 km awayWellington: Tararua 3, 13.78 km away
Bidwill, 3.88 km awayWellington: Tararua 1, 15.49 km away
Riversdale North, 3.92 km awayDry River - Huangarua: 1, 17.18 km away
Mokonui Southwest, 5.7 km awayWaitawhiti, 18.52 km away
Wellington: Tararua 2, 8.44 km awayWellington Hutt Valley: 5, 19.78 km away
Mataikona East, 9.29 km away

Wairarapa: 3, 0.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count112
Co-rupture Rate0.0

Wairarapa: 2, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.05 km
Min Rate-Weighted Dist3.45 km
Co-rupture Count1,323
Co-rupture Rate2.519653E-4

Mataikona, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist0.19 km
Min Rate-Weighted Dist0.19 km
Co-rupture Count571
Co-rupture Rate7.5969765E-5

Masterton, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist1.23 km
Co-rupture Count116
Co-rupture Rate0.0

Martinborough, 1.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.14 km
Min Rate-Weighted Dist4.14 km
Co-rupture Count92
Co-rupture Rate3.510709E-5

Kaumingi, 1.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist4.41 km
Co-rupture Count19
Co-rupture Rate0.0

Bidwill, 3.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Riversdale North, 3.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 5.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate0.0

Wellington: Tararua 2, 8.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist8.44 km
Min Rate-Weighted Dist11.69 km
Co-rupture Count1,485
Co-rupture Rate7.5969765E-5

Mataikona East, 9.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Northeast, 10.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 3, 10.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?true
Min Co-Rupture Dist10.46 km
Co-rupture Count74
Co-rupture Rate0.0

Riversdale, 12.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Uruti Point, 13.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 2, 13.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 3, 13.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count1,474
Co-rupture Rate7.5969765E-5

Wellington: Tararua 1, 15.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 1, 17.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitawhiti, 18.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 5, 19.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate1.2697038E-4
