Edgecumbe Coastal Details
| Property | Value |
|---|---|
| Rupture Count | 19,907 |
| Ruptures Above Sect Min Mag | 19,855 |
| Ruptures w/ Nonzero Rates | 22 |
| Magnitude Range | [6.14, 8.19] |
| Length Range | [7, 584] km |
| Total Rate | 4.0655176E-4 /yr |
| Multi-Fault Rate | 4.0655176E-4 /yr (100.00%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 84 |
Table Of Contents

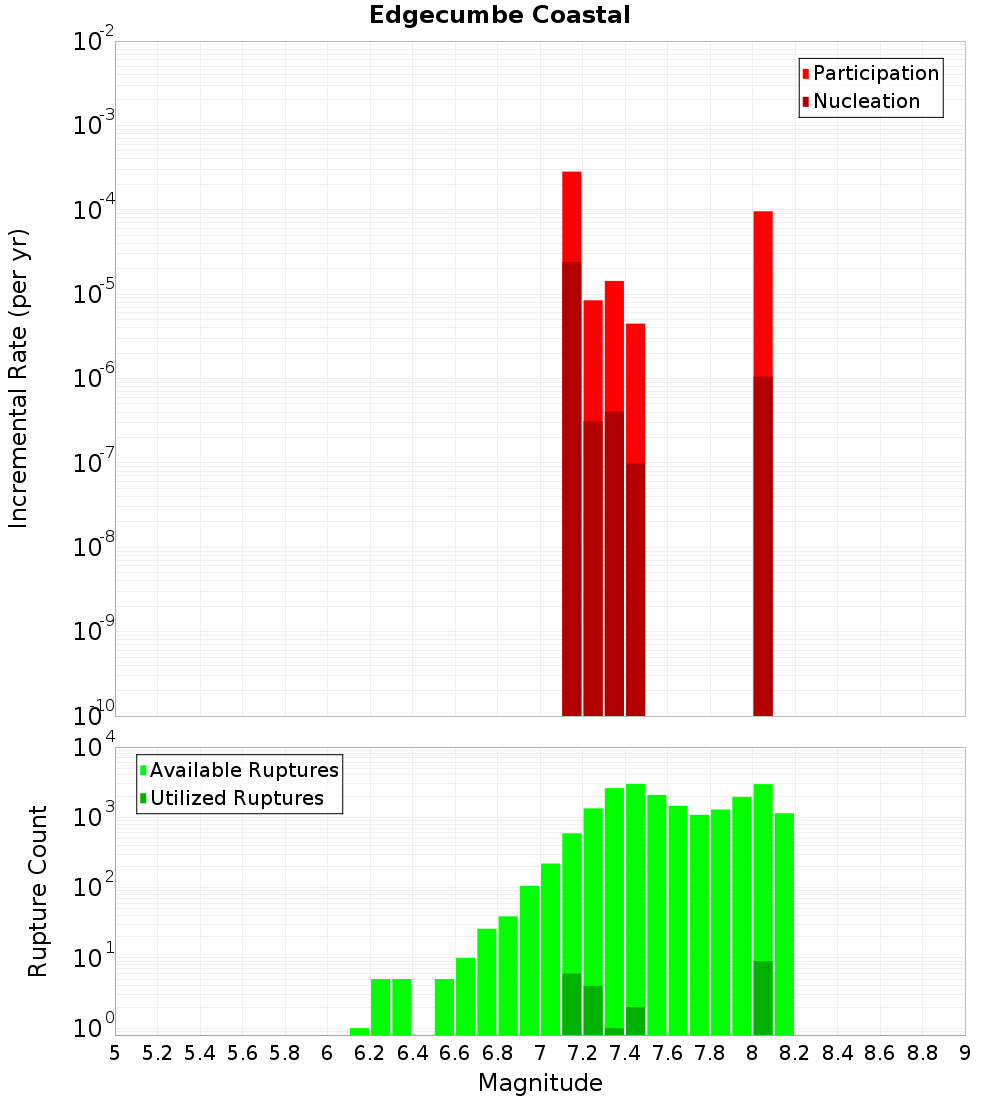

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

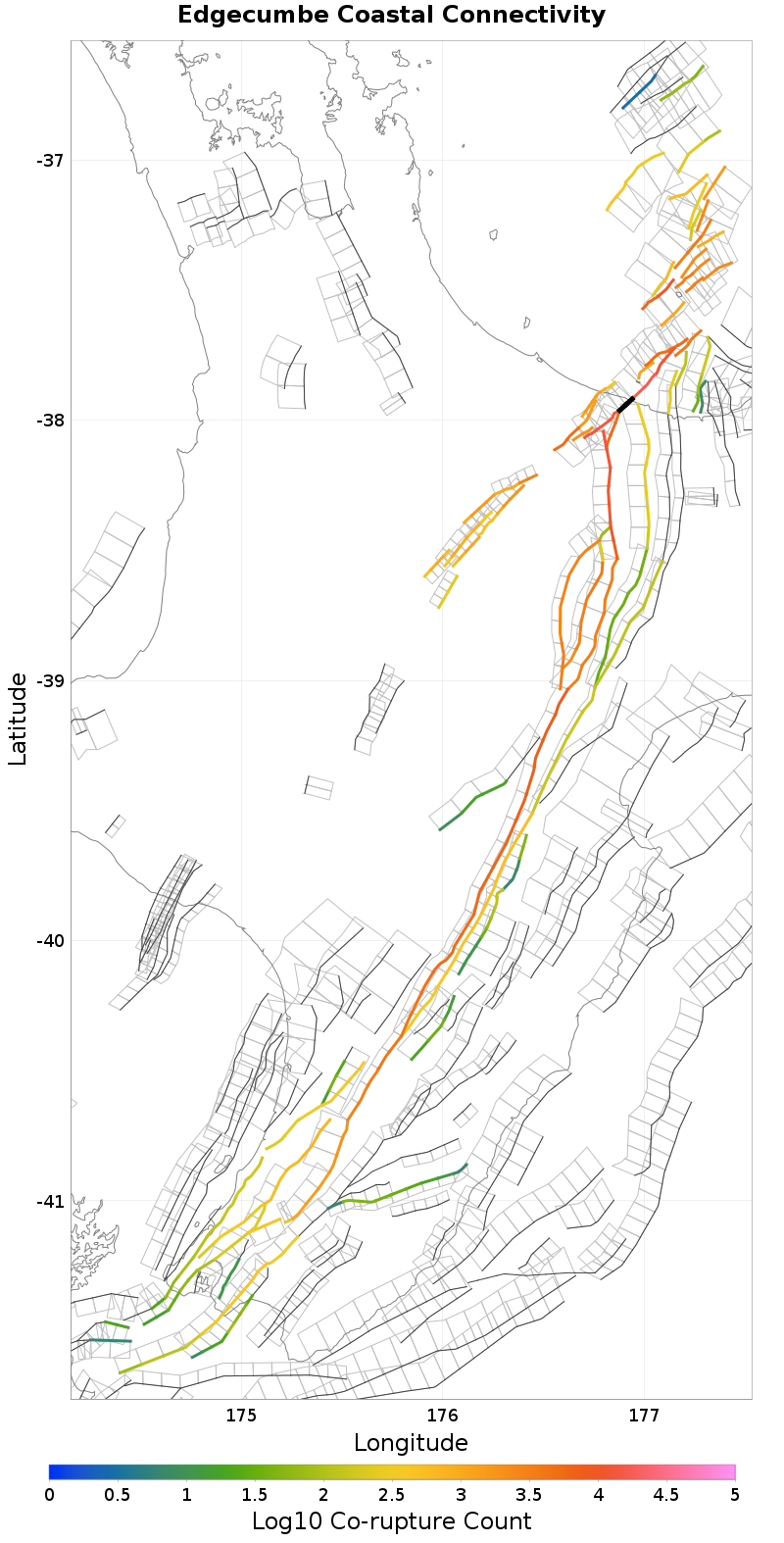

Connectivity
 |  |
|---|
Nearby Sections
White Island 1, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 17,115 |
| Co-rupture Rate | 9.599028E-5 |
Edgecumbe 1987, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 14,309 |
| Co-rupture Rate | 2.8515188E-4 |
Awakeri, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 5,130 |
| Co-rupture Rate | 7.885705E-5 |
Matata, 2.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.61 km |
| Co-rupture Count | 1,756 |
| Co-rupture Rate | 0.0 |
Whakatane: North, 3.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 3.09 km |
| Min Rate-Weighted Dist | 3.09 km |
| Co-rupture Count | 287 |
| Co-rupture Rate | 4.240604E-5 |
Braemar, 4.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.61 km |
| Co-rupture Count | 5,623 |
| Co-rupture Rate | 2.6801863E-4 |
Rangitaiki 1, 8.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 8.8 km |
| Min Rate-Weighted Dist | 8.8 km |
| Co-rupture Count | 1,173 |
| Co-rupture Rate | 4.254285E-5 |
Waiohau: North, 11.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 12,438 |
| Co-rupture Rate | 9.599028E-5 |
Rotoitipakau, 14.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,987 |
| Co-rupture Rate | 1.8916158E-4 |
Rangitaiki 2, 14.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5,051 |
| Co-rupture Rate | 4.254285E-5 |
Waimana: North, 15.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 232 |
| Co-rupture Rate | 0.0 |
Waiotahi: North, 18.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana - Waikaremoana, 19.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 116 |
| Co-rupture Rate | 0.0 |
