Hokonui Details

Property	Value
Rupture Count	37
Ruptures Above Sect Min Mag	35
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.96, 8.05]
Length Range	[27, 284] km
Total Rate	1.4222912E-5 /yr
Multi-Fault Rate	5.337356E-6 /yr (37.53%)
Directly-Connected Faults	2
All Co-Rupturing Faults	10

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

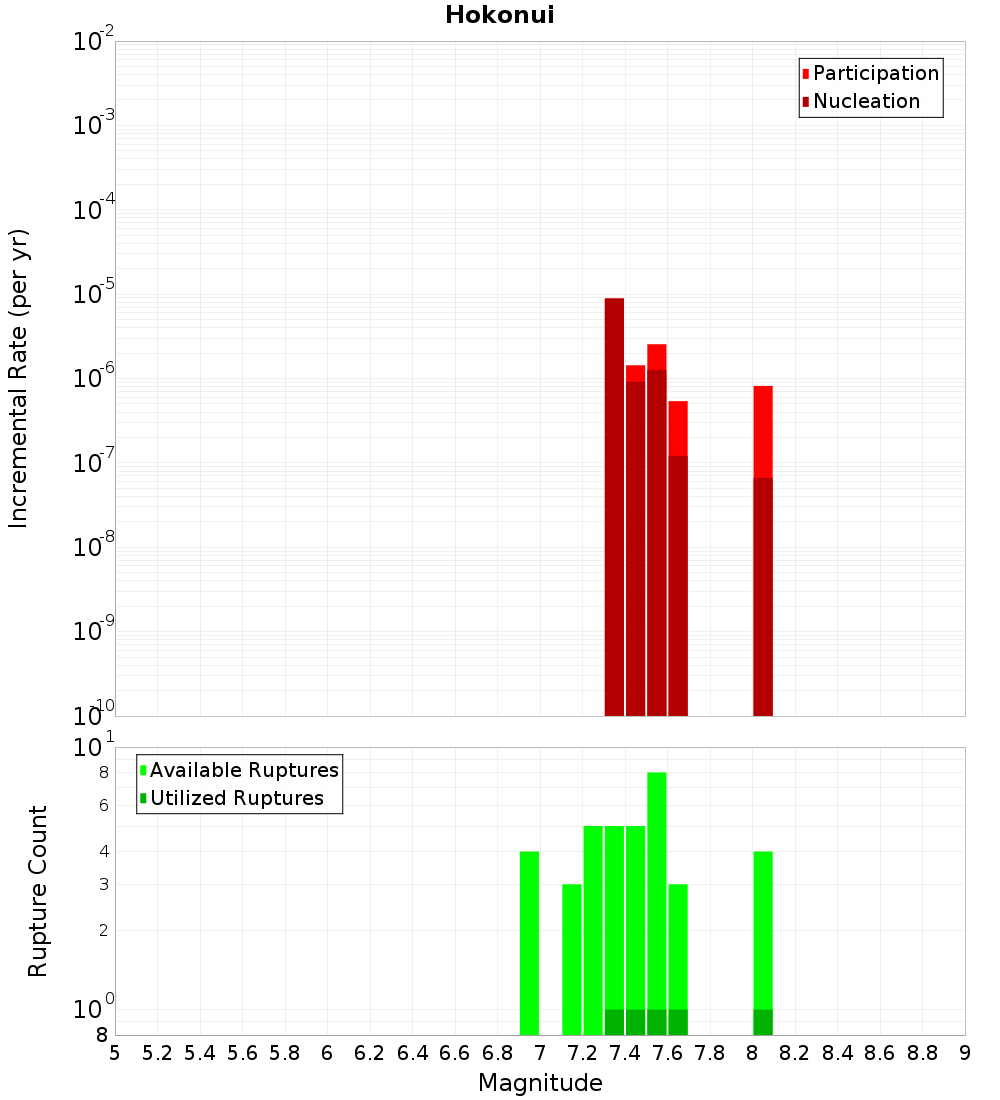

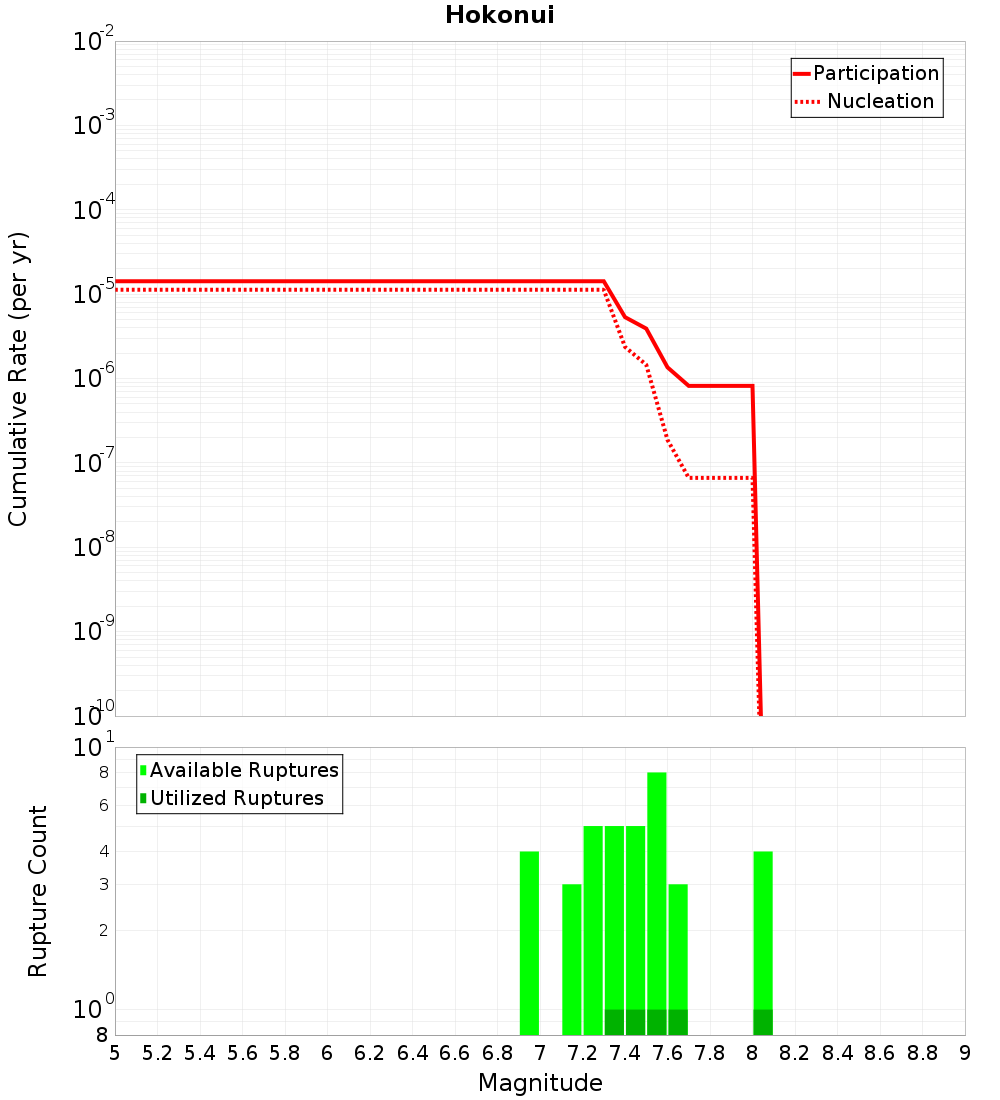

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

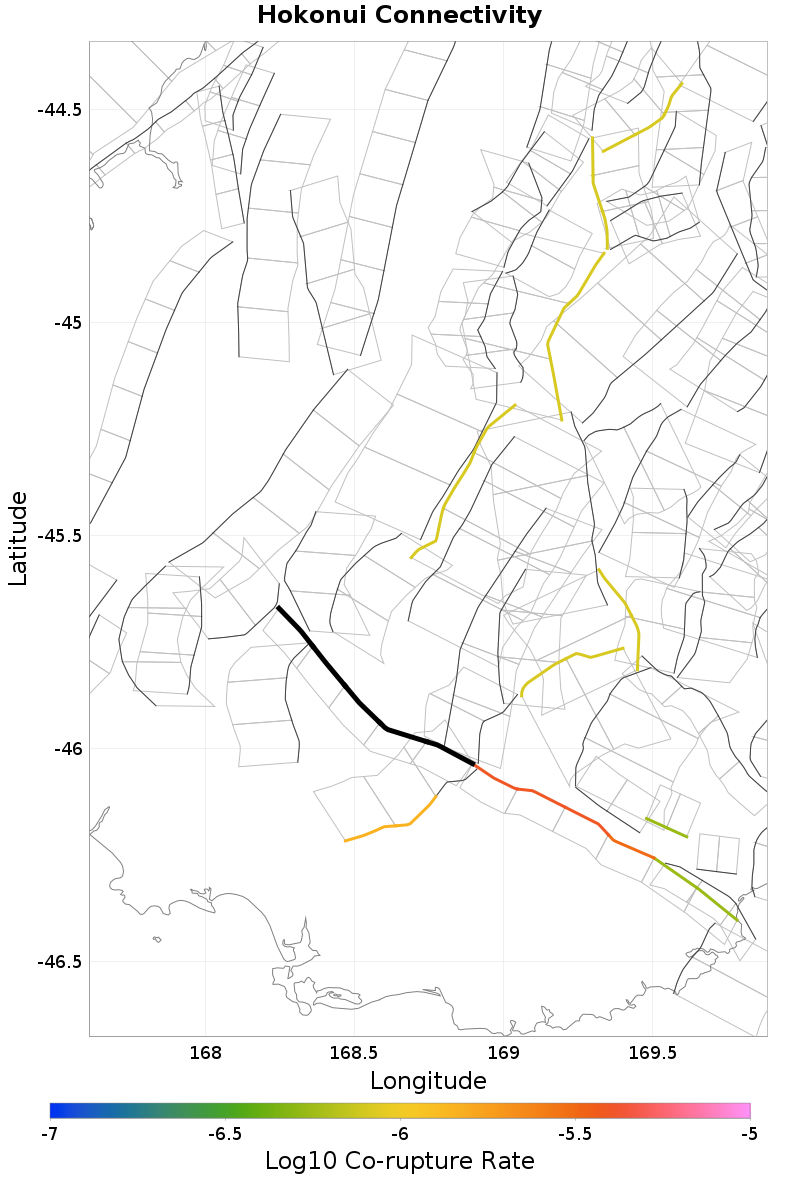

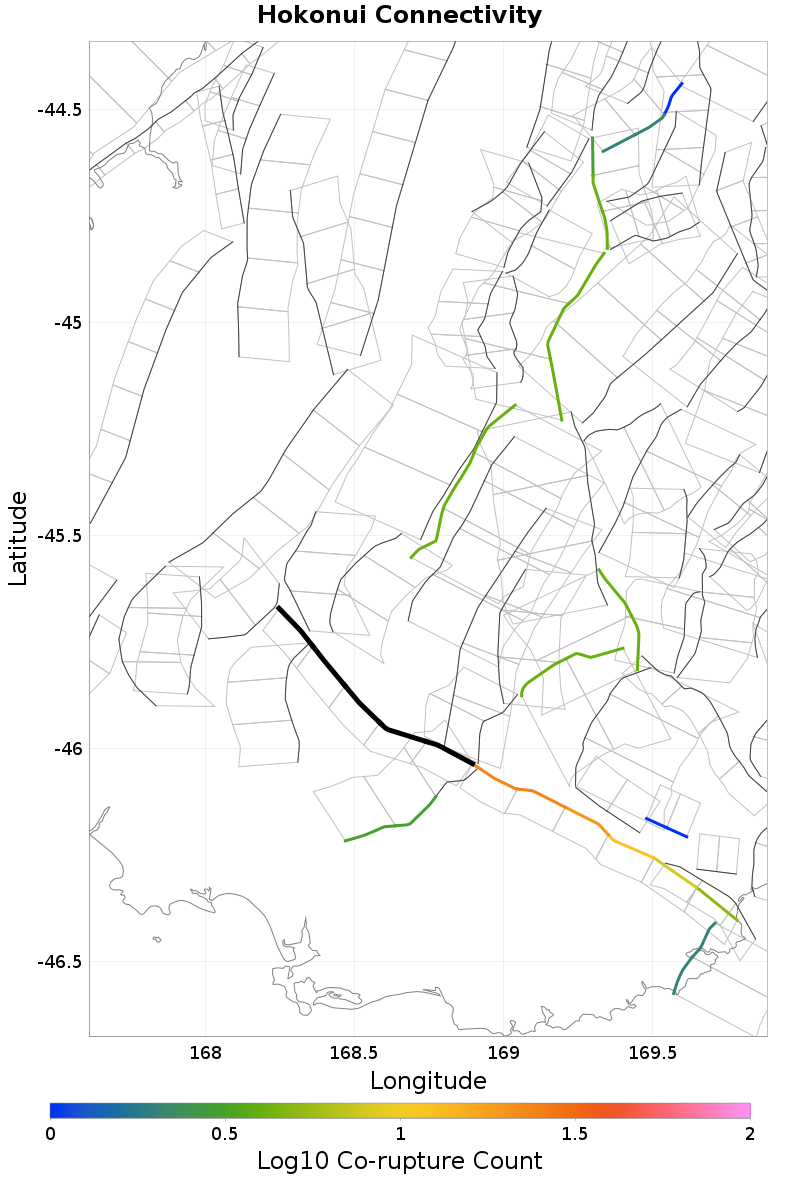

Connectivity

Nearby Sections

Fault Section
Hillfoot, 0 km away
Hedgehope, 0.15 km away
White Hill, 0.25 km away
Waikaia, 0.29 km away
Mossburn, 1.17 km away
Waikaka, 1.27 km away
Acton, 1.83 km away
Mid Dome, 6.47 km away
Moonlight South, 13.42 km away
Wendon Valley, 17.68 km away
McKerchar, 18.94 km away
Tin Hut, 19.9 km away

Hillfoot, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0 km
Min Rate-Weighted Dist	8.62 km
Co-rupture Count	24
Co-rupture Rate	3.902766E-6

Hedgehope, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.28 km
Min Rate-Weighted Dist	0.28 km
Co-rupture Count	3
Co-rupture Rate	1.4345901E-6

White Hill, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaia, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mossburn, 1.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waikaka, 1.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Acton, 1.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mid Dome, 6.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Moonlight South, 13.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wendon Valley, 17.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

McKerchar, 18.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tin Hut, 19.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
