Kaiapo Details
| Property | Value |
|---|---|
| Rupture Count | 2,000 |
| Ruptures Above Sect Min Mag | 1,669 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [5.96, 7.51] |
| Length Range | [8, 181] km |
| Total Rate | 6.437826E-4 /yr |
| Multi-Fault Rate | 6.437826E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 18 |
Table Of Contents

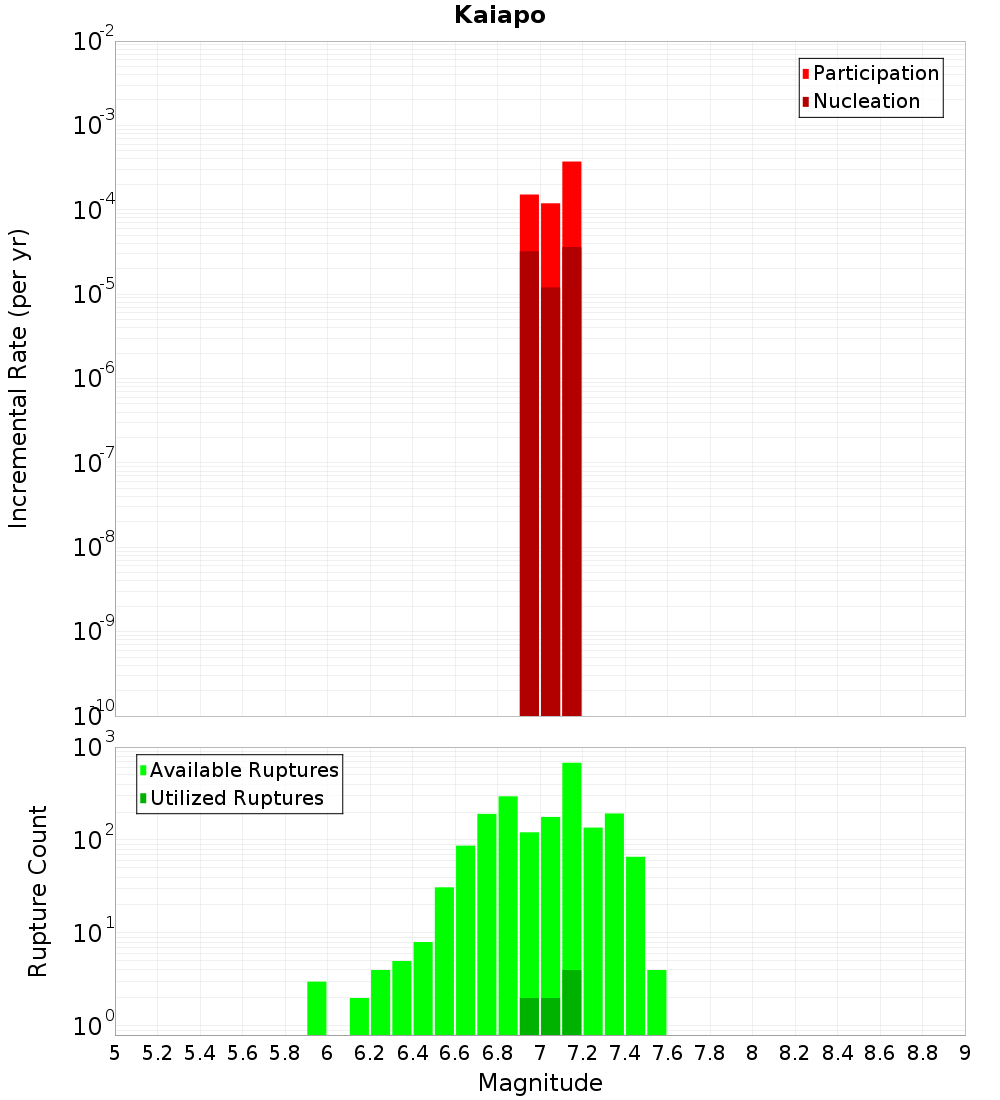

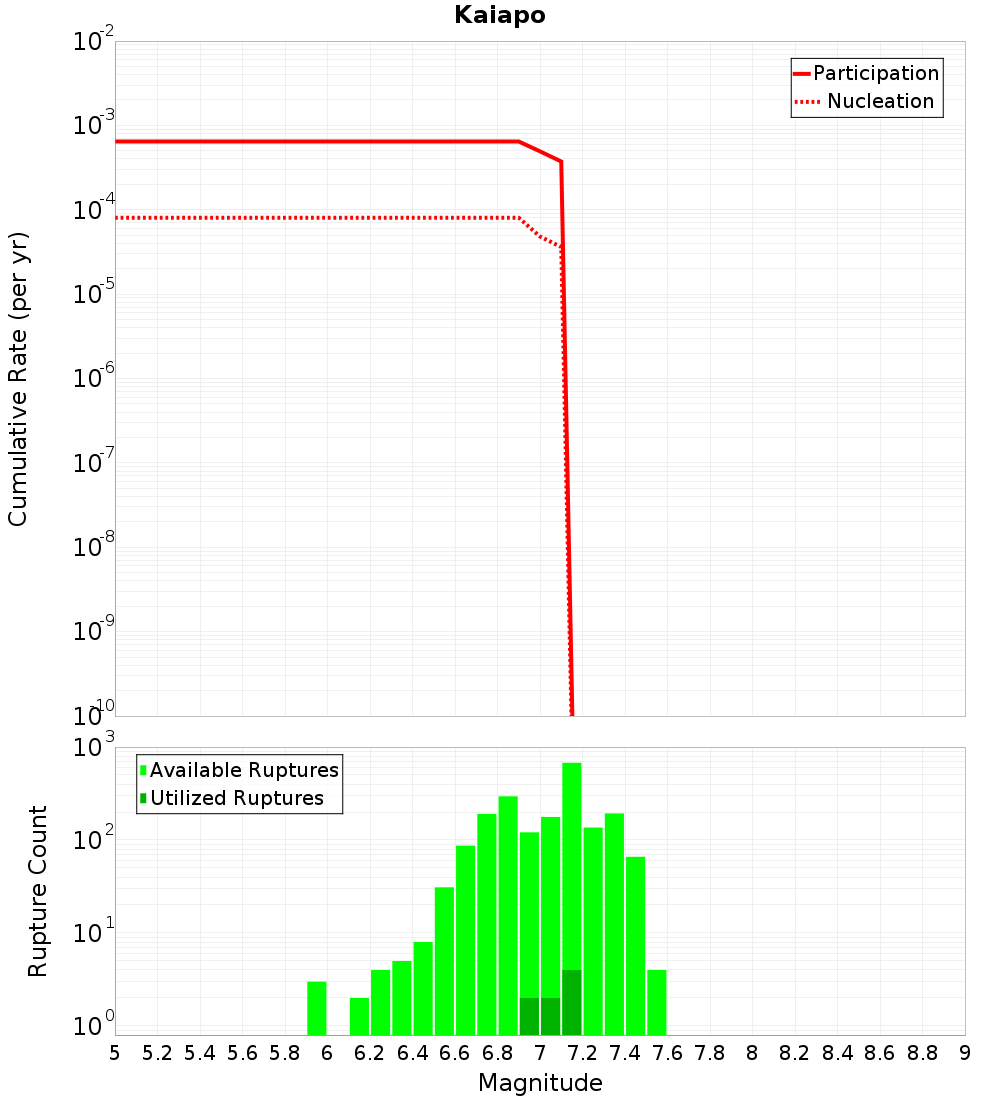

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

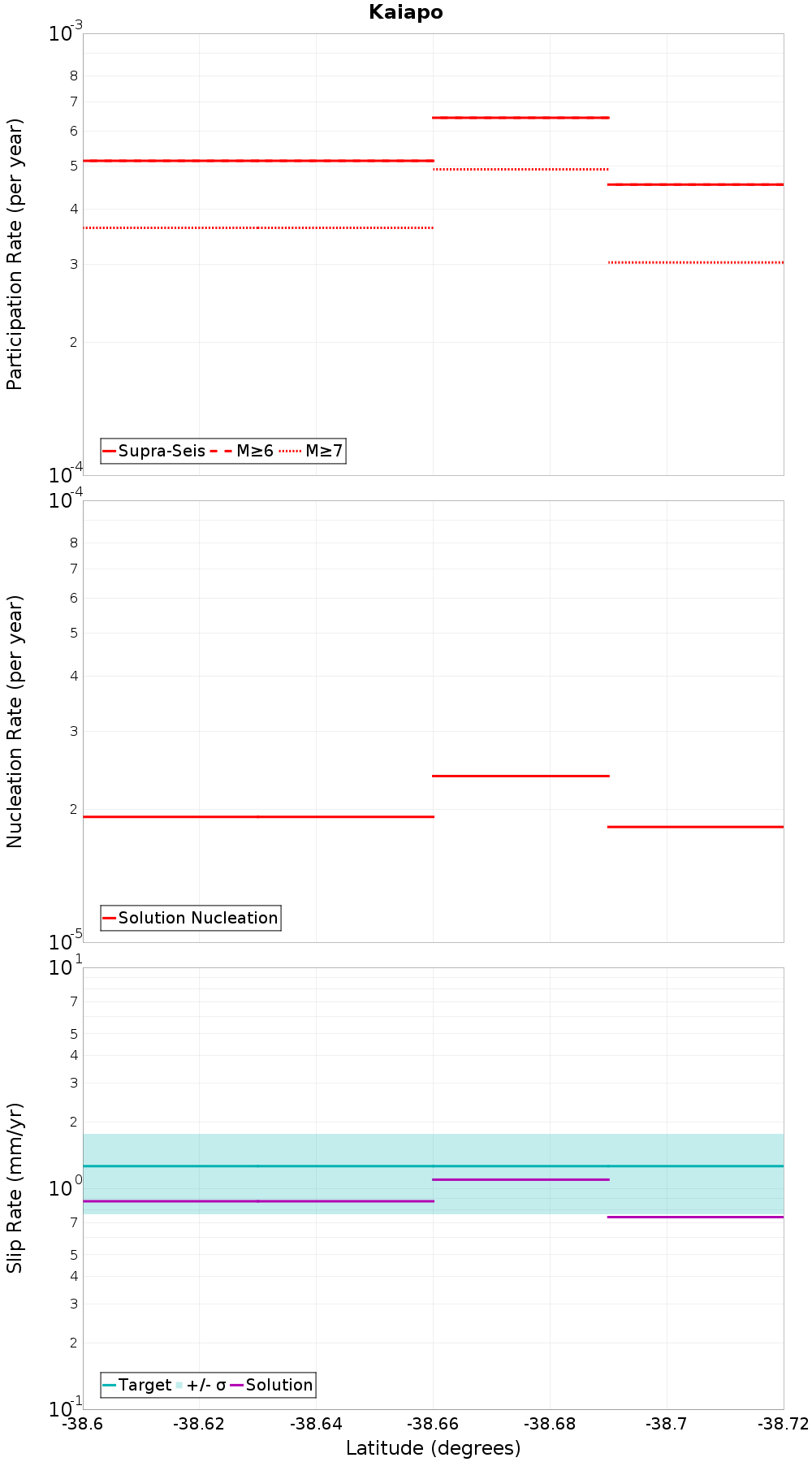

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamata West, 0.92 km away |
| Orakeikorako, 4.37 km away |
| Puketerata, 5.97 km away |
| Puketerata North, 17.13 km away |
| Maleme, 19.73 km away |
Whangamata West, 0.92 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.92 km |
| Min Rate-Weighted Dist | 1.89 km |
| Co-rupture Count | 1,328 |
| Co-rupture Rate | 2.2413692E-4 |
Orakeikorako, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.37 km |
| Min Rate-Weighted Dist | 4.37 km |
| Co-rupture Count | 1,146 |
| Co-rupture Rate | 6.262919E-4 |
Puketerata, 5.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.97 km |
| Min Rate-Weighted Dist | 5.97 km |
| Co-rupture Count | 947 |
| Co-rupture Rate | 1.5162703E-4 |
Puketerata North, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 793 |
| Co-rupture Rate | 1.7490705E-5 |
Maleme, 19.73 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,161 |
| Co-rupture Rate | 1.8916158E-4 |
