Kekerengu 1 Details
| Property | Value |
|---|---|
| Rupture Count | 25,493 |
| Ruptures Above Sect Min Mag | 25,491 |
| Ruptures w/ Nonzero Rates | 32 |
| Magnitude Range | [6.74, 8.42] |
| Length Range | [18, 977] km |
| Total Rate | 0.0012622022 /yr |
| Multi-Fault Rate | 0.0012622022 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 137 |
Table Of Contents

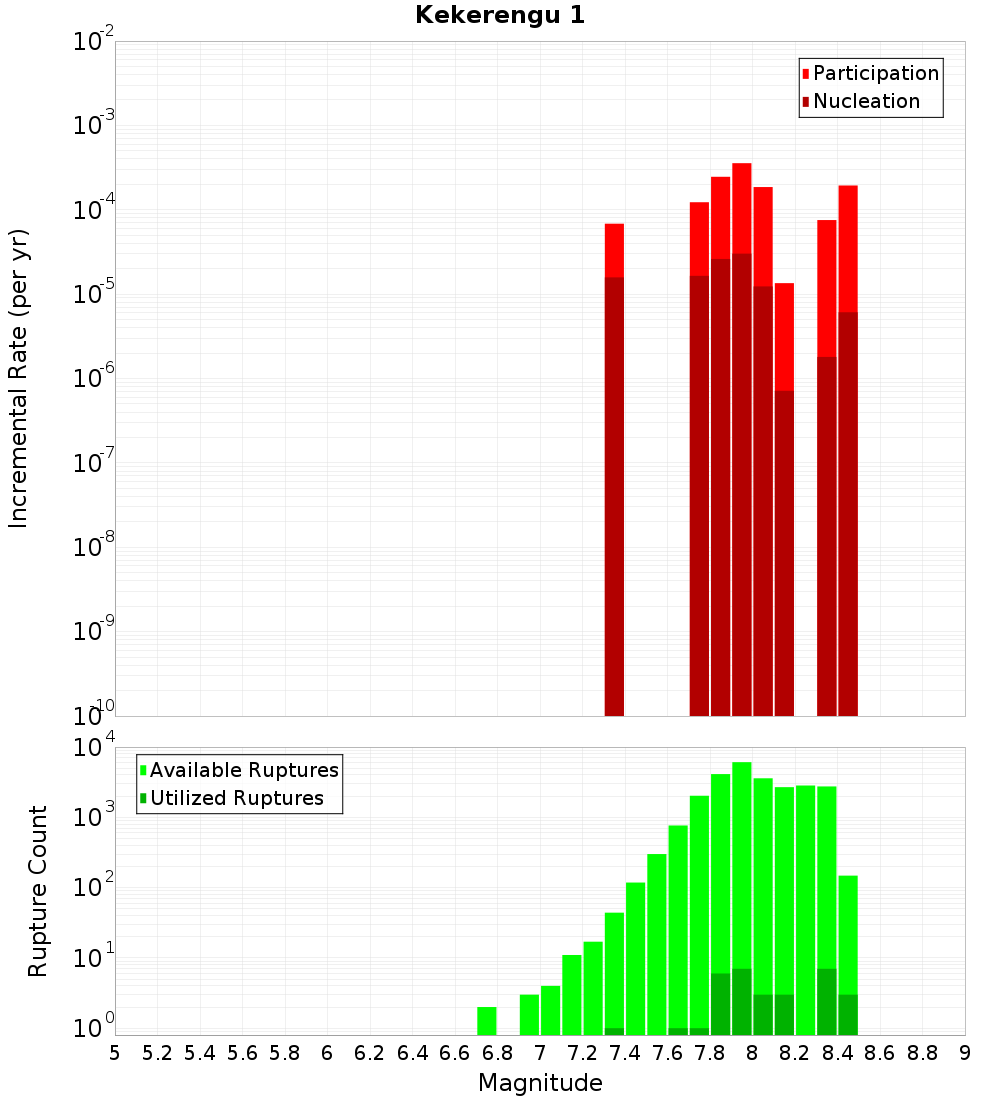

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

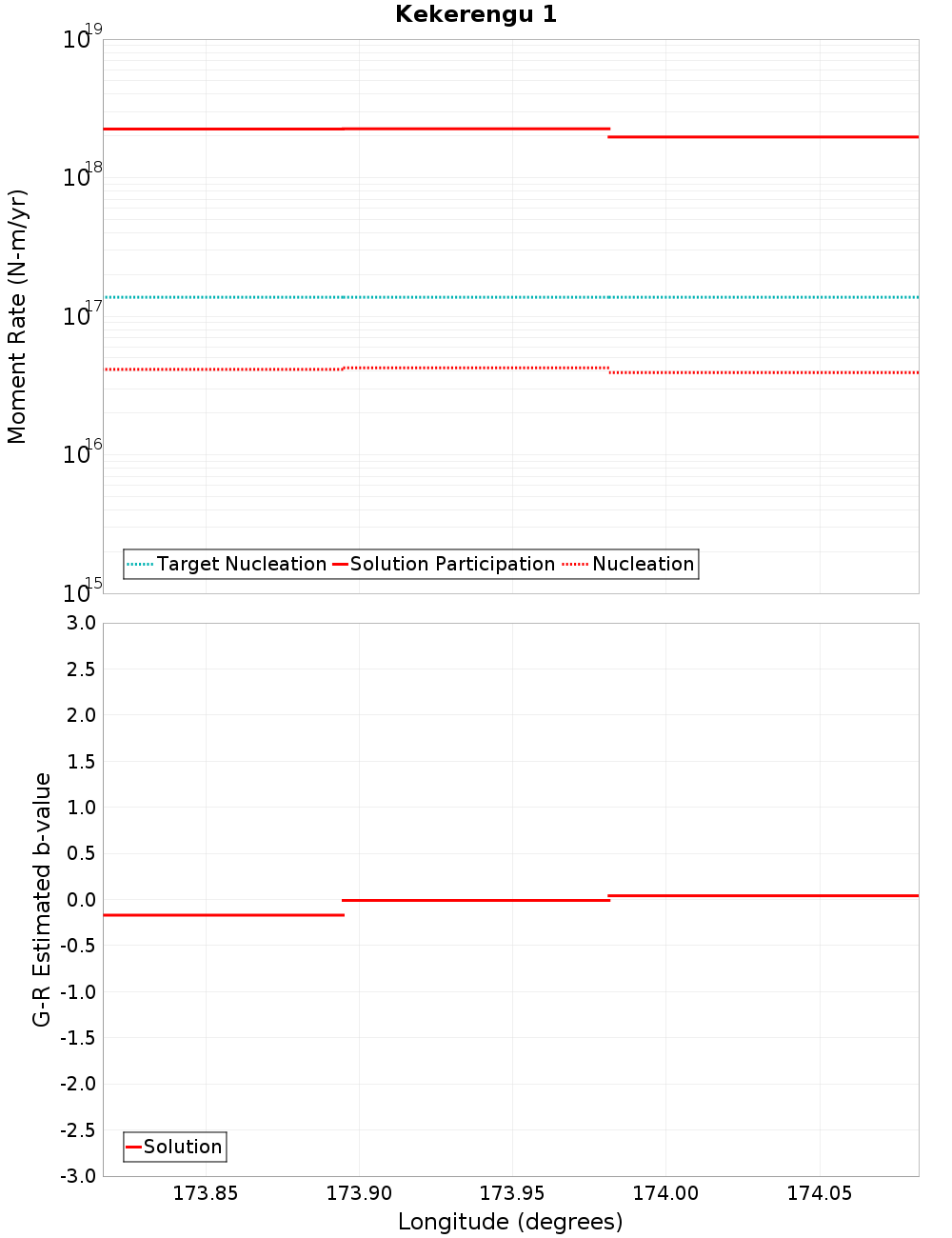

Moment-Rates and b-Values

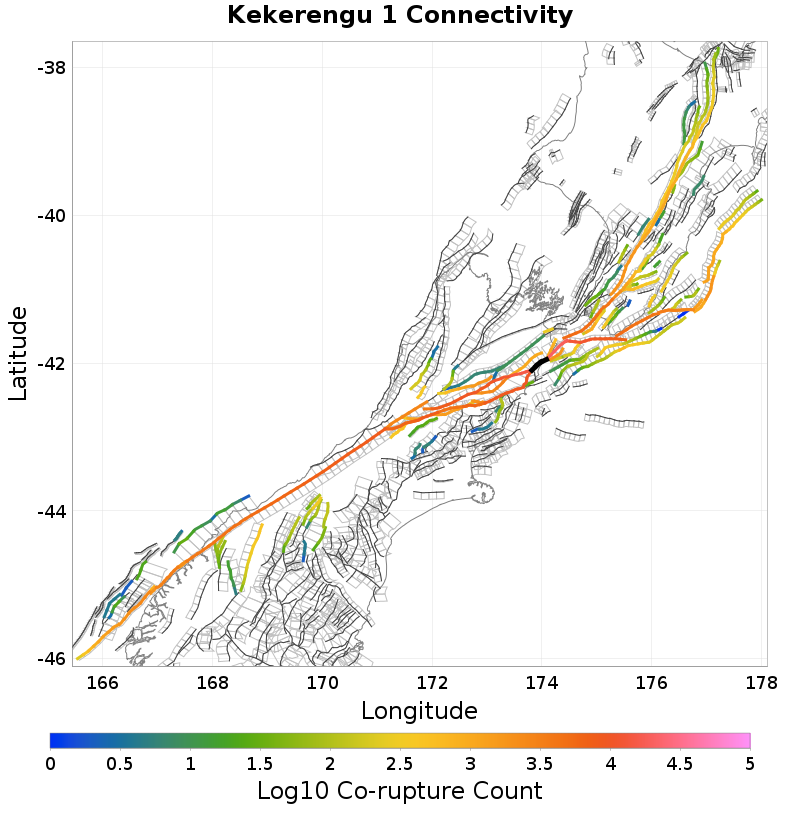

Connectivity
 |  |
|---|
Nearby Sections
Papatea, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Fidget, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 15,181 |
| Co-rupture Rate | 1.939089E-4 |
Jordan, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 9,782 |
| Co-rupture Rate | 9.99922E-4 |
London Hill, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Co-rupture Count | 1,178 |
| Co-rupture Rate | 1.115008E-5 |
Needles, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 20,066 |
| Co-rupture Rate | 0.0011183372 |
Needles East 2, 4.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.78 km |
| Min Rate-Weighted Dist | 4.78 km |
| Co-rupture Count | 1,856 |
| Co-rupture Rate | 1.115008E-5 |
Chancet, 7.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 327 |
| Co-rupture Rate | 0.0 |
Clarence: Northeast, 10.43 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 10.43 km |
| Min Rate-Weighted Dist | 10.63 km |
| Co-rupture Count | 1,009 |
| Co-rupture Rate | 1.3271498E-4 |
Hope: Seaward, 16.34 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 29 |
| Co-rupture Rate | 0.0 |
Hope: Te Rapa, 17.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 23 |
| Co-rupture Rate | 0.0 |
Upper Slope, 18.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 122 |
| Co-rupture Rate | 0.0 |
Wharanui, 18.6 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
