Mascarin Details

Property	Value
Rupture Count	28
Ruptures Above Sect Min Mag	27
Ruptures w/ Nonzero Rates	0
Magnitude Range	[7.05, 7.66]
Length Range	[28, 110] km
Total Rate	0.0 /yr
Multi-Fault Rate	0.0 /yr (NaN)
Directly-Connected Faults	4
All Co-Rupturing Faults	9

Table Of Contents

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

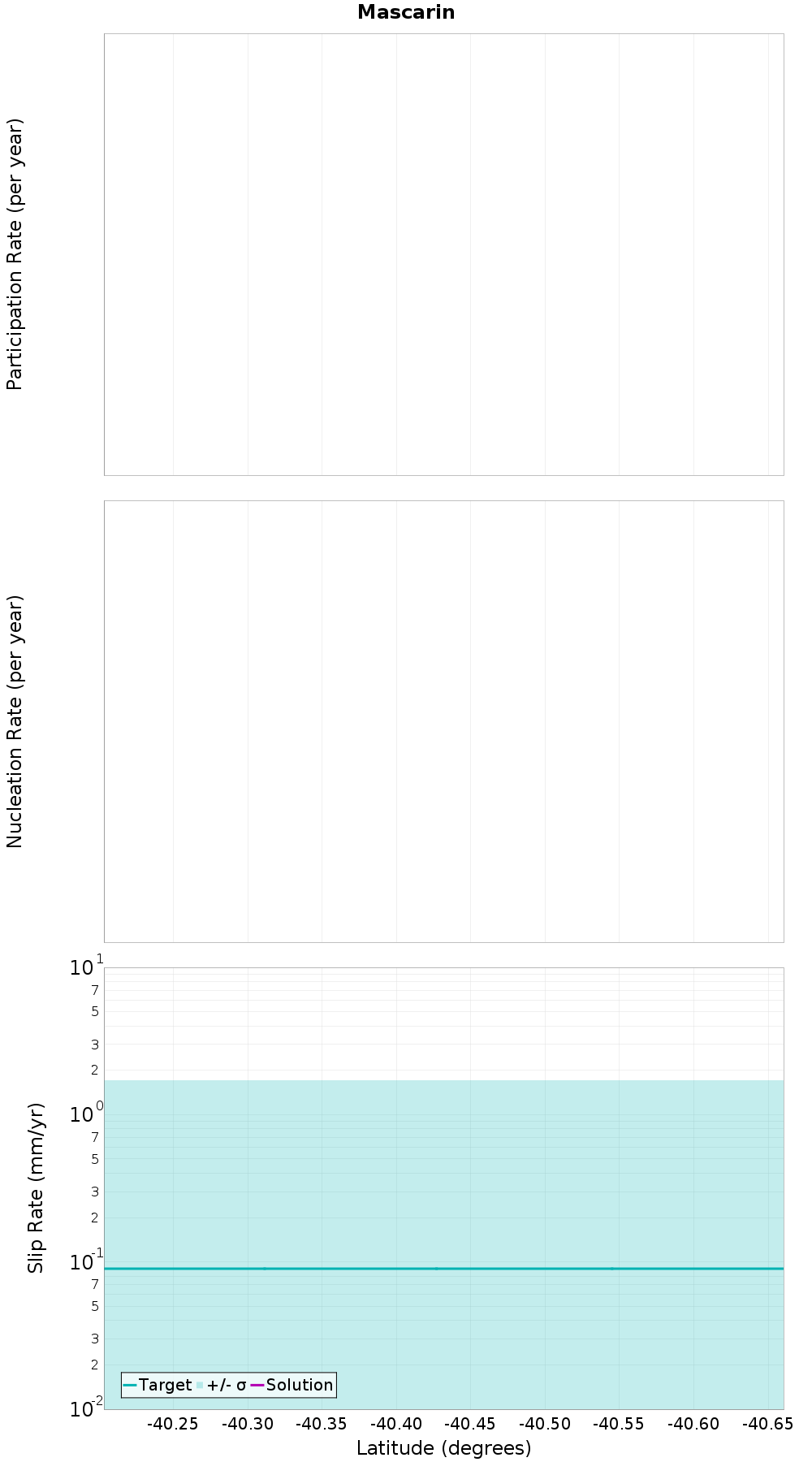

Along-Strike Values

Moment-Rates and b-Values

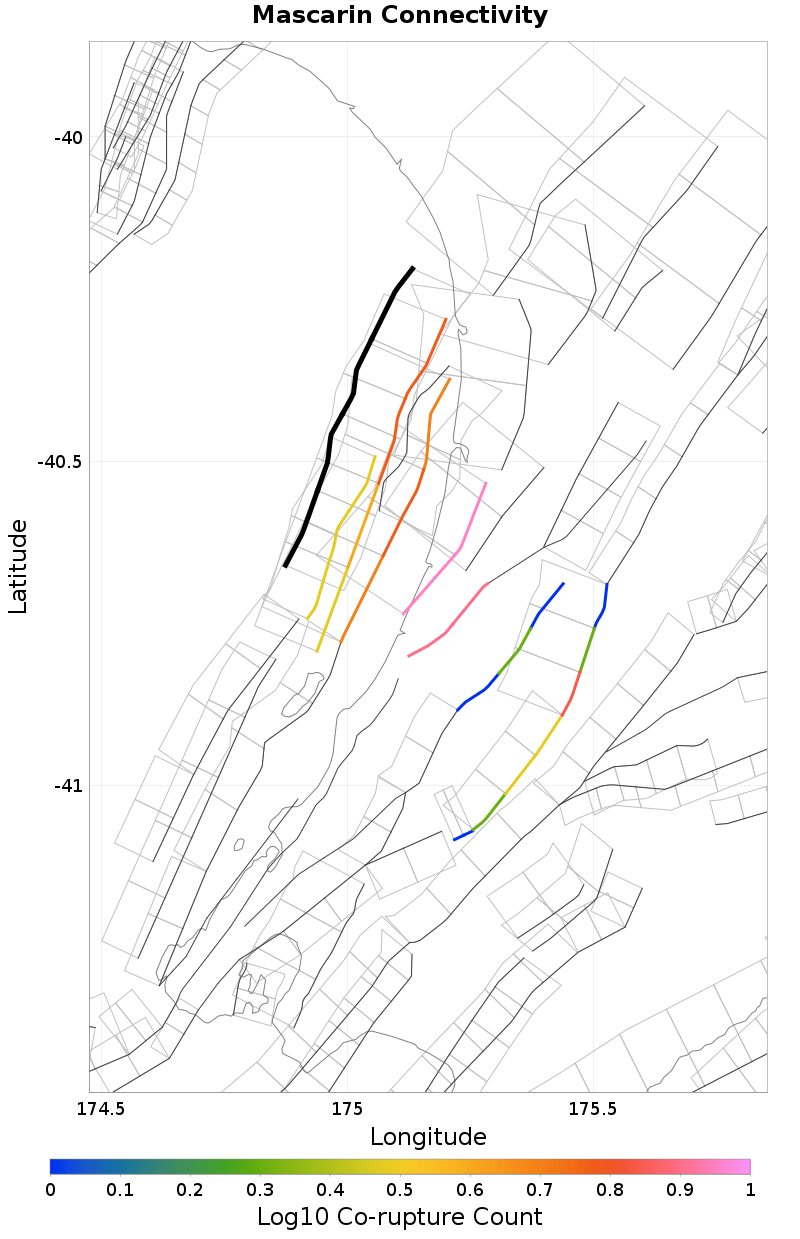

Connectivity

Nearby Sections

Fault Section	Fault Section
Onepoto, 0.02 km away	Fisherman 2, 6.99 km away
Otaheke North, 0.13 km away	Otaheke South, 7.24 km away
Poroutawhao, 0.19 km away	Rangitikei Offshore 1, 9.59 km away
Fisherman 3, 0.2 km away	Rauoterangi, 10.66 km away
Himatangi, 0.37 km away	Taonui, 12.09 km away
Mt Stewart, 1.32 km away	Okupe 1, 15.37 km away
Levin Anticline, 1.36 km away	Northern Ohariu, 17.61 km away
Leedstown, 3.97 km away	Ohariu, 19.56 km away

Onepoto, 0.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.02 km
Co-rupture Count	6
Co-rupture Rate	0.0

Otaheke North, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.13 km
Co-rupture Count	6
Co-rupture Rate	0.0

Poroutawhao, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.47 km
Co-rupture Count	9
Co-rupture Rate	0.0

Fisherman 3, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.25 km
Co-rupture Count	3
Co-rupture Rate	0.0

Himatangi, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Stewart, 1.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Levin Anticline, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leedstown, 3.97 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fisherman 2, 6.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke South, 7.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitikei Offshore 1, 9.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rauoterangi, 10.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Taonui, 12.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okupe 1, 15.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Northern Ohariu, 17.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0

Ohariu, 19.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
