North Canterbury Shelf 4 Details
| Property | Value |
|---|---|
| Rupture Count | 57 |
| Ruptures Above Sect Min Mag | 57 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.82, 7.65] |
| Length Range | [22, 139] km |
| Total Rate | 2.5127025E-5 /yr |
| Multi-Fault Rate | 2.5127025E-5 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

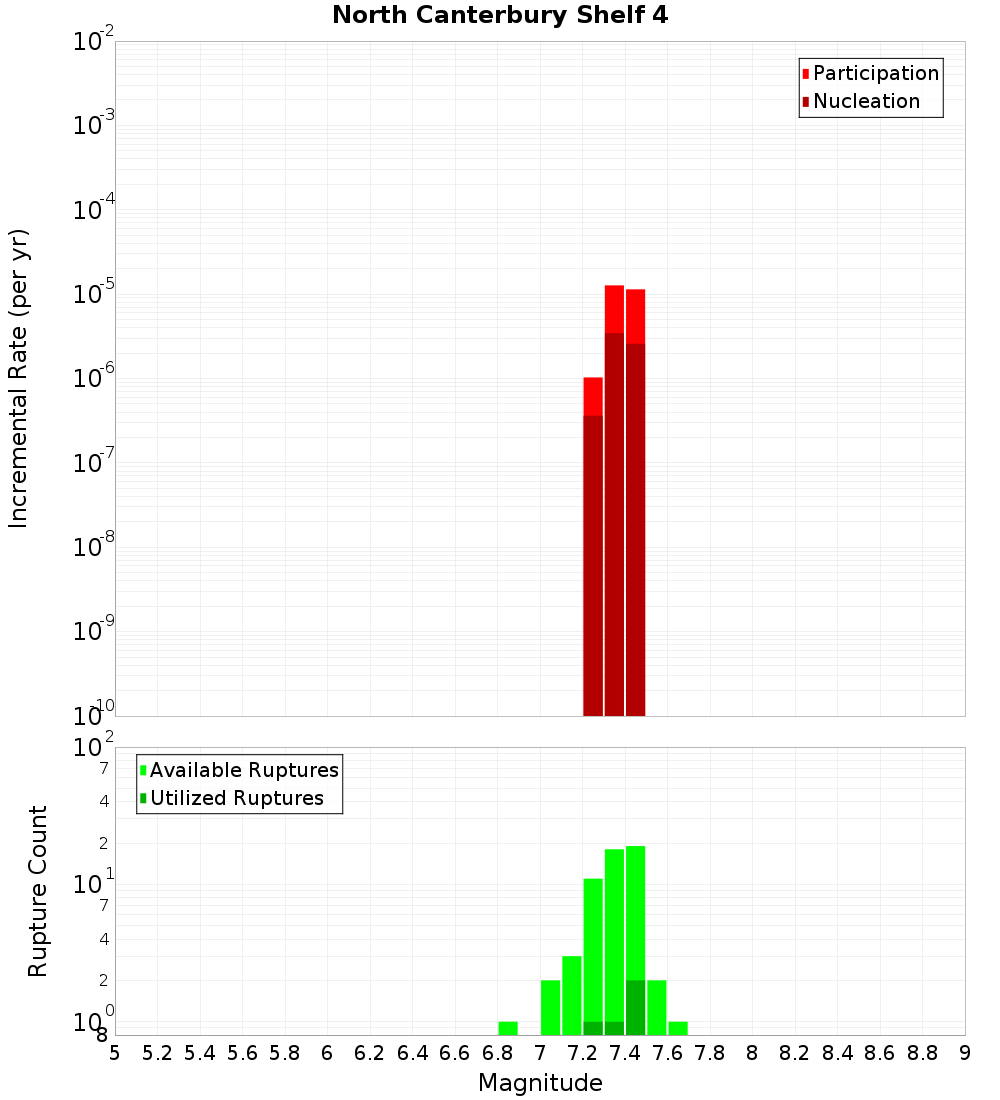

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

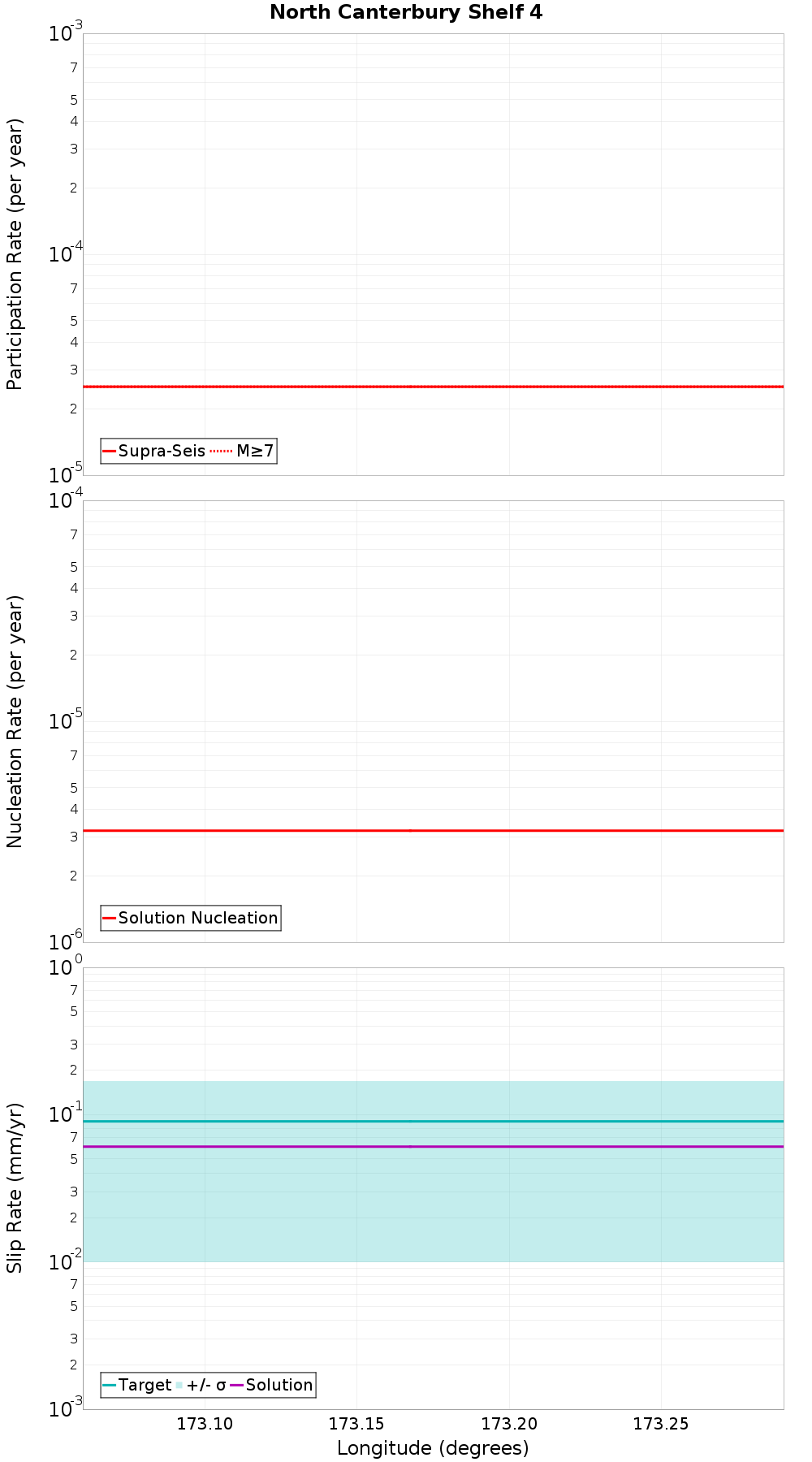

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Pegasus Bay, 1.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.54 km |
| Min Rate-Weighted Dist | 1.54 km |
| Co-rupture Count | 40 |
| Co-rupture Rate | 2.409737E-5 |
Leithfield - NCVI - NCVII, 4.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.47 km |
| Min Rate-Weighted Dist | 4.47 km |
| Co-rupture Count | 36 |
| Co-rupture Rate | 1.242633E-5 |
Waikuku, 5.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
North Canterbury Shelf 11, 5.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 5.8 km |
| Min Rate-Weighted Dist | 5.8 km |
| Co-rupture Count | 17 |
| Co-rupture Rate | 1.2700695E-5 |
Motunau, 5.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 1.2700695E-5 |
North Canterbury Shelf 2, 7.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 3.645934E-8 |
Point Gibson, 9.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
AmberBlyth, 11.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 8 |
| Co-rupture Rate | 0.0 |
CenPeg1n2, 17.71 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
OmihiLwrHuru, 18.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
