Pahaua Details
| Property | Value |
|---|---|
| Rupture Count | 7,870 |
| Ruptures Above Sect Min Mag | 7,807 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.46, 8.44] |
| Length Range | [15, 1,121] km |
| Total Rate | 1.12718975E-4 /yr |
| Multi-Fault Rate | 1.12718975E-4 /yr (100.00%) |
| Directly-Connected Faults | 5 |
| All Co-Rupturing Faults | 66 |
Table Of Contents

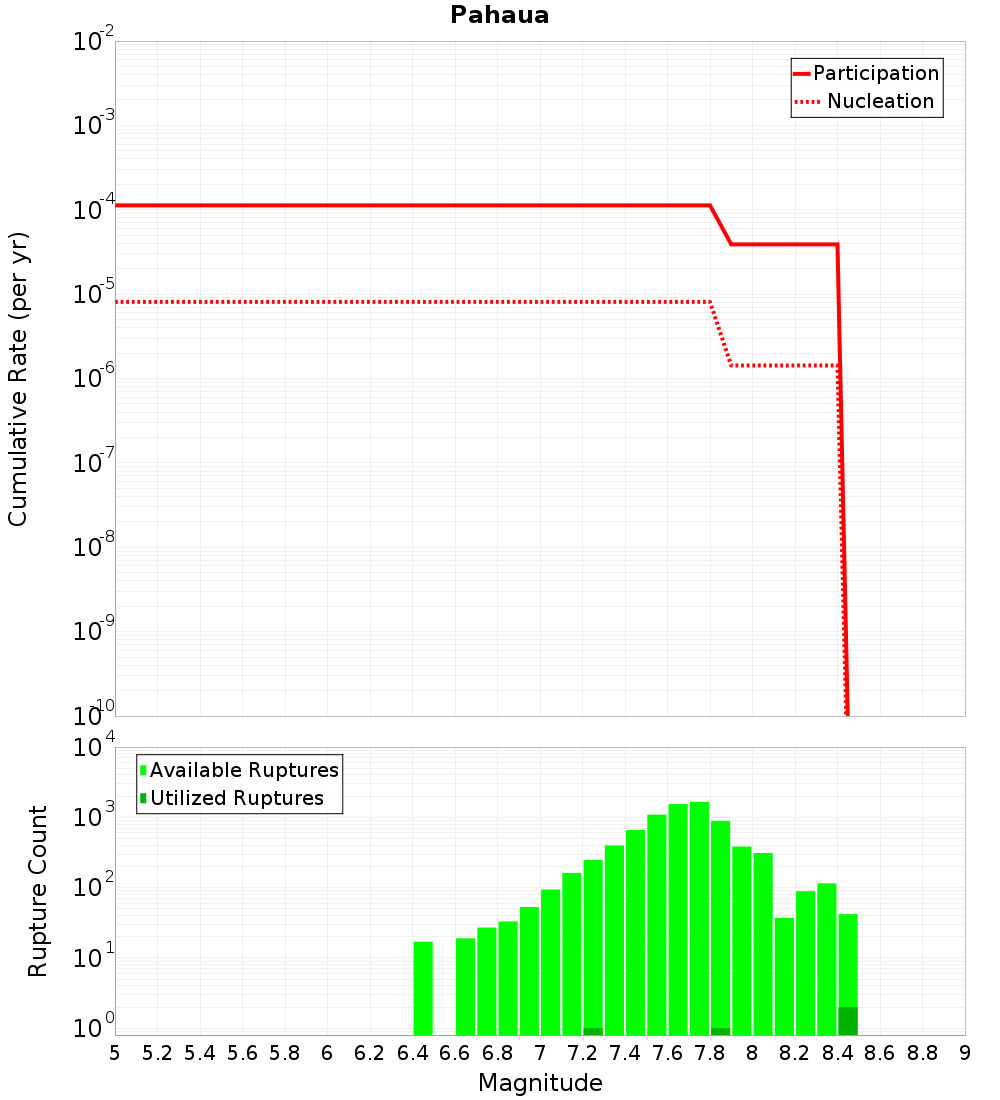

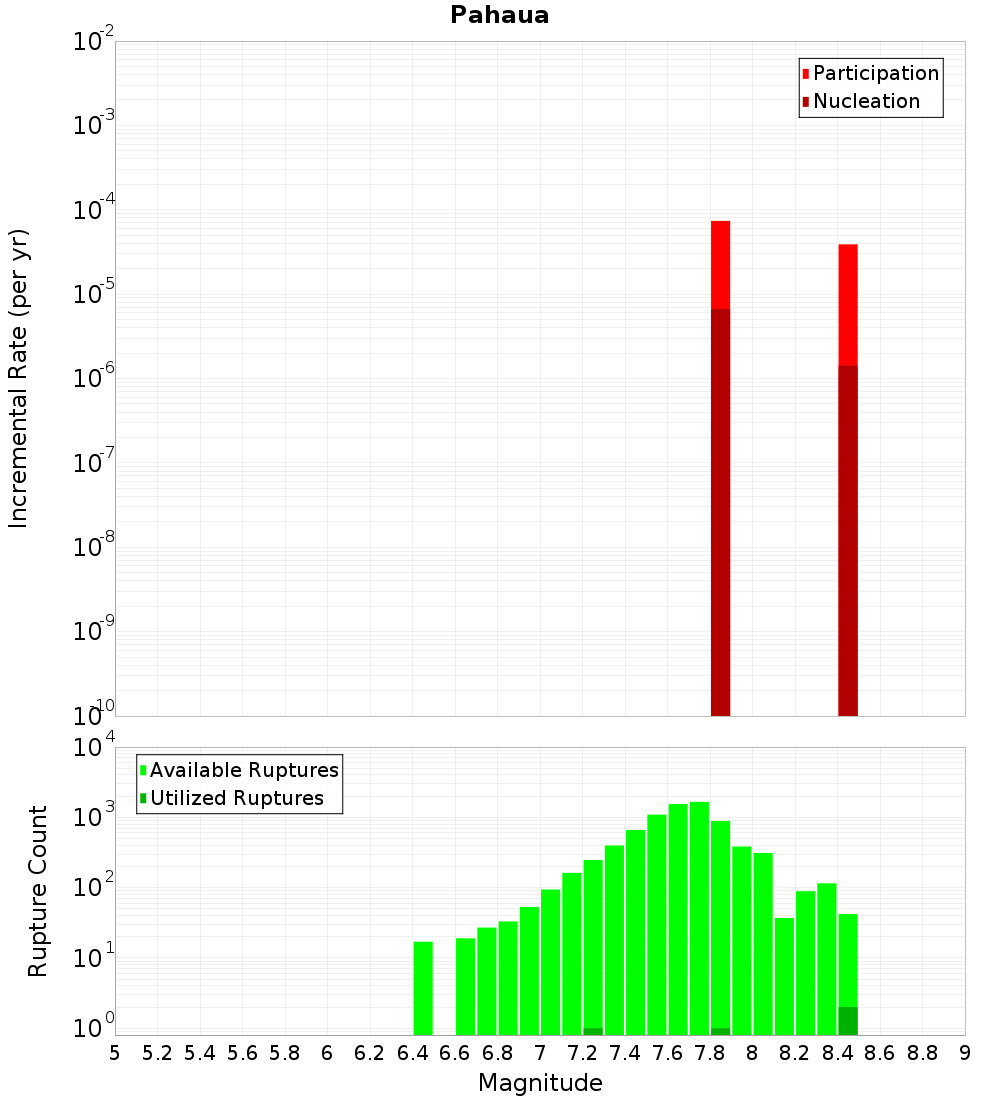

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

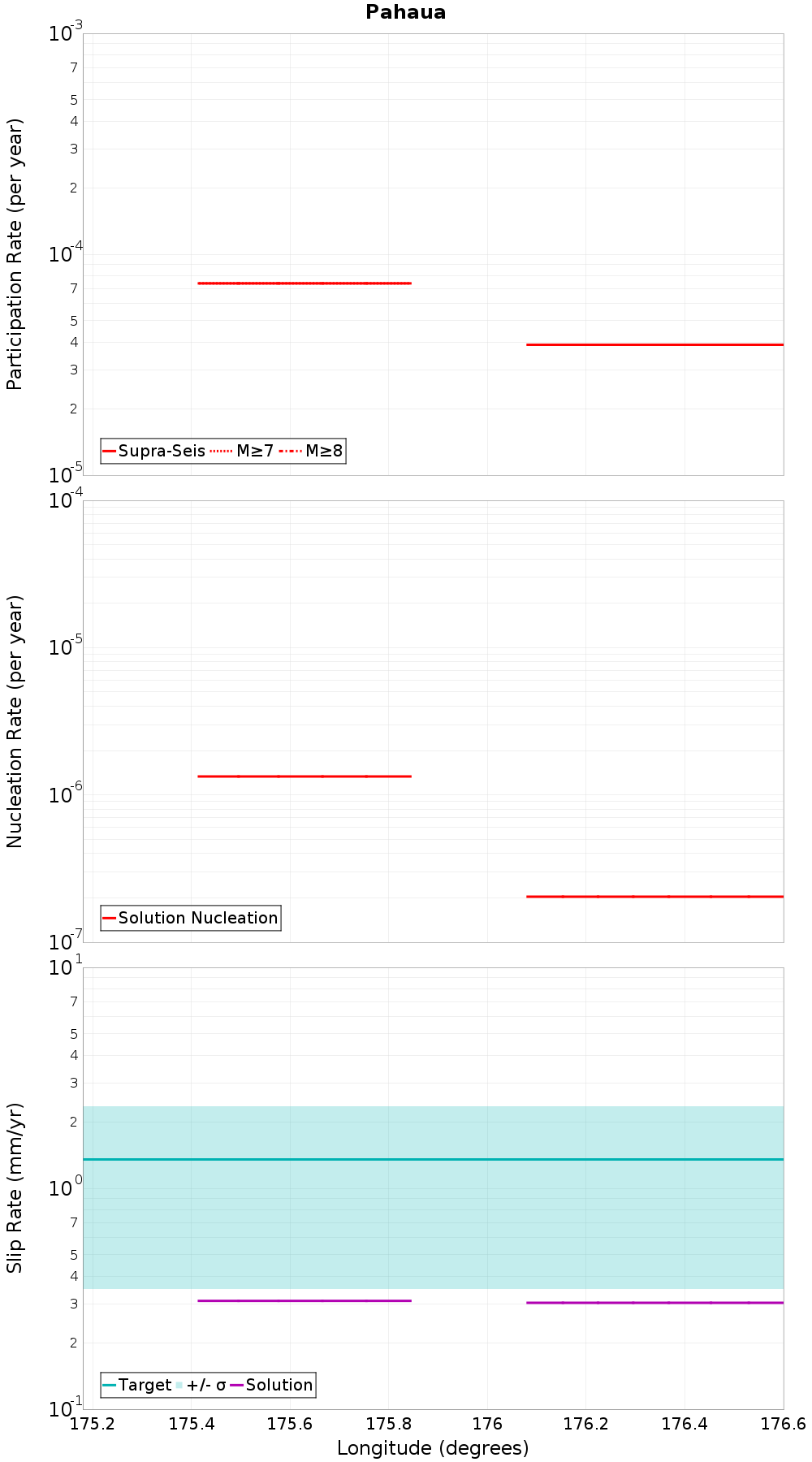

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Kekerengu Bank, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0 km |
| Min Rate-Weighted Dist | 0 km |
| Co-rupture Count | 3,554 |
| Co-rupture Rate | 6.870283E-16 |
BooBoo, 1.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.46 km |
| Min Rate-Weighted Dist | 1.46 km |
| Co-rupture Count | 2,479 |
| Co-rupture Rate | 7.380935E-5 |
Uruti Basin, 1.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 1.79 km |
| Co-rupture Count | 2,093 |
| Co-rupture Rate | 0.0 |
Opouawe - Uruti, 2.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 2.7 km |
| Min Rate-Weighted Dist | 2.7 km |
| Co-rupture Count | 4,125 |
| Co-rupture Rate | 3.8909628E-5 |
Uruti Basin 2, 4.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 4.25 km |
| Co-rupture Count | 220 |
| Co-rupture Rate | 0.0 |
Uruti East - PorWest 1, 11.57 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,011 |
| Co-rupture Rate | 0.0 |
Te Rapa 2, 11.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 769 |
| Co-rupture Rate | 3.8909628E-5 |
Uruti Ridge 2, 13.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,622 |
| Co-rupture Rate | 0.0 |
Honeycomb, 13.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 184 |
| Co-rupture Rate | 0.0 |
Palliser - Kaiwhata, 13.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 627 |
| Co-rupture Rate | 0.0 |
Whareama Bank, 18.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
