Patoka - Rangiora Details

Property	Value
Rupture Count	3,063
Ruptures Above Sect Min Mag	3,060
Ruptures w/ Nonzero Rates	0
Magnitude Range	[6.83, 8.22]
Length Range	[22, 589] km
Total Rate	0.0 /yr
Multi-Fault Rate	0.0 /yr (NaN)
Directly-Connected Faults	4
All Co-Rupturing Faults	76

Table Of Contents

Along-Strike Values
- Moment-Rates and b-Values

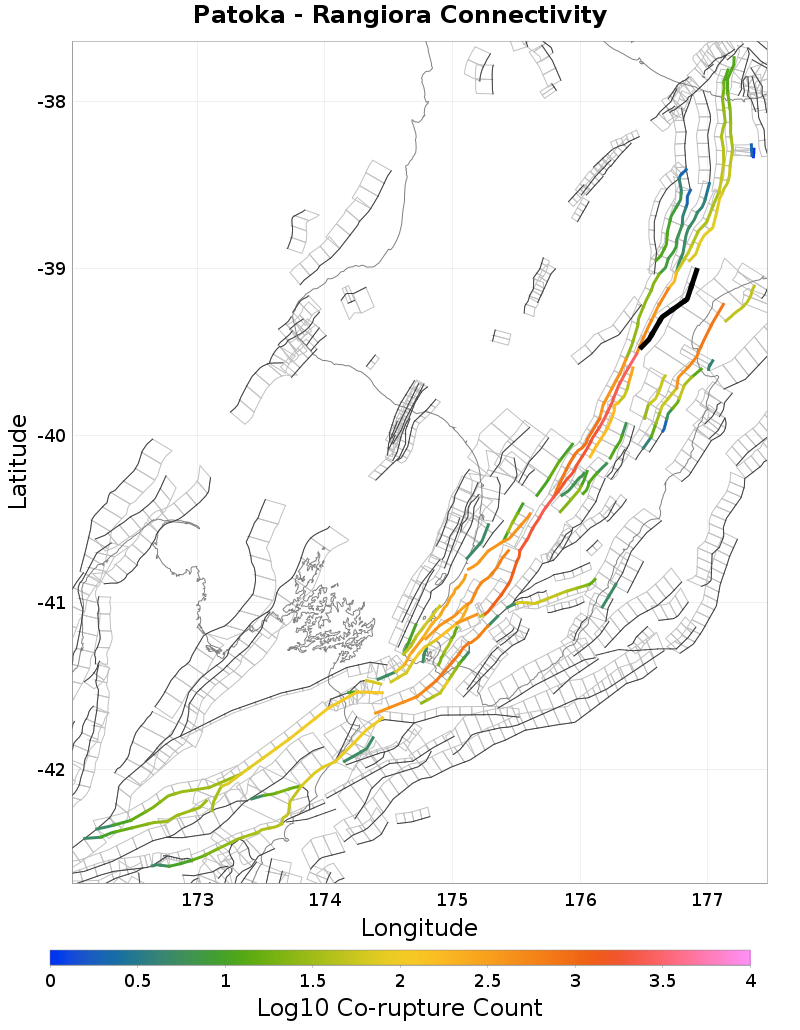

Connectivity
- Nearby Sections

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Awanui, 0.4 km away
Mohaka: North, 0.47 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.71 km away
Hawke Bay 1, 8.15 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.36 km away
Ruahine: Central, 12.66 km away
Wakarara, 14.99 km away
Kaweka, 15.89 km away
Te Heka, 17.85 km away
Waiohau: South, 19.65 km away

Awanui, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	0.4 km
Co-rupture Count	744
Co-rupture Rate	0.0

Mohaka: North, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.75 km
Co-rupture Count	729
Co-rupture Rate	0.0

Mohaka: South, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	5.52 km
Co-rupture Count	2,970
Co-rupture Rate	0.0

Ruahine: North, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	0.0

Waiotahi: South, 7.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	82
Co-rupture Rate	0.0

Hawke Bay 1, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	true
Min Co-Rupture Dist	8.15 km
Co-rupture Count	48
Co-rupture Rate	0.0

Waimana: South, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	52
Co-rupture Rate	0.0

Whakatane: South, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Ruahine: Central, 12.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	400
Co-rupture Rate	0.0

Wakarara, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	293
Co-rupture Rate	0.0

Kaweka, 15.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 17.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	0.0

Waiohau: South, 19.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0
