Poutu Details
| Property | Value |
|---|---|
| Rupture Count | 37 |
| Ruptures Above Sect Min Mag | 6 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [6.21, 6.90] |
| Length Range | [10, 53] km |
| Total Rate | 4.745696E-4 /yr |
| Multi-Fault Rate | 4.745696E-4 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

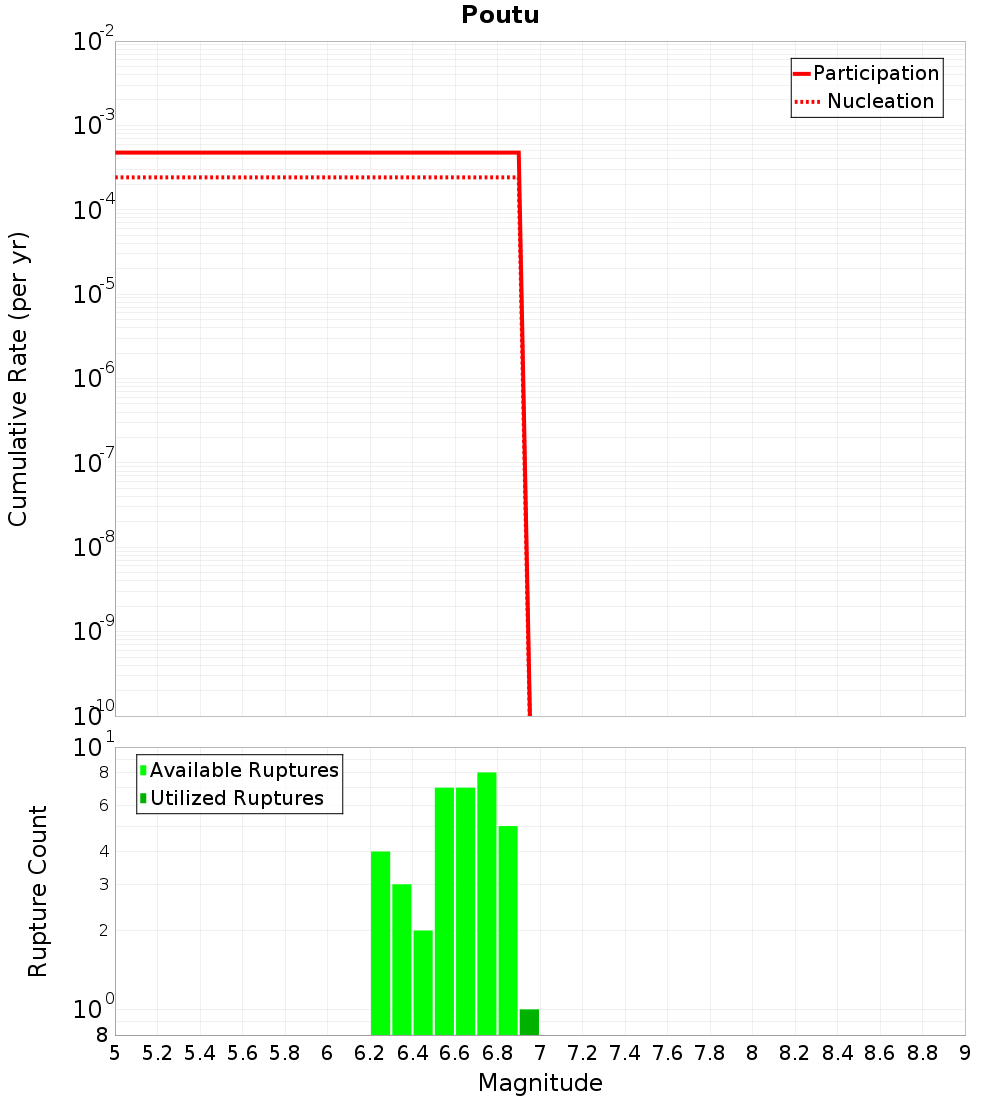

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

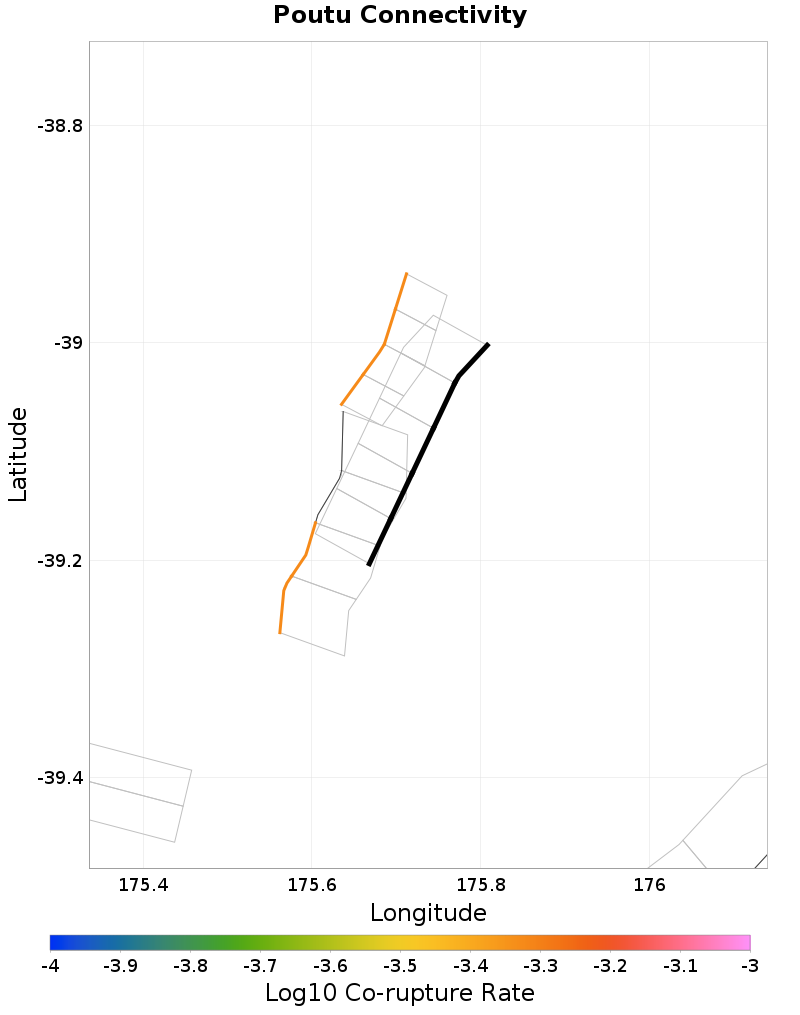

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Waihi South, 0.28 km away |
| Waihi West, 0.3 km away |
Waihi South, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.29 km |
| Min Rate-Weighted Dist | 0.29 km |
| Co-rupture Count | 16 |
| Co-rupture Rate | 4.745696E-4 |
Waihi West, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MTEzMDMw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Min Co-Rupture Dist | 0.3 km |
| Min Rate-Weighted Dist | 0.3 km |
| Co-rupture Count | 17 |
| Co-rupture Rate | 4.745696E-4 |
